1535nm Laser Rangefinder Module Eye-safe Long Distance Laser Ranging Sensor 25KM

1535nm Laser Rangefinder Module Eye-safe Long Distance Laser Ranging Sensor 25KM

Model: LRF2535C-01
The LRF2535C laser rangefinder module is a high-performance long-range laser distance sensor module, designed for precise measurements over extended distances. With a wavelength of 1535nm and Class I eye safety, it can accurately measure up to 28,000 meters for large targets and 25,000 meters for vehicle-sized targets. This makes it ideal for applications requiring extreme range capabilities, such as military surveillance, aerospace, defense, and geospatial surveying and mapping. This compact 1535nm rangefinder module also offers reliable performance for detecting drones (up to 2,500 meters) and people (up to 4,800 meters). The high-precision 1535nm laser module features ±1m accuracy, high precision, and supports multi-target detection. Its robust design ensures effective operation in extreme temperatures, making it highly versatile for demanding long-range applications.

The LRF2523C laser rangefinder module is a long-range device developed by Erdi, utilizing their independently developed 1535nm glass laser. It employs the single-pulse Time of Flight (TOF) ranging principle, achieving a range of ≥25km for targets measuring 4m×6m.

This laser rangefinder module integrates key components including a laser source, transmitting optical system, receiving optical system, and a control circuit board. For user convenience and secondary development, it features an RS422 serial interface and embedded software.

The LRF2523C offers comprehensive functions such as single and continuous ranging, three-target ranging capability, and a self-check function for front/rear target indication (reporting current APD temperature, high voltage value, internal voltage, and blind zone value). It also includes a standby wake-up function.

Project

Performance Indicators

Model

LRF2535C

Laser Wavelength

1535±5nm

Eye Safety

Class Ⅰ (IEC 60825-1)

Divergence Angle

≤0.30 mrad

Receiving Field of View (FOV)

~1.8 mrad

Launch Lens Diameter

Φ18mm

Receiver Lens Diameter

Φ60mm

Measuring Range

（Reflectance 30%; visibility ≥ 28km.）

Big Target（4m×6m)

≥28000 m



Vehicle target(3m×3m)

≥ 25000 m



People(0.5m×1.7m)

≥ 4800 m



Drones(0.2m×0.3m)

≥2500 m

Minimum Range

50 m

Ranging Frequency

0.5~10Hz

Ranging Accuracy

±1 m

Range Resolution

≤30 m

Precision Rate

≥98%

False Alarm Rate

≤1%

Number of multi-target detections

Up to 3 targets

Electrical Interface

molex- 532610771

Supply Voltage

DC12 V

Standby power consumption

≤1.2W

Average power consumption

≤2 W



Peak Power Consumption

≤3W

Weight

≤430g

Dimension (L×W×H)

125mm×100mm×70mm

Operating Temperature

-40～+70 ℃

Storage Temperature

-55～+75 ℃

Impact Resistance

1200 g/1 ms（GJB150.16A-2009）

Anti-vibration

5～50～5 Hz，1 Octave range /min，2.5 g

Ranging Logic

First and last target, multi-target ranging, distance selectivity

Activation Time

≤950 ms

Data Interface

TTL

Electrical isolation

Isolation of power ground, communication ground and structure ground

Reliability

MTBF ≥ 1500h

Optical axis stability

≤0.05 mrad

Non-parallelism between optical axis and mounting surface

≤0.5 mrad

Protection Class

IP67

ESD Class

(Lens position)

Contact discharge 6kV

Air discharge 8kV

Electromagnetic Compatibility (EMC)

CE/FCC Certification

Eco-friendly

RoHS2.0

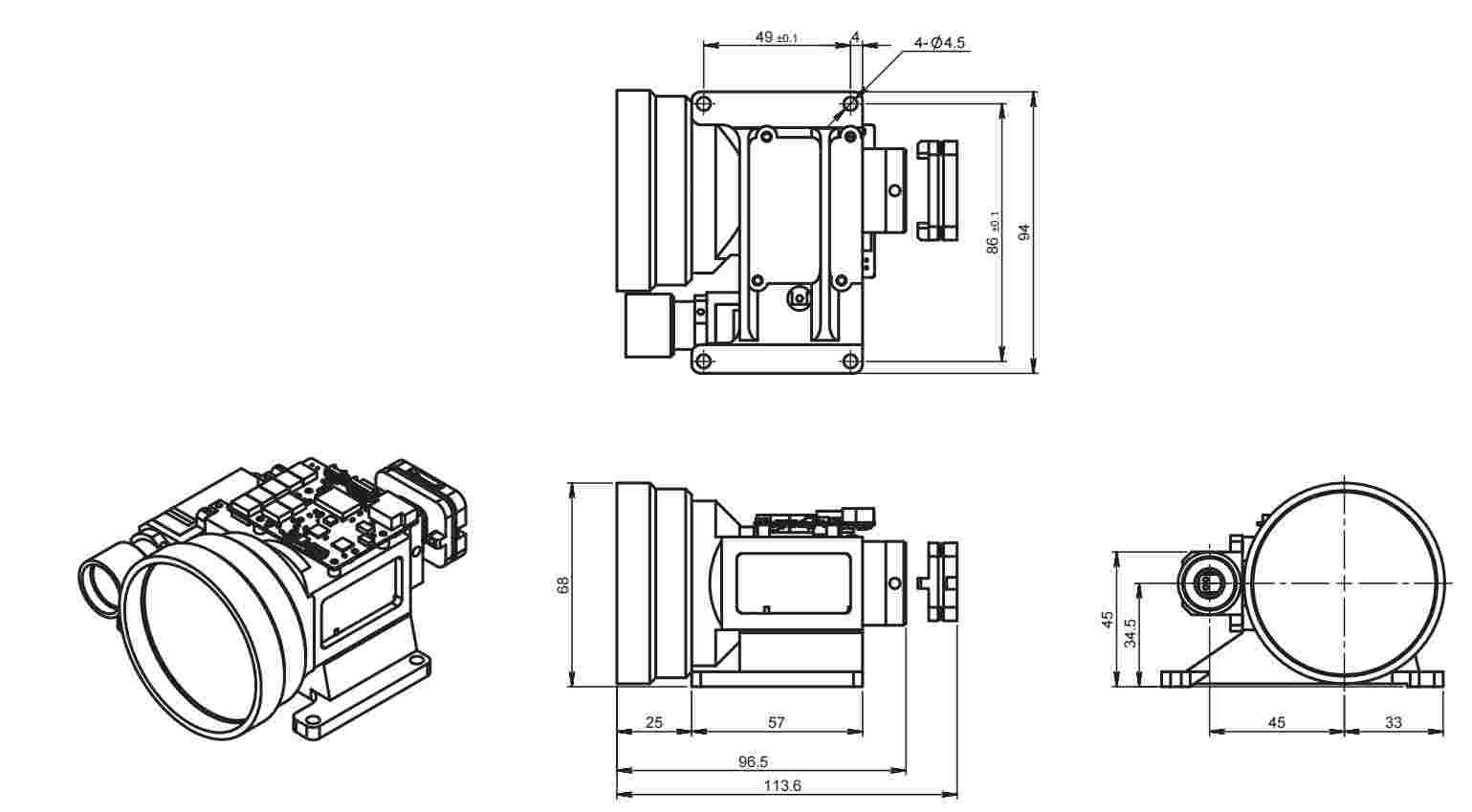

2D Dimension Image
Communication Interface
Download Product Instructions Download PC Upper Computer
