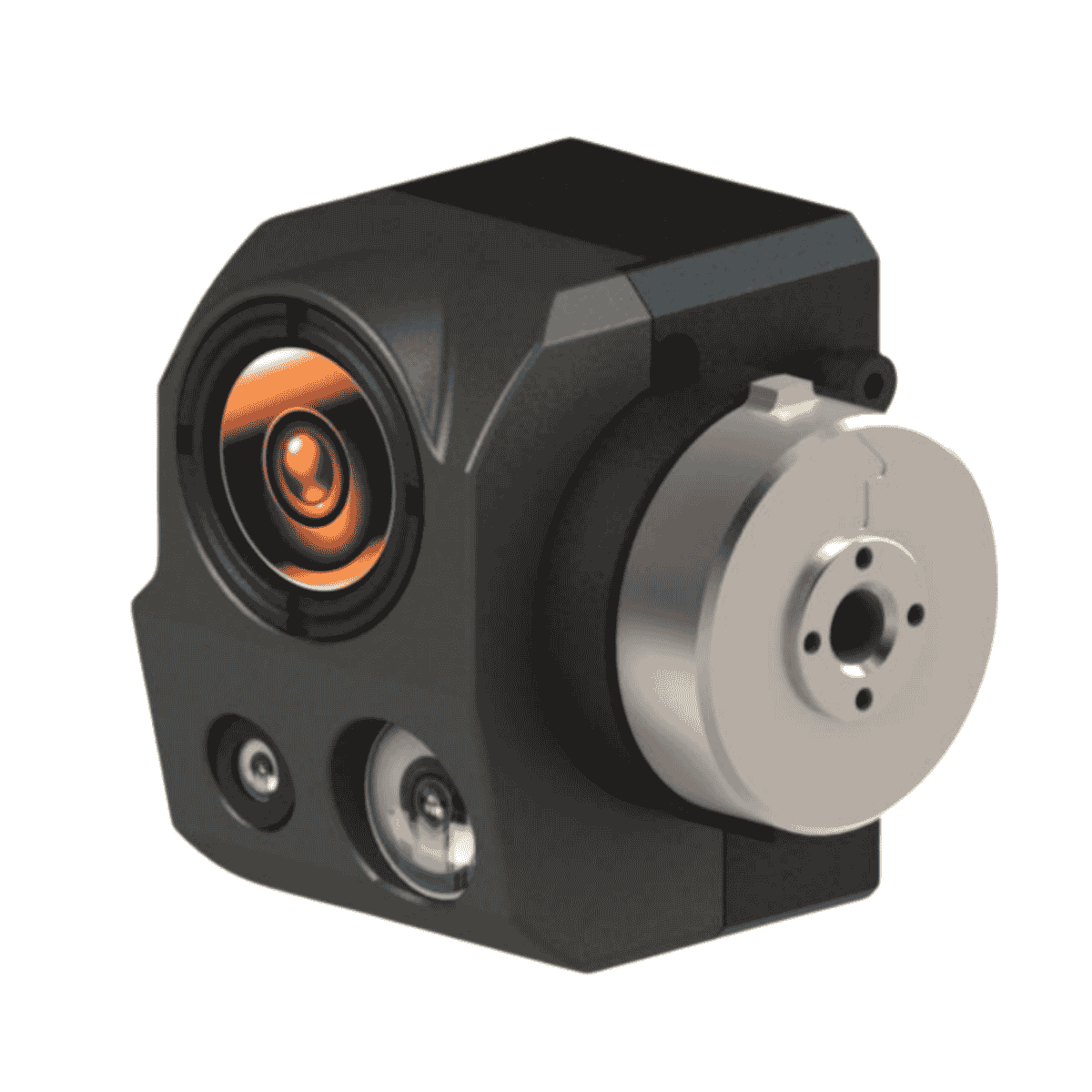

PODS30B-01 Micro Guidance Pod: Precision Targeting for Small UAVs

PODS30B-01 Micro Guidance Pod: Precision Targeting for Small UAVs

Unlock precision for small drones with the PODS30B-01 Micro Guidance Pod. Weighing under 110 grams, this ultra-compact and ultra-lightweight pod offers seamless integration with small UAVs, UAS, and sUAS, especially catapult-launched UAVs. Engineered to withstand high-G shocks and perform reliably under extreme deployment conditions, it features advanced servo stabilization for stable target acquisition and consistent tracking in dynamic environments. Equipped with built-in tracking and advanced AI recognition technology (Automatic Target Recognition - ATR), the PODS30B automatically identifies and locks onto targets with extremely high accuracy. This intelligent function significantly boosts mission efficiency and mission success rate, making it the essential UAV targeting system for critical surveillance, reconnaissance (ISR), and precision-guided operations. Experience military-grade precision in a miniaturized design.
System specification
System type Gyro stability
Weight ≤110g
System characteristics
Platform type Single-axis
Pitch -90°~+90°
Max angular velocity ≥60°/s
Vibration angle 0. 1mrad(1°/2HZ)( 1σ)
Encoder accuracy ≤0.3°
Visible Light Imaging (Wide Field of View)
Resolution and frame rate 1920×1080@60fps
FOV 82.0°×52.2°(3.2mm)
Visible Light Imaging (Narrow Field of View)
Resolution and frame rate 1920×1080@60fps
FOV 30.0°×17.2°(10.36mm)
Thermal IR (13mm)
Resolution and frame rate 640×512@30fps
FOV 32.9°×26.6°
Tracking module
Tracking speed ≥40°/s
AI recognition
Target type Human & Vehicle
System external interface
Control interface TTL
Video output Network/AV
Power supply
Supply voltage 12V & 5V
Power consumption Av.≤10W
Max.≤20W
Environmental condition
Working temp -40℃~+60℃
Storage temp -40℃~+60℃
High-G shock resistance ≥400g

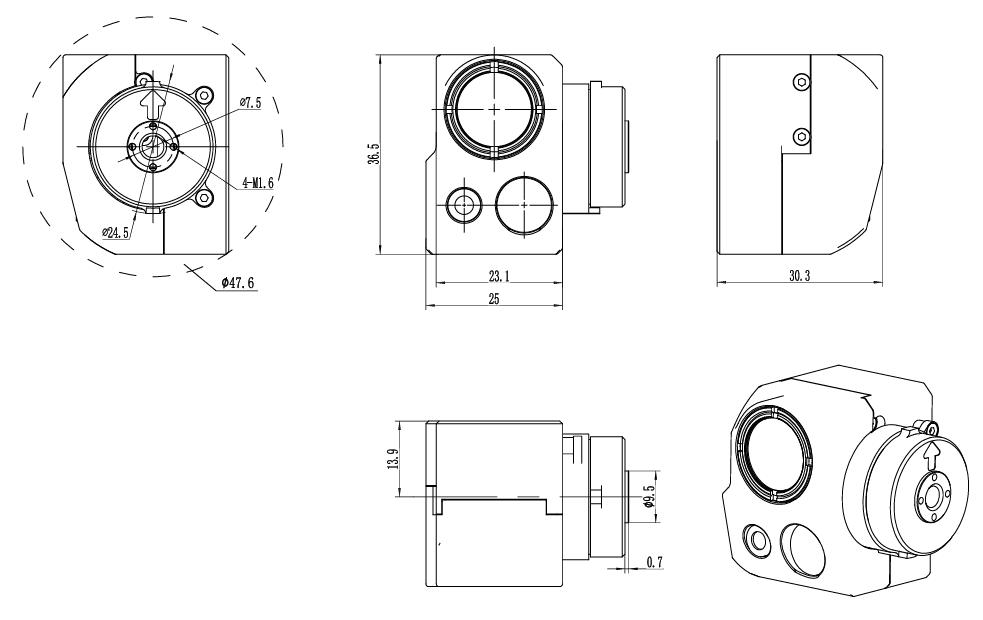

2D Dimension Image
