Advanced Long-Range Laser Targeting System, 1064nm laser target designator 60mJ
Advanced Long-Range Laser Targeting System, 1064nm laser target designator 60mJ

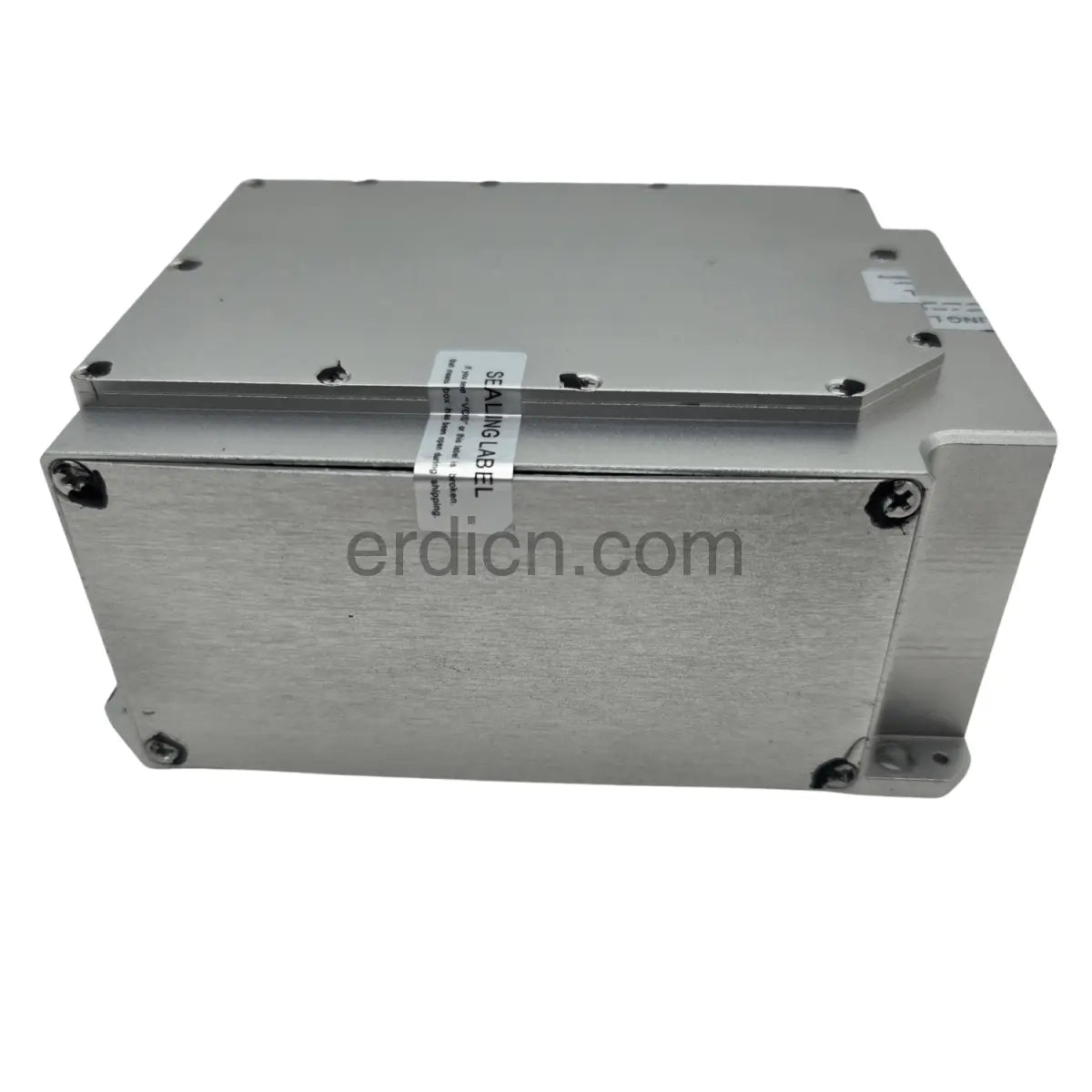

The LDR60K1 1064nm laser target designator and laser ranging System is a cutting-edge device designed specifically for those seeking high-precision target ranging and laser-coded indications. It is capable of achieving precise measurements over ultra-long distances, reaching up to and beyond 8000m, and its effective coverage for target indication also extends to 5000m and more. A notable feature of this product is its extreme lightweight design, with the overall weight controlled within 700g, making it both compact and portable while maintaining excellent performance and stability.
Furthermore, this LDR60K1 1064nm laser target designator system specially offers customization of the laser divergence angle, with an adjustment range of 0.35 to 1mrad, allowing for flexible adaptation to the needs of different operational scenarios. The LDR60K1 strictly adheres to internationally accepted standards, ensuring wide applicability and high reliability worldwide. With its outstanding durability, precise measurement capabilities, and compact, portable design, the LDR60K1 Laser Range Finder and Indication System is undoubtedly the ideal choice for professionals pursuing efficient and accurate operations.
|
Laser Ranging/ Laser Targeting Parameters |
|
|
Laser ranging and target designation operating mode |
Ready to work instantly |
|
Maximum ranging distance |
≥8000m (visibility 20km, target reflectivity 0.2, target size 2.3m x 2.3m) |
|
Minimum ranging distance |
300m |
|
Ranging accuracy |
±2m |
|
Ranging logic |
3 goals |
|
Laser target designation distance |
≥5000m |
|
Ranging frequency |
1～20Hz |
|
Target designation frequency |
1～20Hz |
|
Accuracy rate (or Measurement success rate) |
98% |
|
Continuous ranging time |
5min(1Hz)/1min (5Hz)/20S（20hz） |
|
Continuous laser target designation time |
Short-cycle Laser Target Designation: Ø Duration of a single illumination is not more than 17 seconds, with an interval of not less than 30 seconds, and continuous illumination for 8 cycles. Long-cycle Laser Target Designation: Ø The duration of a single laser target designation is not more than 47 seconds. When initiating laser target designation again, the interval is not less than 30 seconds, and it is capable of continuous laser target designation for 2 cycles. Ø After a single long-duration or short-duration target designation, the interval for restarting is not less than 30 minutes. |
|
Encoding |
Complies with MIL-STD-810F requirements; possesses user-defined coding expansion capabilities. |
|
Laser encoding pattern |
Equipped with external synchronization signal reception capability. Precise frequency codes (eight sets of pre-stored periodic code encodings); |
|
Encoding accuracy |
≤2.5μs |
|
Laser Parameters |
|
|
Laser Type |
LD Pumped Nd:YAG Crystal |
|
Cooling Method |
Passive cooling, no temperature control |
|
Wavelength |
1064nm±3nm |
|
Single Pulse Energy |
≥60mJ |
|
Energy Fluctuation |
＜10% (Energy Standard Deviation / Average Energy Value × 100%) - Less than 10% (Energy Standard Deviation / Average Energy Value × 100%) |
|
Repetition Rate |
0～20Hz adjustable - Adjustable from 0 to 20 Hz |
|
Pulse Width |
≥15ns±5ns |
|
Beam Divergence Angle |
≤0.35mrad [Customizable 0.3mrad～1mrad] |
|
Laser Beam Axis Instability |
≤0.05mrad |
|
Laser Start-up Time |
10s |
|
Laser Safety Class |
Class 4 |
|
Environmental adaptability |
|
|
Operating Temperature |
-40℃~55℃ |
|
Storage Temperature |
-55℃~70℃ |
|
Vibration and Shock Standards |
Meets the vibration and shock requirements for airborne equipment as specified in MIL-STD-810F |
|
Electrical Parameters |
|
|
Power Supply Voltage |
20～28VDC(typical 24 V) |
|
Total Power Consumption |
Standby Power Consumption: ≤ 10 W Average Power Consumption: ≤ 50 W Peak Power Consumption: ≤ 120 W |
|
Communication Interface |
RS422 (Standard) |
|
Baud Rate |
115200bit/s |
|
Mechanical Parameters |
|
|
Weight |
≤650g |
|
Overall Dimensions |
≤117×97×53mm |
|
Non-parallelism between Mounting Base and Optical Axis |
0.5mrad |
