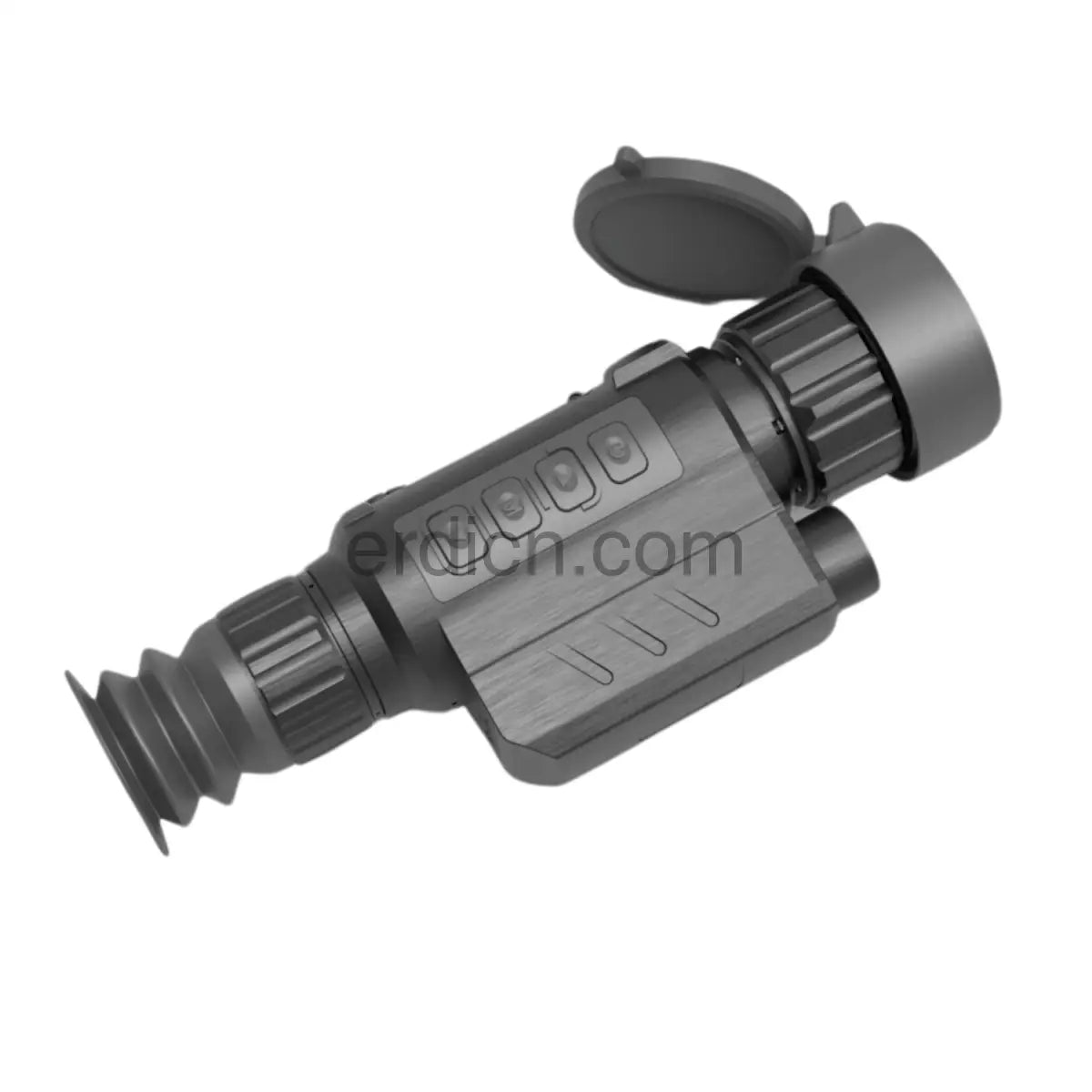

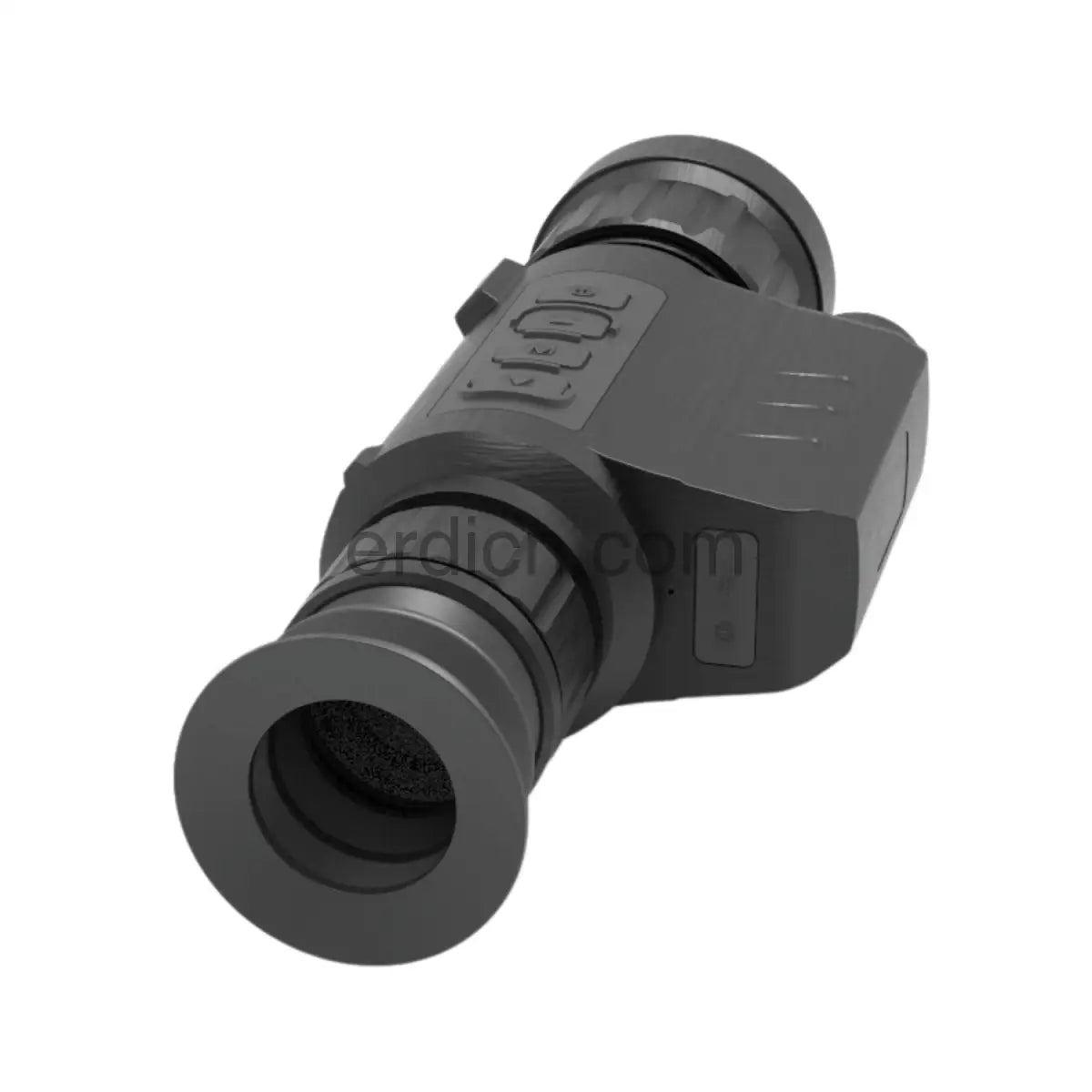

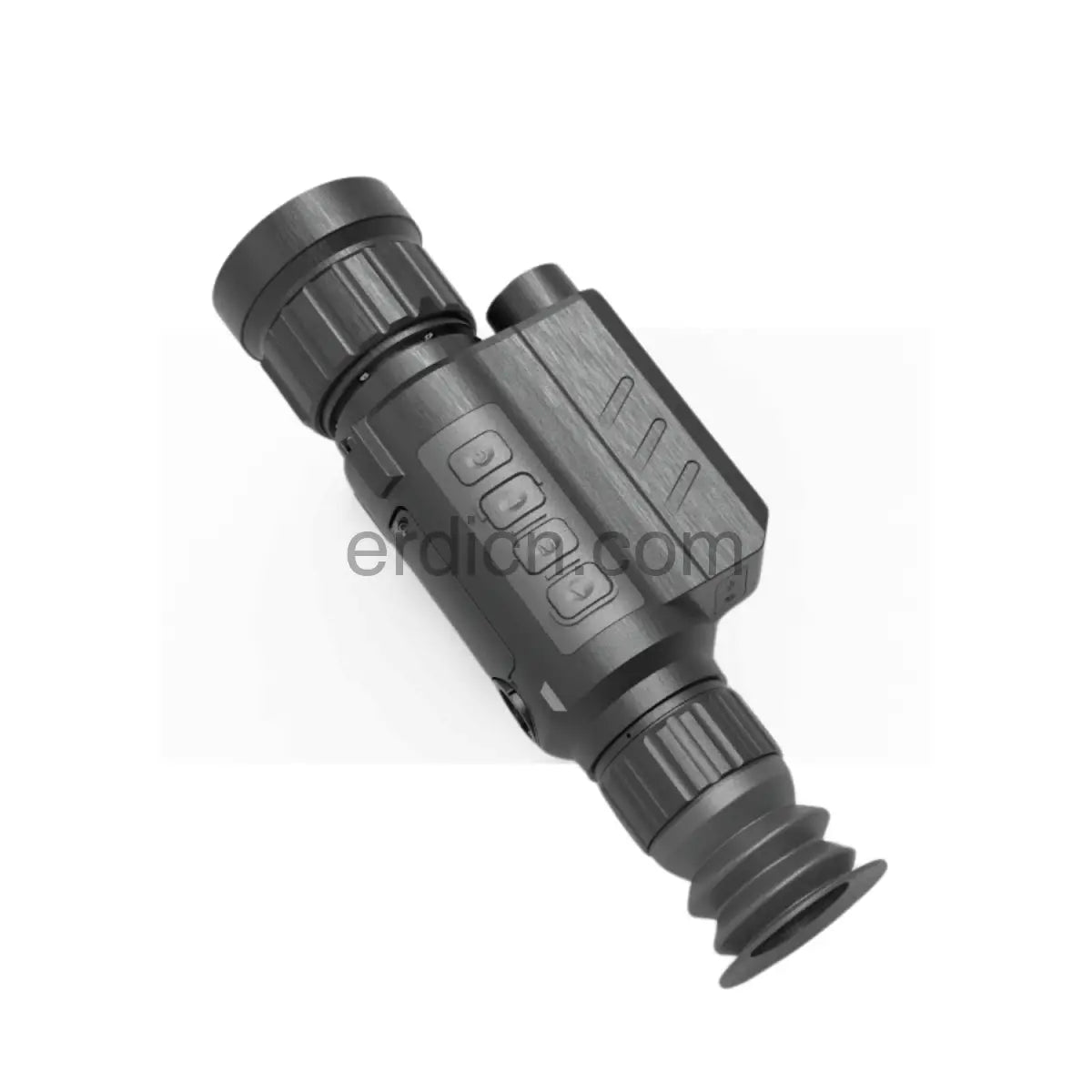

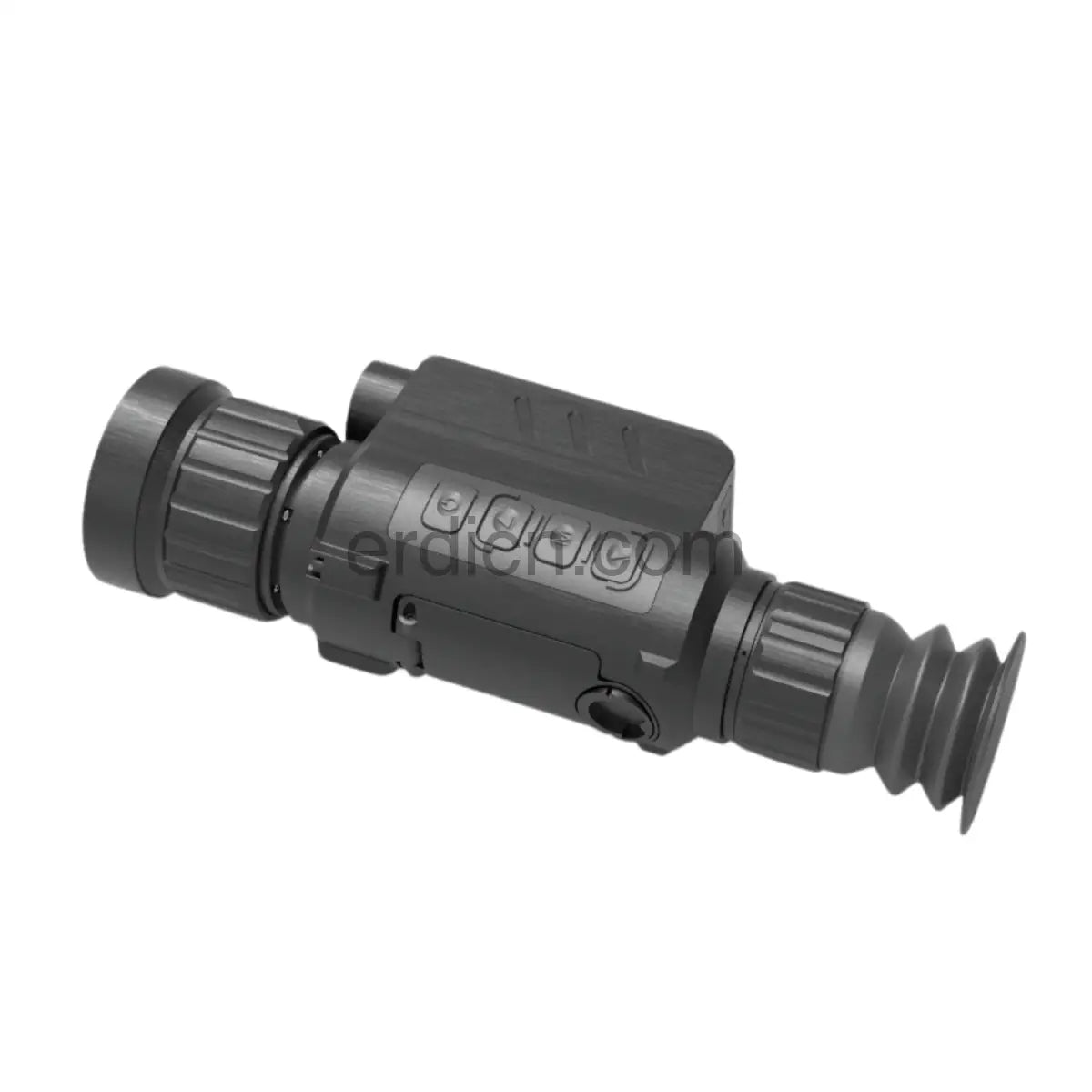

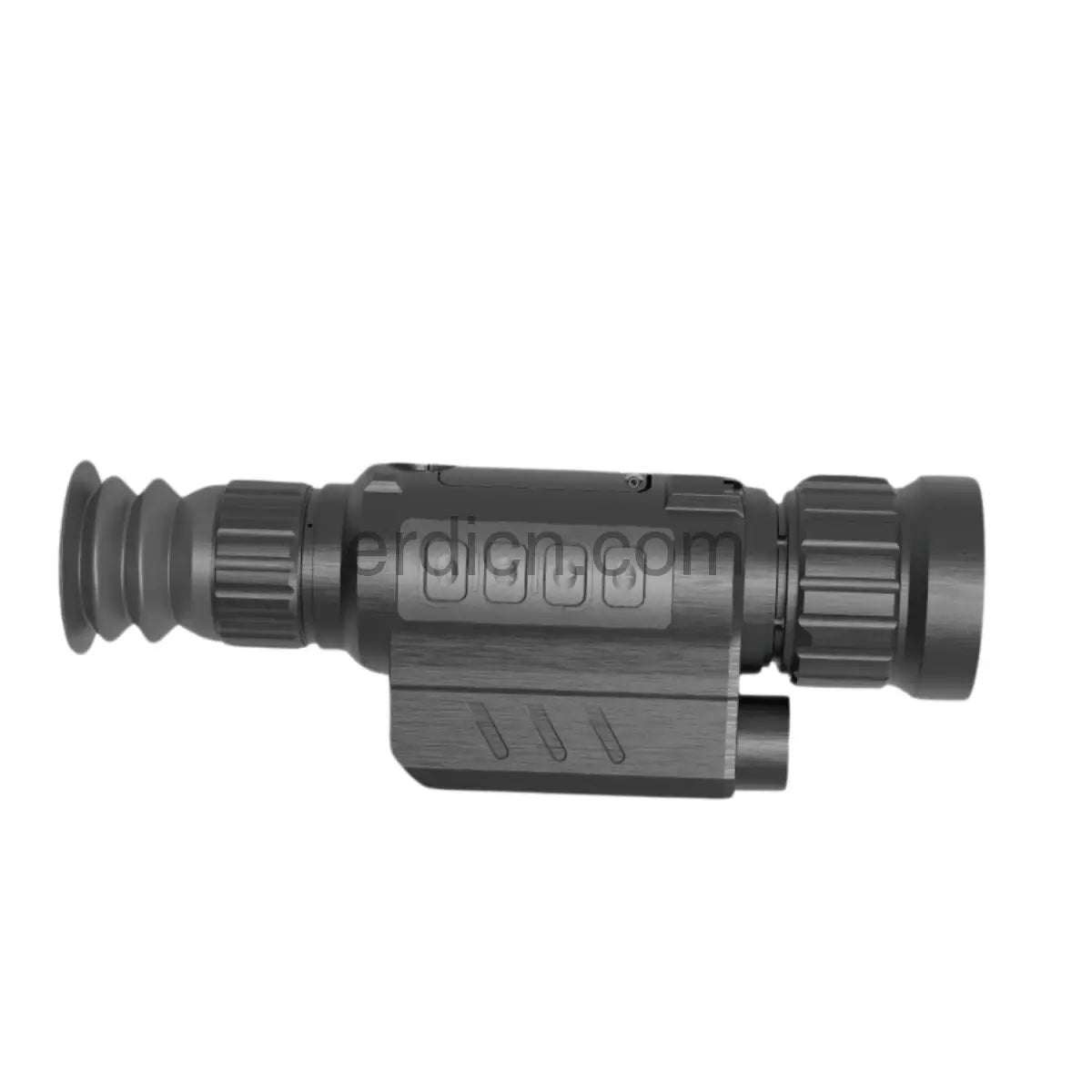

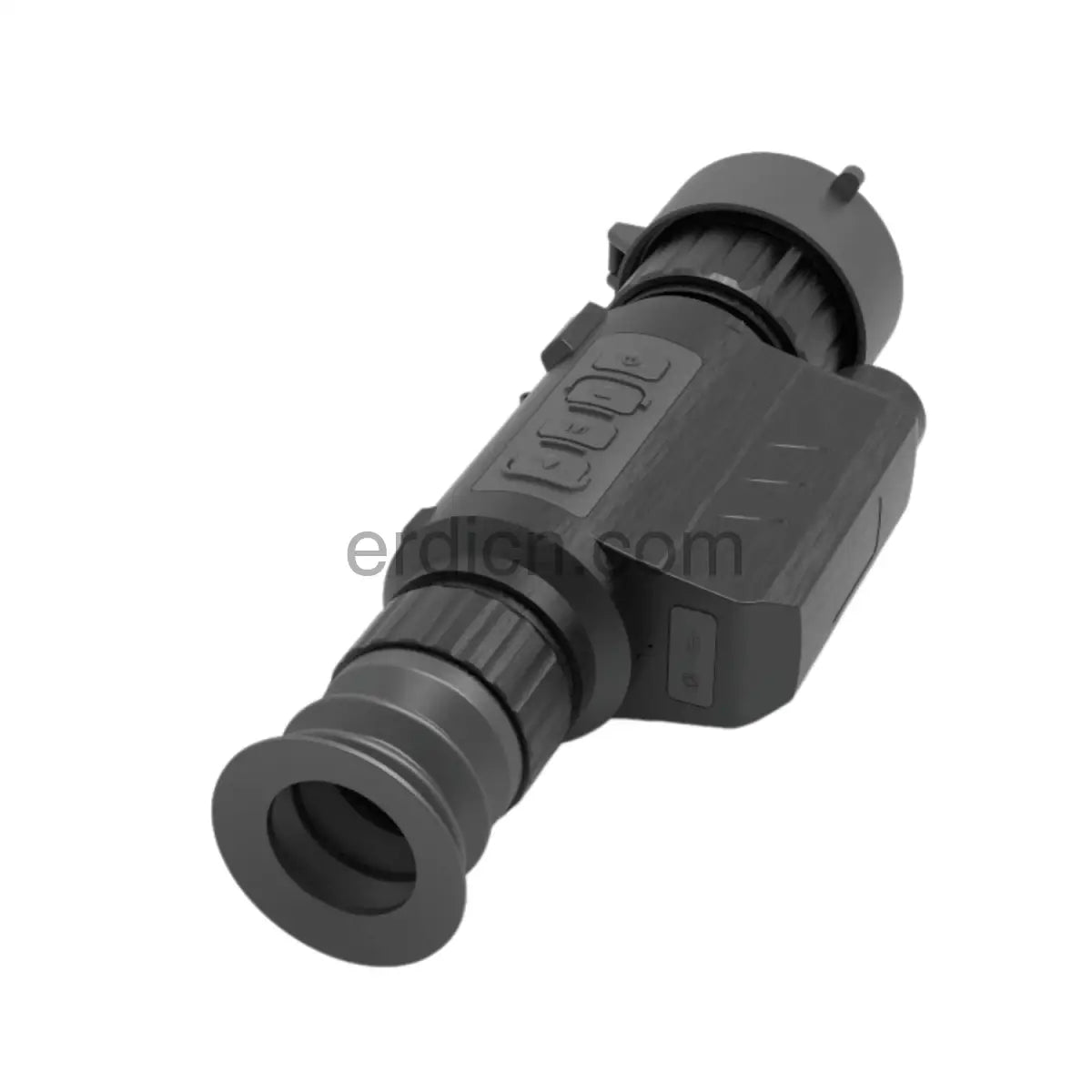

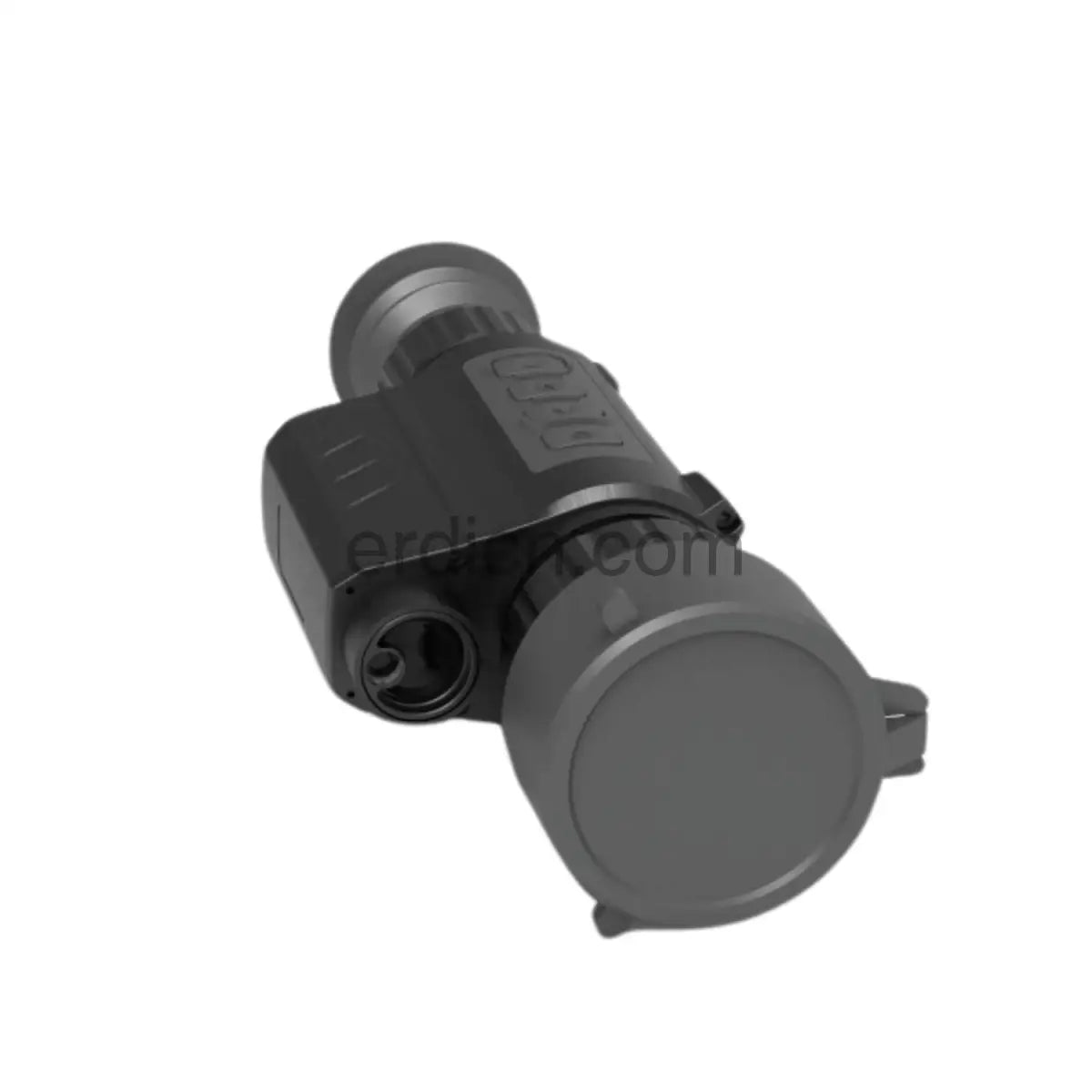

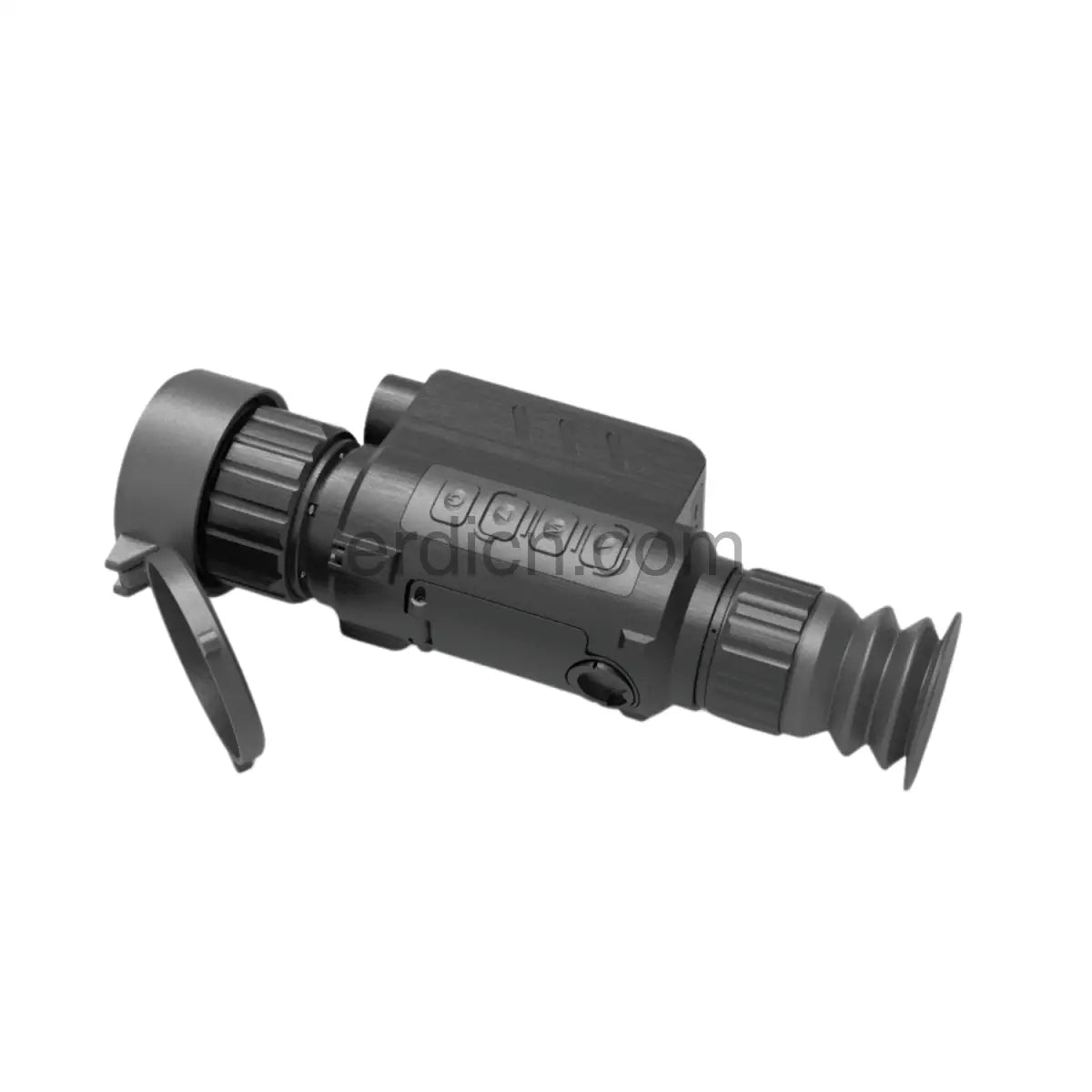

Laser Aiming Module 640x512 IR Thermal Imaging Sight
Laser Aiming Module 640x512 IR Thermal Imaging Sight

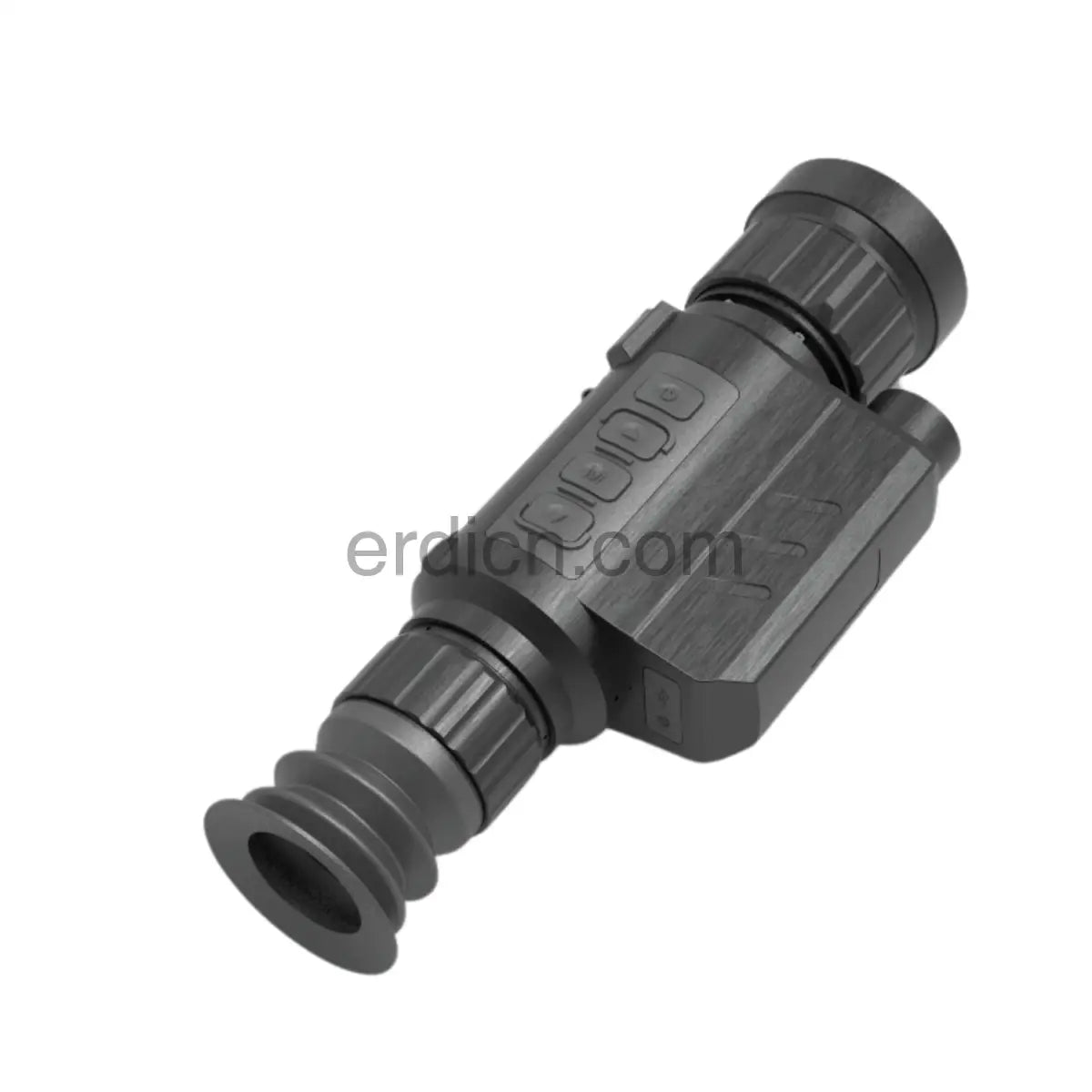

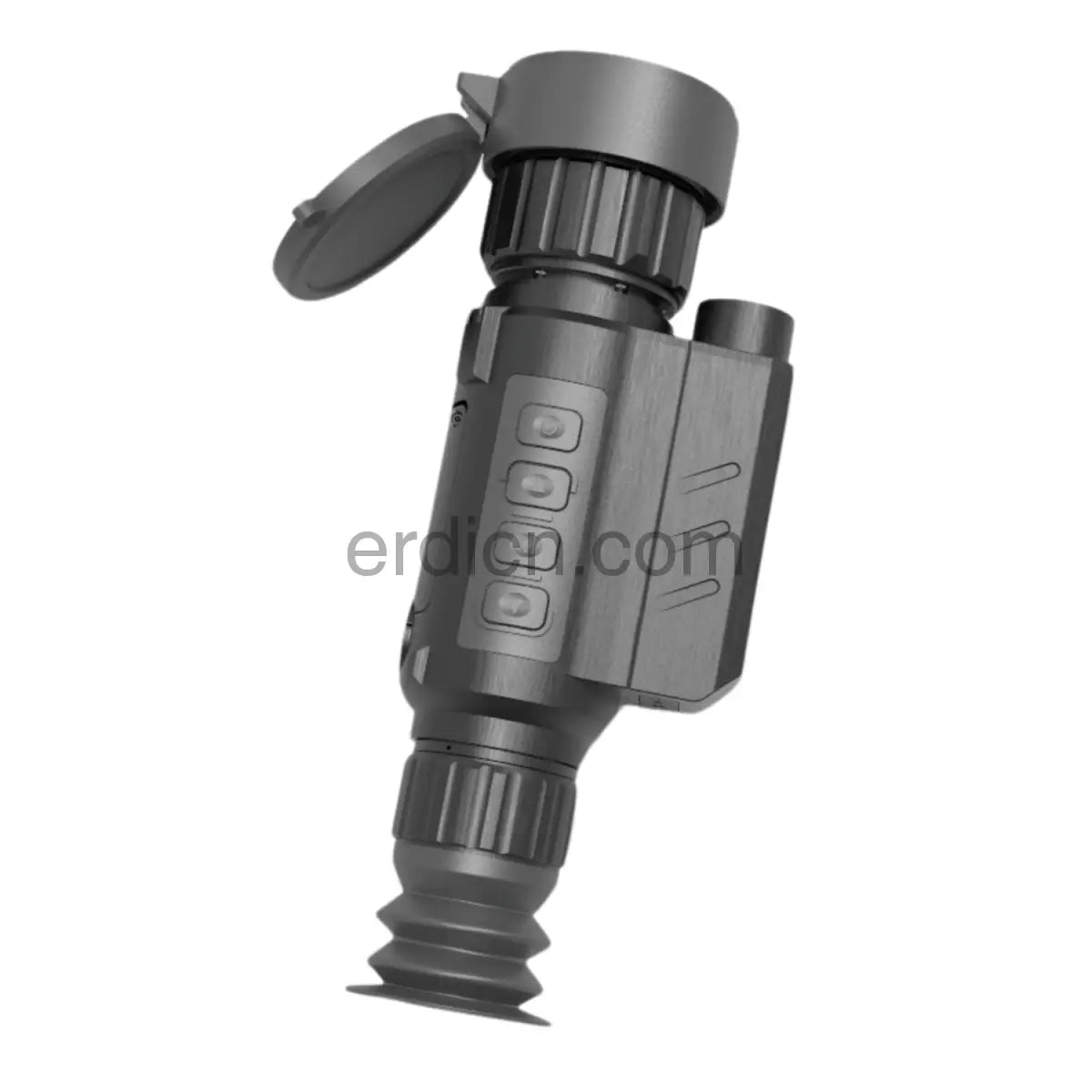

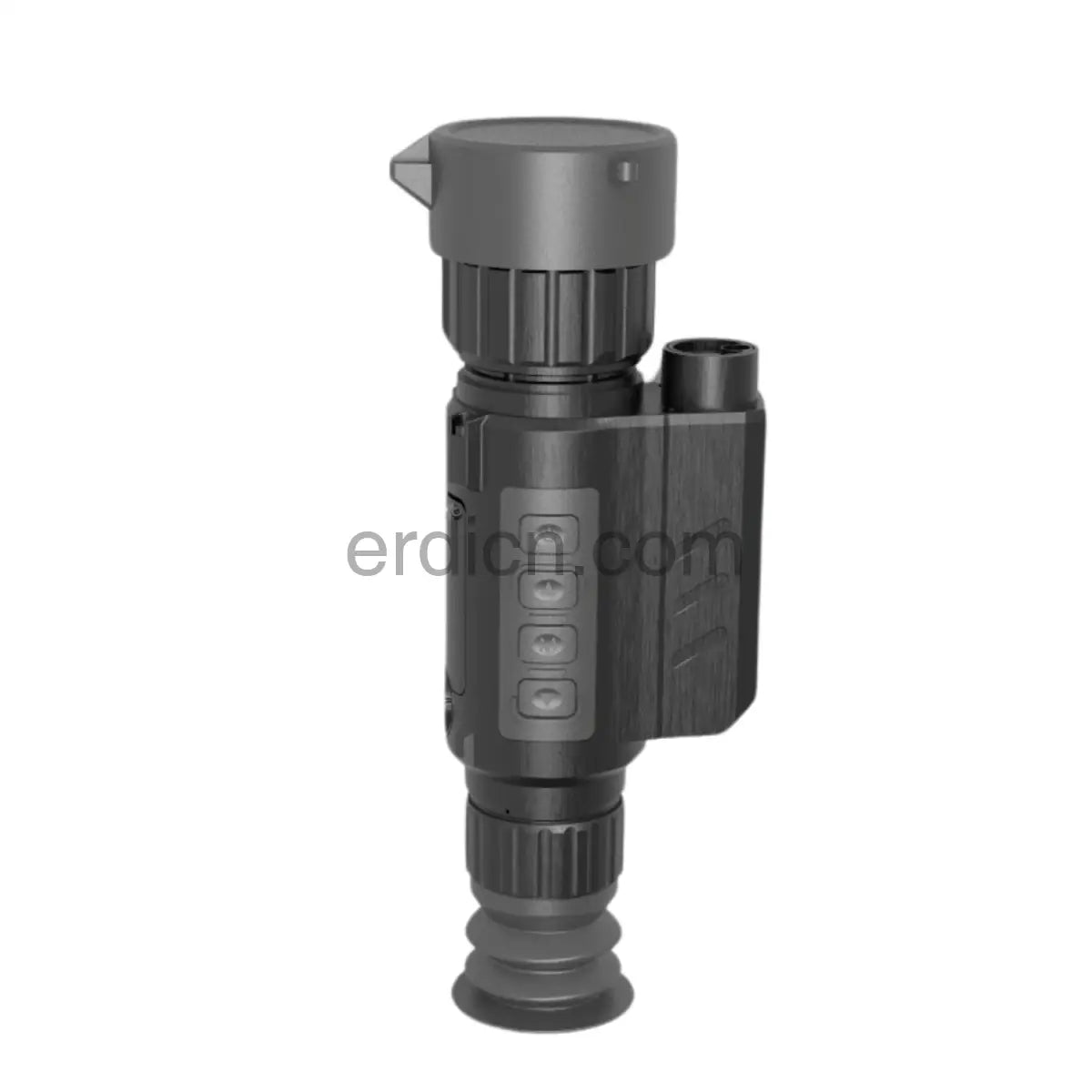

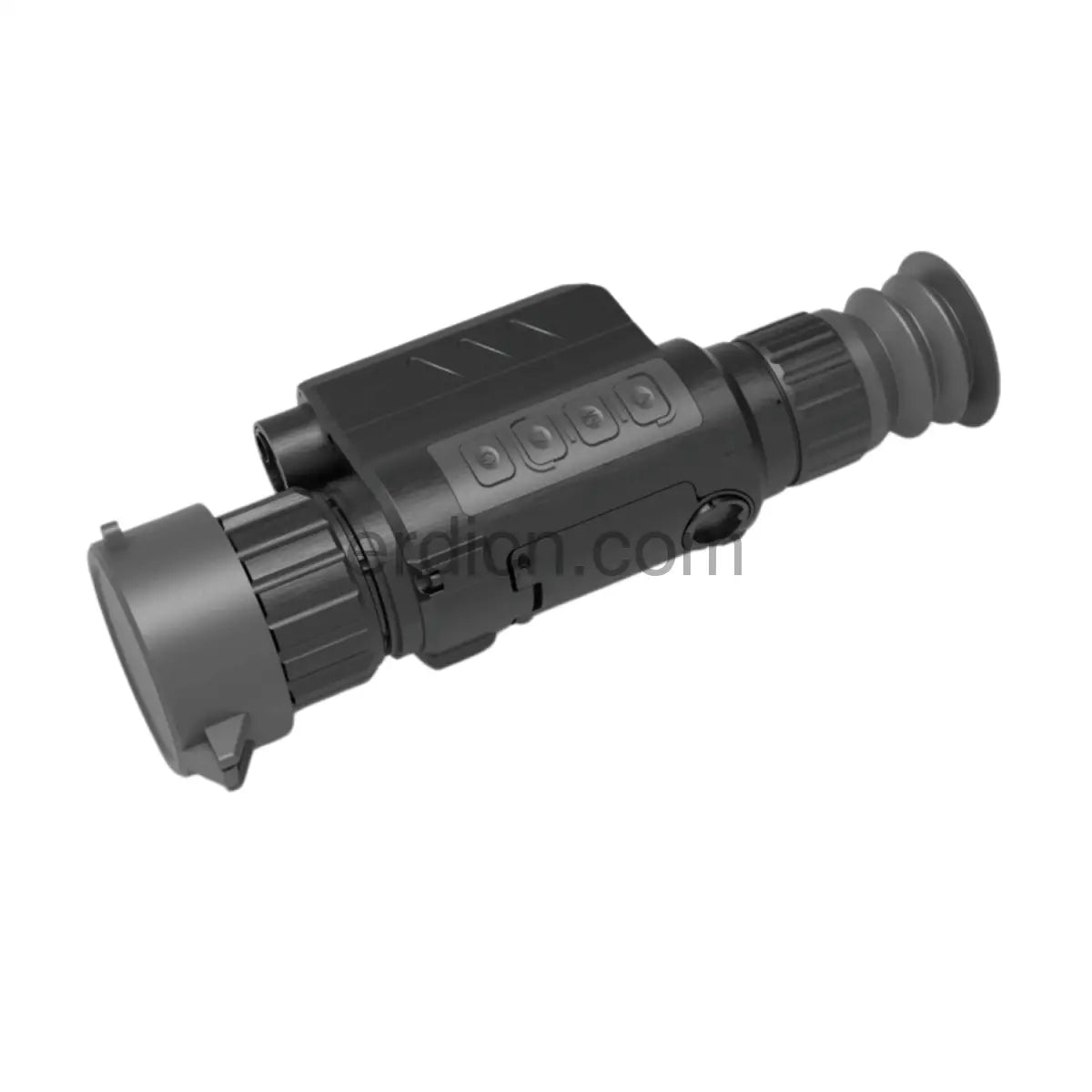

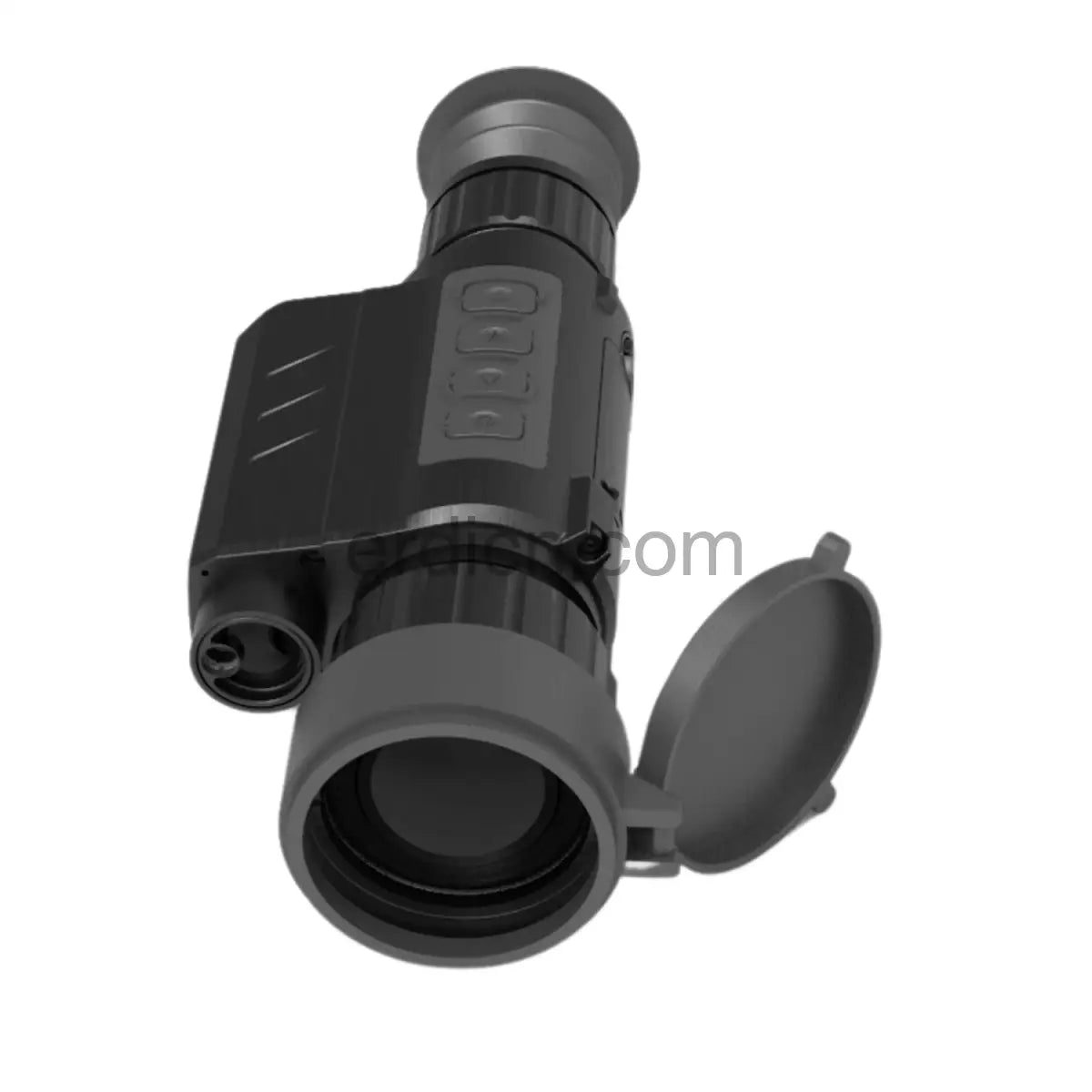

This IR640K35 Thermal Image Scope can observe the surrounding environment in complete darkness, all-weather use, set observation, ranging, magnification and other functions in one, efficient ergonomics, convenient rail adaptation to a variety of equipment, can identify potential hazards in complex environments in advance.
|
Category |
IR640K35 |
|
Parameters of Infrared Detector |
|
|
Resolution, Pixels |
640×512 |
|
Pixel Size |
12 μm |
|
NETD (Noise Equivalent Temperature Difference) |
≤50mk |
|
Frame Rate |
50Hz |
|
Optical Parameters |
|
|
Objective Lens Focal Length |
35mm |
|
Objective Lens Aperture |
F1.0 |
|
Objective Lens Field of View (FOV) |
12.5×10.0° |
|
Focusing Method: Manual |
Manual |
|
Eyepiece Exit Pupil Distance |
55mm |
|
Eyepiece Exit Pupil Diameter |
6mm |
|
Eyepiece Diopter Adjustment |
-5D~+5D |
|
Observation Distance (Human) |
500m |
|
Display |
|
|
Type |
AMOLED |
|
Resolution |
1024×768 |
|
Size |
0.39 |
|
Brightness adjustment |
Support, up to 200nit |
|
Power supply |
|
|
Battery type |
Rechargeable lithium battery |
|
Battery parameters |
18650（3400mah） |
|
Number of batteries |
2 |
|
Battery voltage |
Nominal 3.7V |
|
External power supply |
5V /2A USB TYPE C |
|
Operating time (at 25℃) |
10h |
|
Peripheral devices |
|
|
Electronic compass |
Support |
|
Attitude sensor |
Support |
|
WIFI |
2.4G |
|
Laser ranging wavelength |
905nm |
|
Laser ranging accuracy |
±1m |
|
Laser ranging distance |
1Km |
|
Physical parameters |
|
|
Weight |
860g (including battery) |
|
Dimension |
245mm×65mm×100mm (including lens cap) |
|
Protection level |
IP67 |
|
Impact |
1000g/0.4ms |
|
Operating temperature |
-20℃~50℃ |
|
System Functions |
|
|
Recording/Photographing |
Support |
|
Video and Image Playback |
Support |
|
Electronic Zoom |
1X, 2X, 4X |
|
Internal Storage |
32GByte |
|
Hotspot Tracking |
Support |
|
Picture-in-Picture (PIP) |
Support |
|
Color Palette |
White Hot, Black Hot, Red Hot, Fusion |
|
Brightness Adjustment |
Support |
|
Contrast Adjustment |
Support |
|
Image Correction |
Automatic, Manual |
|
Target Trajectory Prediction |
Support |
|
Target Tracking |
Support |
|
Target Recognition |
Support |
|
WiFi Hotspot |
Support |
|
Standby Mode |
Support |
|
Reticle Pattern Adjustment |
Support, 5 styles, 6 colors |
|
Measurement Unit Settings |
Metric, Imperial |
|
Time Settings |
Automatic, Manual |
