Lightweight Payload Solution: PODD40D-01 Miniature Pod

Lightweight Payload Solution: PODD40D-01 Miniature Pod

The PODD40D-01 Miniature Pod combines ultra-lightweight design (<120g) with high-performance functionality for seamless UAV integration. Its advanced servo stabilization system delivers smooth, shake-free footage during dynamic operations, while the built-in tracking function ensures precise target lock-on accuracy. Supporting a wide voltage input (12-16V), this versatile pod adapts to diverse power sources for reliable performance in any scenario. Engineered as the ultimate lightweight payload solution, the PODD40D excels in aerial imaging, surveillance operations, and missions demanding compact high-performance equipment – redefining efficiency for professional drone applications.
System specification
System type Gyro stability
Weight ≤120g
System characteristics
Platform type Triple-axial
Azimuth -110°~+110°
Elevation -90°~+30°
Roll -45°~+45°
Stability accuracy 0.2mrad(1°/2Hz)(1σ)
Angular position accuracy ≤0.3°
Infrared imaging
Resolution and frame rate 640×512@30fps
FOV 32.9°×26.6° (13mm)
Visible light imaging
Resolution and frame rate 1920×1080@30fps
FOV 30°×17. 1° (10.36mm)
 Tracking module
Tracking speed 32 pixels / frame (32×32 person)
48 pixels / frame (48×48 car)
System external interface
Control interface TTL
Video output Network RTSP
Power supply
Supply voltage 12V~ 16V
Power consumption Av.≤6W
Max.≤9W
Environmental condition
Working temp -20℃~+50℃
Storage temp -20℃~+50℃

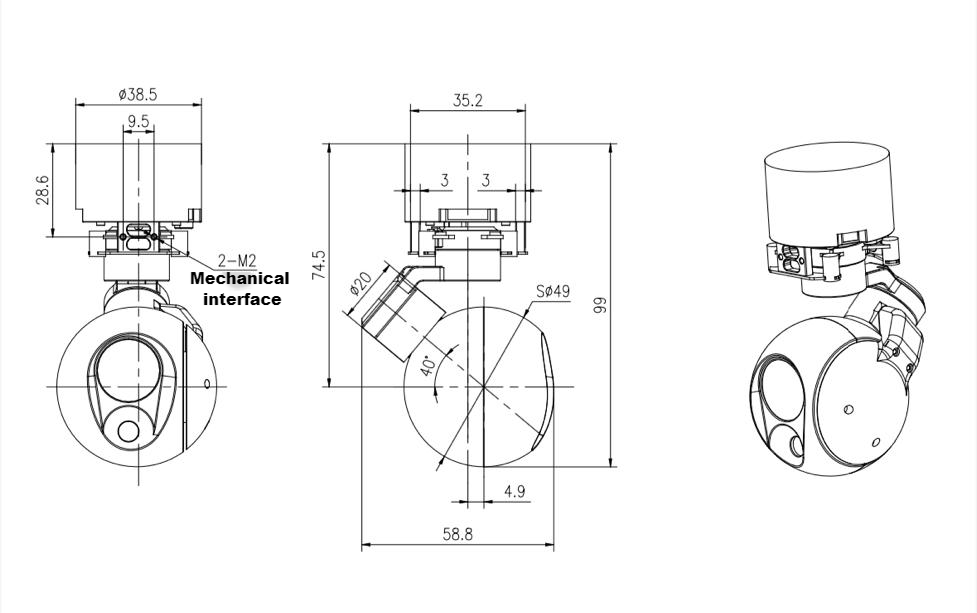

2D Dimension Image
