1.54μm Erbium Glass Microchip Eye Safe DPSS Laser 100 μJ
1.54μm Erbium Glass Microchip Eye Safe DPSS Laser 100 μJ

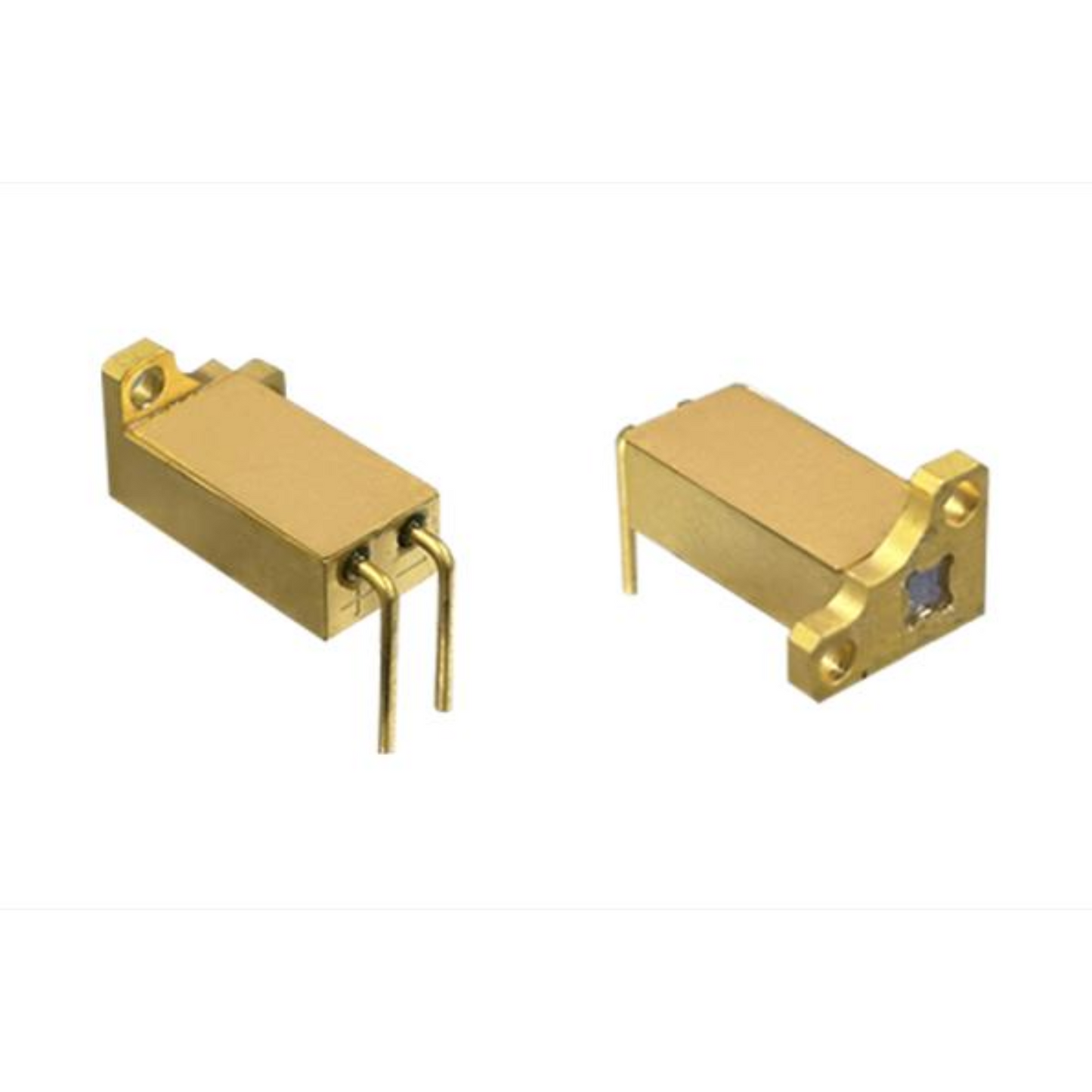

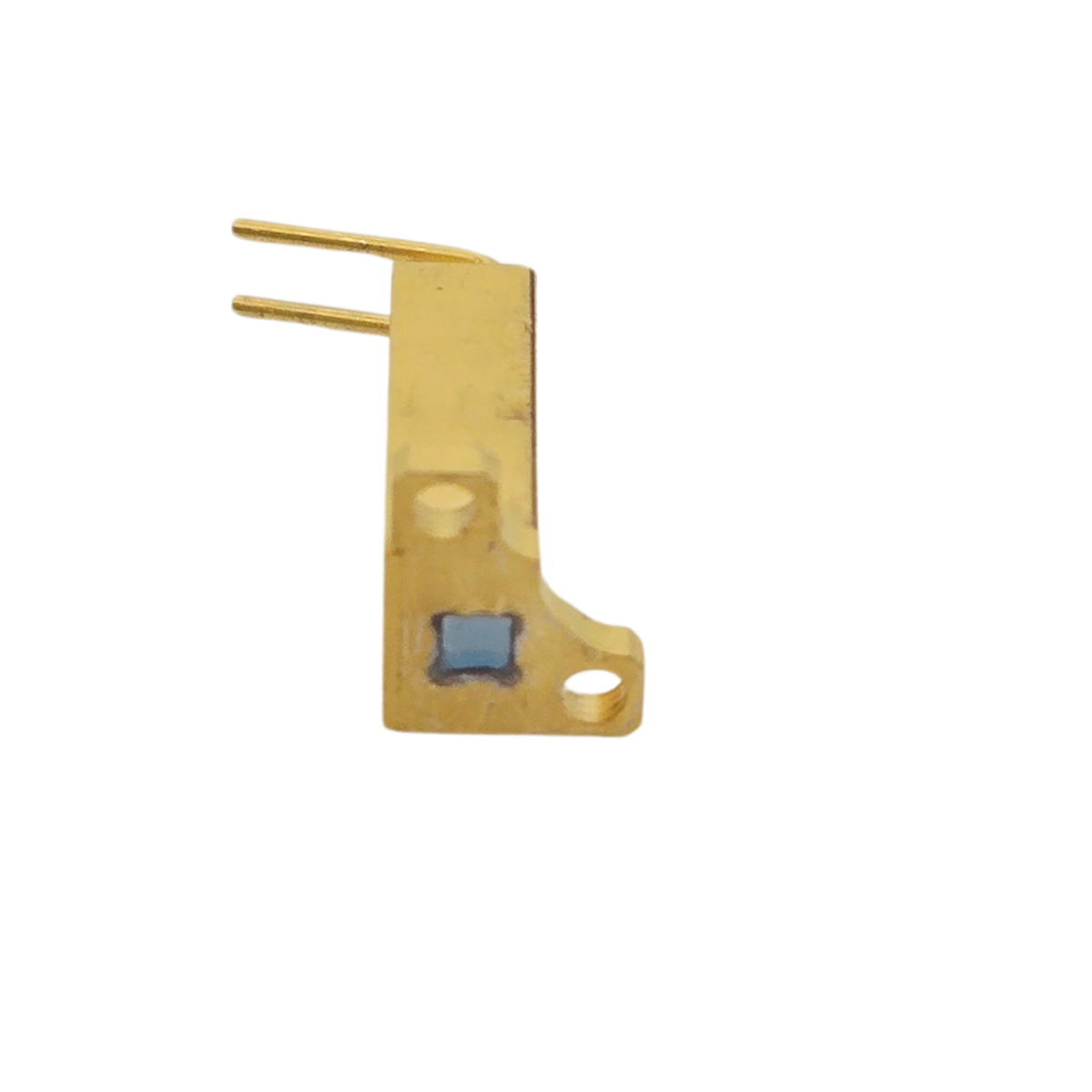

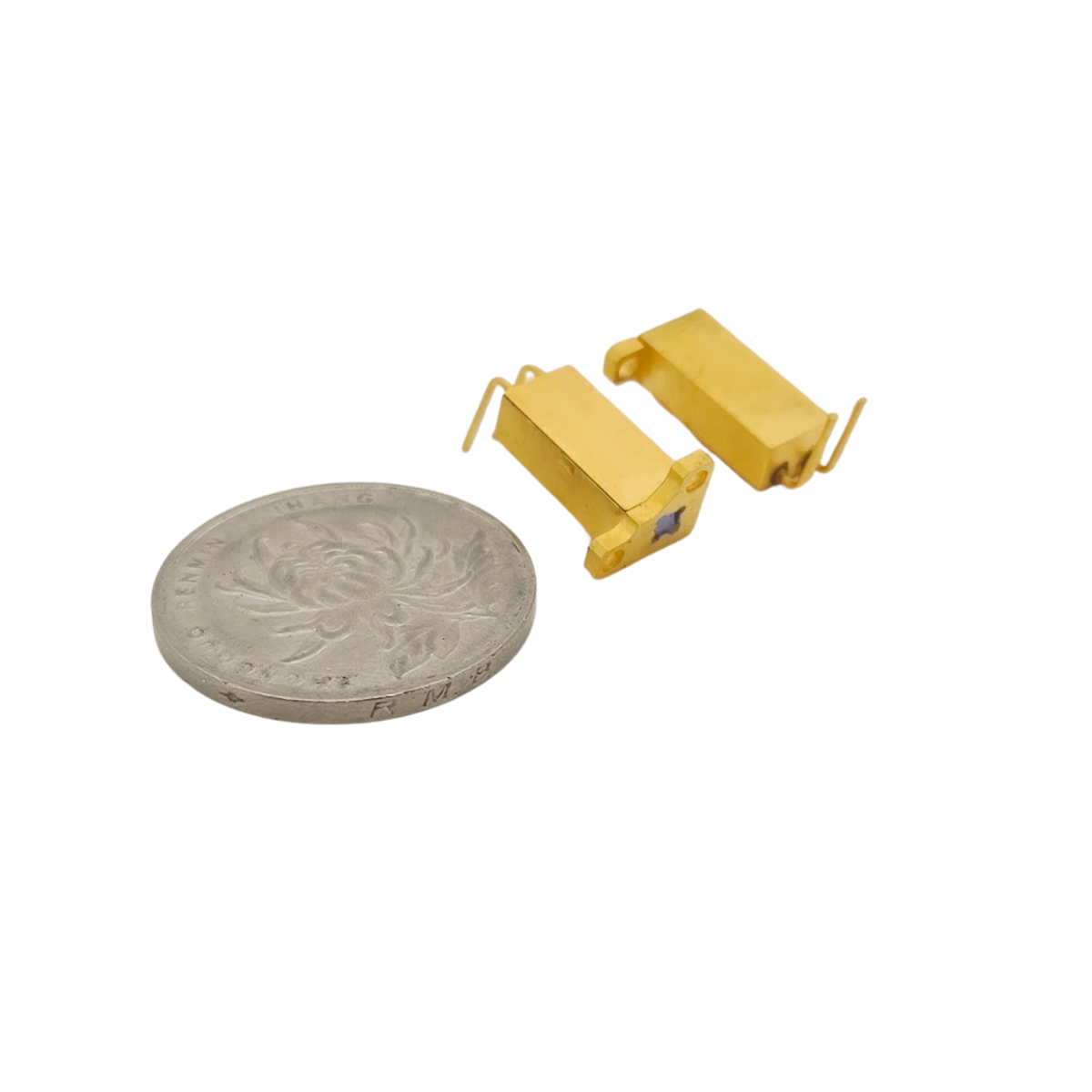

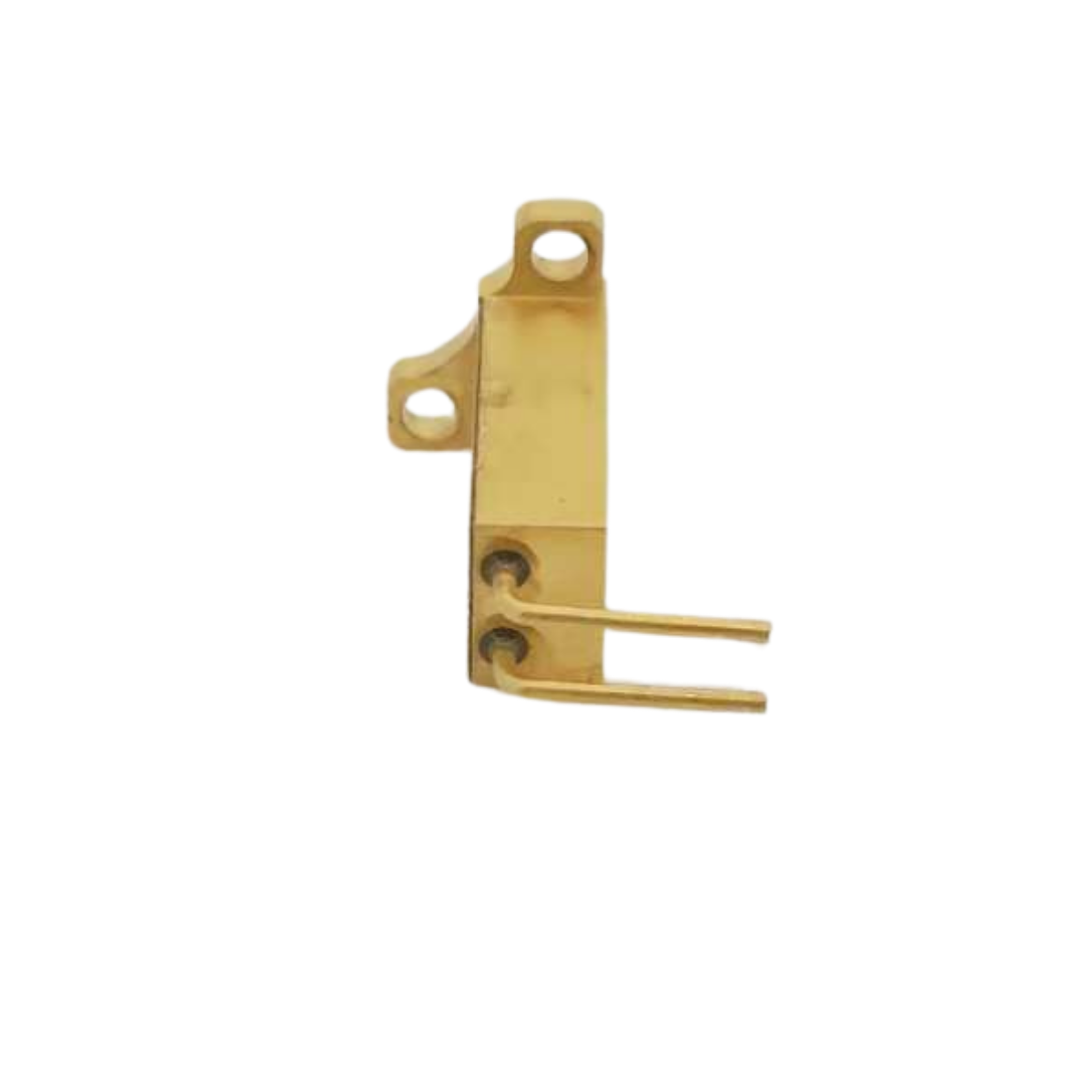

ERDI's 1535nm DPSS Laser is compact and lightweight. It uses special erbium-ytterbium co-doped phosphate glass and semiconductor pumping technology to produce an eye-safe 1.5μm wavelength laser, classified as the safest Class 1.
This DPSS Laser delivers pulse energy starting from 100 μJ at a repetition rate of 1 to 10 pulses per second. Thanks to its small size and excellent performance, this laser is essential for outdoor applications requiring long-distance light transmission, such as laser ranging and LiDAR systems. It serves as a core component enabling long-range detection in these technologies.
|
Model |
MINI-100 |
|
Wavelength |
1535 nm |
|
Eye safe |
Class 1 |
|
Pulse energy |
≥100 μJ |
|
Laser Pulse width |
3.5 ns |
|
Drive pulse width |
≤ 1ms |
|
1~10Hz |
|
|
Pulse stability |
10% |
|
Raw Beam Diameter |
0 .3 mm |
|
Beam divergence angle |
≤ 10 mrad
|
|
Beam Mode |
TEM00 |
|
Operating temperature |
-40 ℃ ~ +65 ℃ |
|
Storage temperature |
-55 ℃ ~+ 85℃ |
|
Dimension (mm) |
14.5×6.3×4.37 mm3 |
|
Weight |
2.5 g |
|
Voltage |
2 V |
|
Electric current |
12 A |
|
Impact |
Meets MIL-STD-810G test standards (1500 G, 0.5 ms) |
|
Vibration |
Meets MIL-STD-810G test standards (20~2000 Hz/20 G) |
|
Service life |
≥10 million times |
