100mJ High-power 1064nm Laser Rangefinder and Target Designator

100mJ High-power 1064nm Laser Rangefinder and Target Designator

Model: LDR100K1-01
LDR100K1 Laser Target Designator The LDR100K1 is a powerful, long-range laser device used to mark targets precisely. Key Features: Long Range & Accuracy: It can accurately mark targets over 4 kilometers away. Its laser beam stays very narrow (0.3mrad divergence), ensuring the mark stays on target. Strong Pulses: It sends out powerful laser pulses (100mJ or more). Steady Operation: It pulses reliably 10 to 20 times per second, with very consistent power (within 5% variation). Precise Timing: Its timing is extremely accurate (within 1 microsecond), so guided weapons and surveillance systems can reliably find the laser mark. Tough & Reliable: Built for harsh conditions, it works in extreme temperatures (-40°C to +60°C) and has a 98% reliability rate. Easy to Connect: Uses standard military connections (RS422/TTL) to work with other equipment. Compact & Light: Fits easily into systems (154mm x 135mm x 80mm) and weighs only 1.8kg. Ideal Uses: Precision Airstrikes: Guides laser-guided bombs and missiles accurately. Special Operations: Lets special forces mark targets secretly from a distance. Drone Operations: Mounts on drones (UAVs) for reconnaissance and targeting. Tank & Vehicle Targeting: Improves accuracy for armored vehicle fire control systems. Why it's great: The LDR100K1 is perfect for critical missions where hitting high-value targets accurately and reliably is essential.

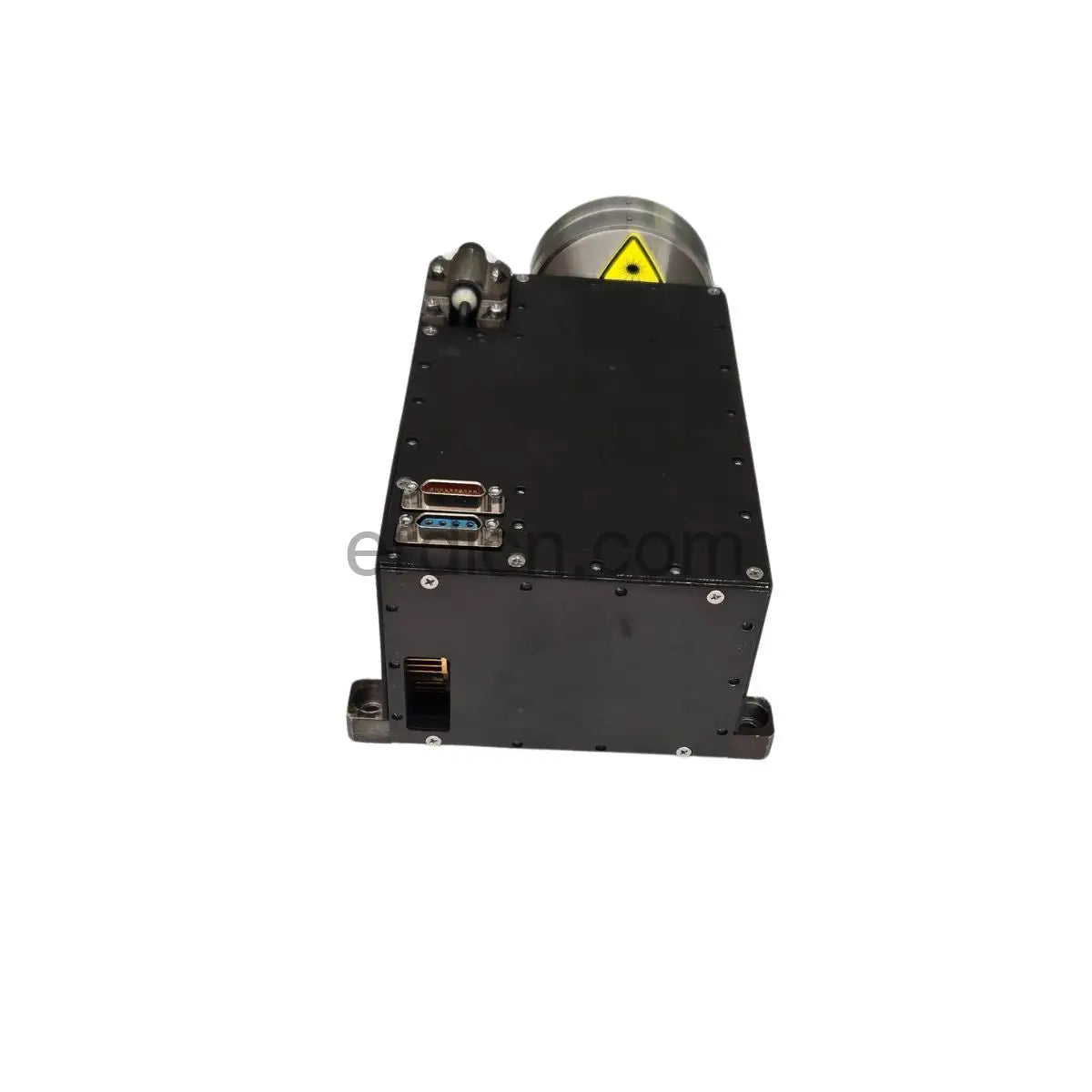

The 100mJ Transceiver Co-Aperture Laser Rangefinder and Laser Target Designator is a high-performance optical device designed for precision targeting and range measurement applications. It features a laser pulse energy of 100mJ, providing excellent rangefinding and target designation capabilities.

Project

Parameters

Dimensions

≤230×130×96mm

Weight(without cover)

≤1.5kg

Wavelength

1064nm±1nm

Pumping mode

Semiconductor side-pumping

Irradiation frequency

Fixed frequency 45ms~125ms(default 20Hz)

Trigger mode

Internal synchronized irradiation,external synchronized irradiation(Trigger delay:304.0us±0.1us)

Output energy

≥100mJ@20Hz

Maximum irradiation distance

≥12km

Q switch

Optoelectronic Q switch

Pulse width

10ns to 20ns

Beam divergence

≤0.15mrad(Acceptance method uses hole-fitting,the energy ratio before and after the hole is not less than 86.5%)

Energy instability

≤8%(RMS)

Laser irradiation cycle

Working 90s,pausing 60s;4 cycles(ambient temperature or low temperature);1 cycle(high temperature)

Power supply

DC 24 V±4 V

Power consumption

<60 W(Standby current at ambient temperature:<0.2 A,peak working current<5 A)

Communication serial port

RS 422

External synchronization interface

3V differential logic level chip,RS 422 interface(From external synchronization signal to light emission delay 304.0us±0.1us)

Encoding mode

Precise frequency encoding,time encoding,pseudo-random encoding

Period precision

  <±1us

Ranging Mode

Ranging Mode 0~25 Hz

Maximum Ranging Distance

Maximum Ranging Distance ≥30 km (45 km visibility, 4x6 m typical target, target reflectivity > 20%)

Minimum Ranging Distance

300m

Ranging Accuracy

±5 m

Low Temperature



Operating Temperature:-40°C



Storage Temperature:-45°C

High Temperature

Operating Temperature:+60°C



Storage Temperature:+65°C

Humidity

Relative Humidity:95%±3%



Temperature:+35°C±2°C



Storage Time:72 hours

Waveform

Half-sine Pulse

Peak Acceleration

10 g

Pulse Width

11 ms

Vibration Reversal

3-axis

Frequency Range



Frequency Range: 516 Hz with single amplitude displacement: 1.5 mm

Single Scan Duration

Frequency Range: 16200 Hz (1660 Hz for optical equipment)with acceleration: 1.5 g

Duration



Temperature Range

 -40℃~60℃

Storage Time

1h.

Temperature Rate

3℃/min

Cycles

6



2D Dimension Image
Communication Interface Communication Interface
Download Product Instructions Download PC Upper Computer
