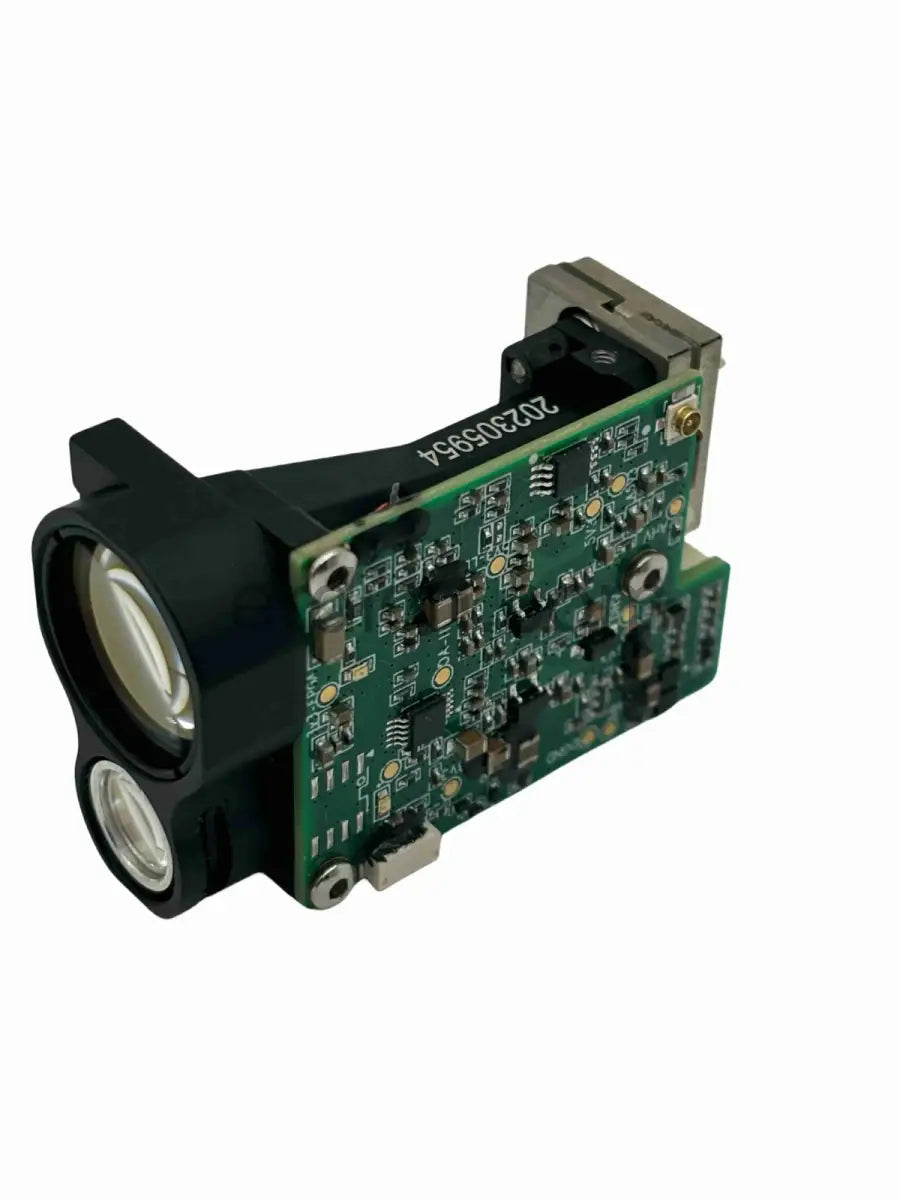

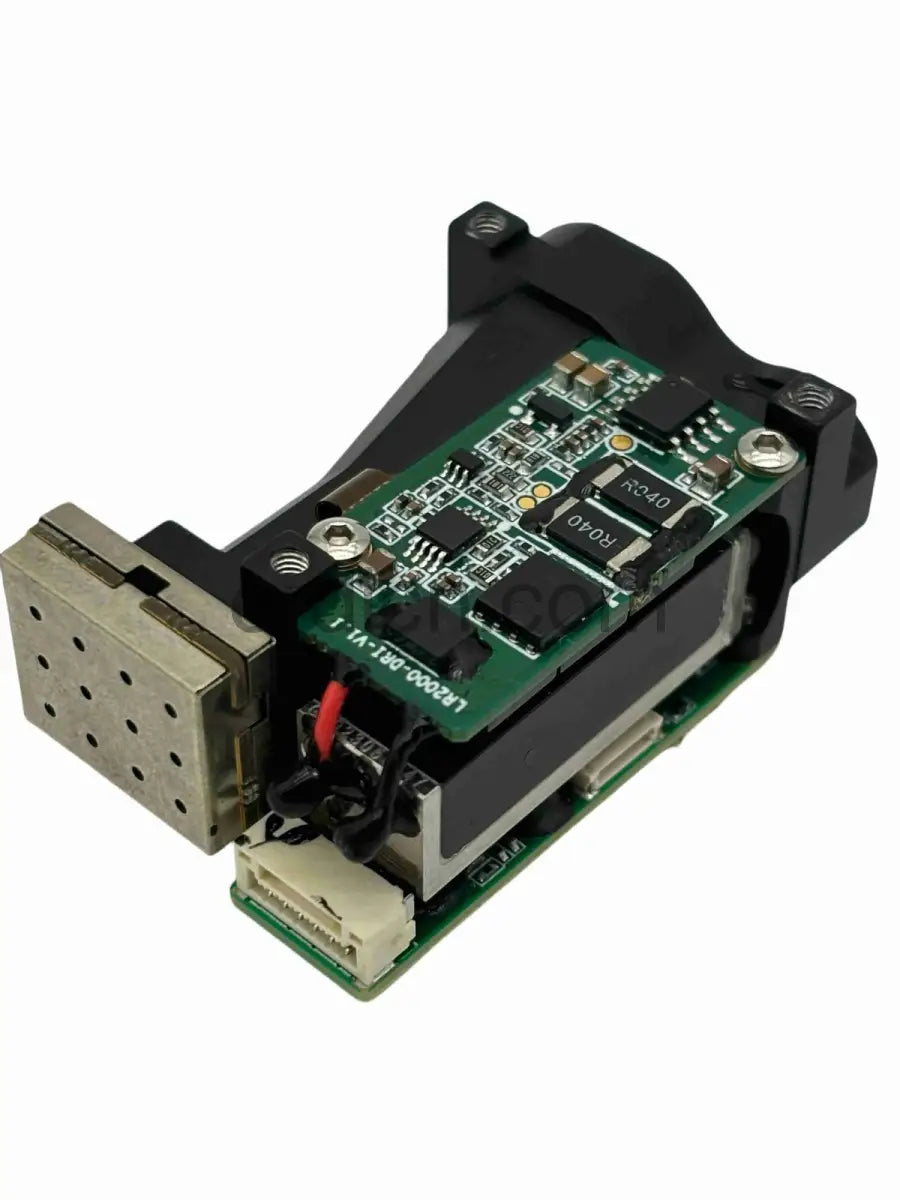

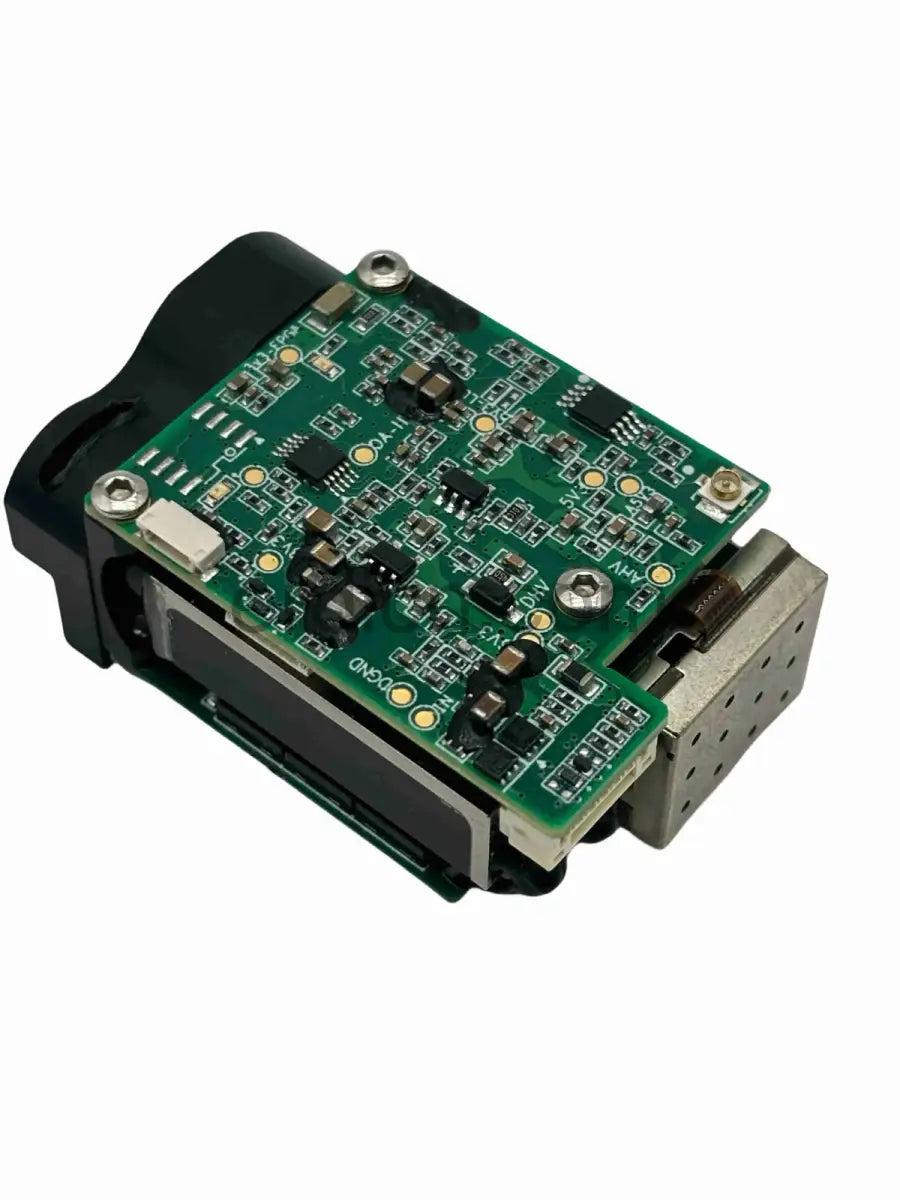

1535nm Laser Rangefinder Module Eye safe Laser Ranging Distance Sensor 3000m

1535nm Laser Rangefinder Module Eye safe Laser Ranging Distance Sensor 3000m

Model: LRF0308C-01
The LRF0308C laser rangefinder module is a high-performance Class I eye-safe laser distance sensor designed for precise distance measurement across diverse applications. Operating at a wavelength of 1535±5 nm, it ensures reliable detection with a divergence angle of ~0.6 mrad and features an Φ8 mm launch lens paired with a Φ16 mm receiver lens for optimal signal capture. This Eye-safe 1535nm laser ranging module excels in long-range detection, capable of measuring distances up to ≥4600 m for large targets (4m×6m), ≥3200 m for NATO-standard objectives (2.3m×2.3m), and ≥1100 m for small drones (0.2m×0.3m). With a ranging accuracy of ±2 m and a high precision rate of ≥98%, the LRF0308C high-precision 1535nm laser module supports multi-target detection (up to 3 targets) at frequencies of 1–10 Hz. It operates efficiently within a DC 4.5–16 V range, consuming ≤2.5 W (average) and ≤7 W (peak). Compact (48mm×30.5mm×21 mm) and lightweight (≤32 g), it withstands harsh environments (-40 to +70 ℃) and interfaces via UART (TTL_3.3V), making it ideal for integration into Defense and Military, Surveying and Mapping, Aerospace and UAVs, autonomous systems, Scientific and Industrial Applications.

This compact and lightweight laser rangefinder module features a high-performance 1535nm microchip laser with 100μJ pulse energy, achieving a ranging distance of ≥3000m against NATO-standard targets. With dimensions of just ≤48×30.5×21 mm and weighing ≤32g, it’s ideal for integration into drones, optical pods, and portable surveillance systems.

Operating at 1–10Hz, the laser rangefinder module supports a TTL interface for easy control and data output. Its Class 1 eye-safe 1535nm wavelength ensures safety while maintaining high precision. Applications include military ranging, border monitoring, UAV/UAS systems, and more.

Designed for reliability and portability, this module delivers long-distance detection in an ultra-compact form factor—perfect for modern defense and security solutions.

Project

Performance Indicators

Model

LRF0308C

Laser Wavelength

1535±5nm

Eye Safety

Class Ⅰ(IEC 60825-1)

Divergence Angle

~0.6 mrad

Launch Lens Diameter

Φ8 mm

Receiver Lens Diameter

Φ16 mm

Measuring Range

（Reflectance 30%; visibility ≥ 8km.）

Big Target（4m×6m)

≥4600m

NATO objective(2.3m×2.3m)

≥3200m

People(0.5m×1.7m)

≥2100m

Drones(0.2m×0.3m)

≥1100m

Minimum Range

15 m

Ranging Frequency

1~10 Hz

Ranging Accuracy

±2 m

Range Resolution

≤20 m

Precision Rate

≥98%

False Alarm Rate

≤1%

Number of multi-target detections

Up to 3 targets

Electrical Interface

A1257WR-S-6P

Supply Voltage

DC 4.5～16 V

Standby power consumption

≤1 mW

Average power consumption

≤2.5 W @10 Hz

Peak Power Consumption

≤7 W @12 V

Weight

≤32±1 g

Dimension (L×W×H)

48mm×30.5mm×21 mm

Operating Temperature

-40～+70 ℃

Storage Temperature

-55～+75 ℃

Impact Resistance

1200 g/1 ms（GJB150.16A-2009）

Anti-vibration

5～50～5 Hz，1 Octave range /min，2.5 g

Ranging Logic

First and last target, multi-target ranging, distance selectivity

Activation Time

≤950 ms

Data Interface

UART（TTL_3.3V）

Electrical isolation

Isolation of power ground, communication ground and structure ground

Reliability

MTBF ≥ 1500h

Optical axis stability

≤0.05 mrad

Non-parallelism between optical axis and mounting surface

≤0.5 mrad

Protection Class

IP67

ESD Class

(Lens position)

Contact discharge 6kV

Air discharge 8kV

Electromagnetic Compatibility (EMC)

CE/FCC Certification

Eco-friendly

RoHS2.0

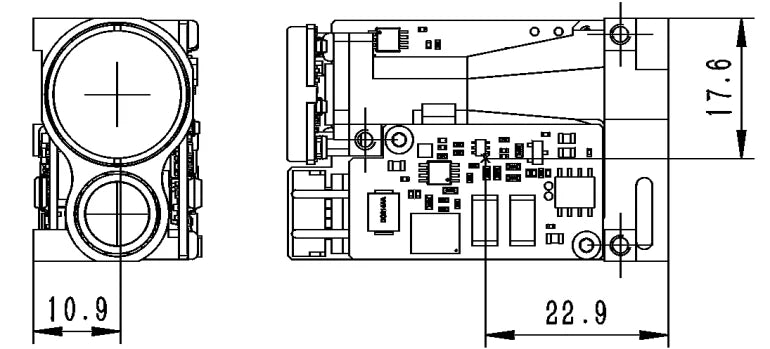

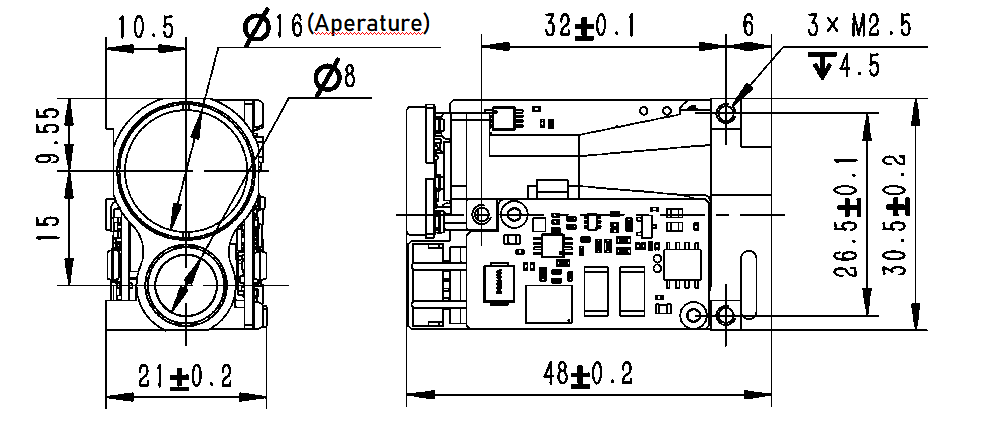

2D Dimension Image 2D Dimension Image

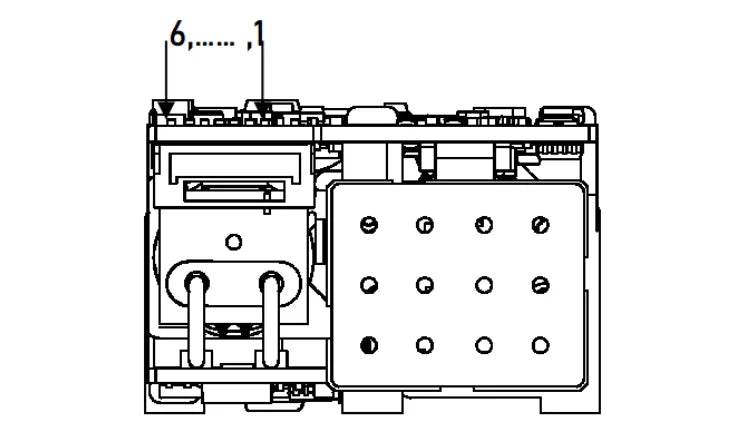

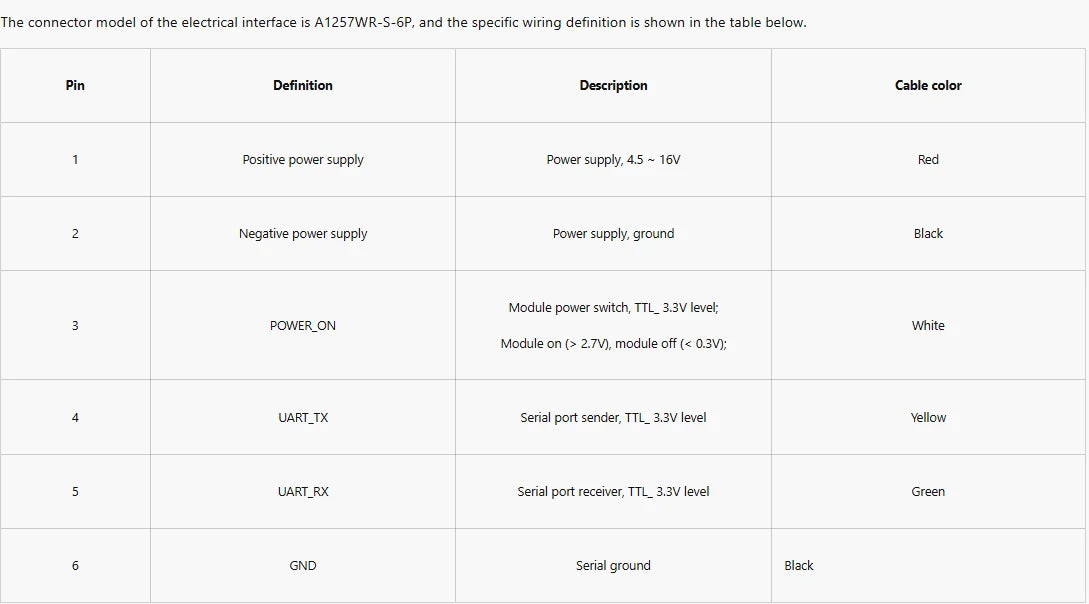

Communication Interface Communication Interface
Download Product Instructions Download PC Upper Computer
