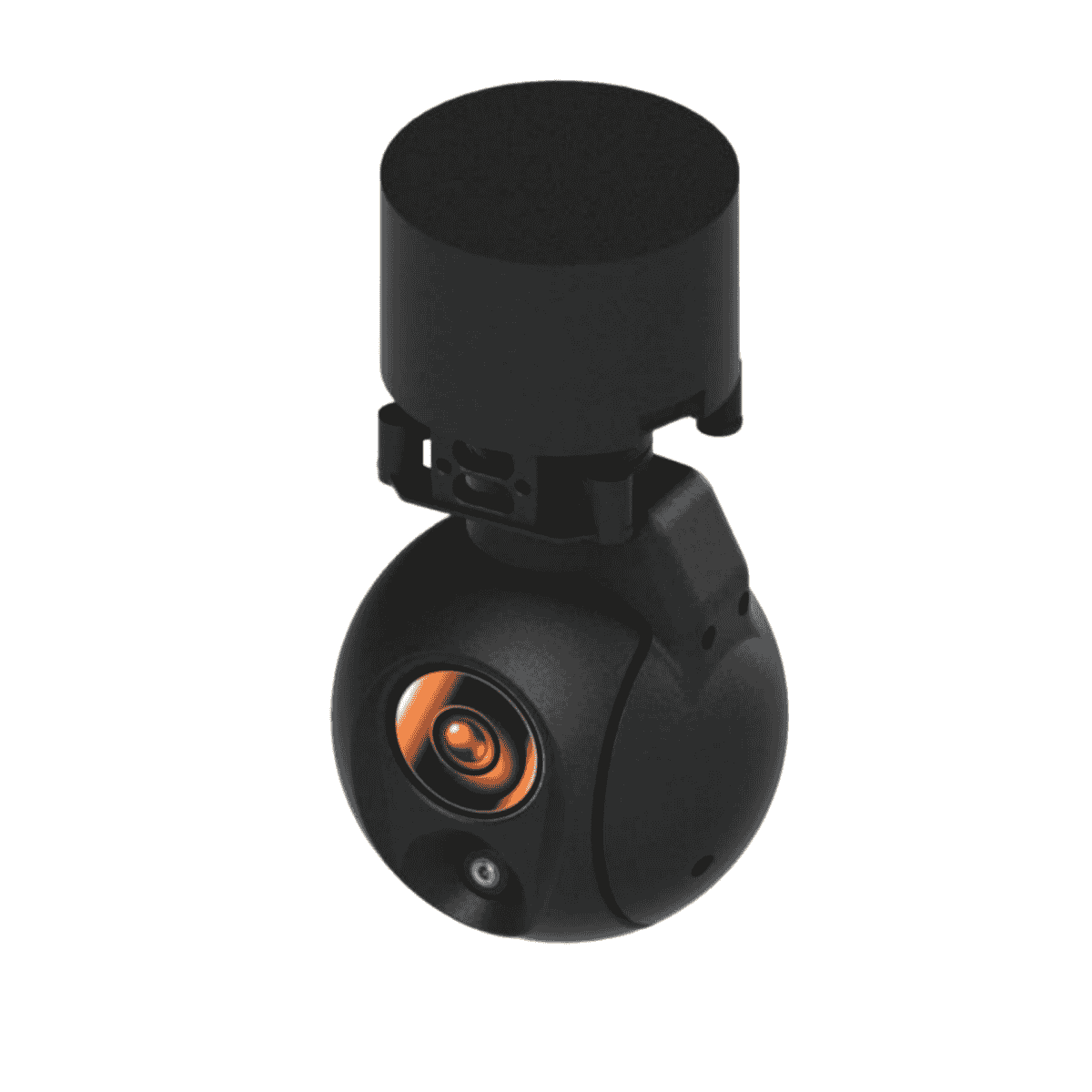

PODD40-01 Micro-Pod: Ultra-Compact UAV Camera

PODD40-01 Micro-Pod: Ultra-Compact UAV Camera

Experience high-performance capabilities in an exceptionally lightweight package. Weighing under 110 grams, the PODD40 Micro-Pod delivers servo image stabilization and built-in tracking & recognition within its rugged metal shell. Engineered for reliability, it features wide-voltage input (12-16V) and dynamic power consumption control for efficient operation in diverse conditions. All electronics are EMC-compliant, ensuring resilience against electronic interference. This ultra-compact imaging system enables multi-dimensional operations, providing the ultimate lightweight solution for mobile platforms, UAV payloads, and scenarios demanding high performance in minimal space.
System specification
System type Gyro stability
Weight ≤110g
System characteristics
Platform type Two-axial
Pitch -120°~+120°
Roll -90°~+30°
Max angular velocity ≥30°/s
Vibration angle 0.2mrad(1°/2Hz)(1σ)
Encoder accuracy ≤0.3°
Visible Light Imaging
Resolution and frame rate 1920×1080@30fps
FOV 30°×17. 1° (10.36mm)
Infrared imaging
Resolution and frame rate 640×512@30fps
FOV 32.9°×26.6° (13mm)
Tracking module
Tracking speed 32 pixels / frame (32×32 person)
48 pixels / frame (48×48 car)
System external interface
Control interface TTL
Video output Network RTSP
Power supply
Supply voltage 12V~ 16V
Power consumption Av.≤5W
Max.≤8W
Environmental condition
Working temp -20℃~+60℃
Storage temp -20℃~+60℃

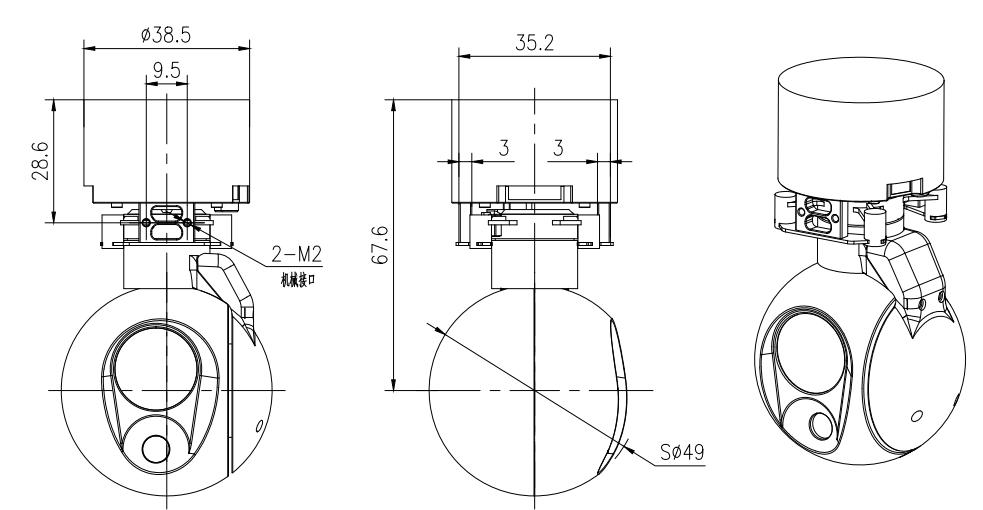

2D Dimension Image
