PODD40A-01 Micro-Pod: Ultra-Lightweight UAV payloads

PODD40A-01 Micro-Pod: Ultra-Lightweight UAV payloads

The PODD40A-01 Micro-Pod delivers advanced imaging in an ultra-lightweight 80g package, making it ideal for weight-sensitive UAV payloads and mobile platforms. Featuring servo image stabilization and built-in AI tracking recognition, it ensures precision targeting in dynamic environments. Engineered for versatility, this EMC-compliant micro-pod supports wide-voltage input (12-16V) with dynamic power consumption control for optimized efficiency. All electronics are sealed in a rugged metal shell, achieving the perfect lightweight-functionality balance for demanding surveillance, reconnaissance, and compact ISR applications where size and resilience matter.
System specification
System type Gyro stability
Weight ≤80g
System characteristics
Platform type Two-axial
Pitch -120°~+120°
Roll -90°~+30°
Max angular velocity ≥30°/s
Vibration angle 0.2mrad(1°/2Hz)(1σ)
Encoder accuracy ≤0.3°
Visible Light Imaging (large field of view)
Resolution and frame rate 1920×1080@30fps
FOV 98.5°×66.3° (2.4mm)
Visible Light Imaging (narrow field of view)
Resolution and frame rate 1920×1080@30fps
FOV 30°×17. 1° (10.36mm)
Tracking module
Tracking speed 32 pixels / frame (32×32 person)
48 pixels / frame (48×48 car)
System external interface
Control interface TTL
Video output Network RTSP
Power supply
Supply voltage 12V~ 16V
Power consumption Av.≤5W
Max.≤8W
Environmental condition
Working temp -20℃~+60℃
Storage temp -20℃~+60℃

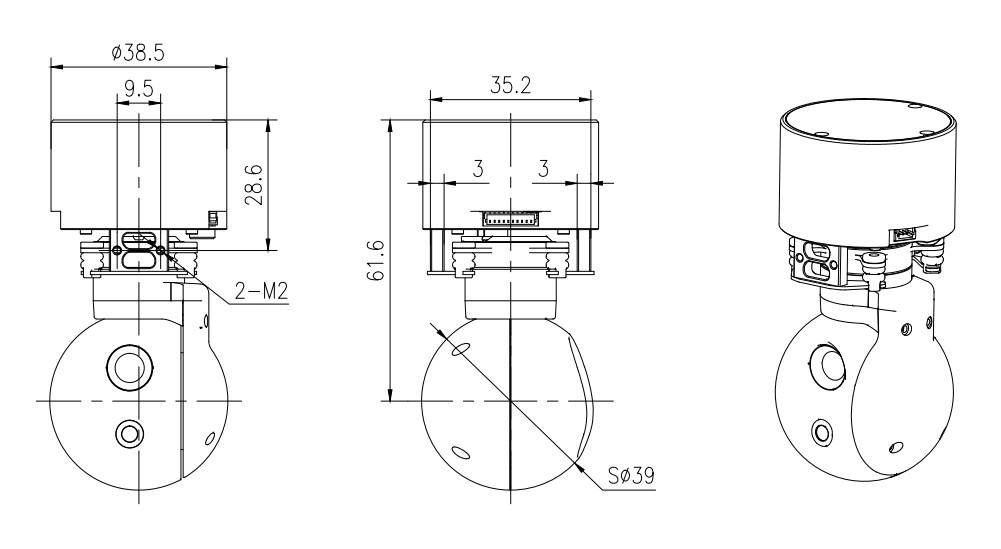

2D Dimension Image
