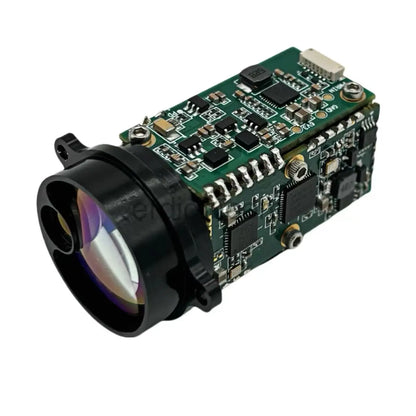

1535 nm Laser Rangefinder Module Eye-safe Laser Distance Sensor 3000m
1535 nm Laser Rangefinder Module Eye-safe Laser Distance Sensor 3000m
Couldn't load pickup availability
|
Project |
Performance Indicators |
|
|
Model |
LRF0105C |
|
|
Laser Wavelength |
1535±5nm |
|
|
Eye Safety |
Class Ⅰ |
|
|
Divergence Angle |
≤1mrad |
|
|
Launch Lens Diameter |
Φ8 mm |
|
|
Receiver Lens Diameter |
Φ20 mm |
|
|
Measuring Range （Reflectance 30%; visibility ≥ 8km.） |
Big Target（4m×6m) |
≥4000m |
|
|
NATO objective(2.3m×2.3m) |
≥3000m |
|
|
People(0.5m×1.7m) |
≥1500m |
|
|
Drones(0.2m×0.3m) |
≥1000m |
|
Minimum Range |
≤15 m |
|
|
Ranging Frequency |
Single, 1Hz, 5Hz, 10Hz |
|
|
Ranging Accuracy |
±2 m |
|
|
Range Resolution |
≤20 m |
|
|
Precision Rate |
≥98% |
|
|
False Alarm Rate |
≤1% |
|
|
Number of multi-target detections |
Up to 3 targets |
|
|
Electrical Interface |
FWF08002-S06B13W5M |
|
|
Supply Voltage |
DC3～5 V |
|
|
Standby power consumption |
≤1mW |
|
|
Average power consumption |
≤0.8W |
|
|
Peak Power Consumption |
≤1.5W |
|
|
Weight |
≤29±1 g |
|
|
Dimension (L×W×H) |
Φ34mm×47.5mm |
|
|
Operating Temperature |
-40～+70 ℃ |
|
|
Storage Temperature |
-55～+75 ℃ |
|
|
Impact Resistance |
1200 g/1 ms（GJB150.16A-2009） |
|
|
Anti-vibration |
5～50～5 Hz，1 Octave range /min，2.5 g |
|
|
Ranging Logic |
First and last target, multi-target ranging, distance selectivity |
|
|
Activation Time
|
≤950 ms |
|
|
Data Interface |
UART（TTL_3.3V） |
|
|
Electrical isolation |
Isolation of power ground, communication ground and structure ground |
|
|
Reliability |
MTBF ≥ 1500h |
|
|
Optical axis stability |
≤0.05 mrad |
|
|
Non-parallelism between optical axis and mounting surface |
≤0.5 mrad |
|
|
Electromagnetic Compatibility (EMC) |
CE/FCC Certification |
|
|
Eco-friendly |
RoHS2.0 |
|
