High Repetition High-Precision Long-Range Laser Radar Module

High Repetition High-Precision Long-Range Laser Radar Module

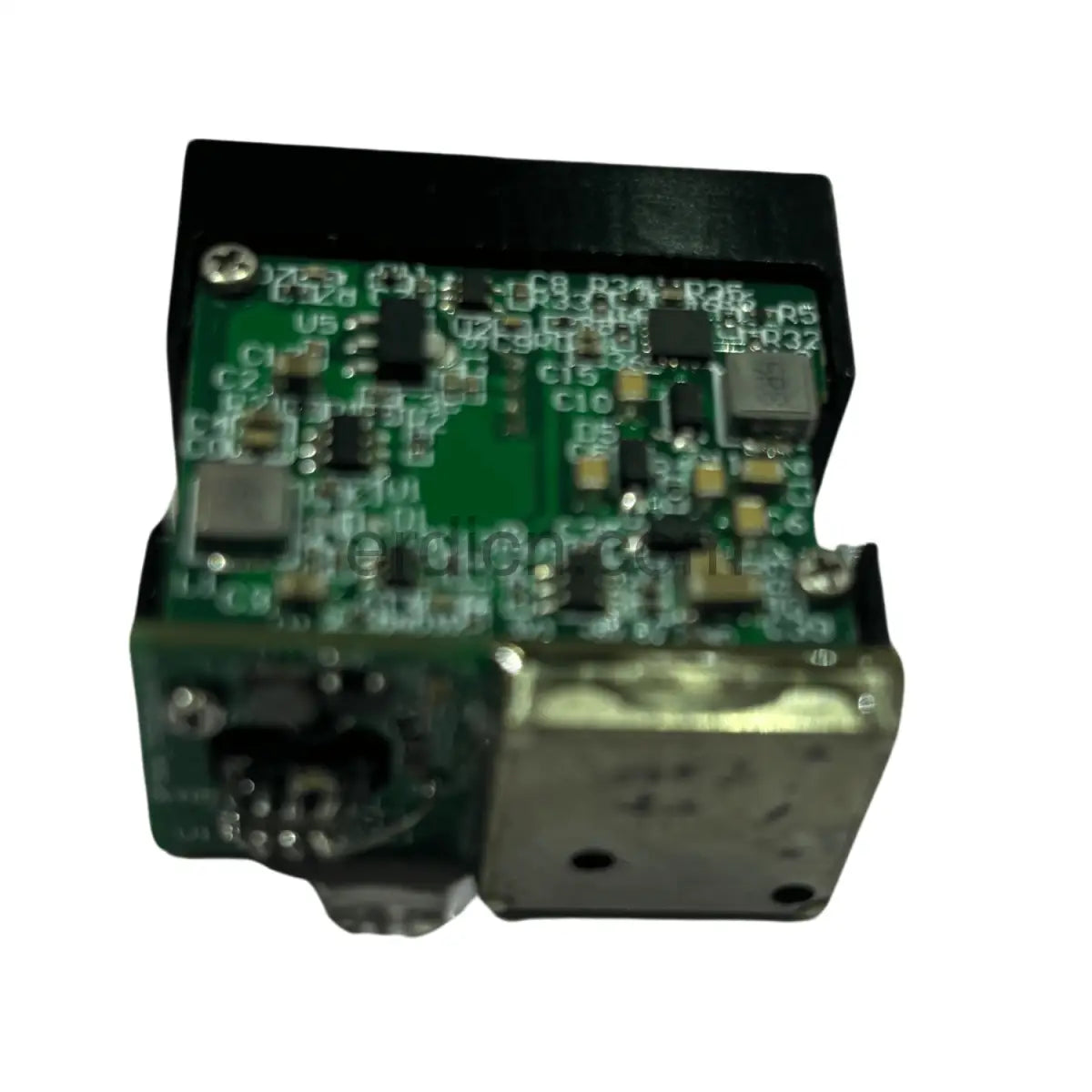

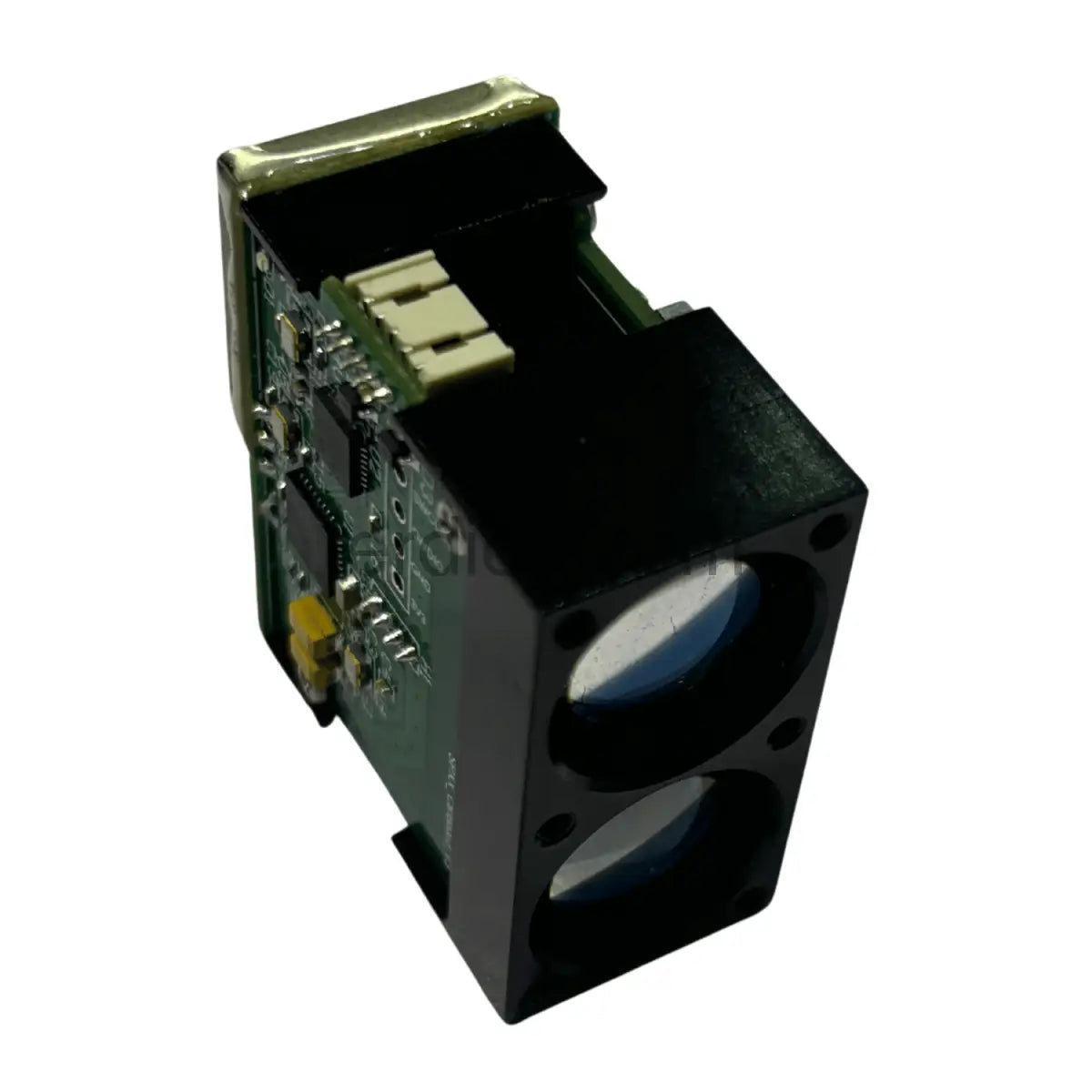

The LRF200A is a compact, high-performance laser radar ranging module built for both indoor and outdoor applications. Offering an impressive measurement range of up to 200 meters, and a lightweight design (33×36×18mm, under 50g), it is ideal for shuttle cars, land transport vehicles, overhead cranes, and lateral movers. The LRF200A ensures accurate detection even on extremely dark or shiny surfaces, making it perfect for thrust control, shelf occupancy monitoring, and load height management in logistics. Engineered for real-world conditions, it operates reliably under strong sunlight, rain, fog, and dust. With IP67-rated front housing, resistance to strong electromagnetic interference, and a wide temperature tolerance from -40℃ to +85℃, the LRF200A delivers stable, dependable performance in the most challenging environments.

Measurement Capability: The LRF200A 905nm Laser Rangefinder Module boasts exceptional measurement capabilities with an operational distance up to 200 meters. Its dimensions of 33×36×18mm and weight of less than 50g make its small form factor and long-range capabilities widely applicable to various unmanned scenarios.

Outdoor Operational Capability: The LRF200A is fully designed to adapt to outdoor working environments. In terms of measurement technology, it can still function normally even in intense sunlight and possesses a certain ability to penetrate rain, fog, and dust, enabling it to detect actual targets without interference from atmospheric impurities.

In terms of electrical and structural design, it can withstand a 15% fluctuation in supply voltage and resist the impact of strong electromagnetic interference. The front of its housing has an IP67 protection level, and its operating temperature range spans from -40℃ to +85℃, ensuring robust outdoor performance.

Project Name

Technical parameters

Laser Light Source

Laser diode 905nm, ≤10mW; Class I laser eye safety requirements

Spot Area

20×10cm（100m）

Weight

＜50g

Power Supply Voltage

24V（9V~36V）

Specification Range

0.05-50m

0.05-100m

0.05-150m

0.05-200m

Measurement Accuracy

±0.05m

±0.05m + (L-50) × 0.1%, where L is the measurement distance

Standard Measuring Range

0.05m ~ 200m @ 80% reflectivity & visibility > 10km

Distance Resolution

1cm

Absolute Accuracy

±0.05m@50m

Output Interface

3.3V TTL serial port output

Measurement Frequency

20-20kHz (default 1kHz)

Return Data

Direct measurement of distance, reflected light intensity, and working status

Operating Temperature

－40℃~ +85℃

Storage Temperature

－45℃~ +100℃

Operating Humidity

0%~100% RH

Anti-ambient Light

＞100kLux

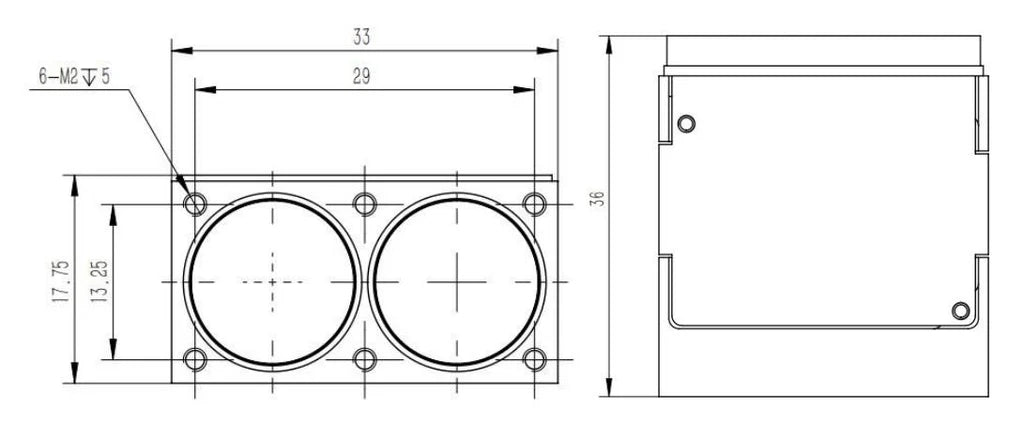

2D Dimension Image

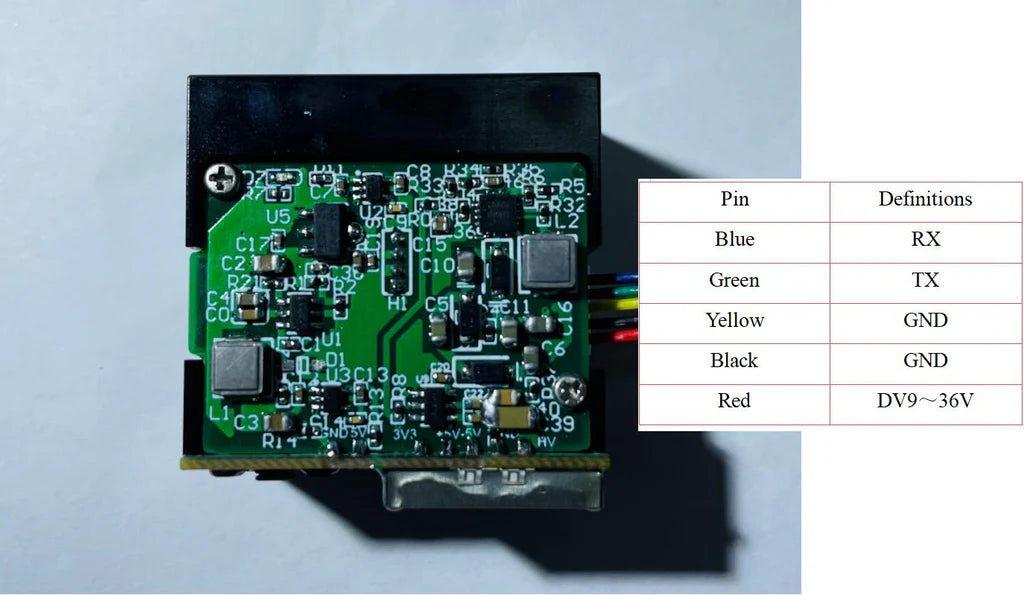

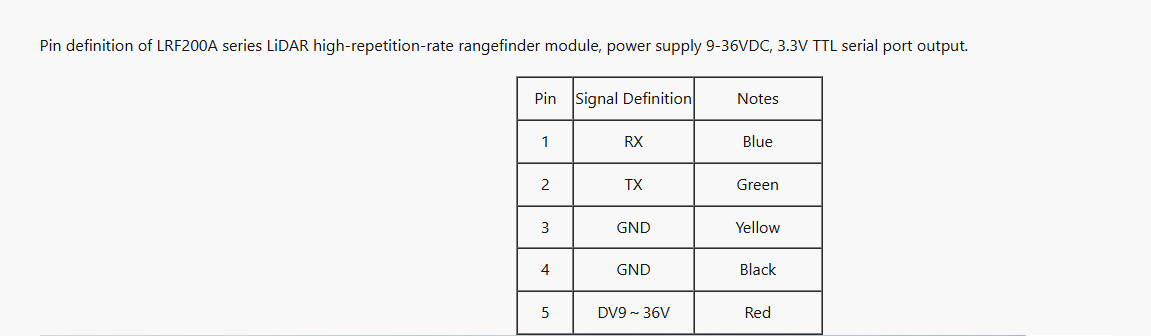

Communication Interface Communication Interface
