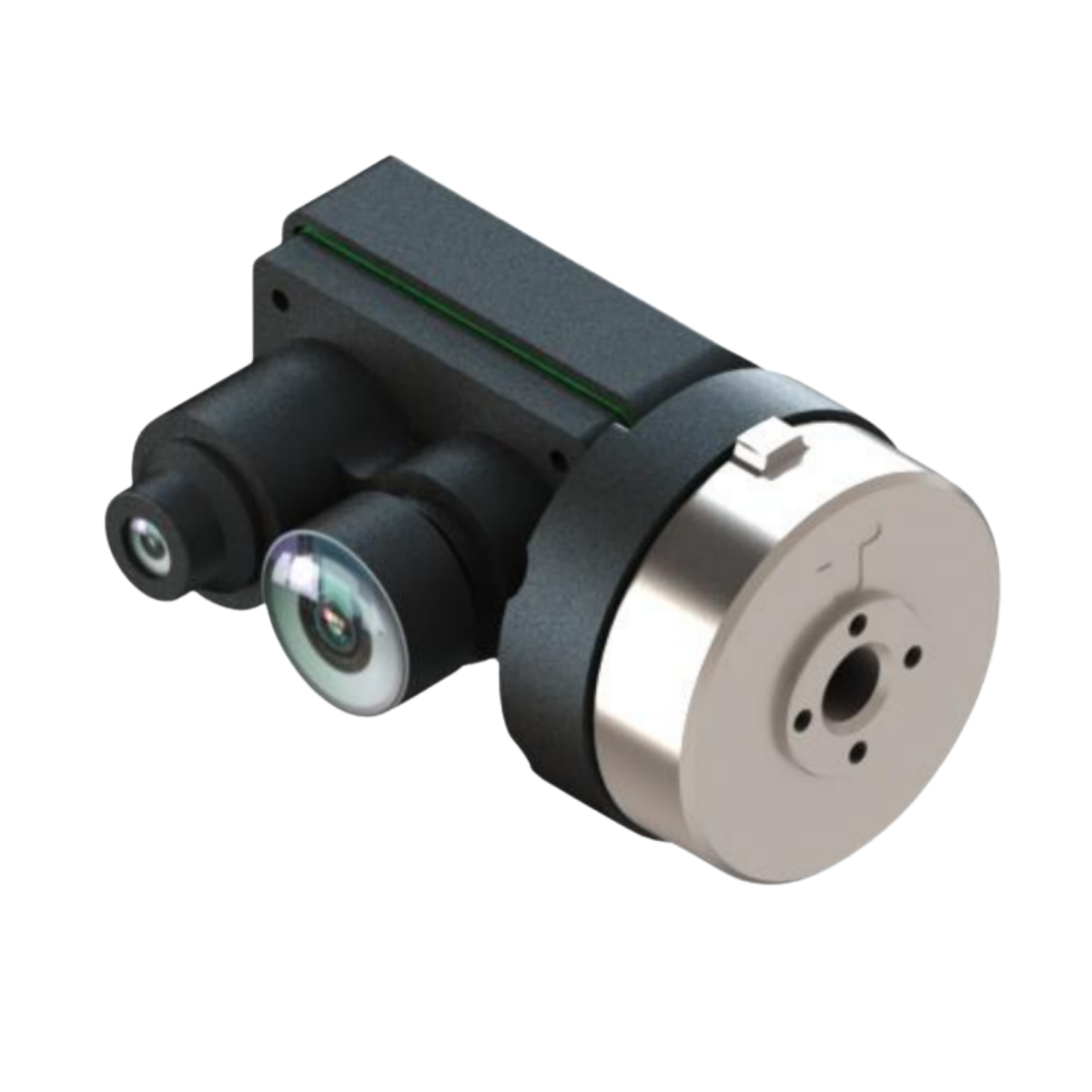

PODS30C Mini Drone Camera – 90g Micro Gimbal with AI Tracking & Stabilization
PODS30C Mini Drone Camera – 90g Micro Gimbal with AI Tracking & Stabilization
Model: PODS30C-01
The PODS30C-01 Micro Gimbal Camera is an ultra-compact, high-performance drone payload weighing under 90g. Designed for catapult-launched UAVs and built to withstand strong launch impacts, it delivers exceptional stability and intelligent tracking in a rugged, lightweight housing.
Equipped with servo image stabilization, AI object recognition, and built-in target tracking, the PODS30C-01 ensures smooth, accurate footage and advanced situational awareness. Ideal for surveillance drones, mapping missions, and search & rescue operations, this miniature gimbal camera offers powerful capabilities in a compact form—perfect for modern drone applications where size, weight, and performance matter most.
| Model | PODS30C-01 |
| System specification | |
| System type | Gyro stability |
| Weight | ≤90g |
| System characteristics | |
| Platform type | Single-axis |
| Pitch | -90°~+90° |
| Max angular velocity | ≥60°/s |
| Vibration angle | 0. 1mrad(1°/2HZ)( 1σ) |
| Encoder accuracy | ≤0.3° |
| Visible Light Imaging (Large Field of View) | |
| Resolution and frame rate | 1920×1080@60fps |
| FOV | 82.0°×52.2°(3.2mm) |
| Visible Light Imaging (Narrow Field of View) | |
| Resolution and frame rate | 1920×1080@60fps |
| FOV | 30.0°×17.2° (10.36mm) |
| Tracking module | |
| Tracking speed | ≥40°/s |
| AI recognition | |
| Target type | Human & Vehicle |
| System external interface | |
| Control interface | TTL |
| Video output | Network/AV |
| Power supply | |
| Supply voltage | 12V & 5V |
| Power consumption | Av.≤10W |
| Max.≤20W | |
| Environmental condition | |
| Working temp | -40℃~+60℃ |
| Storage temp | -40℃~+60℃ |
| High-G shock resistance | ≥400g |
