Handheld Laser Rangefinder Monocular 3500m

Handheld Laser Rangefinder Monocular 3500m

Model: LRF3500D-01
Regular price $2,600.00 USD
Sale price $2,600.00 USD Regular price $3,000.00 USD
Shipping calculated at checkout.

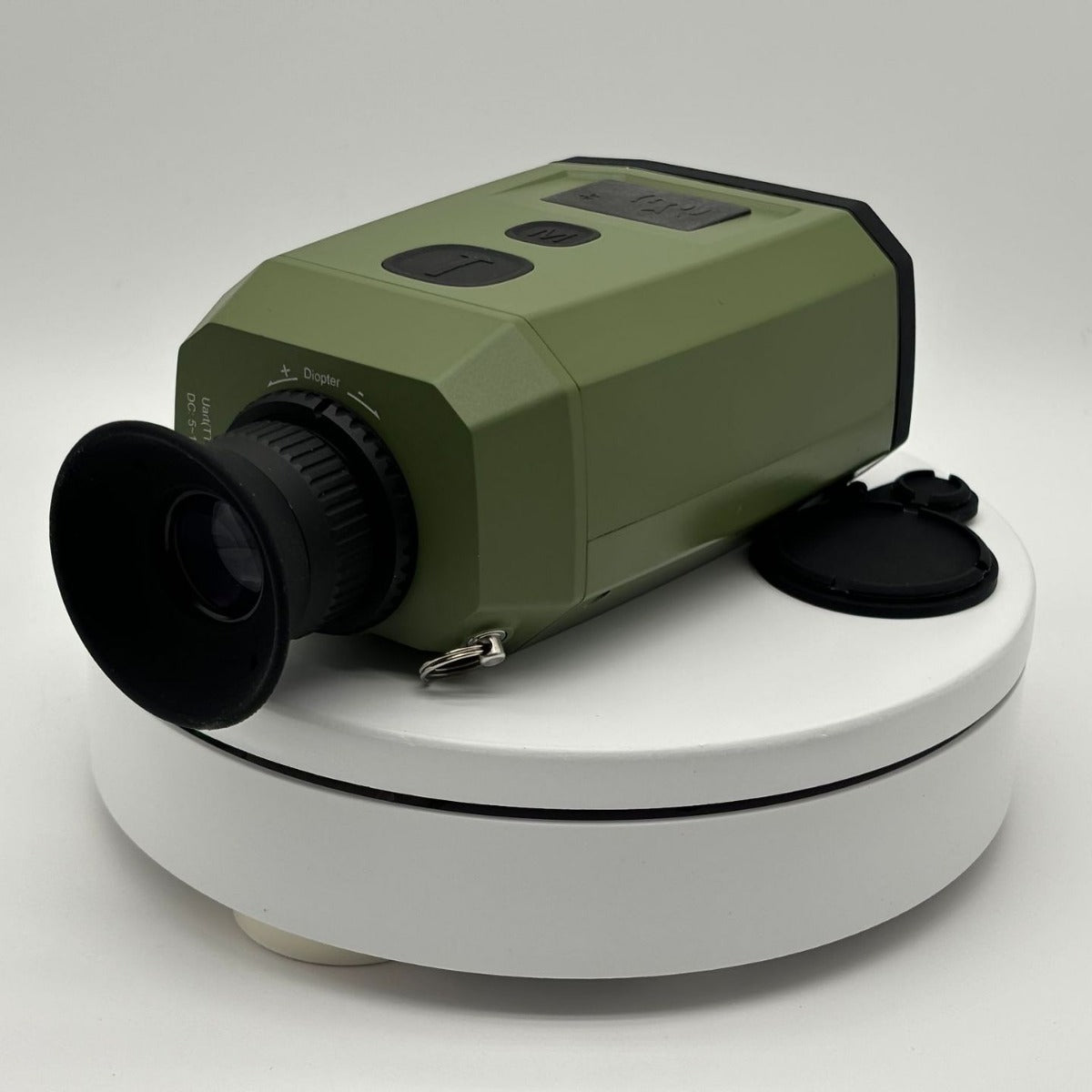

The ERDI LRF3500D Handheld Laser Rangefinder is a compact, high-precision device designed for one-handed use or tripod mounting, enabling accurate long-range target measurement. This laser ranging telescope utilizes a 1535nm eye-safe laser and offers a comprehensive suite of functions, including distance measurement, angle calculation, altimeter, two-point ranging, target location, and ballistic computation—meeting the demands of complex operational scenarios. Equipped with integrated GPS, Bluetooth, and Wi-Fi modules, the LRF3500D Tactical laser rangefinder scope supports seamless connectivity with mobile applications for real-time data transmission and remote operation. Its upgraded OLED projection display features enhanced clarity, illumination, and in-eyepiece data visualization, significantly improving usability and operational efficiency. Built for durability, the device is IP67-rated and operates reliably in extreme temperatures ranging from -40°C to +55°C. With a measuring range from 30 meters up to 3,500 meters, the LRF3500D Laser Rangefinder Monocular delivers consistent performance, making it an ideal solution for field surveys, border security, tactical reconnaissance, and various demanding outdoor applications.
Handheld Laser Rangefinder Monocular 3500m

$2,600.00 USD

Model

LRF3500D

Eye safety level

Class 1(IEC60825-1)

Magnification

Field of view

6°/106mil

Pupil distance

20mm

Receive caliber

Φ32mm

Diopter

-5~+5D

Laser wavelength

1535nm

Range (building)

≥ 20~3500m

Accuracy

±1m

Frequency

1Hz (3Hz in continuous ranging mode)

Accurate

≥98%

Divergence angle

0.6mrad

Angular range

Azimuth: 0~360°(±1°);

Pitch angle: ±90° (±1°)

Power supply

DC 5~12V

Battery type

Rechargeable battery 16340×2/CR123A×2

Battery life (room temperature)

5000 ranging

Weight

≤ 430g (including battery)

Volume

141×81×53mm (L×W×H)

Operating temperature

-40~+55℃

Storage temperature

-50~+65℃

Waterproof rating

IP67

Connector

Uart(TTL_3.3V)to USB

Wireless transmission

Bluetooth 5.0

Positioning type

GPS/BeiDou/GLONASS

Location accuracy

≥50m

Other

Mobile APP interconnection

Product certification

CE、RoSH

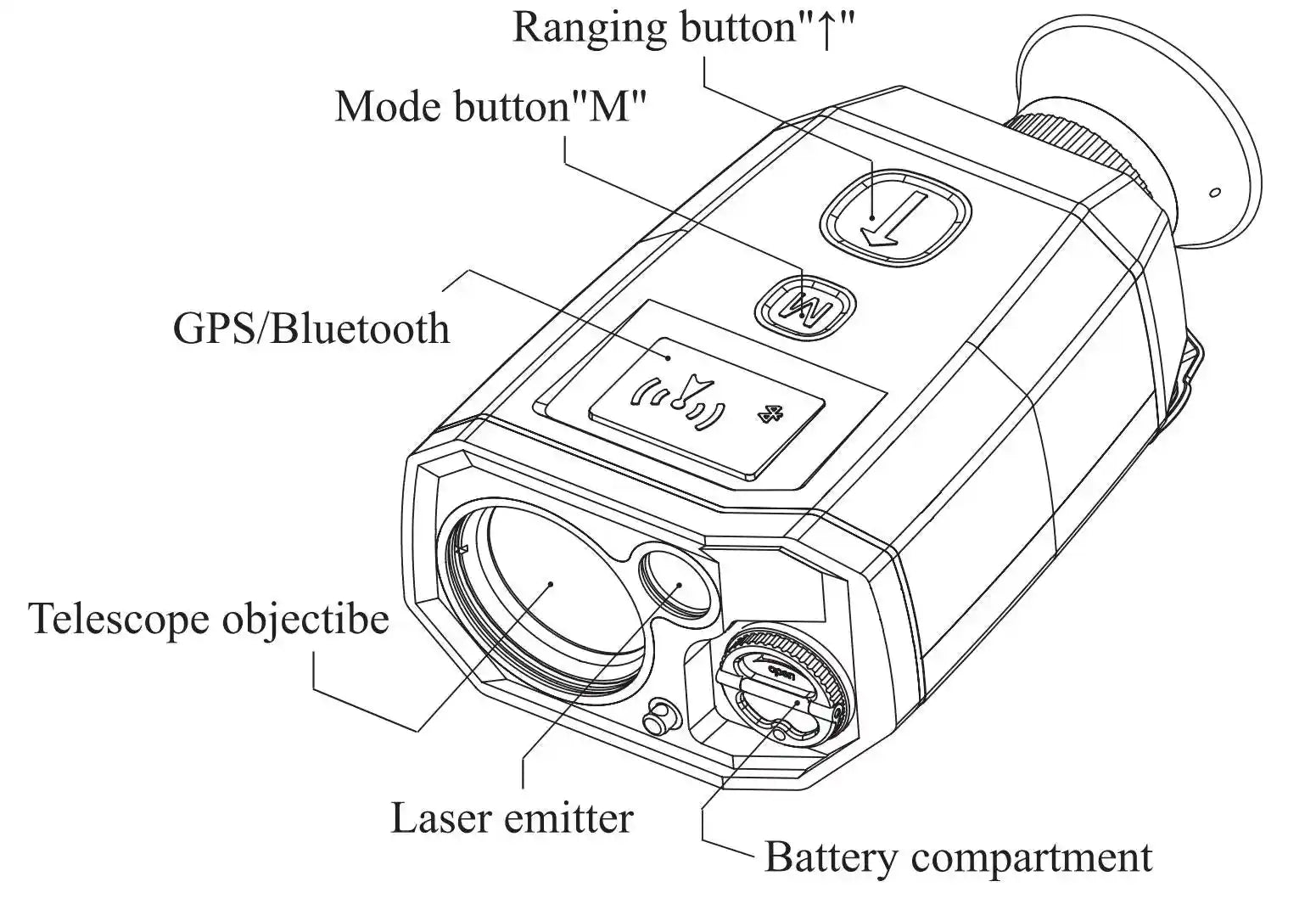

2D Dimension Image 2D Dimension Image 2D Dimension Image
