1064nm High-Power Laser Target Designator and Rangefinder 100mJ

1064nm High-Power Laser Target Designator and Rangefinder 100mJ

Model: LR100-01
$68,000.00 USD
$68,000.00 USD $80,000.00 USD
Shipping calculated at checkout.
The LR100 High-Power Laser Target Designator is a 1064nm semiconductor side-pumped system delivering ≥100mJ pulse energy at 20Hz with exceptional 0.15mrad beam divergence (86.5% hole-hole ratio) and ≤8% energy stability, enabling ≥12km target designation and >30km ranging (±5m accuracy). Featuring <±1µs timing precision, RS422 interface, and dual trigger modes (304µs±1µs delay), it operates reliably in -40°C to +60°C with military-grade shock resistance (10g/11ms). The 3.1kg system (282×173×87mm) supports 90s ON/60s OFF cycles (4x at normal temp) with 240W power, making it ideal for: Long-range artillery fire control;Precision airstrike coordination;UAV-based battlefield illumination;Special operations targeting.
1064nm High-Power Laser Target Designator and Rangefinder 100mJ

$68,000.00 USD

Technical Parameters

ITEM

Parameters

Working wavelength

1064nm±1nm

Pump mode

semiconductor side pump

Irradiation frequency

accurate code 45ms—125ms(check code 20Hz)

Trigger method

Both Int. trigger and Ext. trigger (trigger delay : 304us+-1us)

Output energy

≥100mJ@20Hz

Max.Irradiation distance

≥12km

Q switching mode

electro-optical Q switching

Pulse width

10ns ~ 20ns

Beam divergence Angle

Using 0.15mrad  (the acceptance method adopts hole-hole method, and the ratio of hole-hole to hole-free is not less than 86.5%)

Pulse energy stability

≤8%(RMS)

Irradiation working cycle

working 90s, interval 60s; 4 cycles (normal temperature or low temperature), 1 cycle(high temperature 600C )

Power supply

DC 24V±4V

Power

 <240W (normal temperature standby current: <2A, peak working current <10A, high and low temperature standby current <3.5A)

Communication serial port

RS422

External trigger interface

3V differential level drive, RS422 interface  (delay time is 304us+/-1us from trigger signal to lase out)

Coding type

precise frequency coding, time coding, pseudo random coding

Using precision

  <+-1us

Laser ranging parameters

Ranging mode

 0~5hz ranging

Maximum measured distance

>30km (20km visibility, 2.3x2.3m typical target, target reflectance > 20%)

Minimum measured distance

300m

Ranging accuracy

±5m

Environmental adaptability

Low temperature

Operating temperature: -40C


Storage temperature: -45℃

High temperature

Operating temperature: + 60C


Storage temperature: +65℃.

Humid heat

Relative humidity: 95%±3%;


Temperature: +35℃±2℃


Storage time: 72h.

Dimensions

≤282.2X173X87mm

 Weight

≤3.1kg

Impact

Impact waveform

half sinusoidal pulse

Peak acceleration

10g

Pulse width

11ms

Number of shocks

3 in vertical axial direction

Vibration

Frequency range

5~16Hz single amplitude displacement: 1.5mm


16~200Hz (16~60Hz for optical equipment) acceleration: 1.5g

One scan time

 12min

Duration

vertical axial 36min

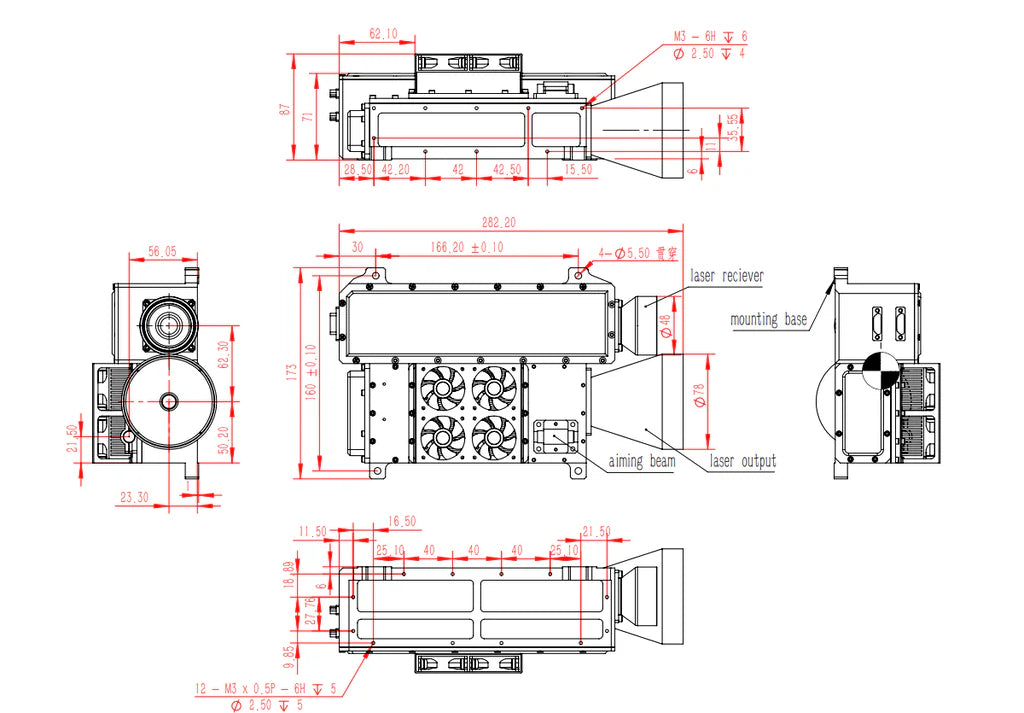

2D Dimension Image

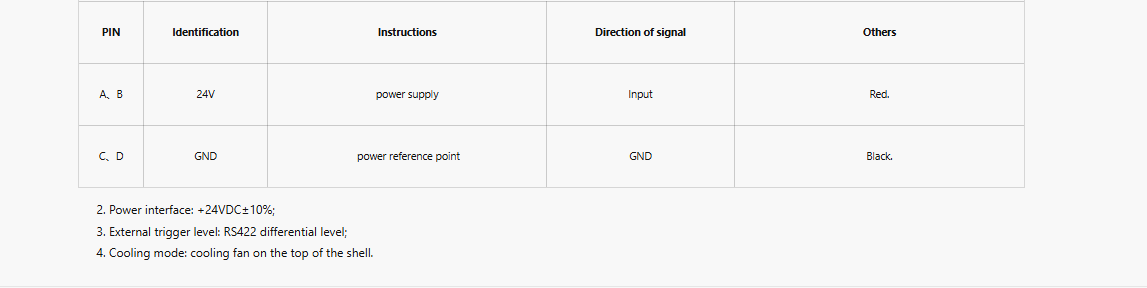

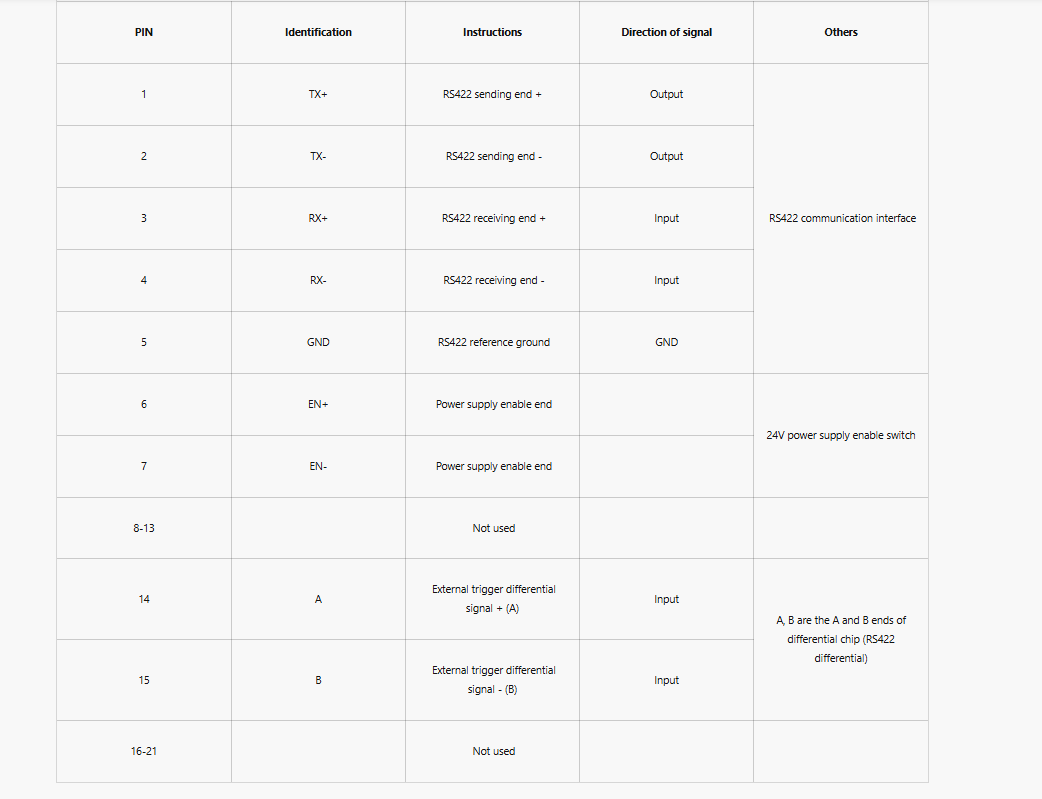

Communication Interface Communication Interface
Download Product Instructions Download PC Upper Computer
