Handheld Infrared Dual Light Fusion Thermal Imaging Binoculars

Handheld Infrared Dual Light Fusion Thermal Imaging Binoculars

Model: LRF1700F-01
Regular price $3,500.00 USD
Sale price $3,500.00 USD Regular price
Shipping calculated at checkout.
This LRF1700F-01 thermal imaging binoculars is a high-integration binocular handheld fusion telescope, equipped with a far-infrared thermal imaging detector and ultra-low light optical detector, a high-resolution OLED display, and a built-in 32GB storage module for image and video capture. This Infrared night vision binoculars supports dual-spectrum image fusion and real-time target highlighting, ensuring effective detection and recognition under adverse weather conditions such as fog, smoke, rain, or snow. The system of this military night vision binoculars features compact dimensions, lightweight construction, low power consumption, and extended operational time, making it well-suited for mobile field operations. Its advanced fusion algorithm is optimized for natural color rendering and visual depth, conforming to human eye perception for improved target distinction and operator comfort during prolonged use. Designed for tactical and security applications, the LRF1700F-01 thermal night vision scope is widely used in public safety, armed forces, border patrol, maritime law enforcement, firefighting, and anti-narcotics operations, delivering reliable performance in reconnaissance, tracking, and situational awareness across complex environments.
Handheld Infrared Dual Light Fusion Thermal Imaging Binoculars

$3,500.00 USD

Infrared detectors and low light detectors

Infrared: Infrared (IR)

640×512

Low Light Level (LLL)

800×600

Field of View (FOV)

12.5°× 10°

Focusing: Focusing

Manual

Detection and identification distance

Detection Range



Personnel (1.7×0.5m): 1200m



Vehicle (2.3m): 1700m

Recognition Range

Personnel (1.7×0.5m): 400m



Vehicle (2.3m): 560m

File Storage

Image Storage

JPEG File Storage

Video Storage

MP4 Video File Storage

Memory Card

32G

Image Display

Display Screen

0.49″OLED

Electronic Zoom

Electronic magnification 1x ~ 4x

Image Parameters

Brightness, contrast, and enhancement adjustable from 1-10

Interface

Video Output: CVBS

CVBS

Data Interface: USB

USB

Serial Port: RS232

RS232

Interface

Standard, 1/4 inch

Eyepiece

Diopter Adjustment

-5  +5 Diopters

power supply

Battery

18650 battery

Continuous Operating Time

≥4h

Environmental adaptability

Operating Temperature

-20℃+50℃

Storage Temperature

-40℃+60℃

Protection Level

IP66

Weight

≤1.0kg (including 2x 18650 lithium batteries)

Dimensions

≤ 205mm×160mm×70mm

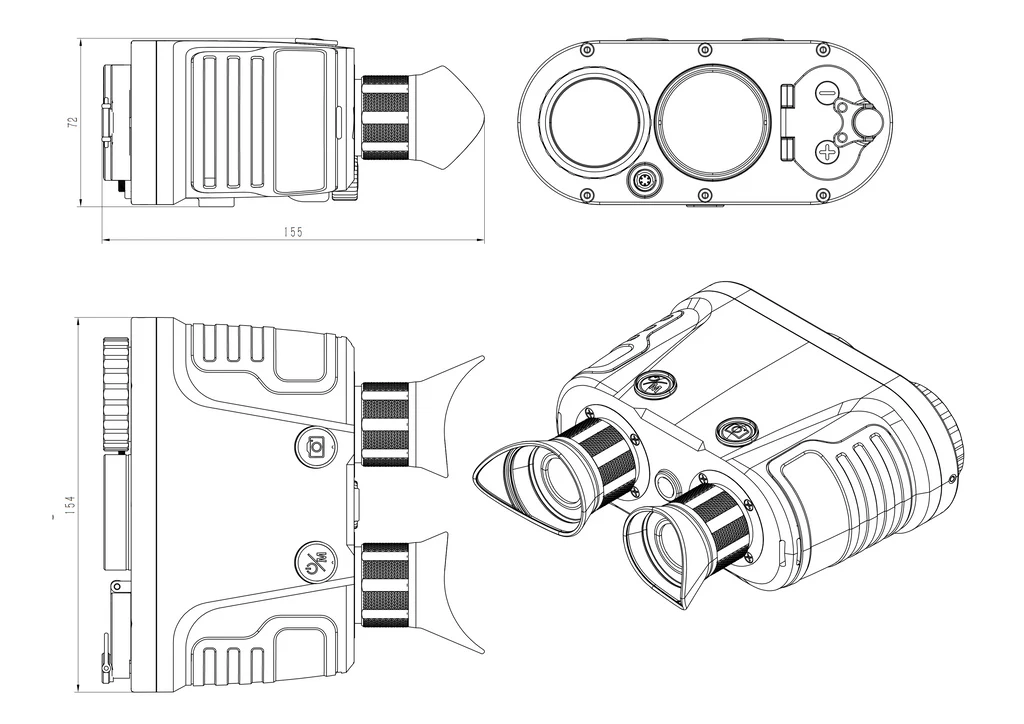

2D Dimension Image
