Handheld Laser Rangefinder Uncooled Thermal Imaging Binoculars

Handheld Laser Rangefinder Uncooled Thermal Imaging Binoculars

Model: LRF6000F-01
$5,800.00 USD
$5,800.00 USD
Shipping calculated at checkout.
The LRF6000F Uncool-ed Multifunctional Binocular Camera is a multifunctional dual-optical fusion thermal imaging night vision device that integrates infrared thermal imaging, low-light night vision, and laser ranging technologies. By combining the strengths of each system, it significantly enhances image clarity and target recognition. Its fusion focusing capability enables magnified observation of single-point targets while maintaining high resolution, effectively overcoming the limitations of traditional infrared systems that cannot see through glass. This Handheld Surveillance Device Night Vision Observation Equipped with a 640×512 resolution uncool-ed thermal imaging detector, an ultra-low illumination CMOS camera, a laser rangefinder, GPS, a digital magnetic compass, and other core components, the device provides reliable all-weather observation and positioning. This military night vision binoculars can accurately detect and track targets in challenging environments such as fog, smoke, total darkness, and complex terrain—whether on land, at sea, or in marshlands. Compact, lightweight, and built for durability, the LRF6000F Laser Range Finder Uncool-ed Thermal Imaging Binoculars is waterproof, dust-proof, and shock-resistant. This laser rangefinder binoculars are ideally suited for a wide range of mission scenarios, including border patrol, firefighting and search and rescue, security monitoring, non-destructive testing, and anti-smuggling operations. Its combination of advanced functionality and user-friendly operation significantly enhances both efficiency and user experience.
Handheld Laser Rangefinder Uncooled Thermal Imaging Binoculars

$5,800.00 USD



Infrared Module

Infrared reconnaissance detection distance

≥3km, identification distance: ≥2km (visibility 8km, humidity 60%, target-background temperature difference 6K, side of medium-sized vehicle 4.6m×2.3m)

 Field of View (FOV):

≥6.2°×5.0°

Focal Length Adaptation Range:

20m~∞

Function

Contrast and Brightness Adjustment, Image Polarity Conversion

Detector Resolution

≥640×512

Visible Light Module

Laser wavelength

1535nm

Eye safety rating

Class 1

Visible light recognition distance

≥6km (visibility 8km, humidity 60%, side view of medium-sized vehicle (4.6m×2.3m))

Field of view

 ≥4.1°×2.3°

Resolution

≮1920×1080

Focal length adjustment range

50m~∞

Function

Equipped with contrast and brightness adjustment functions

Laser Ranging Module

Range range(Visibility 8km, humidity 40%, side of medium-sized vehicle (4.6m×2.3m) )

Minimum measuring range

≤50m



Maximum measuring range

≥6km

Distance measurement error

 ≤2m

Accuracy

 ≥98%

Repetition frequency

1~5Hz adjustable

Electronic Compass Accuracy

Directional accuracy

≤1° (RMS, host inclination range -15°~15°)

Main Technical Indicators of Beidou/GPS Accuracy

Satellite system

GPS/GLONASS/BDS /Galileo/QZSS/NAVIC (IRNSS)

Frequency

BDS B1I, B1C*, B2a/ GPS L1 C/A, L1C, L5/ GLONASS L1 configurable

Horizontal positioning accuracy (CEP)

 ≤5m

Elevation positioning accuracy

≤20m

Eyepiece Display

Eyepiece

Binocular observation

Magnification

≥ 14 times

Eyepiece diopter adjustment range

 ≥ -4SD ~ +4SD

System Requirements

Host weight

≤1.5kg (including battery)

Dimension

≤ 225mm × 175mm × 94mm

Continuous working time

≥4h (normal temperature)

Ergonomics

Easy and accurate operation



Friendly human-machine interface



Comfortable to hold and easy to carry

Battery requirements

Use 18650 battery



Battery can be replaced quickly

Environmental Adaptability

Storage temperature

 -40℃~+70℃

Working temperature

 -20℃~+55℃

Waterproof level

IP66

Vibration

Can fall with packaging box.

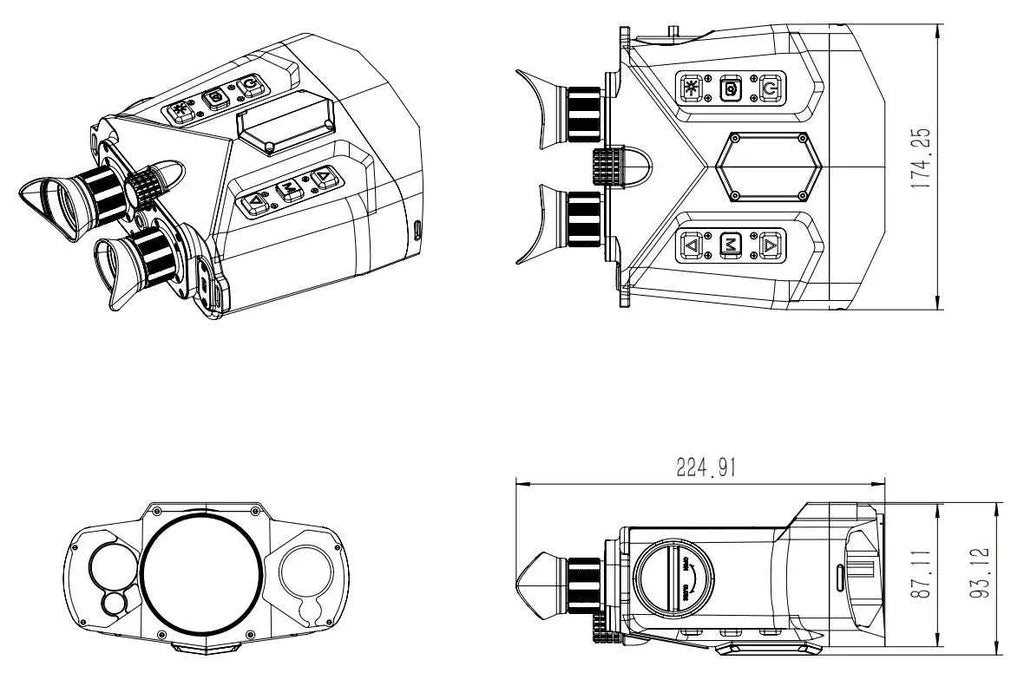

2D Dimension Image
Download Product Instructions
