| Category | Parameter | Specification |

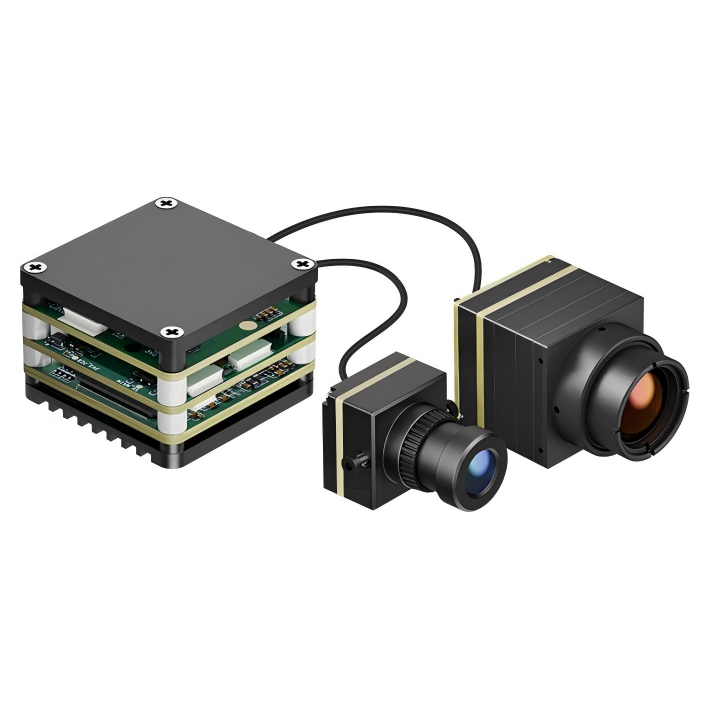

| Basic Info | Module Model | ST450 |
| Target Recognition & Tracking | Target Recognition Type | Default: Human, Vehicle |
| Target Detection Range | Vehicle: 450m, Human: 170m | |
| Min Target Tracking Pixel | 16x16 pixels | |
| Max Tracking Speed of Dynamic Target | 60 km/h | |
| Intelligent Adhesive Tracking | Supports cross hair fuzzy locking for close-range adhesive tracking | |
| Trajectory Prediction & Memory Tracking | Supports trajectory Prediction and feature Memory tracking | |
| Max Target Recognition No. | 50 | |
| Picture-in-Picture (PiP) | Supported | |
| Power & Temperature | Input Voltage | DC9~16V |
| Power Consumption | 10W | |
| Operating Temperature | -20℃ ~ 60℃ | |

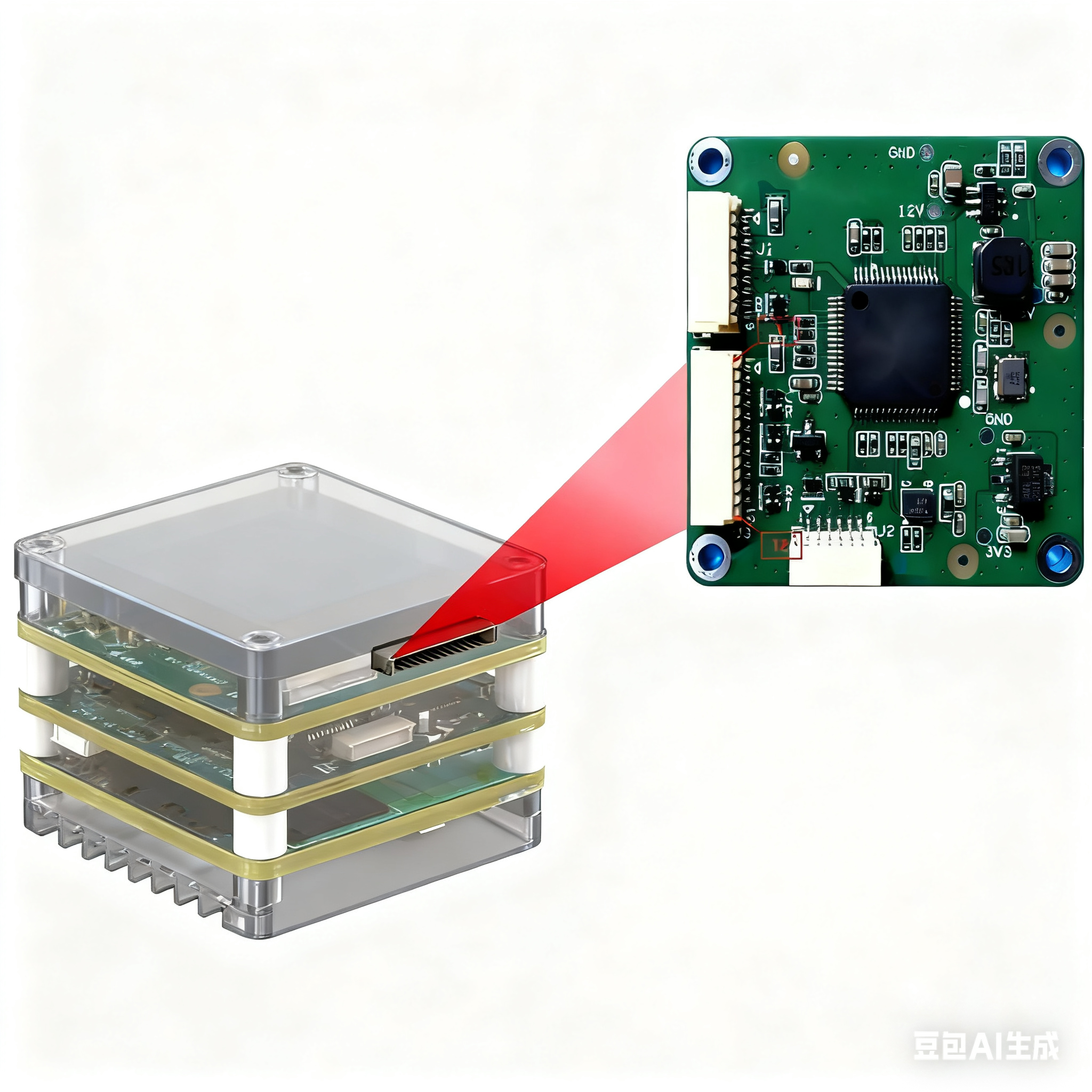

| AI Image Processing Board | Computing Power of Main Controller | 1 TOPS |

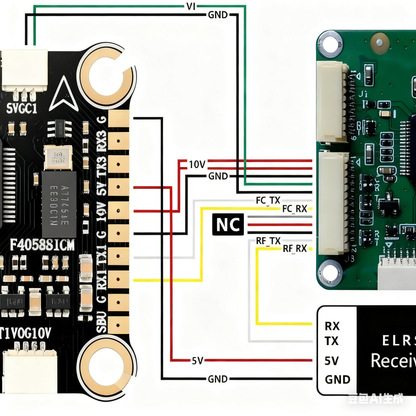

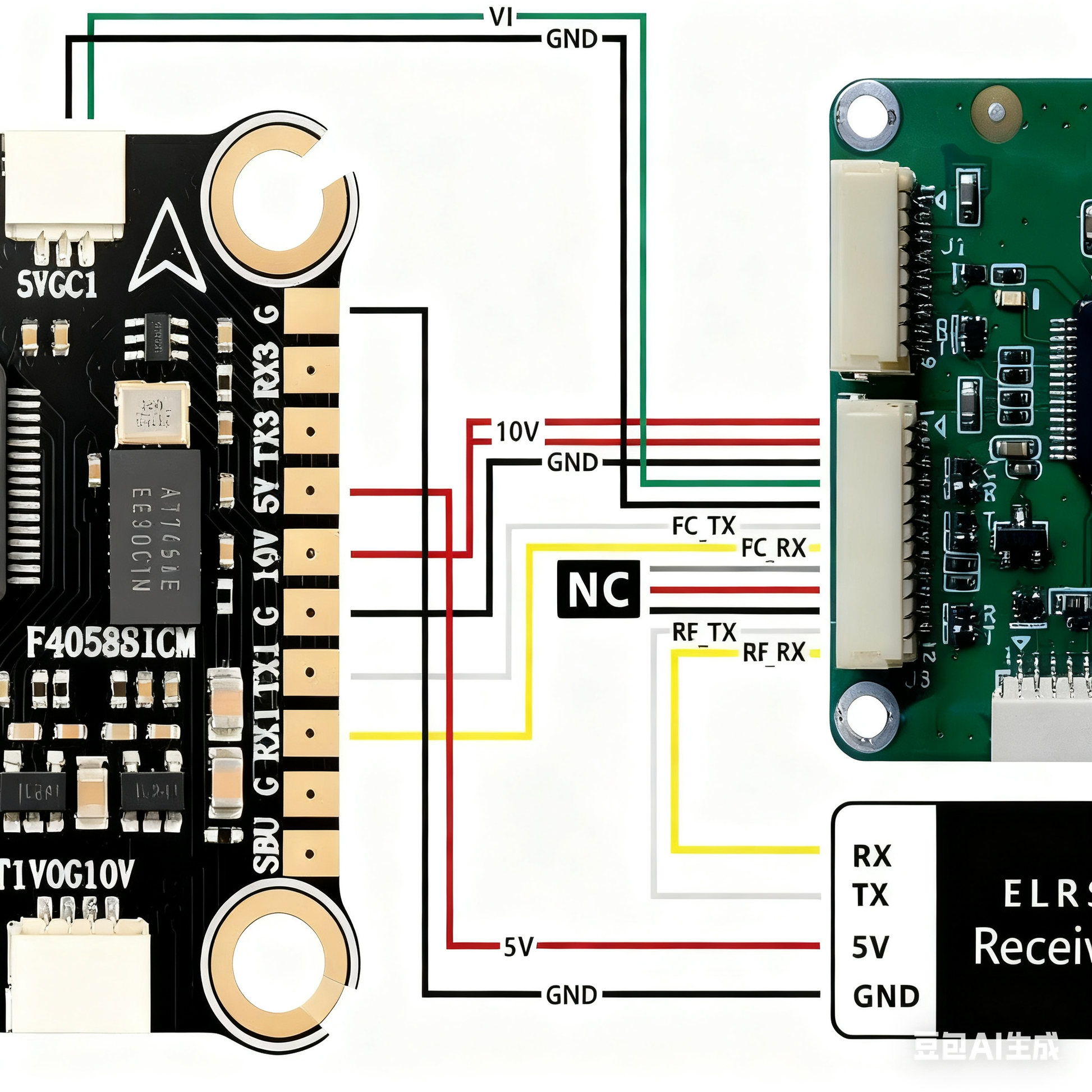

| Communication Protocol | CRSF | |
| Communication Method | UART | |
| Video Output Format | CVBS | |
| Supported Firmware | Beta Flight | |
| Input Voltage | 9 ~ 16V | |
| Mounting Holes | 25.5*25.5mm | |
| Dimensions | 38*38*29mm | |
| Weight | 43.8g | |
| Visible Light Camera Module | Low Light Performance of Short-focal Camera | 7341mV/lux·s |
| Short-focal CMOS | 1/2.8 Inch | |
| Short-focal FOV | 69°(H)*42°(V) | |
| Short-focal Length | 4mm | |
| Video Input Format | 1920*1080@30hz | |

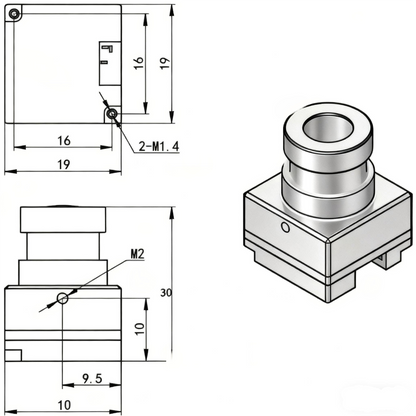

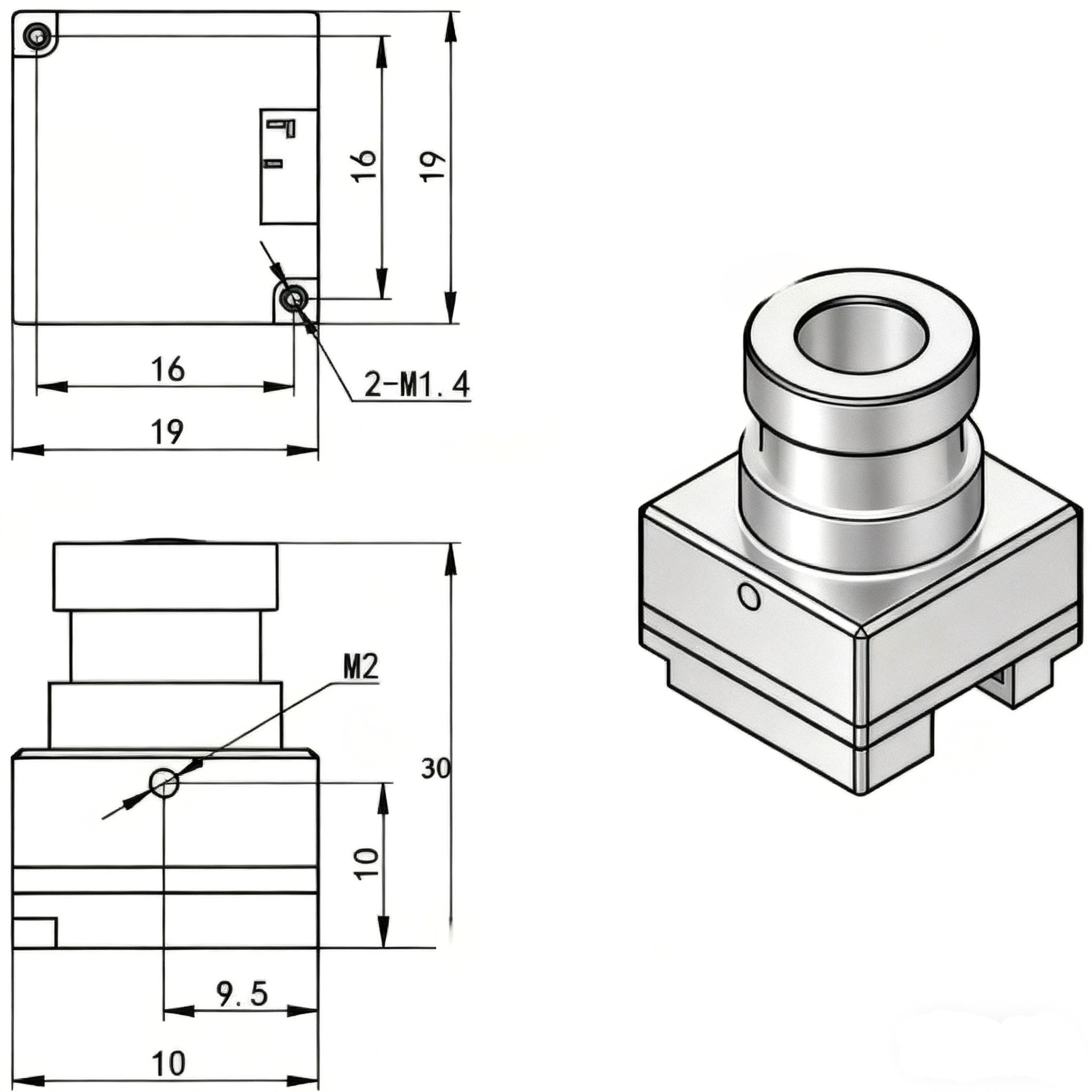

| Dimensions | 19*19*30mm | |
| Weight | 13.6g | |
| Thermal Camera | Pixel Pitch | 12 μm |
| Response Band | 8~14μm(LWIR) | |
| FOV | 20.3°(H)×15.2°(V) | |
| Focal Length | 9.1 mm | |
| Video Input Format | 384*288@25Hz | |

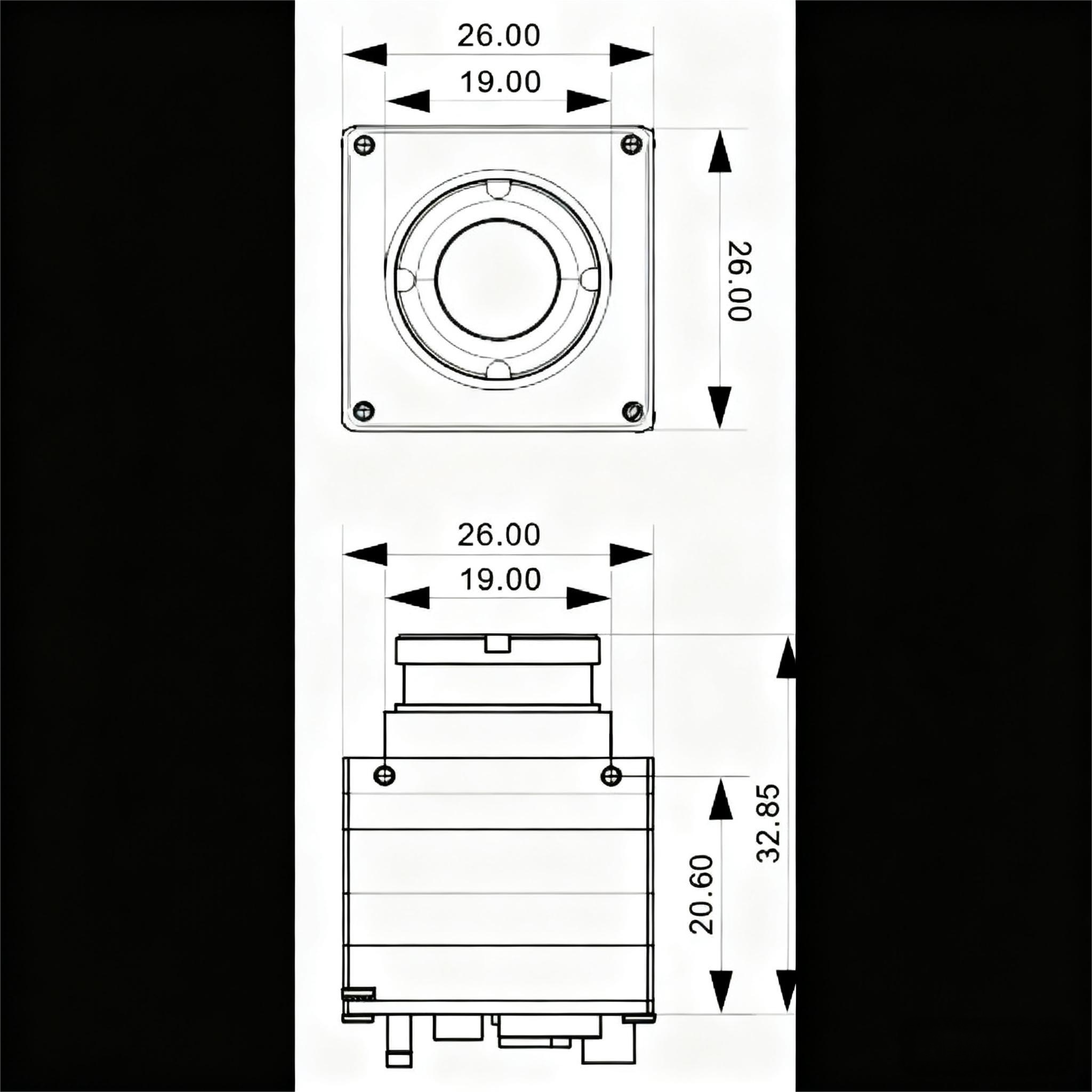

| Dimensions | 26*26*32.85mm | |
| Weight | 32.4g |
