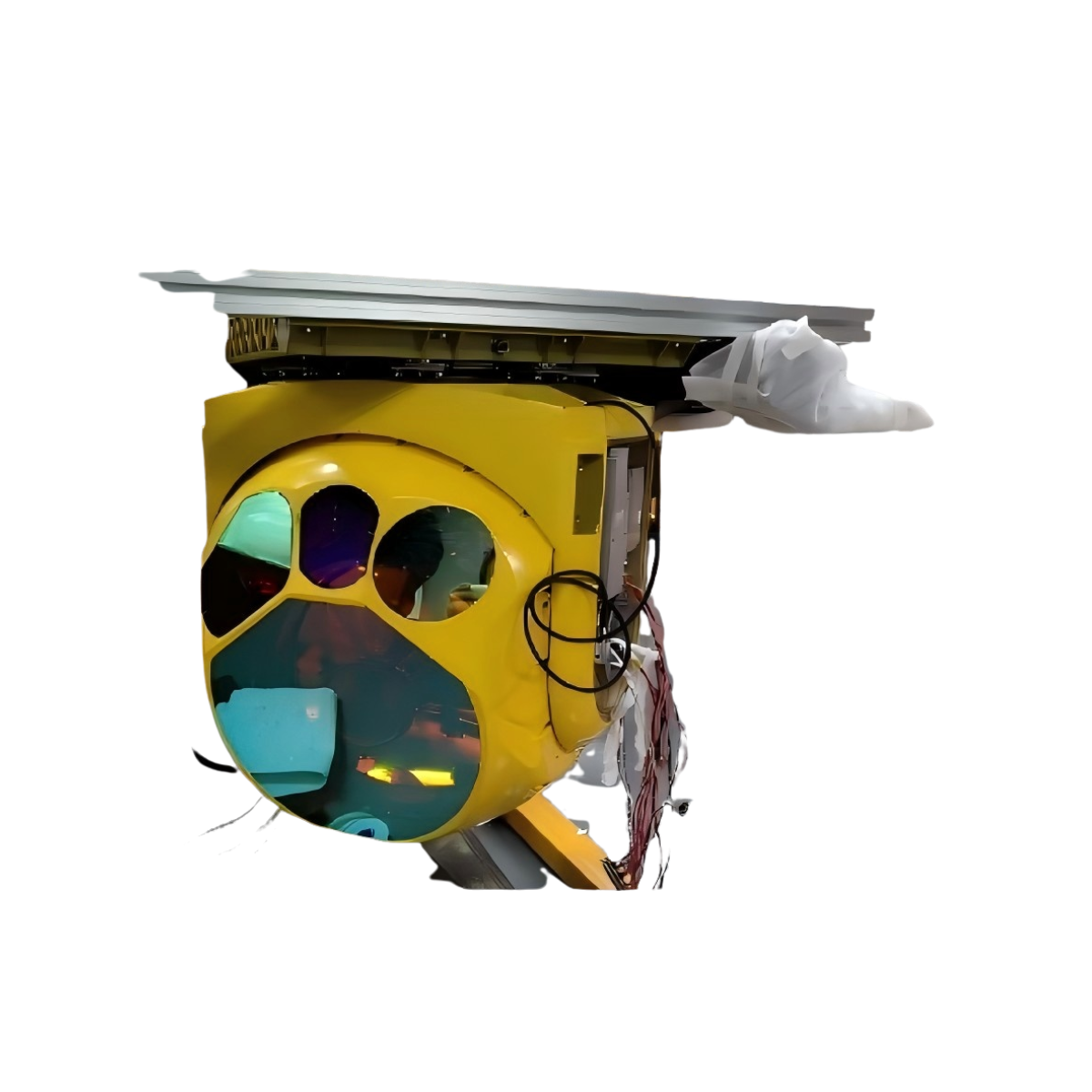

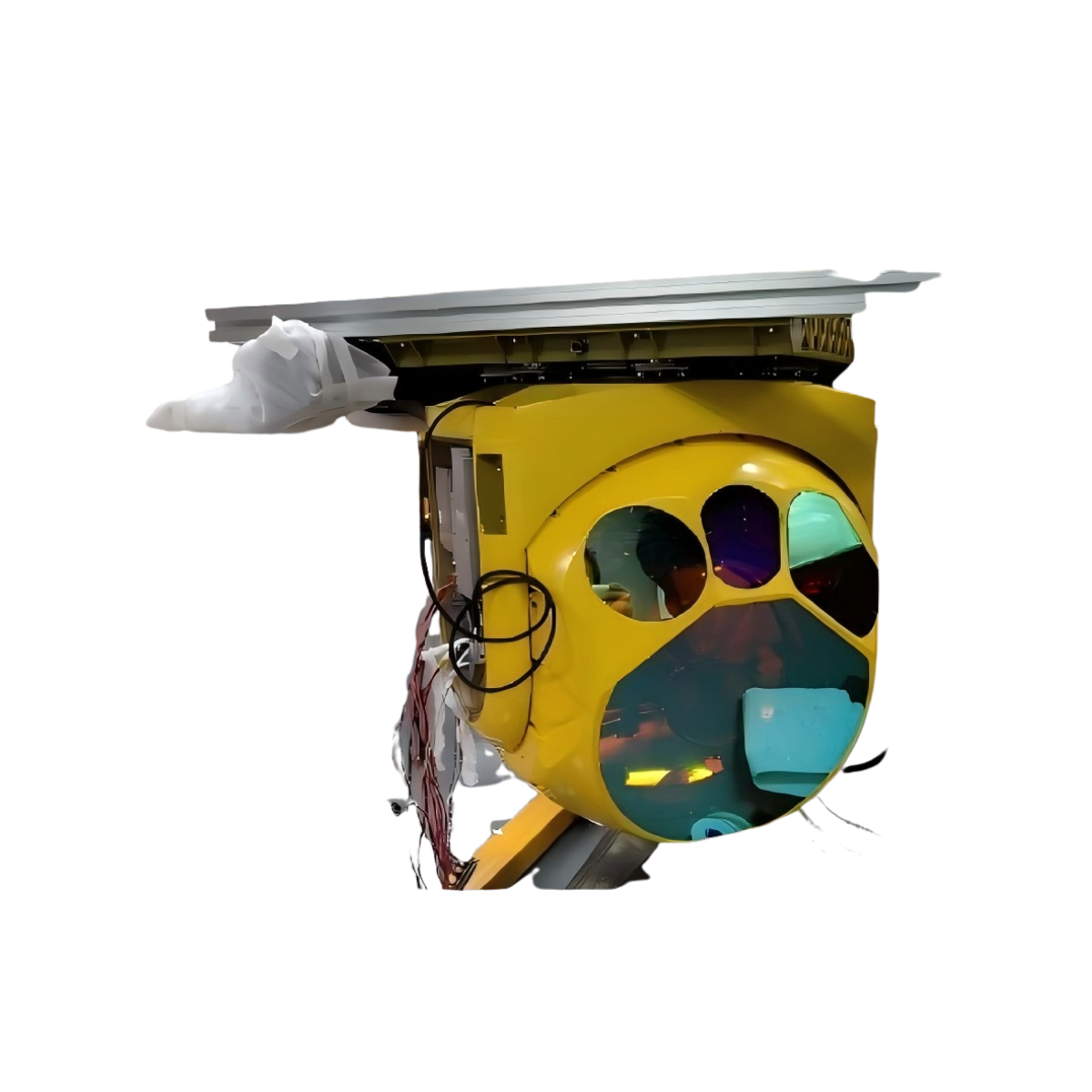

Fully Digital, High Definition, Ultra Long-Range Multi-Sensor: Multi-Spectral Imaging and Targeting Systems GIA30 Multi-Spectral Electro-Optical Pod

Fully Digital, High Definition, Ultra Long-Range Multi-Sensor: Multi-Spectral Imaging and Targeting Systems GIA30 Multi-Spectral Electro-Optical Pod

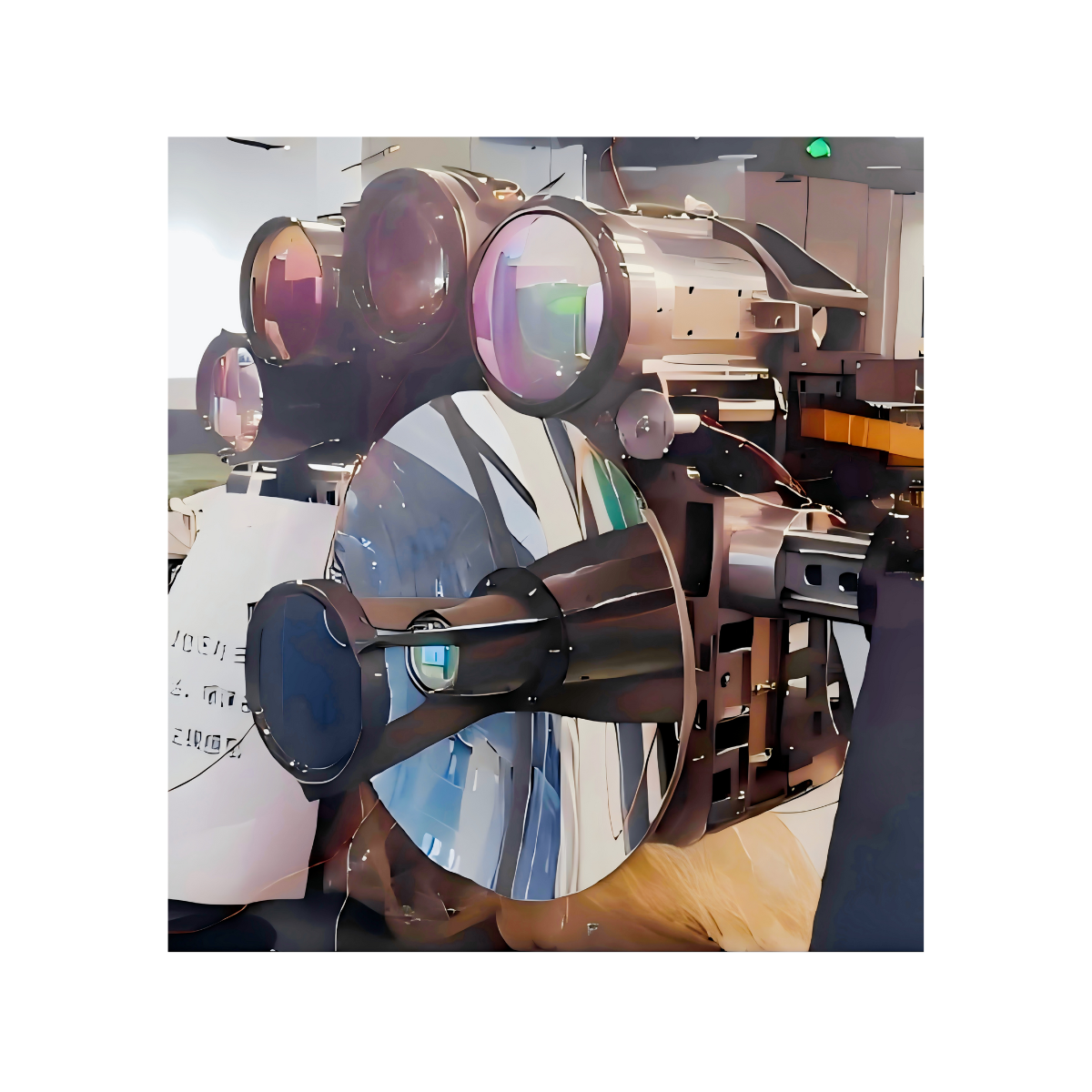

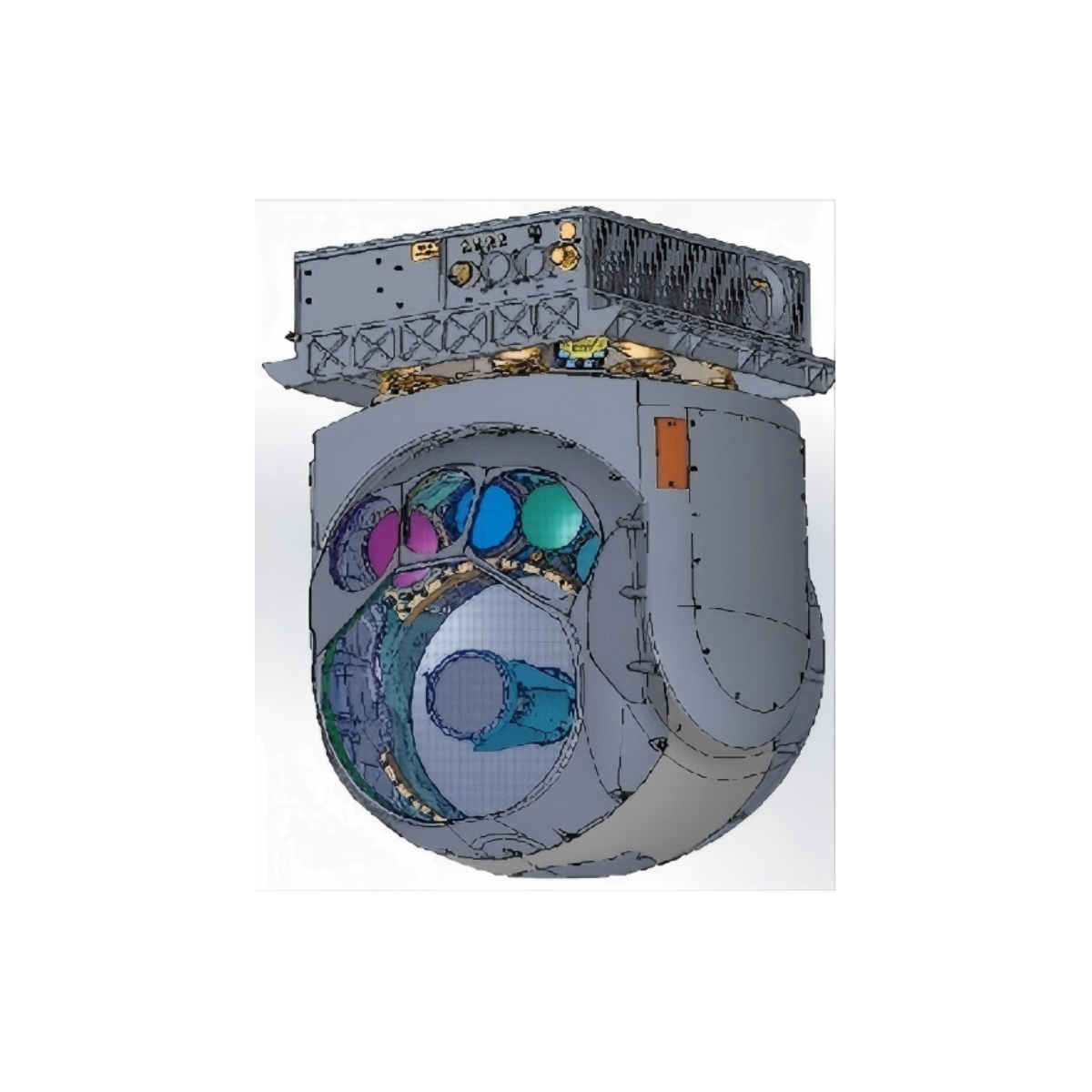

Our cutting-edge electro-optical pod delivers unmatched multi-spectral intelligence across demanding airborne missions. Featuring a common aperture design, it integrates high-resolution visible, IR, and laser sensors for simultaneous multi-spectral imaging and targeting. Engineered for long-endurance ISR (Intelligence, Surveillance, and Reconnaissance), the system provides persistent, real-time battlefield awareness and supports multi-target designation in complex environments. Optimized for diverse airborne installations, including aerostats, fixed-wing aircraft, and UAV platforms, the pod excels in high-altitude surveillance and precision strike coordination. Its ruggedized housing ensures reliability in extreme conditions while maintaining precision optics for identification beyond standard ranges. Ideal for: Border security, critical infrastructure monitoring, and combat operations.


Model

GIA30

Sensor #1 - LWIR Imager

Type

7.7-9.5μm staring array

Resolution

640×512@15μm@F#2

Diagonal FOV

 44.5°, 3.52°, 1.17°

( selectable 2×Ezoom 1080p)

Sensor #2 – MWIR  Imager

Type

 3-5μm staring array

Resolution

 640×512@15μm@F#3

Diagonal FOV

 20.4°, 7°, 2.35°, 0.78°

 selectable 2×Ezoom1080p

Sensor #3a - Daylight Continuous Zoom

Type

1080P Color HD

FOV

15.2 °to 0.76°

Sensor #3b - Haze penetration Zoom:

  (Requires Sensor #3a)

Type

 Electron Multiplied CMOS (Mono) 1080P

FOV

 15.2° to 0.76°

Sensor #4 – HD Visible/NIR

Type

 2K×2K  CMOS(Color/Mono

FOV

    0.5°×0.5°

Sensor #5 - SWIR Spotter

Type

640×512 InGaAs@15μm

FOV

 3.52 °,1.17 °,0.29 °

Sensor #6 - Laser Spot Tracker

Type

Quadrant Detector

Wavelength

 1064nm

Code Compatibility

≥16

Range

12Km (under visibility ≥15Km)

Sensor #7a – Laser Rangefinder (LRF)

Laser Type

DPL NdYAG

Wavelength

1064nm@80mJ@10ns

Pulse Rate

1/5/20 pulses/s

Range

 ≥ 80km

Range Accuracy

±2m

Sensor #7 b – Laser Rangefinder (LRF)2

Laser Type

Er glass

Wavelength

 1535nm @2mJ@10ns

Pulse Rate

1 & 5 pulses/s

Range

 30km

Range Accuracy

±2m

Sensor #8 – Laser Designator

Laser Type

DPL Nd:YAG

Wavelength

1064nm@80mJ@10ns

Pulse Rate

 10 & 20 pulses/s

Range

 ≥ 15km

Turret Specifications

Line-of-sight Stabilization

≤4 μradians

( Consult factory for performance under specific vibration conditions)

AZ/EL Slew Rate

 45 °/ s

LOS Pan Range

Continuous 360°

LOS Tilt Range

+30° to -120°

Wight

≤ 125kg (all the system)

Turret Size

  ≤580mm(D) x 980mm(H)

Electronic Cabin Size

   ≤480mm (L) ×480mm×220mm(H)

Operator Interfaces

Moving Map Interface

 Serial Remote Control

 Moving Map system

GEO-Pointing

Power

900WMax

Angular speed of step-staring scan

 ≥18°/s

Memory capacity

10Tb

Image fusion wavelength

LWIR/MWIR/SWIR/NIR/Visible
