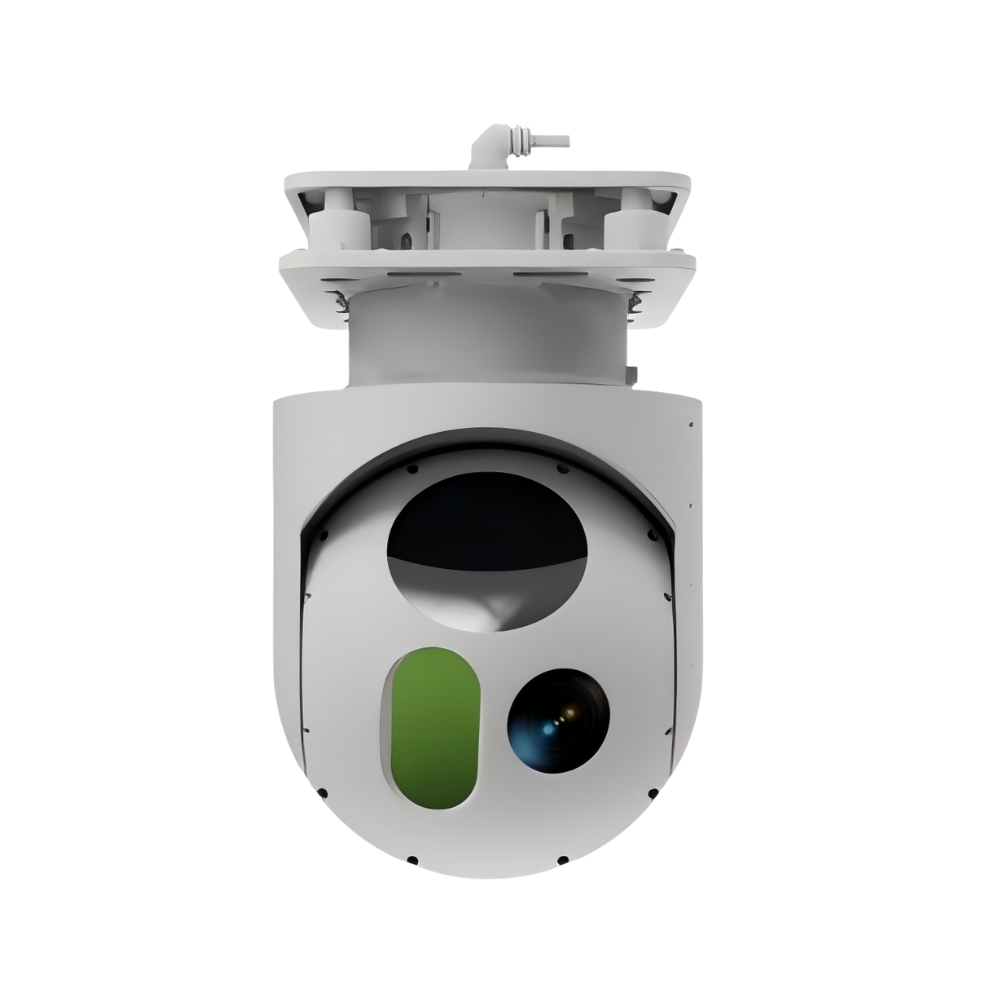

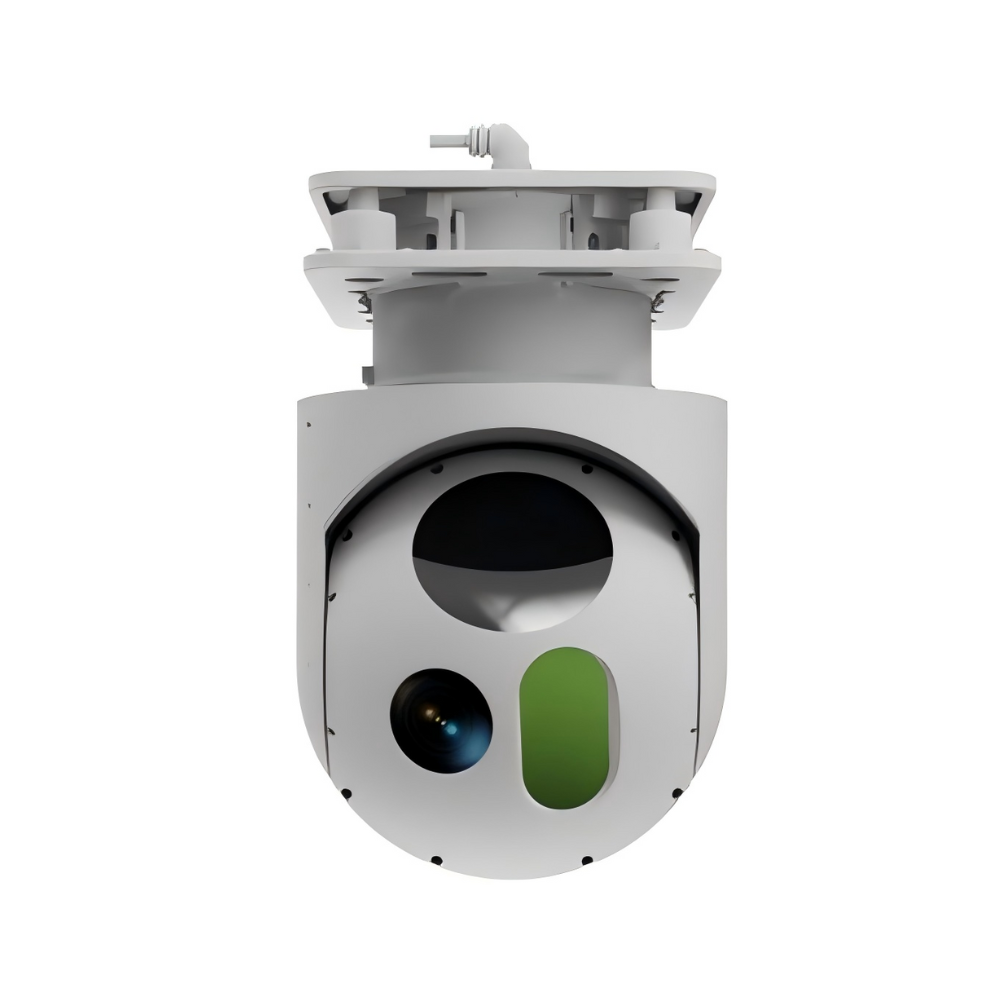

S280TB Dual-Axis Triple-Sensor Electro-Optical Pod Gyro Stabilized Electronic Optical Camera

S280TB Dual-Axis Triple-Sensor Electro-Optical Pod Gyro Stabilized Electronic Optical Camera

The S280TB EO/IR gimbal payload is a high-precision, long-range solution designed for UAV surveillance, reconnaissance, and search and rescue missions. It integrates an uncooled thermal camera for drones, a 15x optical zoom visible camera, a laser illuminator, and a 2-axis servo-stabilized platform, ensuring stable and clear imaging in all conditions. Supporting real-time infrared and visible video output, it enables effective day-and-night target detection, identification, and tracking. The pod seamlessly integrates with mainstream UAV flight control systems and is fully compatible with the Users’ View Control Studio for fast deployment. Widely used in border patrol, forest fire monitoring, and emergency response, the S280TB is a compact and reliable EO/IR gimbal ideal for small to medium-sized drones.
S280TB
Thermal imaging camera
Detector Type Uncooled Focal Plane Detector
Operating Band 8μm～14μm
Detector Resolution 640×512
Image size 12μm
Lens focal length 20mm  to 100mm
Field of view 21.7°×17.5°～4.4°×3.5°
Noise Equivalent Temperature Difference NETD≤50mK
Minimum Resolvable Temperature Difference MRTD≤500mK
Visible Light Camera
Resolution 1920×1080
Response Band 0.4μm～0.9μm
Image size 2.8μm
Optical zoom 15x
electronic zoom 2x
Focal length 12mm～185mm
Field of view 25°×14°～2°×1°
Zoom Method Auto Focus, Manual Focus
Minimum Illumination 0.01Lux (B/W)
Laser Illuminator
Wavelength 1064nm
Laser energy ≥80mJ
Laser pulse width 15ns±5ns
Laser Beam Scatter Angle ≤0.3mrad
Frequency 20Hz
Laser code 8 groups of codes can be pre-stored; accurate frequency code, variable interval code, pseudo-random code
Irradiation distance ≥6Km (under visibility ≥15Km)
Maximum distance ≥8km (under the condition of visibility ≥15Km)
Minimum distance ≤100m
Ranging accuracy ≤5m
Frequency 1～5Hz
Servo platform
Azimuth angle 360°×n (360°continuous rotation)
Pitch angle -110°～+20° (positive upward)
Frame Angle Accuracy ≤1mrad（1σ）
Stabilization  accuracy ≤0.1mrad（1σ）
Corner position accuracy ≤1mrad（1σ）
Maximum turning speed Azimuth ≥90°/s, Pitch ≥90°/s
Maximum rotational acceleration Azimuth ≥90°/s², pitch ≥90°/s²
Image processing components
Automatic recognition With human and vehicle target automatic identification number of targets ≥ 32
Target tracking Target size ≥ 16 × 16
Tracking frame rate ≤50Hz
Image output RTSP/UDP/RTMP optional, code rate 200kbps ~ 6Mbps can be set
System index
Voltage range 20V～32VDC
Wattage Stable power consumption: ≤100W; Peak power consumption: ≤300W
Weight ≤19Kg
Volume 280mm×280mm×484.8mm
Interfaces
Control Interface RS422/100Mbps
Video Interface HD-SDI/100Mbps
Memory Interface ≤128G memory card (Micro SD card)
Picture Format jpg format
Video Format avi format
Environmental adaptability
Operating Temperature -20℃～＋60℃ (-40℃ optional)
Storage Temperature -40℃～＋65℃
Vibration conditions Acceleration of 2g; 30min in each of the three directions of vertical, horizontal and longitudinal.
Shock conditions Peak acceleration 20g, duration 11ms
Protection class Can fly in light and moderate rain
2D Dimension Image
