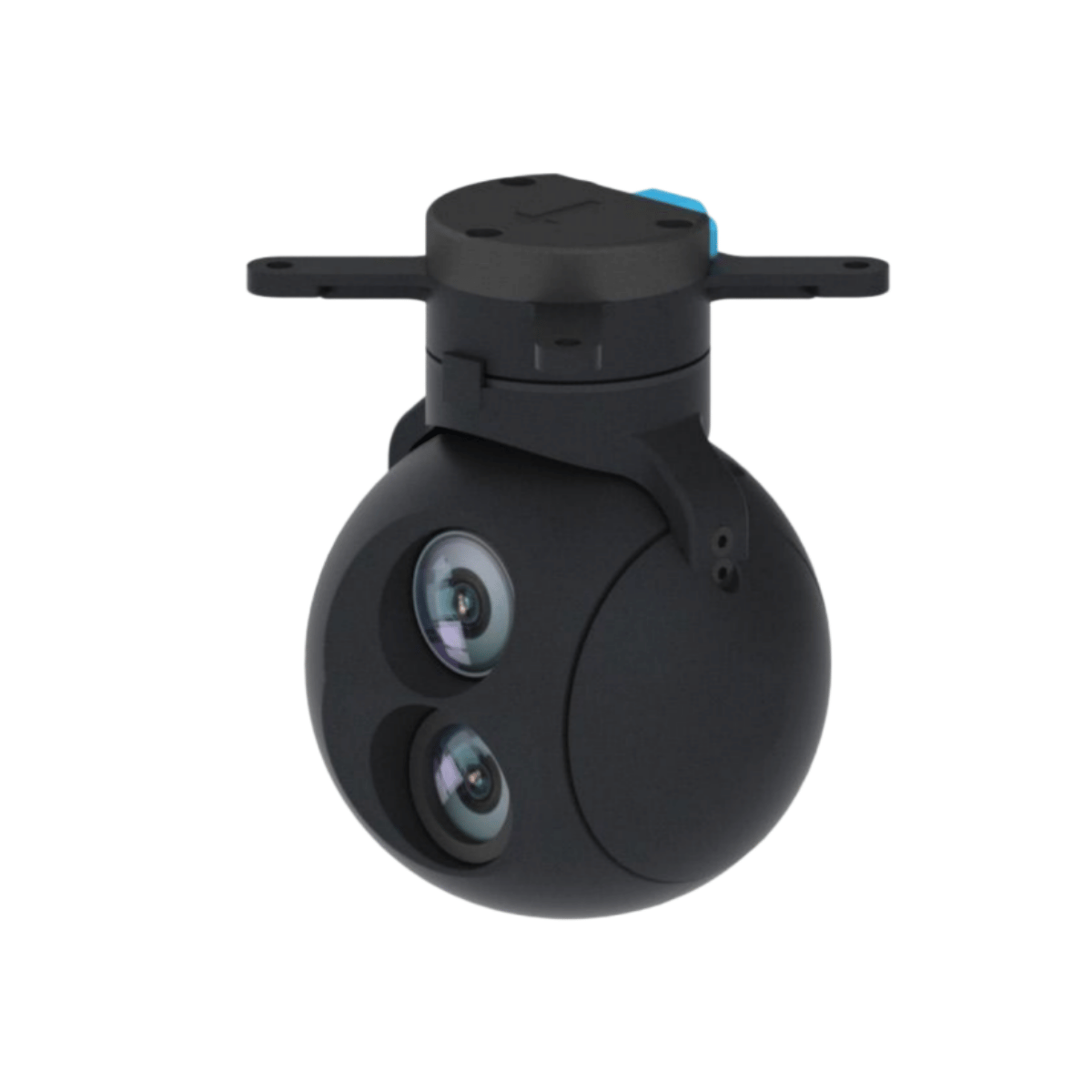

PODD80C-01 Ultra-Lightweight Drone Payload Micro-pod | World's Lightest Stabilized Solution

PODD80C-01 Ultra-Lightweight Drone Payload Micro-pod | World's Lightest Stabilized Solution

Redefine mission capabilities with the PODD80C Payload Micro-pod – the lightest professional-grade payload at just <230g. Engineered for catapult-launched drones, this impact-resistant micro-gimbal integrates advanced servo stabilization and AI-powered tracking for precision targeting. Supports industrial voltage input (14-28V DC) with dynamic power optimization that extends flight time by 30%. All electronics are sealed in an EMC-certified aerospace aluminum shell, delivering military-grade reliability for harsh environments. The ultimate NDAA-compliant solution for LiDAR mapping, infrastructure inspection, precision agriculture, and tactical reconnaissance UAVs.
System specification
System type Gyro stability
Weight ≤230g
System characteristics
Platform type Two-axisl
Pitch -150°~+150°
Roll -90°~+30°
Max angular velocity ≥60°/s
Stability accuracy 0. 1mrad(1°/2Hz)(1σ)
Motor encoder accuracy ≤0.3°
Visible Light Imaginglarge(7.2mm)
Resolution and frame rate 1920×1080 @60fps
FOV 42.28°×24.54°
Visible Light Imagingsmall(25mm)
Resolution and frame rate 1920×1080 @60fps
FOV 12.71°×7.17°
Target tracking
Tracking speed ≥40°/s
System external interface
Control interface RS232/422
Video output Network/422
Power supply
Supply voltage 14V~28V
Power consumption Av.≤10W
Max.≤20W
Environmental condition
Working temp -40℃~+60℃
Storage temp -40℃~+60℃
Launch impact ≥400g

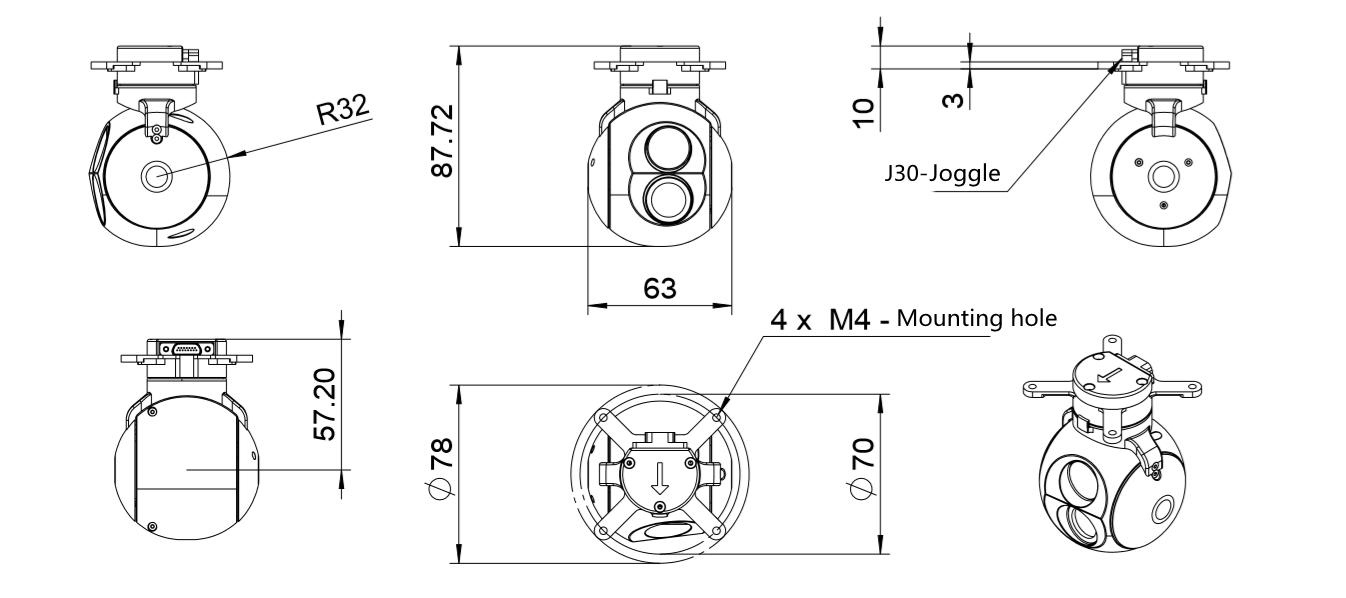

2D Dimension Image
