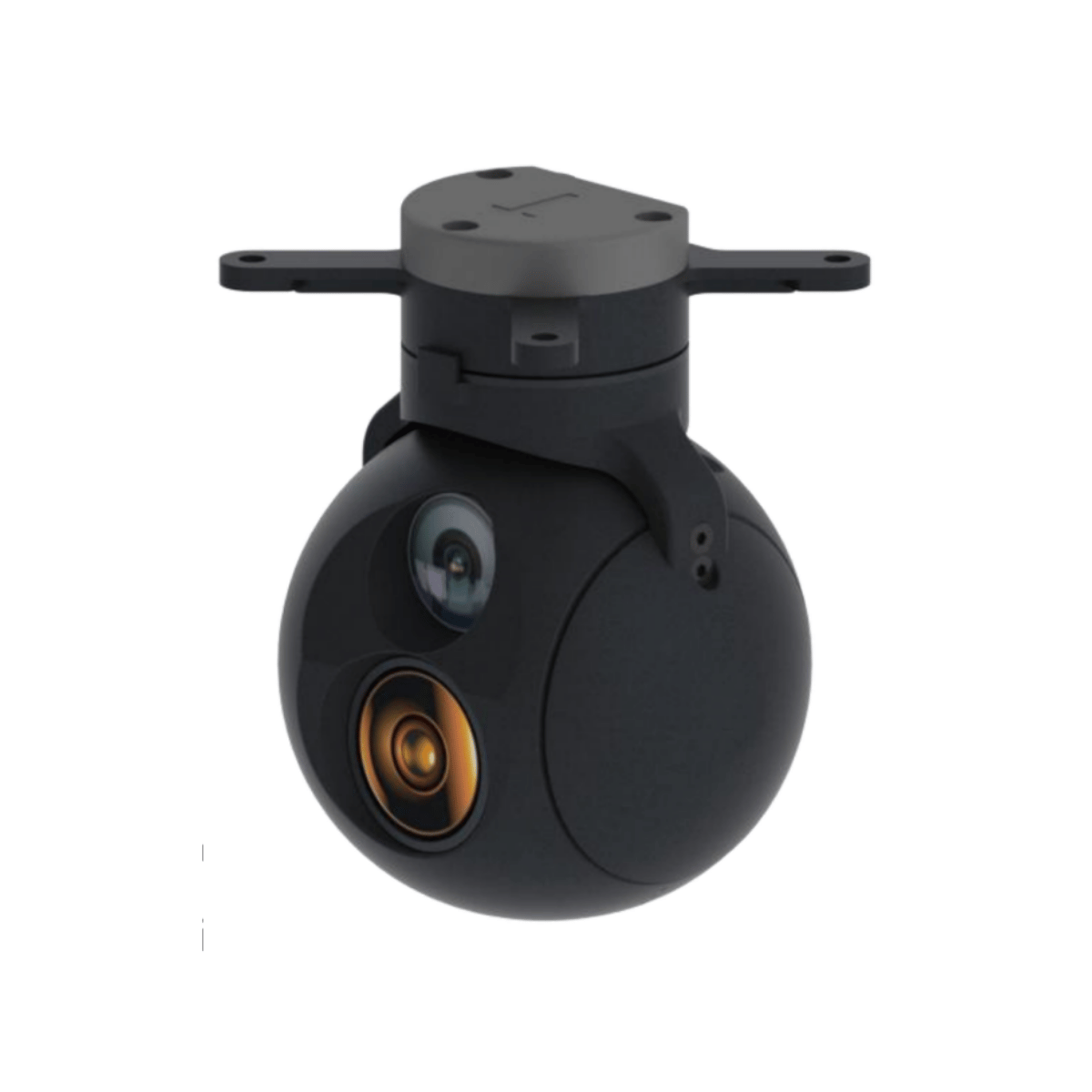

PODD80B-01 Heavy-Duty Drone Payload Micro-pod

PODD80B-01 Heavy-Duty Drone Payload Micro-pod

Engineered for demanding UAV operations, the PODD80B Payload Micro-pod combines rugged reliability with elite stabilization at just <280g. Built to withstand catapult-takeoff impacts and extreme environments, it features advanced servo image stabilization and AI-enhanced tracking for precision targeting. Supports wide voltage input (14-28V DC) with dynamic power consumption control to extend flight time by 20%. All electronics are integrated in an EMC-certified metal housing with EMI/RFI shielding, delivering thermal stability and vibration resistance. The ultimate cross-sector payload solution for industrial inspections, defense reconnaissance, precision agriculture, and long-endurance surveillance drones.
System specification
System type Gyro stability
Weight ≤280g
System characteristics
Platform type Two-axis
Pitch -150°~+150°
Roll -90°~+30°
Max angular velocity ≥60°/s
Stability accuracy 0. 1mrad(1°/2Hz)(1σ)
Motor encoder accuracy ≤0.3°
Visible Light Imaging8mm
Resolution and frame rate 2560×1440 @60fps
FOV 51°×30°
Thermal IR (18mm)
Resolution and frame rate 640×512@60fps
FOV 24°×18°
Target tracking
Tracking speed ≥40°/s
System external interface
Control interface RS232/422
Video output Network/422
Power supply
Supply voltage 12V~28V
Power consumption Av.≤10W
Max.≤20W
Environmental condition
Working temp -40℃~+60℃
Storage temp -40℃~+60℃
Launch impact ≥400g

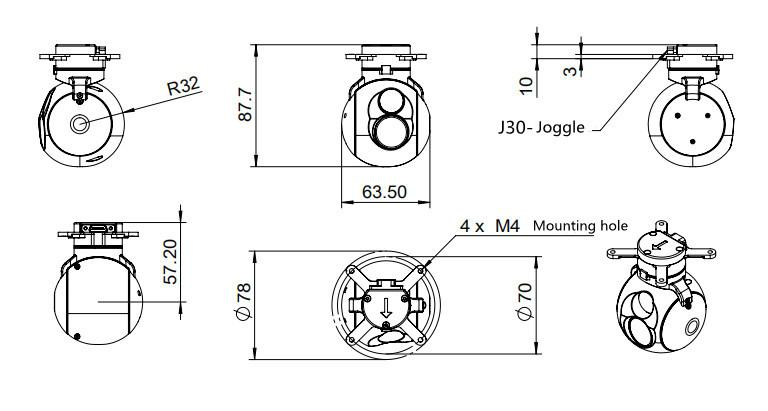

2D Dimension Image
