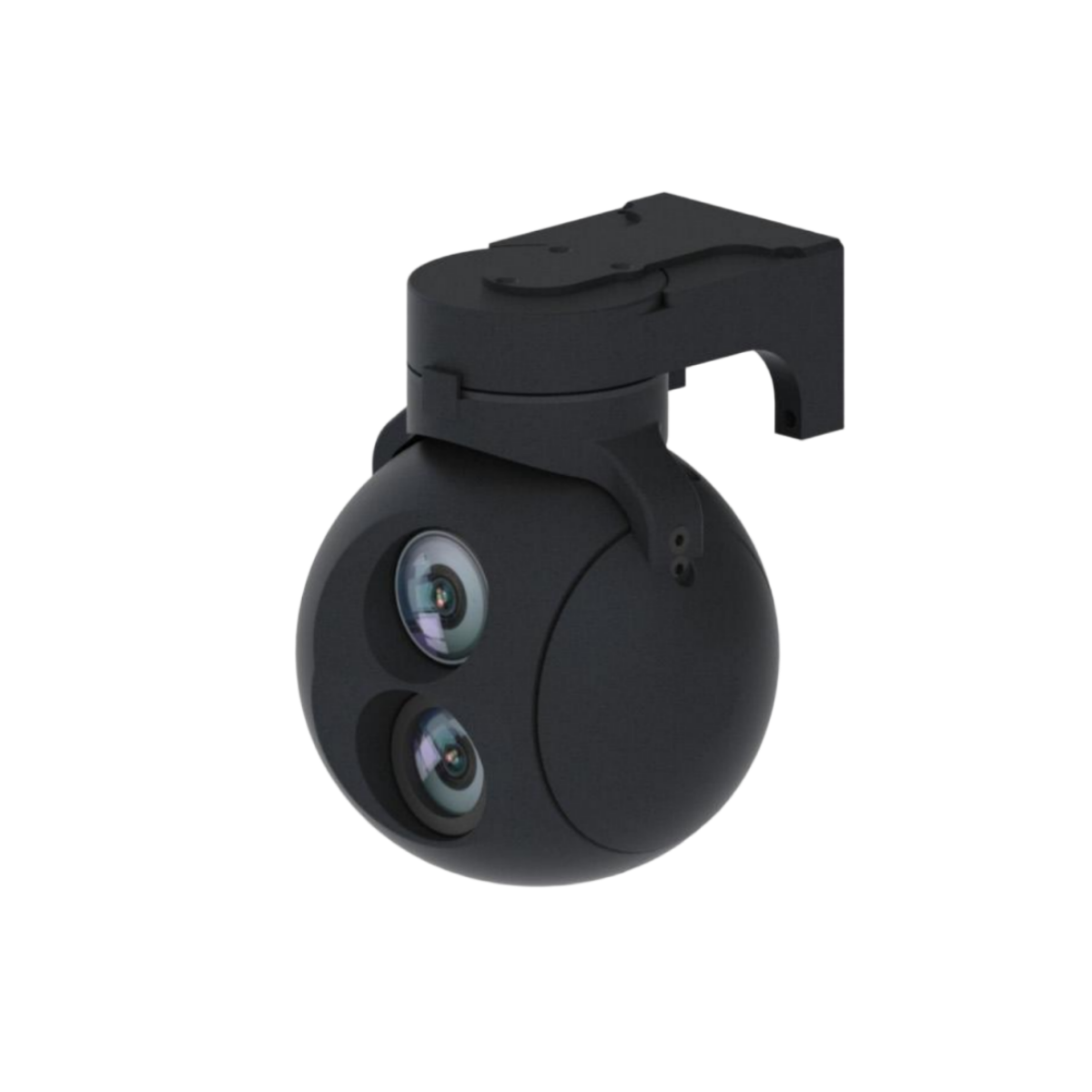

PODD80A-mini-01 Ultra-Light Drone Payload | Catapult-Ready Micro-Gimbal w/ AI Tracking

PODD80A-mini-01 Ultra-Light Drone Payload | Catapult-Ready Micro-Gimbal w/ AI Tracking

Weighing under 240g, the PODD80A-mini-01 Micro-pod delivers military-grade reliability in a feather light package. Engineered to withstand catapult launch impacts for fixed-wing UAVs, this EMC-compliant payload features advanced servo stabilization and AI-powered tracking for precision targeting. Its wide voltage input (12-28V DC) and dynamic power control slash energy consumption by 22% for extended flight time. All electronics are integrated into an EMI-shielded metal housing, making it ideal for industrial drone mapping, precision agriculture, search & rescue, and surveillance operations. Deploy the ultimate miniaturized payload solution – where extreme lightness meets mission-critical durability.
System specification
System type Gyro stability
Weight ≤240g
System characteristics
Platform type Two-axis
Pitch -110°~+110°
Roll -100°~+30°
Max angular velocity ≥100°/s
Stability accuracy 0. 1mrad(1°/2Hz)(1σ)
Motor encoder accuracy ≤0.3°
Visible Light Imaging (Wide Field of View, WFOV)
Resolution and frame rate 1920×1080@60fps
FOV 42.2°×24.5° (7.2mm)
Visible Light Imaging (Narrow Field of View, NFOV)
Resolution and frame rate 1920×1080@60fps
FOV 12.7°×7. 1° (25mm)
Target tracking
Tracking speed ≥40°/s
System external interface
Control interface RS232
Video output Mipi
Power supply
Supply voltage 12V~28V
Power consumption Av.≤10W
Max.≤20W
Environmental condition
Working temp -40℃~+60℃
Storage temp -40℃~+60℃
Launch impact ≥400g

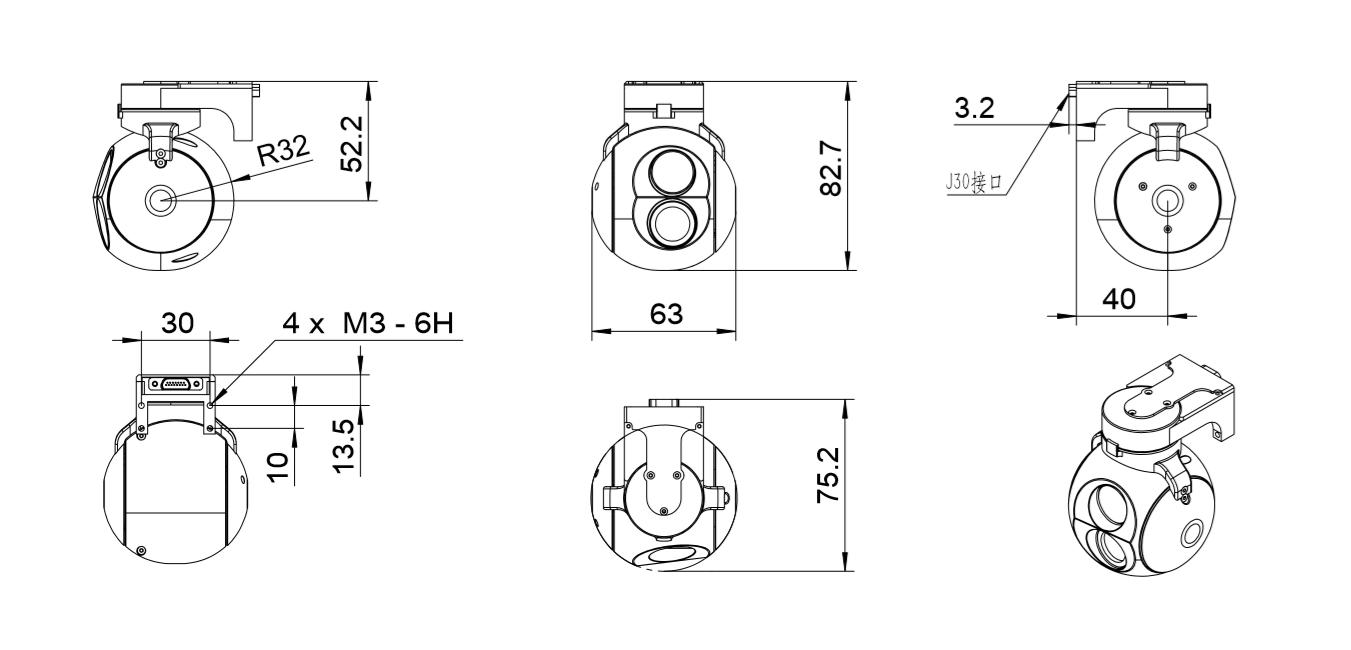

2D Dimension Image
