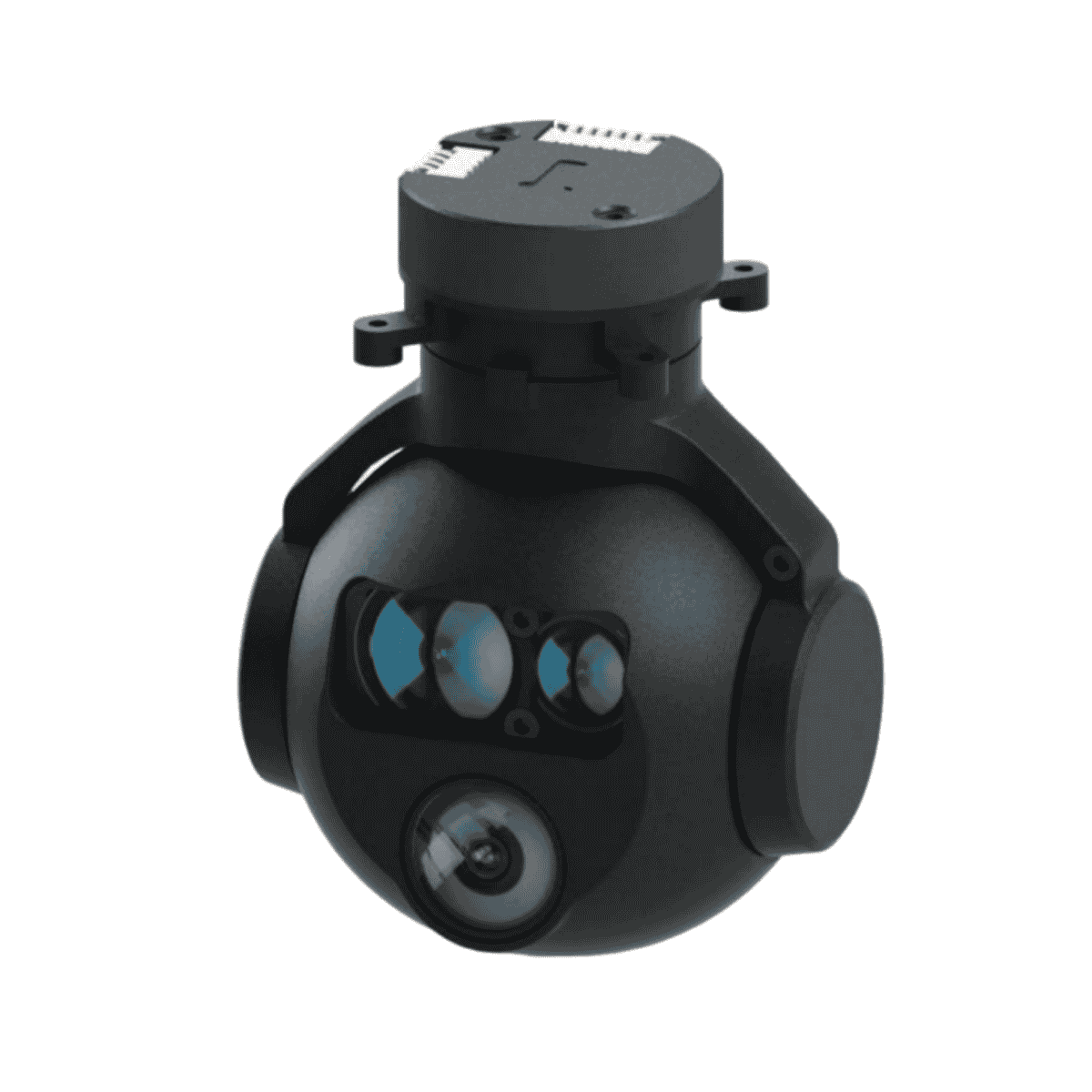

PODD60L-01 Two-Mode Micro-Pod: Ultra-Lightweight, Rugged & Intelligent Drone Payload

PODD60L-01 Two-Mode Micro-Pod: Ultra-Lightweight, Rugged & Intelligent Drone Payload

The PODD60L-01 Two-Mode Micro-Pod delivers exceptional performance in an ultra-compact, ultra-lightweight package weighing just 85g. Specifically engineered for catapult-launched drones, it withstands harsh launch impacts. Experience stable, clear footage thanks to its integrated servo image stabilization and built-in tracking functions. Designed for versatility, it features wide voltage input (12-28V) and dynamic power consumption control for extended flight times. Housed in a robust metal shell that ensures EMC compliance and superior durability, this micro-pod combines advanced AI tracking, reliable image stabilization, and critical EMC protection for demanding drone payload applications. Its lightweight design and impact-resistant construction make the PODD60L-01 the ideal compact drone camera solution for military, surveillance, reconnaissance, and industrial inspection missions requiring both performance and reliability.
System specification
System type Gyro stability
Weight ≤85g
System characteristics
Platform type Two-axis
Pitch -110°~+110°
Roll -100°~+40°
Max angular velocity ≥100°/s
Stability accuracy 0. 1mrad(1°/2Hz)(1σ)
Motor encoder accuracy ≤0.3°
Visible Light Imaging
Resolution and frame rate 1920×1080@60fps
FOV 19.7°×11°(16mm)
Laser Ranging
Measuring range 5-1200m
Ranging accuracy ±1m
Target tracking
Tracking speed ≥40°/s
System external interface
Control interface Serial port
Video output Network RTSP
Power supply
Supply voltage 12V~28V
Power consumption Av.≤10W
Max.≤20W
Environmental condition
Working temp -20℃~+60℃
Storage temp -20℃~+60℃
Launch impact ≥400g

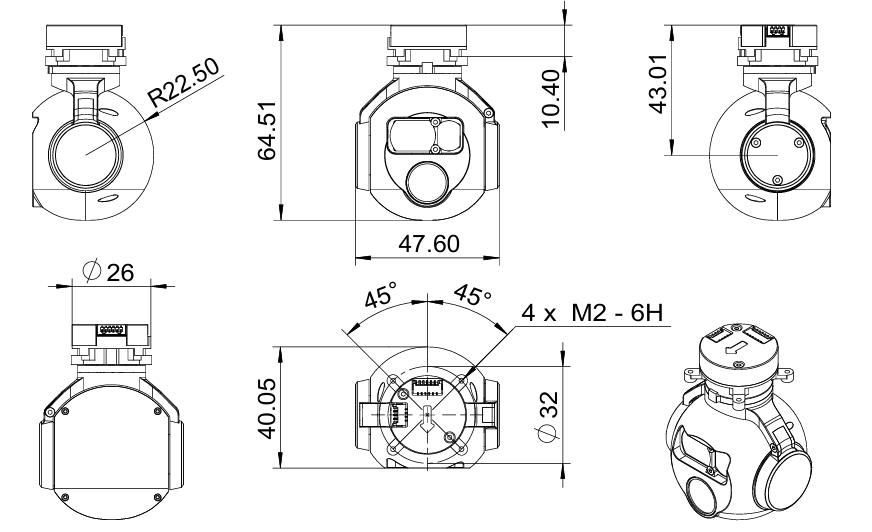

2D Dimension Image
