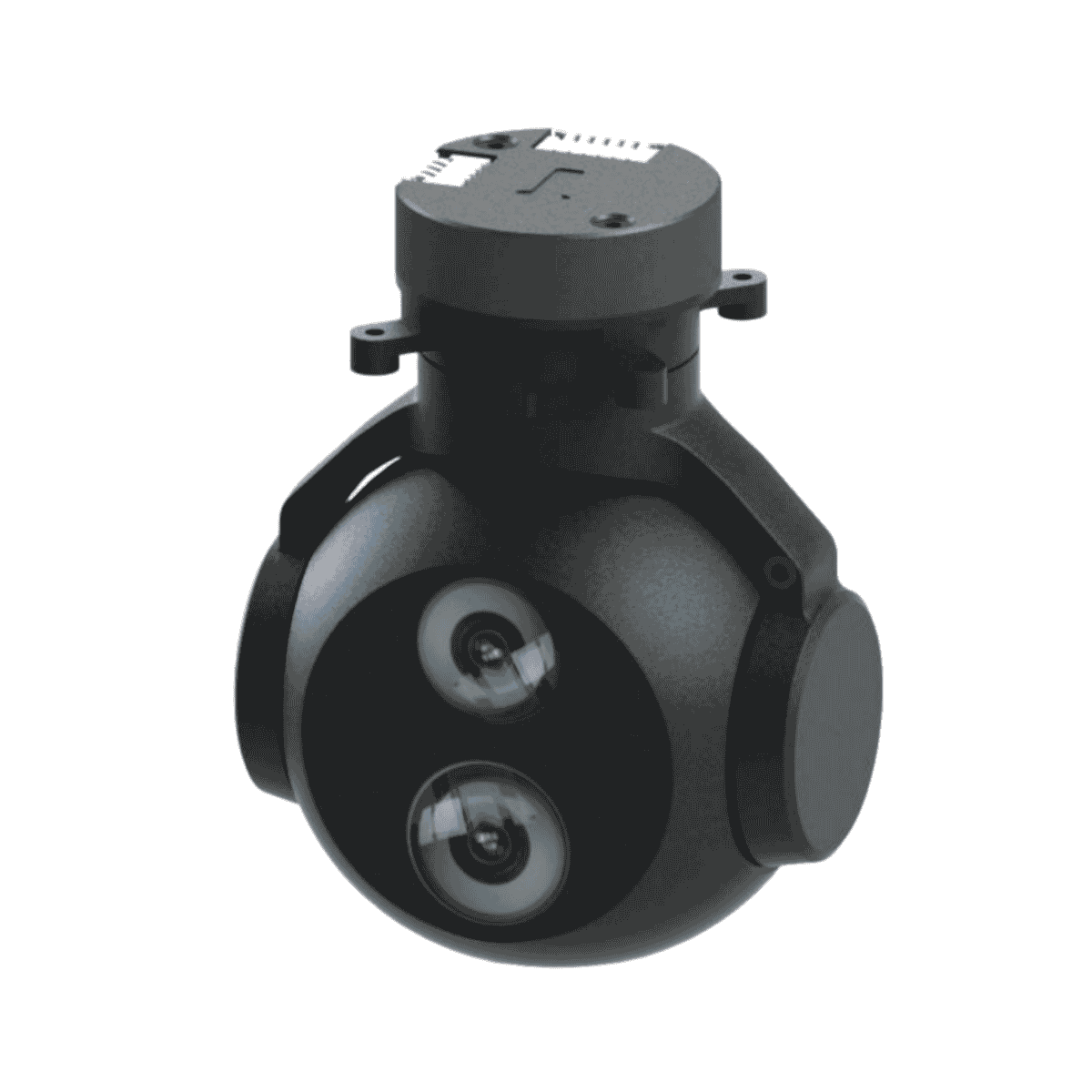

PODD60A-01 Two-Mode Micro-Pod: Lightweight, Stable & Compatible UAV Camera

PODD60A-01 Two-Mode Micro-Pod: Lightweight, Stable & Compatible UAV Camera

Weighing just 85g, the ultra-compact PODD60A-01 micro-pod withstands catapult-launch impacts, making it ideal for catapult-takeoff drones. Its servo image stabilization ensures stable footage, while built-in tracking enables intelligent target lock. Engineered for versatility, it features wide voltage input (12-28V) and dynamic power control for efficient operation. All electronics are EMC-compliant within a rugged metal casing, guaranteeing reliability. This lightweight drone payload combines high compatibility, impact resistance, and stable imagery – perfect for military, surveillance, and industrial inspection drones.
System specification
System type Gyro stability
Weight ≤85g
System characteristics
Platform type Two-axis
Pitch -110°~+110°
Roll -100°~+40°
Max angular velocity ≥100°/s
Stability accuracy 0. 1mrad(1°/2Hz)(1σ)
Motor encoder accuracy ≤0.3°
Visible Light Imaging (Wide Field of View)
Resolution and frame rate 1920×1080@60fps
FOV 49.8°×29.3° (6mm)
Visible Light Imaging (Narrow Field of View)
Resolution and frame rate 1920×1080@60fps
FOV 19.7°×11° (16mm)
Target tracking
Tracking speed ≥40°/s
System external interface
Control interface Serial port
Video output Network
Power supply
Supply voltage 12V~28V
Power consumption Av.≤10W
Max.≤20W
Environmental condition
Working temp -20℃~+60℃
Storage temp -20℃~+60℃
Launch impact ≥400g

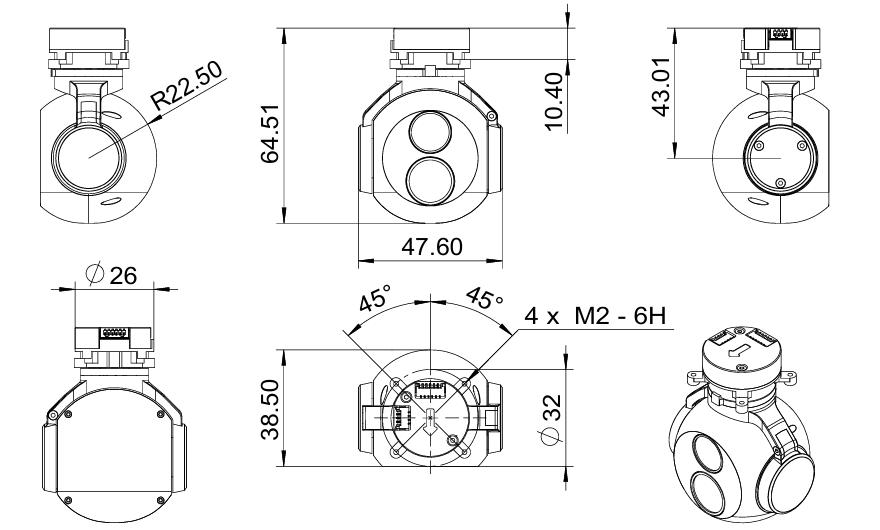

2D Dimension Image
