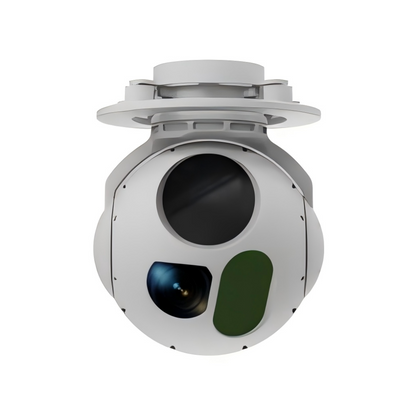

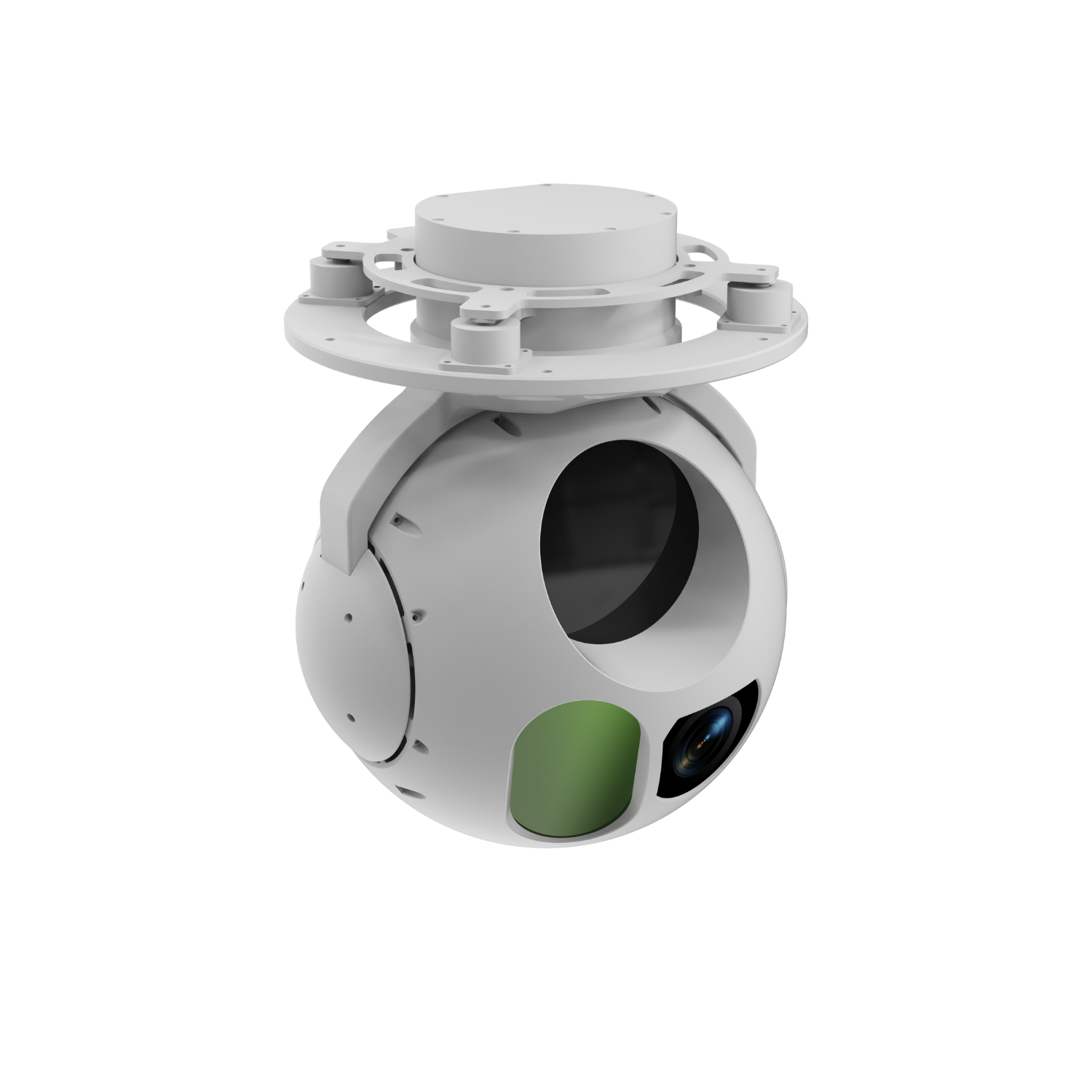

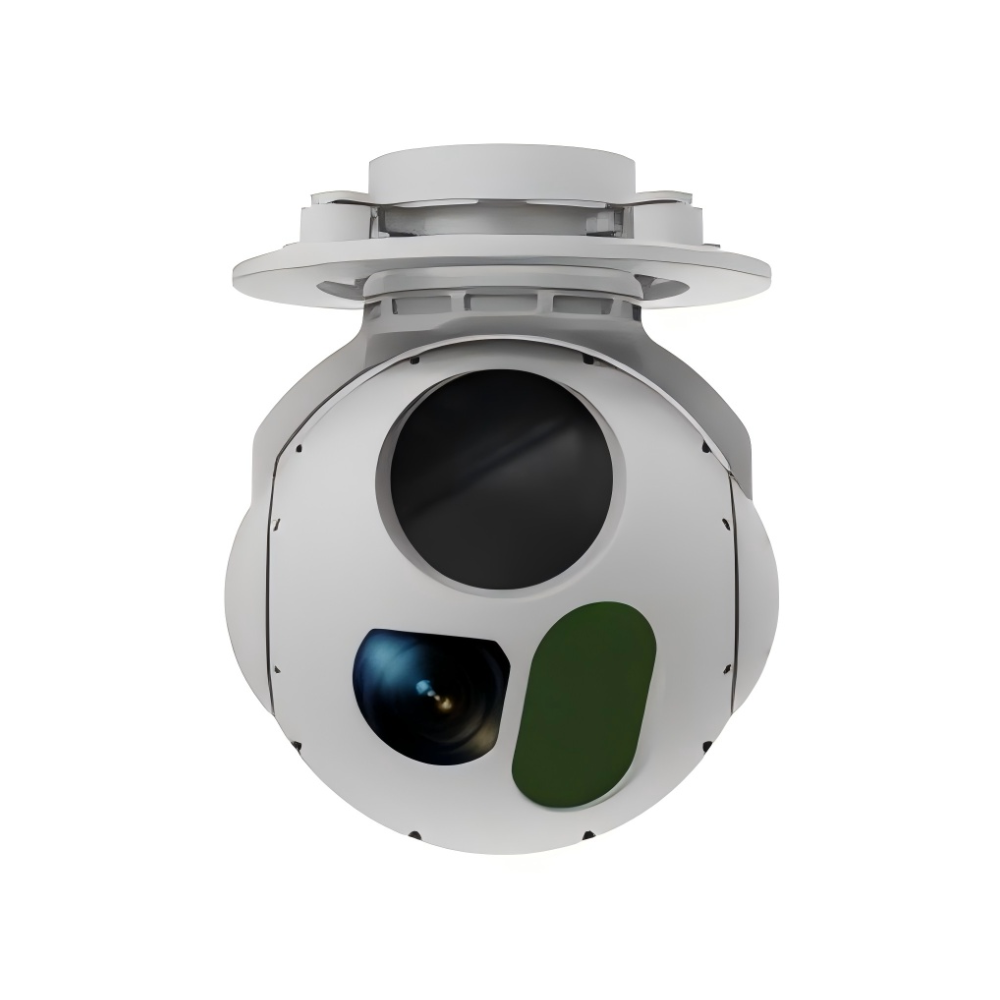

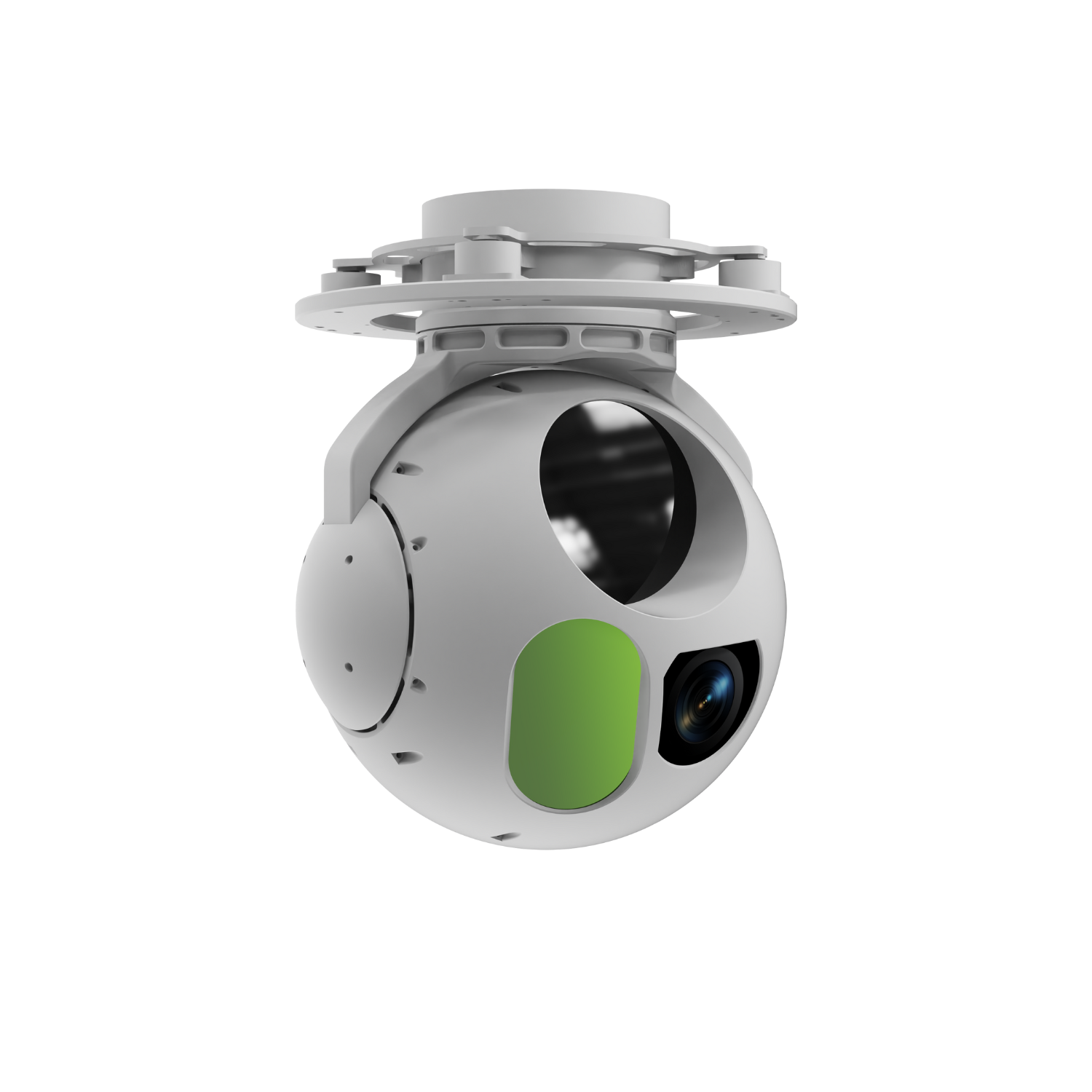

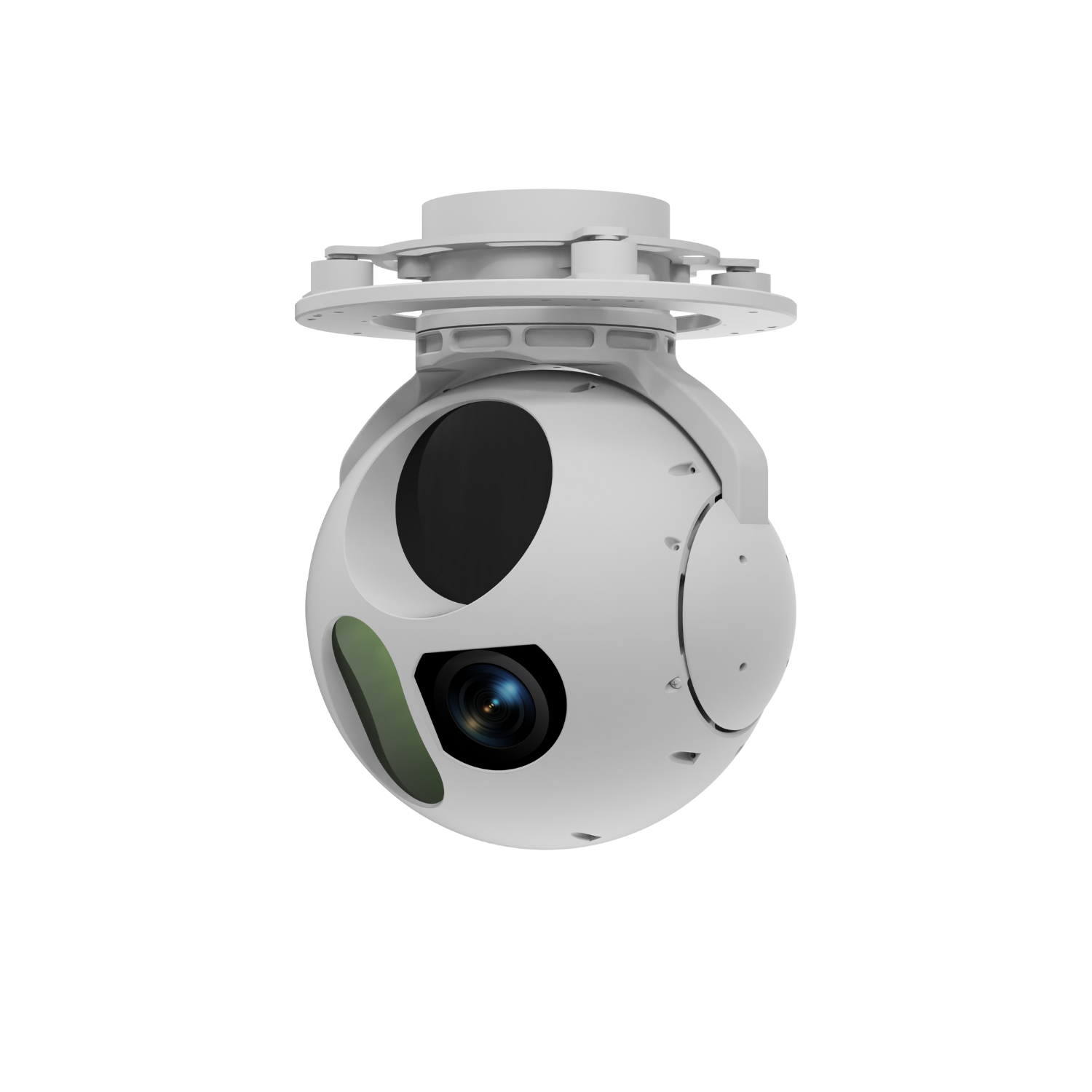

Drone Camera S220TC Dual-Axis Triple-Sensor Electro-Optical Pod with Thermal Imaging/Visible Light Imaging and Laser Target Designator

Drone Camera S220TC Dual-Axis Triple-Sensor Electro-Optical Pod with Thermal Imaging/Visible Light Imaging and Laser Target Designator

The S220TC EO/IR gimbal pod integrates an uncooled infrared thermal imaging camera, a 30x optical zoom visible-light camera, a laser illuminator, a two-axis gyro-stabilized platform, and an advanced image processing module featuring automatic target detection, recognition, and tracking capabilities. Designed for medium- and small-sized UAVs, the S220TC offers high-precision, long-range surveillance and reconnaissance across both day and night operations. By simultaneously capturing and outputting real-time thermal and visible spectrum video, it enables mission operators to monitor targets continuously in all lighting conditions. The system is fully compatible with a variety of domestic mainstream UAV flight control systems, supporting seamless integration with autopilot platforms. It also interfaces with the Users’ View Control Studio software platform, allowing developers to rapidly deploy and customize unmanned aerial systems (UAS). Typical application scenarios include: Tactical reconnaissance and surveillance Border security and patrol Search and rescue (SAR) missions Forest fire monitoring and environmental protection Critical infrastructure inspection With its compact design, modular architecture, and multi-sensor fusion, the S220TC enhances UAV mission capability by delivering real-time situational awareness, intelligent tracking, and long-distance observation under diverse operational conditions.

Drone Camera with Thermal Imaging/Visible Light Imaging and Laser Target Designator

Specifications of Drone Camera S220TC

Model

S220TC

Thermal imaging camera

Detector Type

Uncooled Focal Plane Detector

Operating Band

8μm～14μm

Detector Resolution

640×512

Image size

12μm

Lens focal length

75mm

Field of view

5.9°×4.7°

Noise Equivalent Temperature Difference

NETD≤50mK

Minimum Resolvable Temperature Difference

MRTD≤500mK

Visible Light Camera

Resolution

1920×1080

Response Band

0.4μm～0.9μm

Image size

2.8μm

Optical zoom

30x

Hybrid zoom

60x

Focal length

4.3mm～129mm

Field of view

63.7°×35.8°～2.3°×1.3°

Zoom Method

Auto Focus, Manual Focus

Minimum Illumination

0.01Lux (B/W)

Laser Illuminator

Wavelength

1064nm

Laser energy

≥40mJ

Laser pulse width

15ns±5ns

Laser Beam Scatter Angle

≤0.3mrad

Frequency

20Hz

Laser code

8 groups of codes can be pre-stored; accurate frequency code, variable interval code, pseudo-random code

Irradiation distance

≥4Km (under visibility ≥15Km)

Maximum distance

≥6km (under the condition of visibility ≥15Km)

Minimum distance

≤100m

Ranging accuracy

≤5m

Frequency

1～5Hz

Servo platform

Azimuth angle

360°×n (360°continuous rotation)

Pitch angle

-115°～+90° (positive upward)

Frame Angle Accuracy

≤1mrad° (1σ)

Stabilization accuracy

≤40urad (1σ)

Maximum turning speed

Azimuth ≥60°/s, Pitch ≥60°/s

Maximum rotational acceleration

Azimuth ≥100°/s², pitch ≥100°/s²

Image processing components

Automatic recognition

With human and vehicle target automatic identification number of targets ≥ 32

Target tracking

Target size ≥ 16 × 16

Tracking frame rate

≤50Hz

Image output

RTSP/UDP/RTMP optional, code rate 200kbps ~ 6Mbps can be set

System index

Voltage range

20V～32VDC

Wattage

Stable power consumption: ≤60W

Weight

≤5Kg

Volume

220mm×237mm×295.1mm

Interfaces

Control Interface

RS422/100Mbps

Video Interface

HD-SDI/100Mbps

Memory Interface

≤128G memory card (Micro SD card)

Picture Format

jpg format

Video Format

avi format

Environmental adaptability

Operating Temperature

-20℃～＋60℃ (-40℃ optional)

Storage Temperature

-40℃～＋65℃

Vibration conditions

Acceleration of 2g; 30min in each of the three directions of vertical, horizontal and longitudinal.

Shock conditions

Peak acceleration 20g, duration 11ms

Protection class

Can fly in light and moderate rain

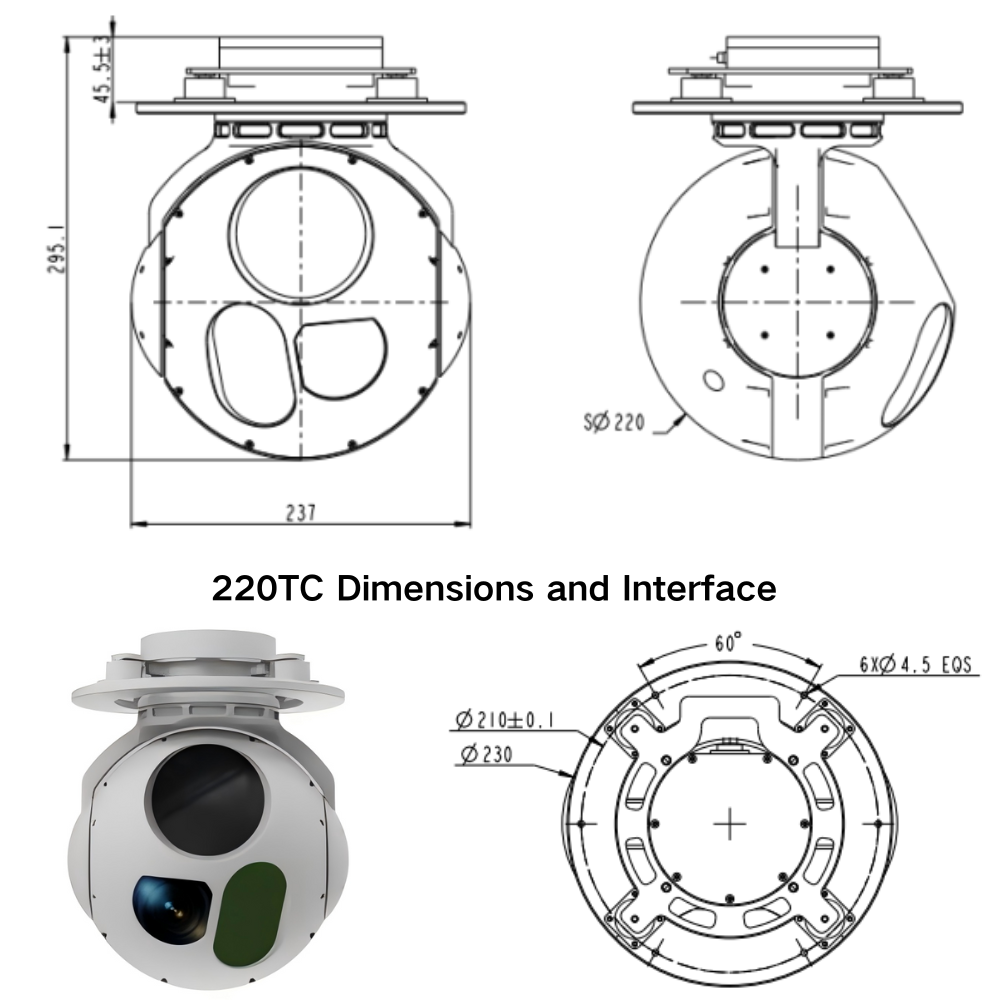

2D Dimension Image
