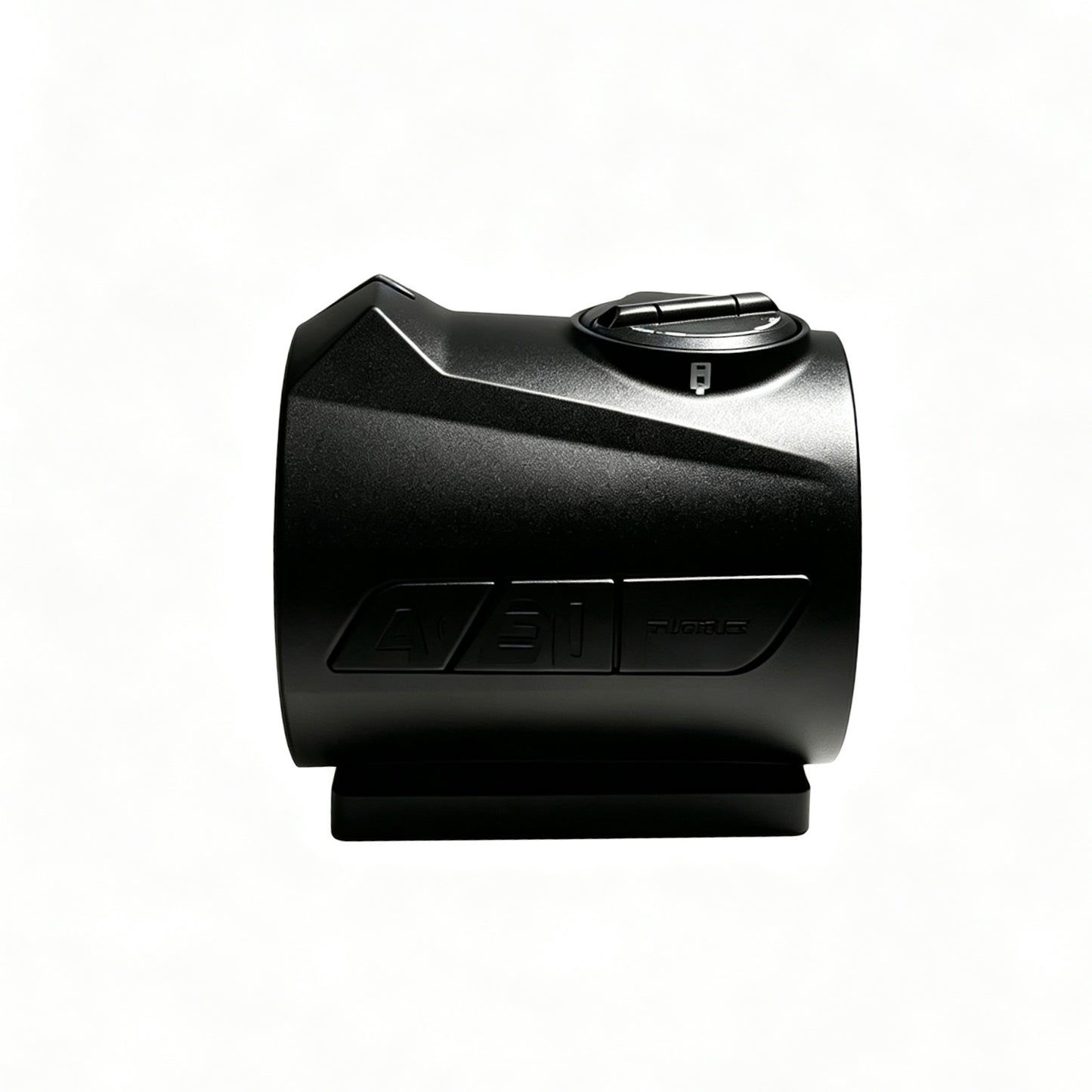

Mini Touch Thermal Imager 256x192 Tactical Hunting Thermal Scope Handgun Helmet Mount Night Vision Thermal Sight
1) High-sensitivity 256x192 infrared detector;

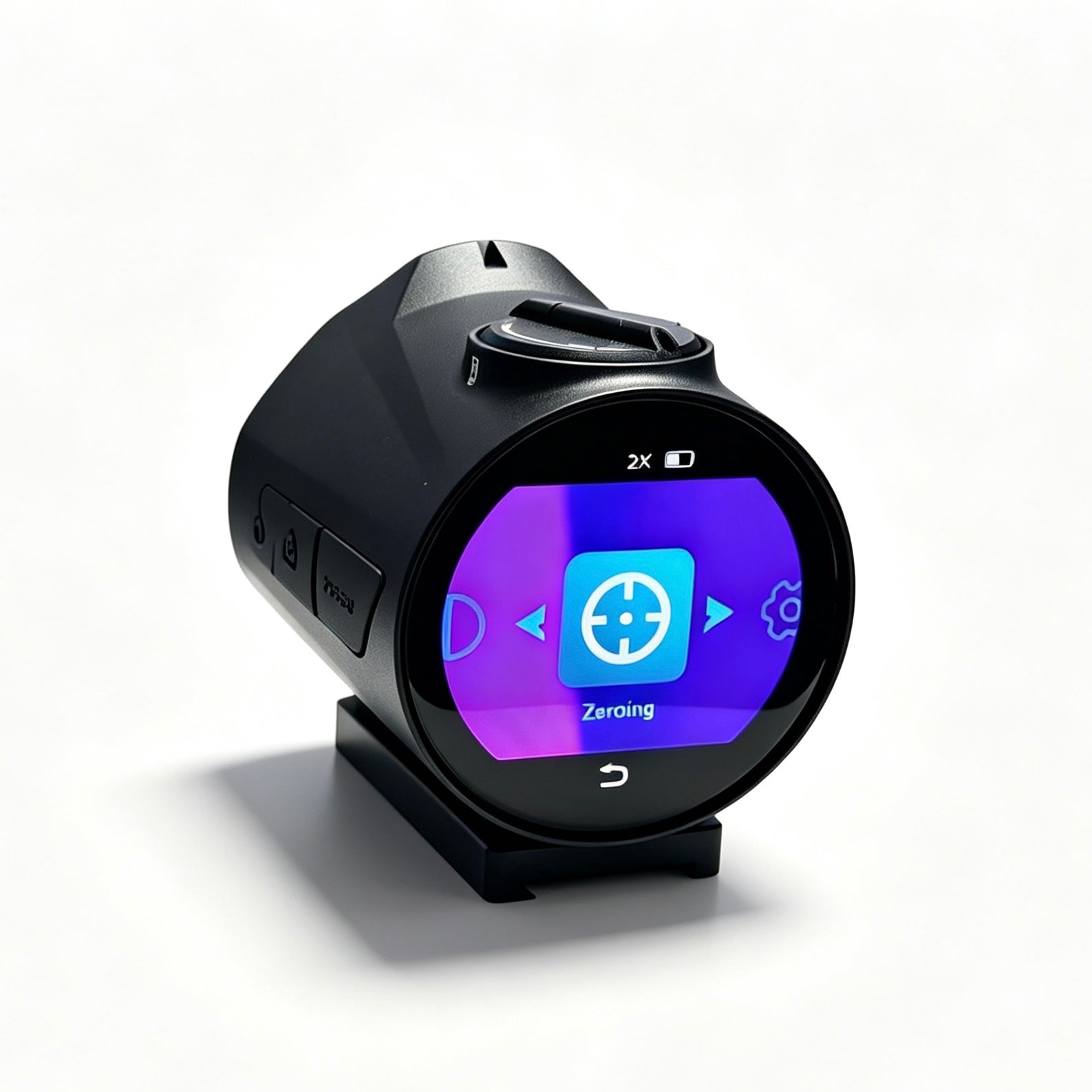

2) 1.4-inch touchscreen with large OLED display;
3) Features a high-performance AI chip and image detail enhancement technology;
4) Ergonomic design with dual operation modes: touchscreen and physical buttons;
5) Multiple image modes and reticles, switchable with a simple swipe;
6) High reliability with 1,000g shock resistance.
|
Item |
Parameters |
|
Weight |
≤120g |
|
Dimensions |
52mm x 48mm x 51mm |
|
Operating temperature |
-20 °C - +50 °C |
|
Detector Type |
Uncooled Focal Plane Arrays |
|
Resolution |
256 x 192 |
|
Frame Rate |
25Hz |
|
Pixel Size |
12μm |
|
Wavelength Range |
8μm to 14μm |
|
Lens Focal Length |
13mm, F0.9 |
|
Detection Range |
≤700m |
|
Field of View |
13.5°×10.1° |
|
Battery Type |
16340（Rechargeable） |
|
Operating Time |
≥4h (25 °C) |
|
Display |
1.4inch,466x466,OLED |
|
Brightness Adjustment |
Yes |
|
Color Ribbon |
Black Hot,White Hot,Red Hot,Fusion |
|
Video Recording |
On-board Video Recording |
|
Photo Capture |
Yes |
|
Cursor Indicator |
Yes |
|
Internal Storage Capacity |
Built-in EMMC |
|
Shock and vibration |
1000g/0.4ms |
