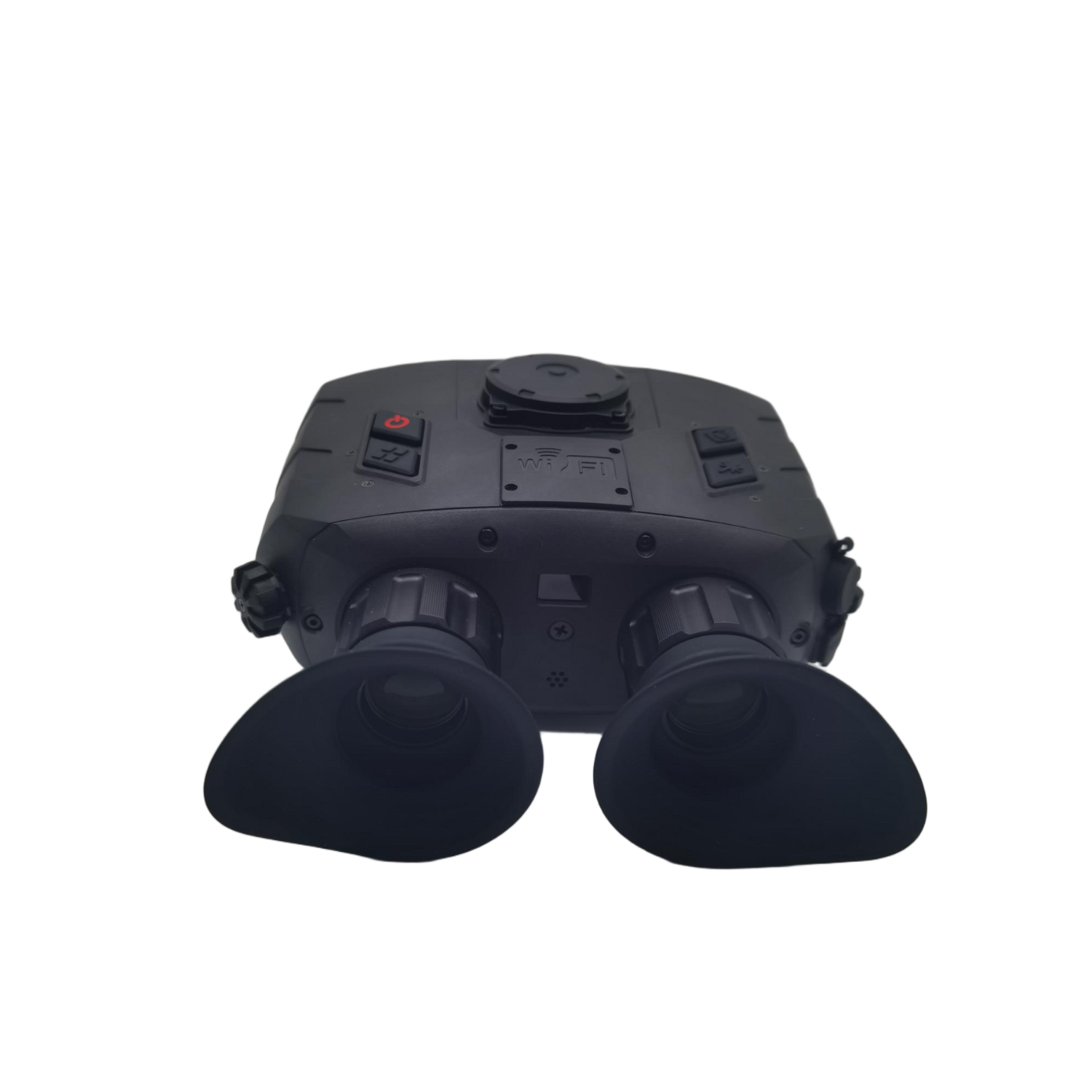

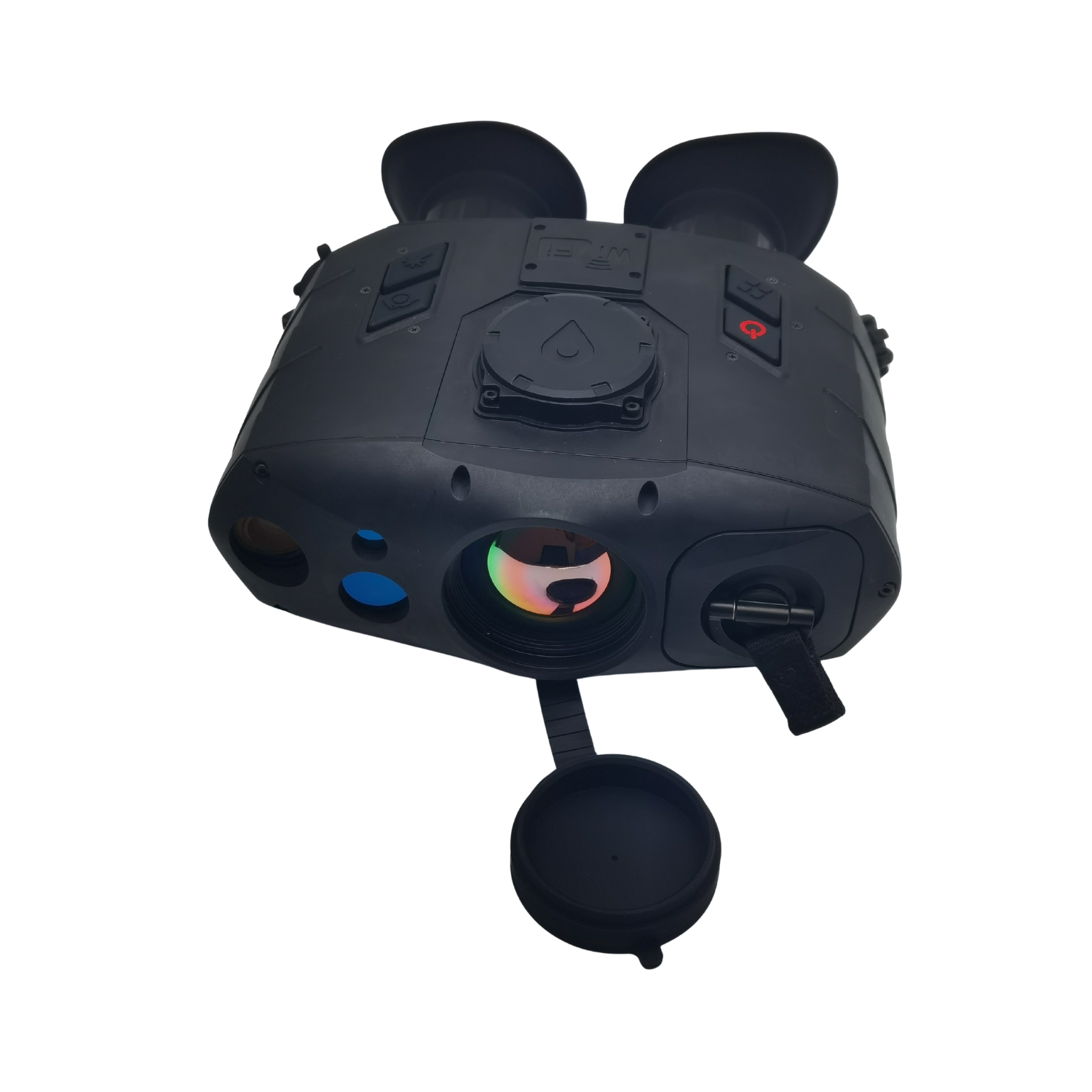

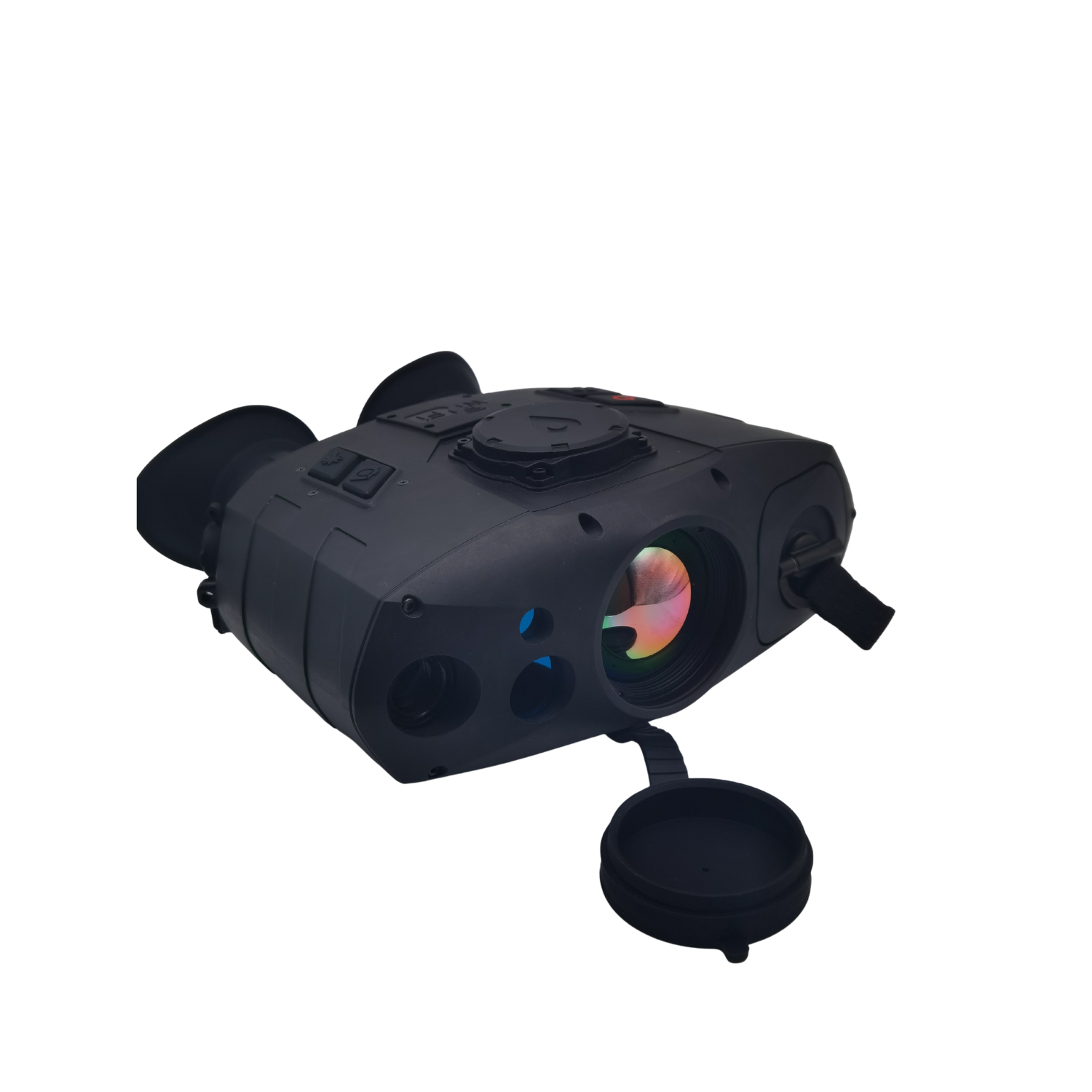

HDB Three Optical Channels Thermal Imaging Binoculars

The Three-light HD handheld device features dual high-definition observation channels, with a visible light resolution of 6.2 megapixels and an infrared resolution of 800,000 pixels, enabling day-and-night operation. The Binocular integrates a positioning module, electronic compass, and laser rangefinder for rapid, precise self-localization and target acquisition, enabling collection and storage of target data. Compact, lightweight, and low-power, it operates reliably in diverse climatic and environmental conditions.

Thermal imaging binoculars designed for professional observation, surveillance, hunting, and search & rescue. The Three-light HD handheld device features dual high-definition observation channels, combining visible light and thermal imaging for superior day and night vision. With a visible light resolution of 6.2 megapixels and an infrared resolution of 800,000 pixels, it delivers clear, detailed images in total darkness, fog, or harsh weather. This advanced thermal binocular integrates a laser rangefinder, positioning module, and electronic compass for fast target detection, accurate distance measurement, and precise navigation. Users can collect, store, and analyze target data efficiently in the field. Compact, lightweight, and low-power, this night vision thermal binocular operates reliably in diverse environmental conditions, making it ideal for outdoor, tactical, and professional applications.

Infrared Thermal Imaging

Resolution

1024×768 12μm

Operating Bandwidth

8~14μm

Field of View

15.5°×11.6°

Visible Light Imaging

Resolution

6.2 megapixels

Field of View

11.0°×8.2°

Laser Ranging

Wavelength

1535nm

Maximum Range

3.0km

Range Accuracy

2m

Positioning

Positioning Mode

BDGPS

Horizontal Positioning Accuracy (CEP)

5m

Vertical Positioning Accuracy (PE)

10m

Electronic Compass

Magnetic Azimuth Measurement Range

0~360°

Magnetic Azimuth Measurement Accuracy

1.0°

Pitch Angle Measurement Range

-90°~+90°

Pitch Angle Measurement Accuracy

1.0°

Tilt Angle Measurement Range

-180°~+180°

Tilt Angle Measurement Accuracy

1.0°

Display

Resolution

1440×1080

Observation Mode

Binocular

External Interface

Aviation connector

DC/USB/RS232

Video Interface

HDMI

Wireless transmission

WIFI

General

Storage

64G

Eyepiece Diopter

-4~+4

Weight

1. 1kg

Operating Time

≥7hRoom temperature

Operating Temperature

-40~+55

Storage Temperature

-55~+70

Water Resistance Rating

IP67
