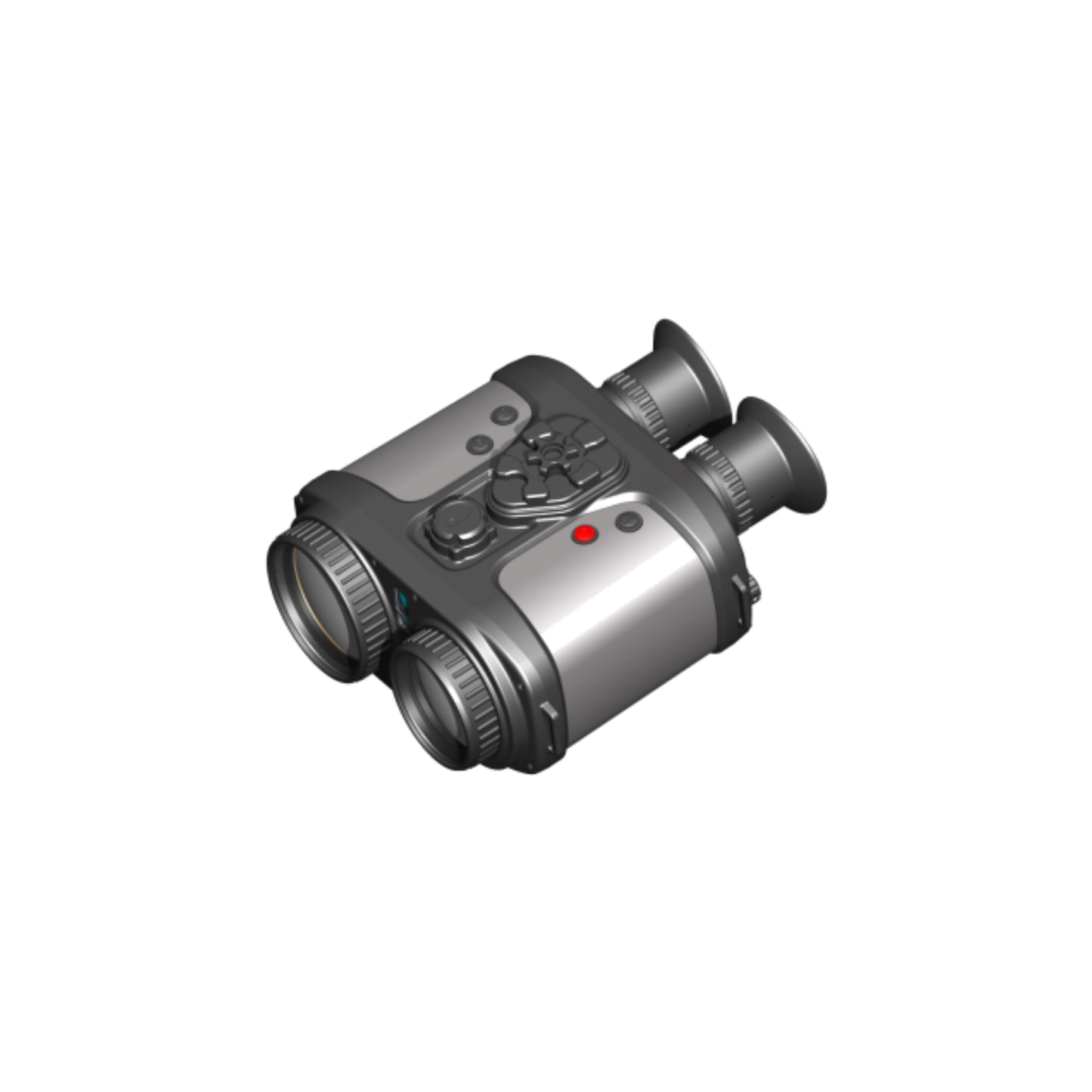

EDX500S Thermal Imaging Night Vision with High-definition Full Color Infrared Fusion Binoculars

The RHX500S is a revolutionary day/night binocular featuring integrated full-color and infrared fusion technology. It combines full-color night vision, infrared night vision, and fusion contour enhancement capabilities. Equipped with BeiDou positioning, an electronic compass, laser rangefinding, and other related functions. It enables all-weather observation, undeterred by extreme darkness in tunnels, caves, or other completely lightless environments. At night, it provides full-scene observation of all targets, unaffected by adverse weather, fog, rain, or obstructions like glass. In fusion display mode, it delivers a unique contour enhancement visual effect.
 The RHX500S thermal imaging binoculars redefine day and night observation with advanced full-color and infrared fusion technology. This cutting-edge night vision binocular integrates full-color night vision, infrared thermal imaging, and fusion contour enhancement, delivering exceptional clarity in total darkness. Designed for all-weather performance, it enables reliable observation in tunnels, caves, and completely lightless environments, as well as through fog, rain, and other adverse conditions—even through glass. Equipped with BeiDou positioning, an electronic compass, and a precision laser rangefinder, the RHX500S supports accurate navigation, target detection, and distance measurement. In fusion display mode, enhanced target contours provide superior situational awareness. Ideal for surveillance, search and rescue, security, and outdoor applications, this compact, high-performance thermal binocular ensures unmatched visibility anytime, anywhere.

Objective Lens

F1.2

Full-Color Optical Magnification

Zoom 4.5 ×

Combined Magnification

Day 45× ,   Night 18×

Low-Light CMOS Resolution

3840x2160

Thermal Imaging Detector Resolution

640X512

Frame Rate

30HZ

Laser Rangefinder Range

3 Km

Minimum Illumination Operating Environment

10-3  Lux

Display Type

Micro OLED

Display Resolution

1920x1080

Protection Rating

IP67

Operating Range

-25 - 40

Battery Type

18650  Battery 5 pieces

Battery Capacity

17500mAh

Dimensions

225mm×204mm×100mm

Weight

1950 gWithout Battery

Working time ≥10 hours
