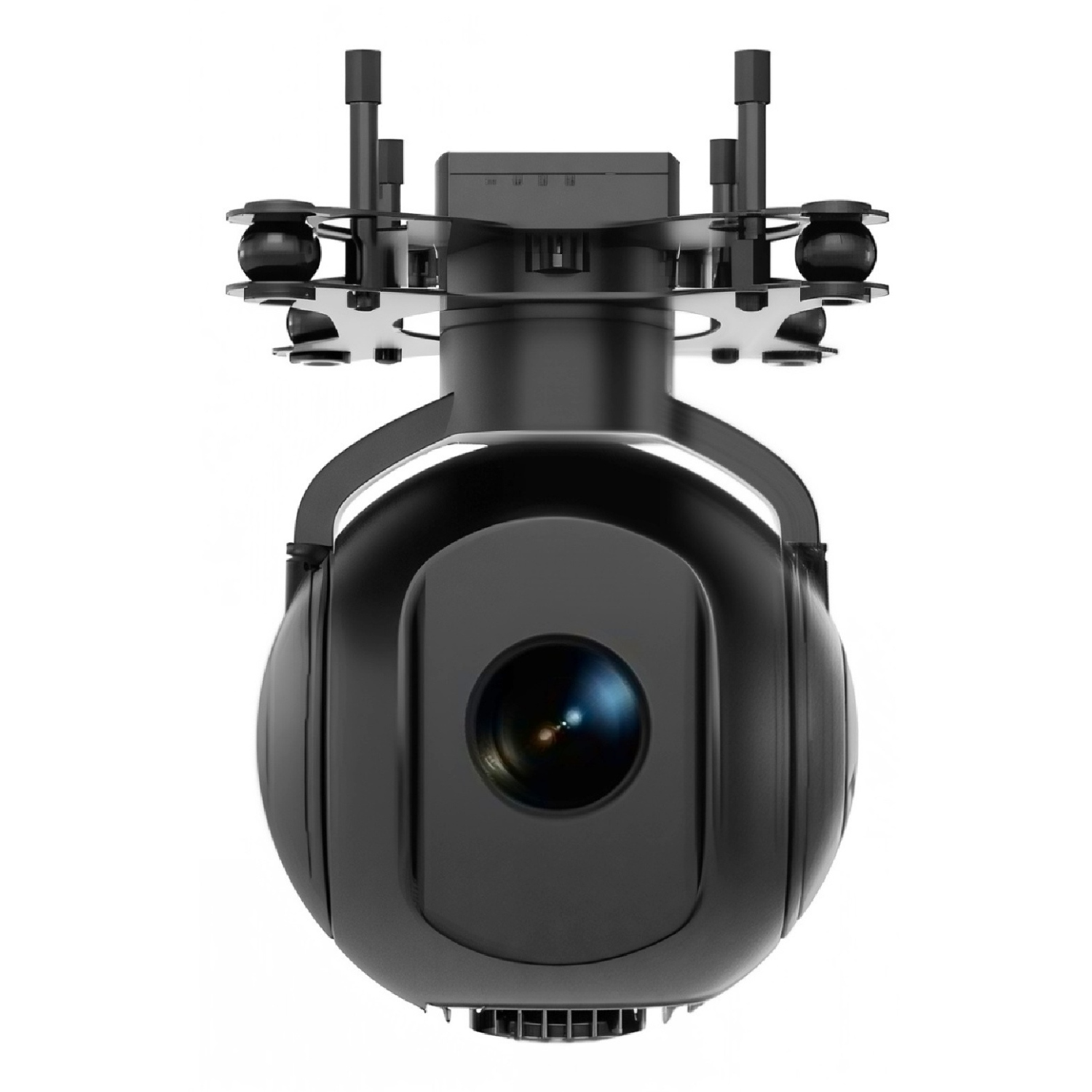

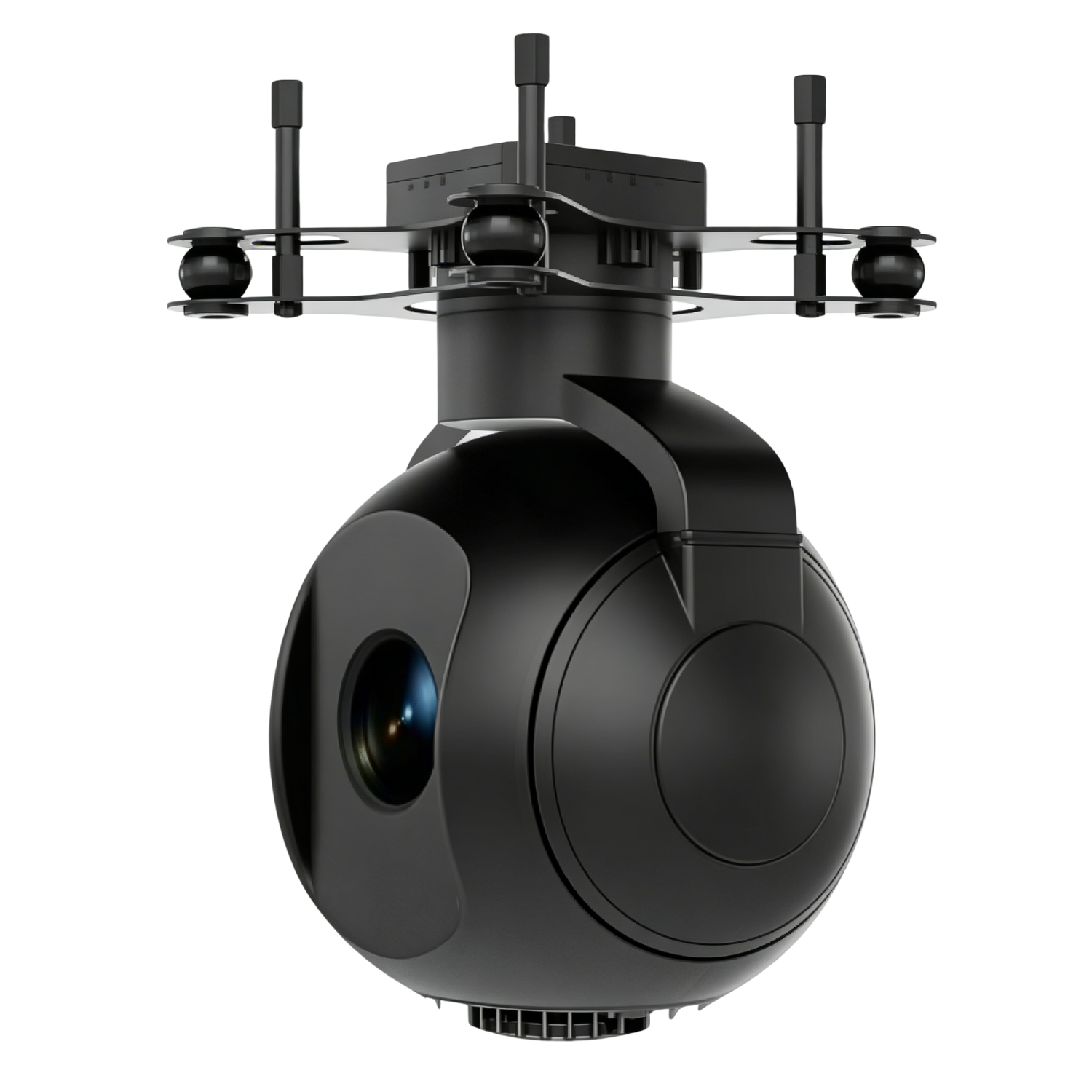

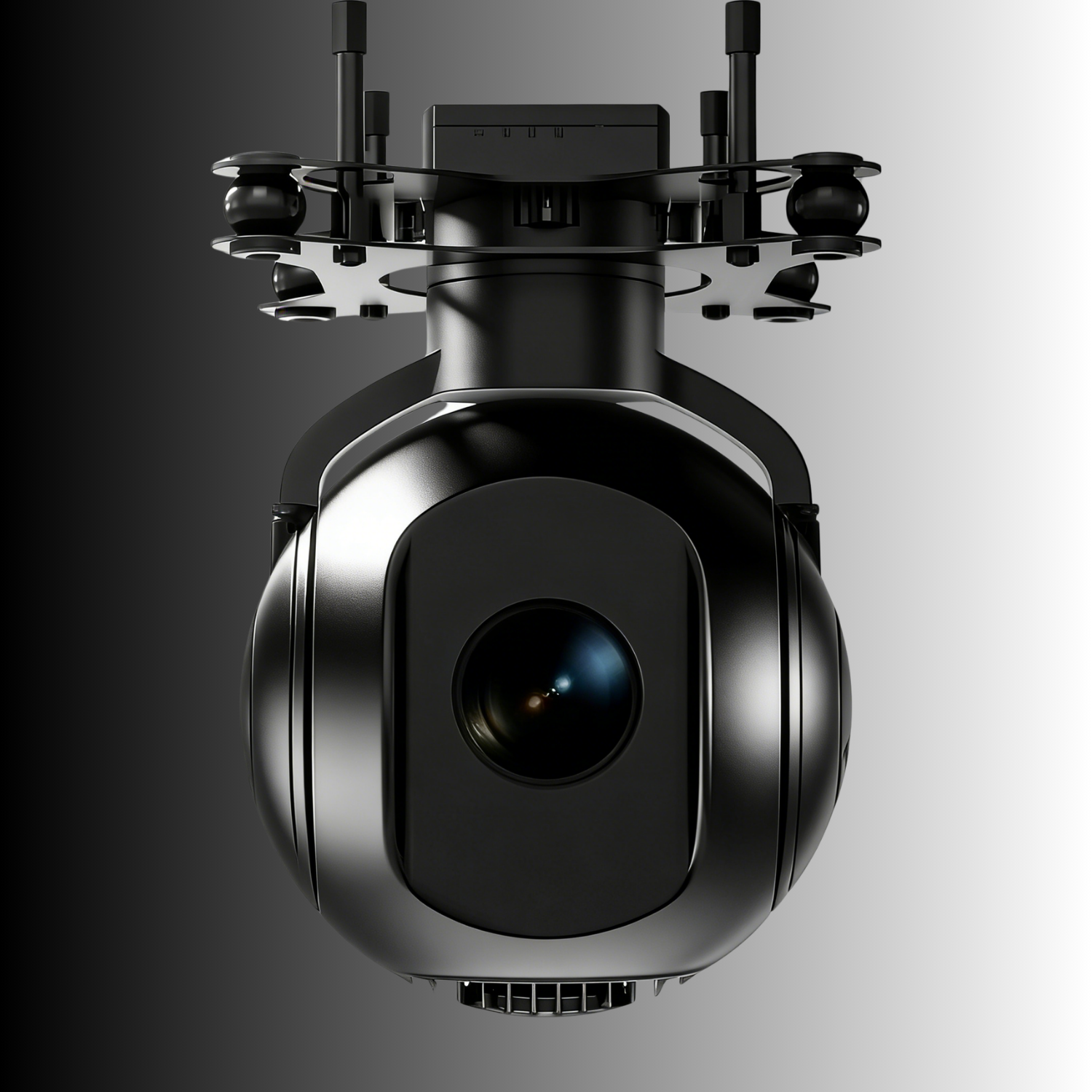

EDS108VB-NNV230T 2-Axis Gimbal Camera 30x Optical Zoom Full Color Night Vision for Mini UAV Surveillance
【Ultra-Light 2-Axis Gimbal Camera for 24/7 Mini UAV All-Weather Monitoring】
The EDS108VB-NNV230T 2-axis single-light gimbal camera is a professional aerial monitoring core device exclusively designed for small and micro UAVs, integrating 30x full-color night vision visible light camera, high-precision two-axis servo-stabilized platform and intelligent image processing module. With ultra-light body, high stabilization accuracy and low latency, it realizes 24-hour uninterrupted detection, identification and tracking of ground targets in day/night and low-visibility environments, and is the ideal choice for UAV security surveillance, border patrol, emergency search and rescue and forest fire prevention.
【30x Optical Zoom & 0.01Lux Full Color Night Vision, Clear Imaging Anytime】
✅ 30x Optical + 60x Hybrid Zoom: 5.1mm~153mm adjustable focal length, 55.2°×31.1°~2.7°×1.5° wide-to-narrow field of view, capture long-distance target details with high clarity;
✅ 0.01Lux Full Color Night Vision: Ultra-low illumination full-color imaging, no infrared black-and-white limitation, clearly recognize targets in dark night, fog and other harsh environments (supports fog penetration);
✅ 1080P HD Imaging: 1920×1080 high resolution, auto/manual dual focus mode, adapt to various monitoring distances and scene requirements, output high-quality visible light images in real time.
【High-Precision 2-Axis Stabilization & Flexible Attitude Adjustment】
Equipped with professional two-axis servo-stabilized platform, effectively isolate UAV flight carrier interference and keep the line of sight stable, ensuring clear imaging without shake:
✅ Super high stabilization accuracy: ≤0.1mrad, frame angle accuracy ≤0.3°(1σ), stable shooting even in high-speed flight;
✅ 360° all-round rotation: Azimuth 360° continuous rotation, pitch -120°~+90° ultra-wide angle, no dead angle for aerial monitoring;
✅ Smooth motion performance: Azimuth/pitch maximum rotation speed ≥50°/s, acceleration ≥20°/s, tracking angular velocity 20°/s, quickly lock and track moving targets.
【Intelligent Target Tracking & Multiple Practical Functions】
Built-in high-performance image processing module, with 50HZ high frame rate tracking, realize intelligent and efficient aerial monitoring:
✅ Multi-mode intelligent tracking: Automatic identification of typical targets, 16×16 pixel minimum target tracking, one-click lock/unlock, anti-interference auto tracking and memory tracking with rapid target reacquisition;
✅ Humanized operation functions: Support heading lock/manual search/following/attitude stabilization, wave gate size adjustment, tracking target switching, self-check and fault report;
✅ One-click recording & shooting: Support JPG format photo and AVI format video, local storage via ≤128G Mini SD card, no missing of key monitoring data.
【Ultra-Light & Low Power Consumption, Perfect for Mini UAVs】

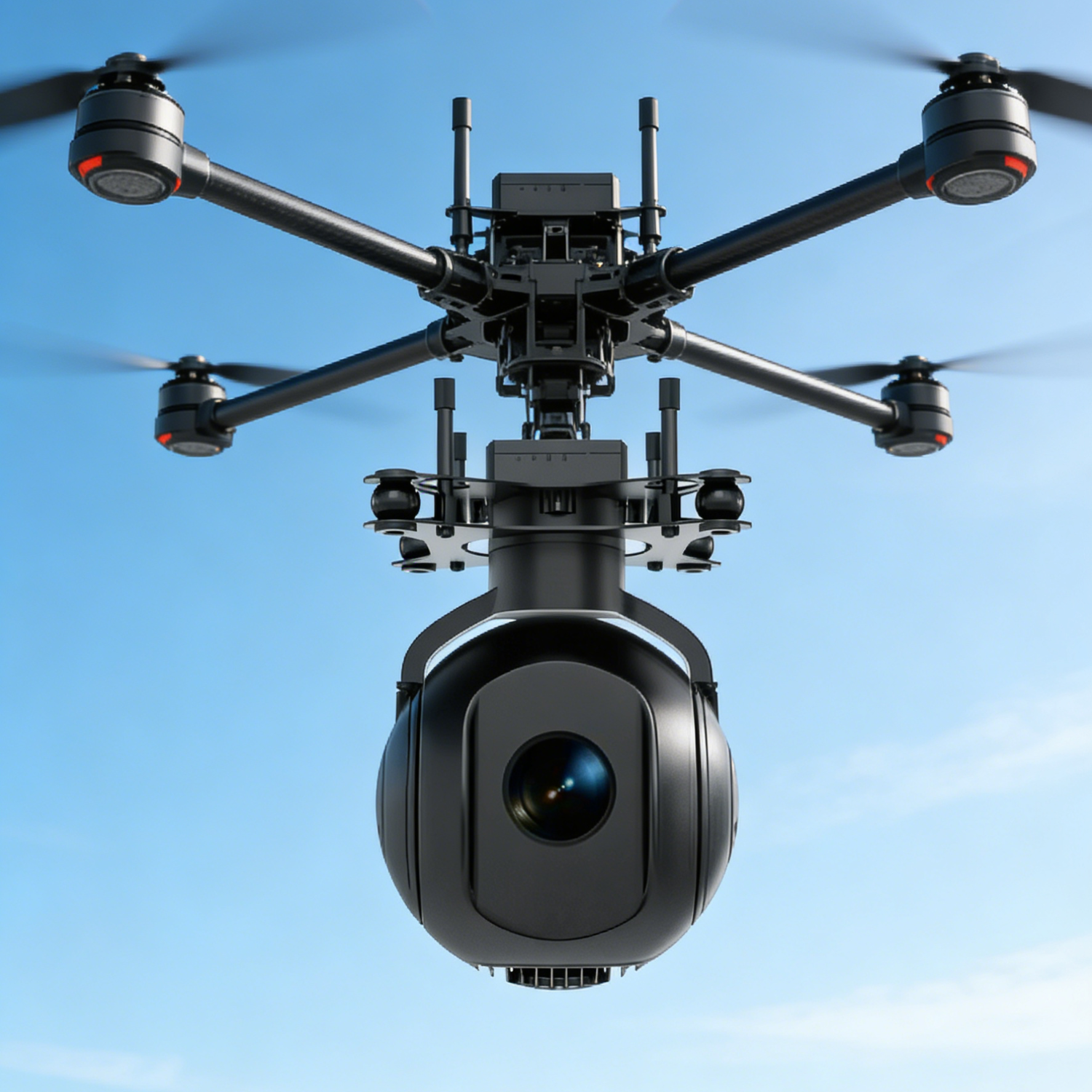

Tailored for small and micro UAVs, the body design is ultra-light and compact, matching the load capacity of mini UAVs:

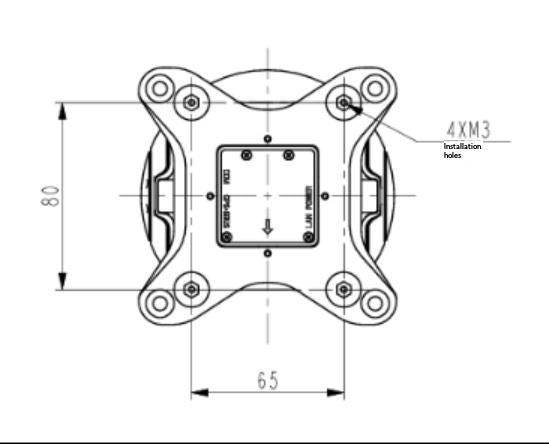

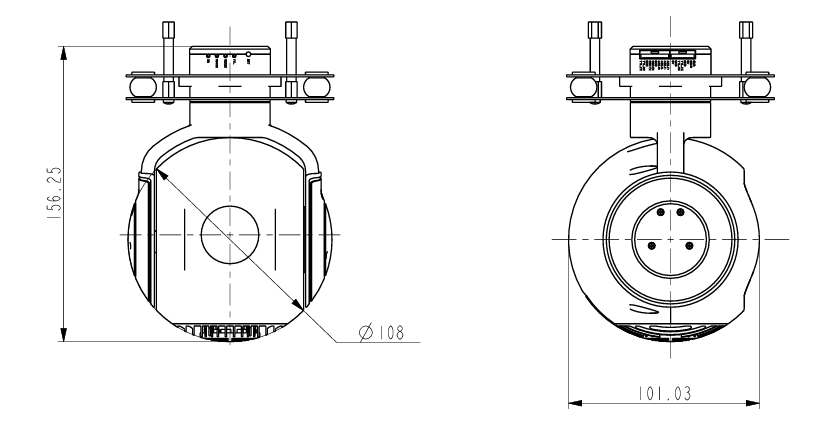

✅ Ultra-light weight: ≤500g, compact size 108mm×108mm×156.5mm, no burden for mini UAV aerial operation;
✅ Low power & wide voltage: 12V-32VDC wide voltage input, stable power consumption only ≤15W, 24VDC power-up peak current ≤5A, long endurance for UAV monitoring tasks;
✅ Strong compatibility: Seamless docking with mainstream domestic flight control platforms, access to ViewControlStudio display and control software, quick complete UAV system development.
【Strong Environmental Adaptability & Reliable Working Performance】
The whole machine is designed for harsh aerial environments, with excellent anti-vibration, anti-impact and environmental resistance:
✅ Wide temperature adaptation: Working temperature -20℃~+55℃ (-40℃ optional), storage temperature -40℃~+60℃, adapt to high/low temperature areas such as plateaus, north and south;
✅ Super anti-vibration & impact: 6g continuous vibration resistance (3 directions, 5min each), 20g peak impact resistance (11ms duration), stable work in complex flight conditions;
✅ IP-level protection: Support flight in light rain, no need to worry about mild rainy weather, suitable for outdoor all-weather aerial monitoring.
【Rich Interface & Stable Video Transmission】
✅ Diversified output protocols: RTSP/UDP/RTMP optional, 200kbps~6Mbps adjustable bit rate, adapt to different network transmission environments;
✅ 100Mbps high-speed transmission: 100 megabit Ethernet video interface, real-time streaming of visible light video, no lag for remote monitoring;
✅ Multi-type control interfaces: RS232/TTL/RS422/100Mbit (optional), meet different UAV system control connection requirements.
