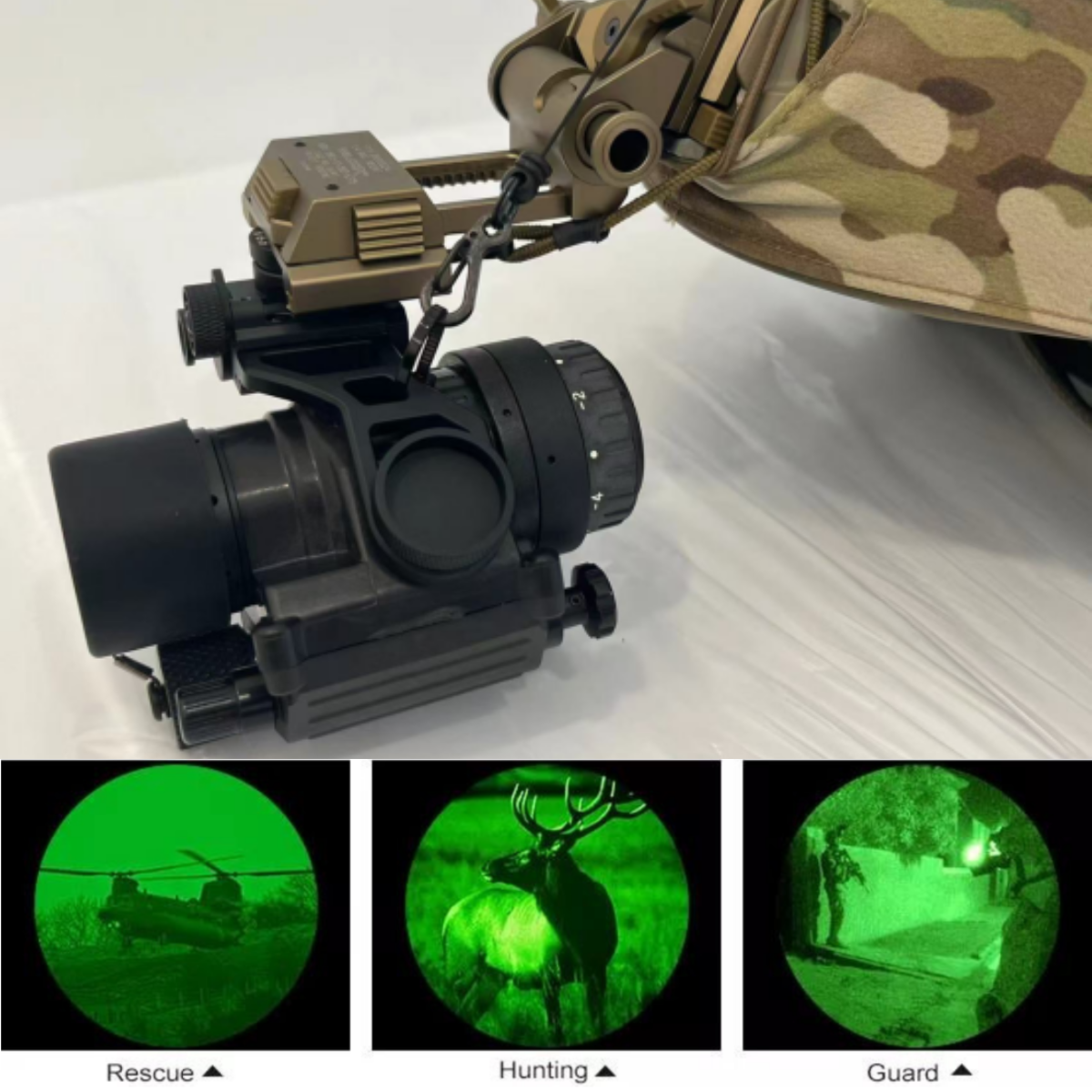

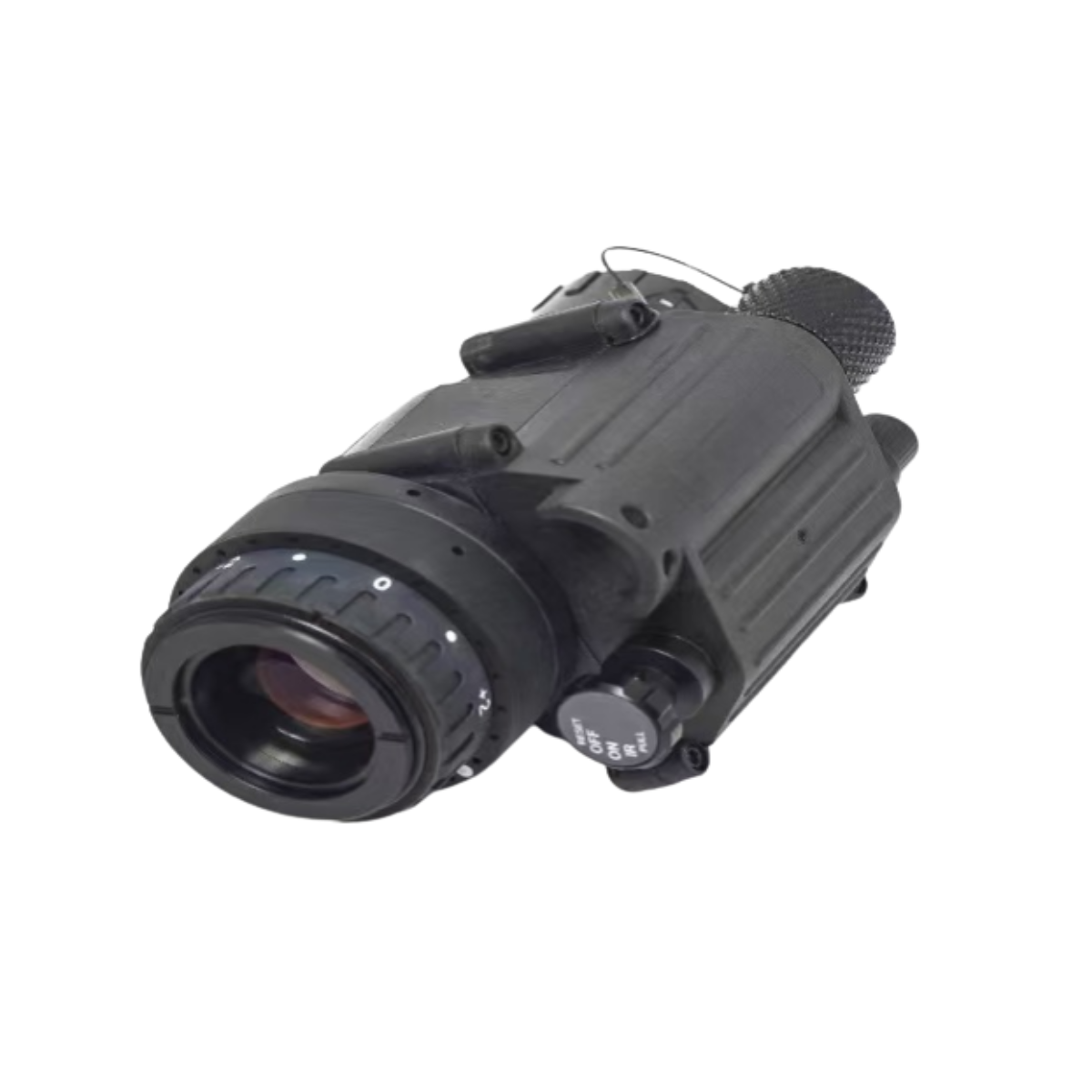

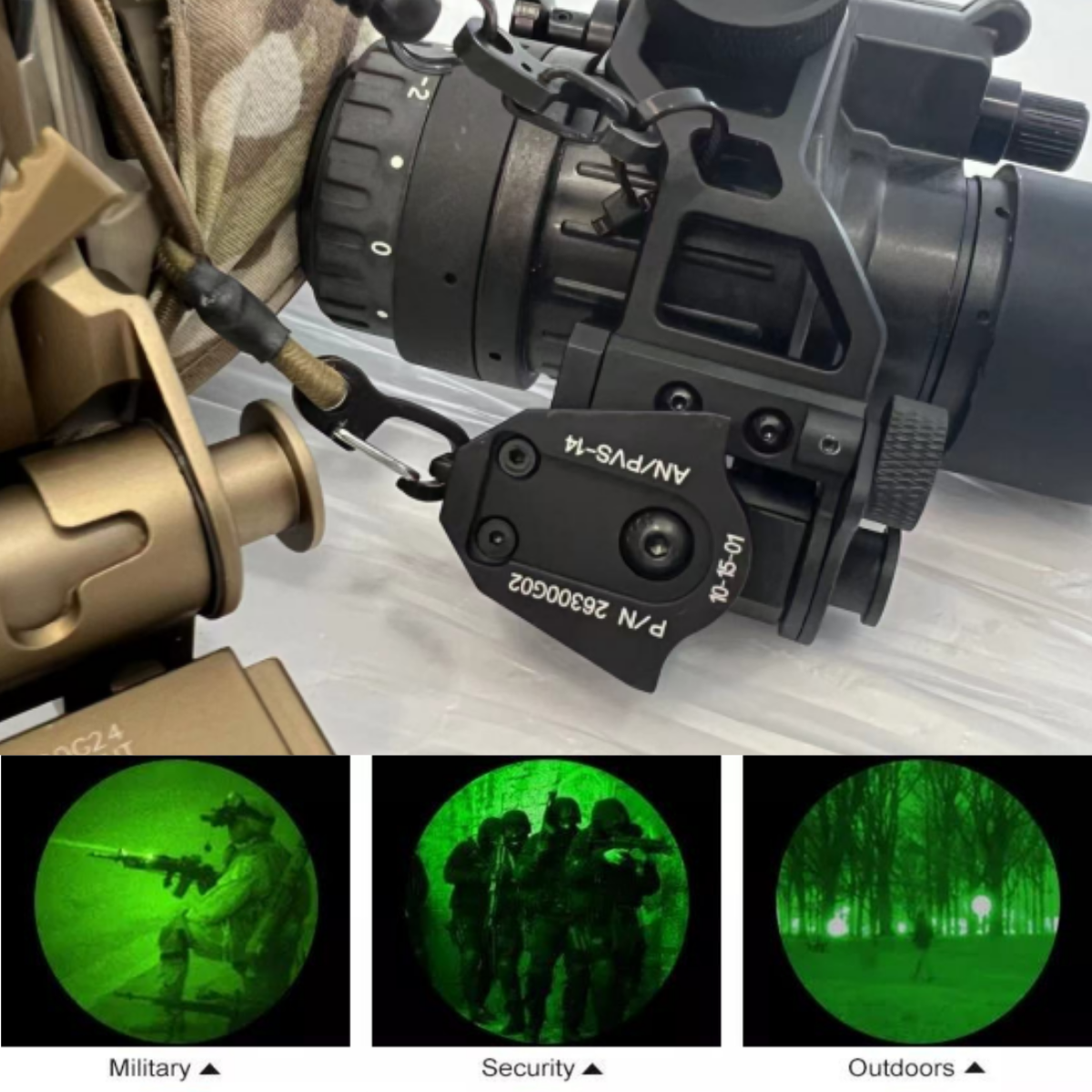

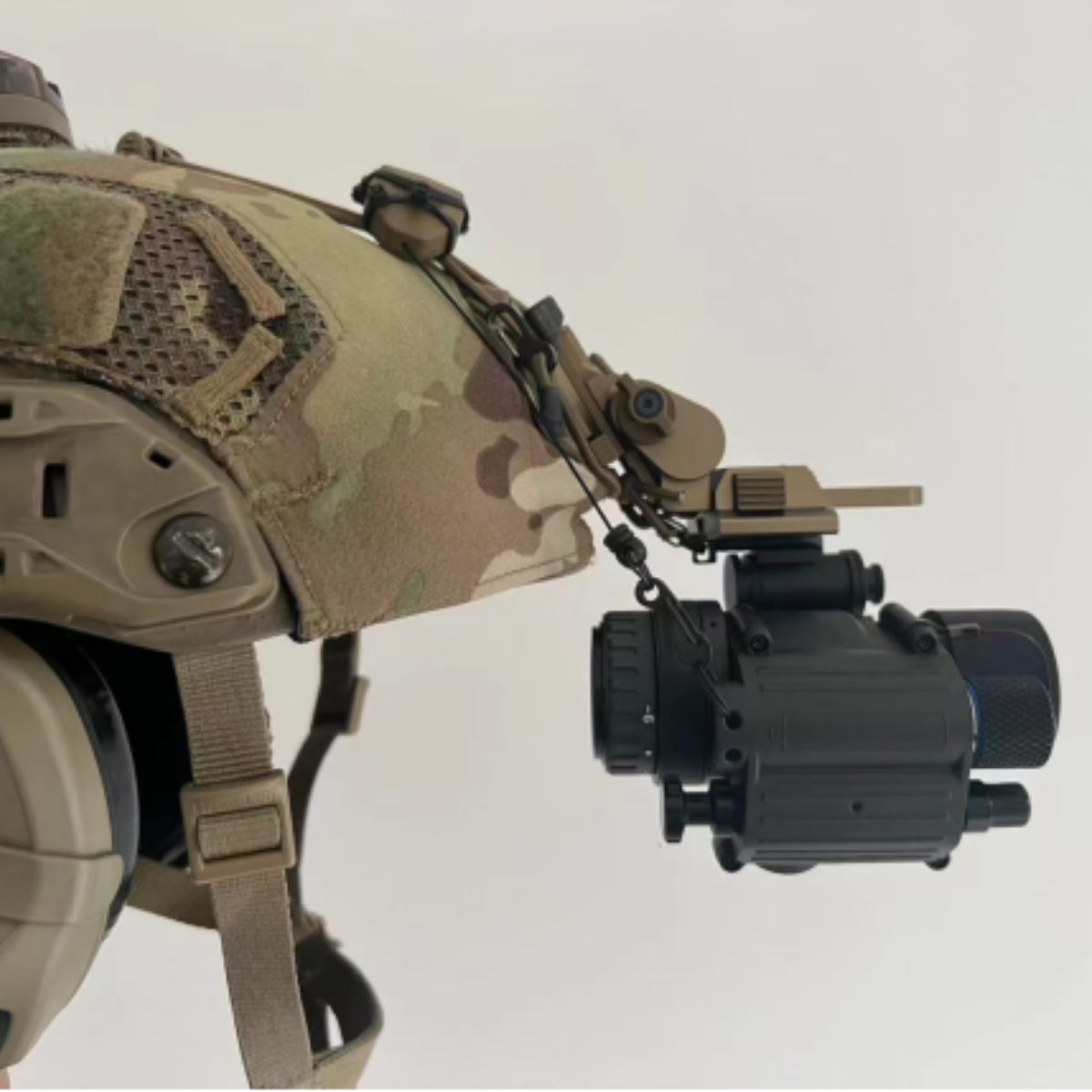

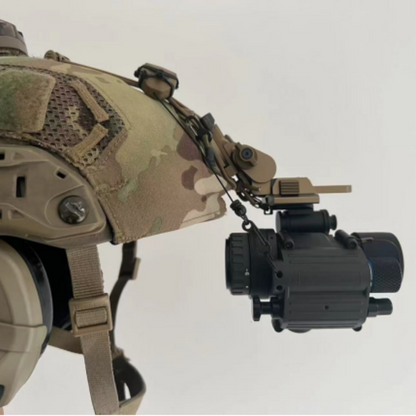

EDPVS-14 Monocular Night Vision Device Low-light NV Goggles

EDPVS-14 monocular night vision goggle is a hand-held,head-mounted,helmet mounted, or weapon mounted night vision system that enables walking, weapon firing, short-range surveillance, map reading, vehicle maintenance and administering first aid in both moonlight and starlight, each unit allows for vertical adjustment (by using head strap), fore-and -aft adjustment, objective lens focus and eyepiece focus. The monocular is also equipped with an IR source, a low battery indicator and a gain control.

Magnification

1.0X

Image Intensifier Tube

Gen 3 (P43/P45)

Resolution (lp/mm)

68-72

Signal-to-Noise Ratio (dB)

27-30

Photocathode Sensitivity (µA/lm)

1000-1200

Mean Time Between Failures

(MTBF):

10,000

Field of View (FOV)

40°

Detection Range

250∽280m

Diopter Adjustment

+2  –6

Focus Range

25 cm to ∞

Alternative Diopter Adjustment

+4∽ –6

Lens System

F1.2, 25mm

Focusing Distance

0.25--∞

Power Supply

2 × AA alkaline or 2 × AA 1.5 VDC batteries (max 1.5 VDC)

Carrying/Storage Case:

Black protective hard case

Dimensions

11.43x5.08x5.72 cm

Weight

≤360 g

Operating Temperature

-45°∽ +55°C

Storage Temperature

-55°C to +70°C

Environmental Rating

IP 67
