AI Target Tracking Drone Module FPV AI Visual Tracking System EDAS1200

AI Target Tracking Drone Module FPV AI Visual Tracking System EDAS1200

Our AI visual tracking system is purpose-built for drones, providing advanced autonomous capabilities through precise target recognition and tracking. By seamlessly integrating high-performance target recognition, dynamic tracking, and anti-jamming control, the system enhances its operational effectiveness. The fusion of deep learning algorithms with powerful processing chips enables automatic target acquisition. This combination ensures stable and precise tracking, even in complex electromagnetic environments. As a result, there is a significantly lower operational threshold for pilots and a dramatic improvement in mission efficiency.

Elevate your FPV and autonomous drone operations with the AS1200 AI tracking module. This powerful system delivers unprecedented long-range detection, identifying vehicles up to 1200m and humans at 500m. Powered by a 6 TOPS AI processor, it enables robust autonomous tracking, follow-me functionality, and intelligent navigation for professional filming, security, and industrial applications. With dual visible-light cameras and Betaflight support, the AS1200 is the all-in-one solution for high-performance drone autonomy and intelligent flight.

Category Parameter Specification
Basic Info Module Model AS1200
Target Recognition & Tracking Target Recognition Type Default: Human, Vehicle
Target Detection Range Vehicle: 1200m, Human: 500m
Min Target Tracking Pixel 16x16 pixels
Max Tracking Speed of Dynamic Target 60 km/h
Intelligent Adhesive Tracking Supports cross hair fuzzy locking for close-range adhesive tracking
Trajectory Prediction & Memory Tracking Supports trajectory Prediction and feature Memory tracking
Max Target Recognition No. 50
Picture-in-Picture (PiP) Supported
Power & Temperature Input Voltage DC9~16V
Power Consumption 10W
Operating Temperature -20 ~ 60
AI Image Processing Board Computing Power of Main Controller 6 TOPS
Communication Protocol CRSF
Communication Method UART
Video Output Format CVBS
Supported Firmware Beta Flight
Input Voltage 9 ~ 16V
Mounting Holes 25.5*25.5mm
Dimensions 38*38*29mm
Weight 43.8g
Visible Light Camera Module Low Light Performance of Short-focal Camera 9650mV/lux·s
Short-focal CMOS 1/2.6 Inch
Short-focal FOV 72°(H)*45°(V)
Short-focal Length 3.9mm
Low Light Performance of Long-focal Camera 9650mV/lux·s
Long-focal CMOS 1/2.6 Inch
Long-focal FOV 26°(H)*15°(V)
Long-focal Length 12mm
Video Input Format 1920*1080@30hz
Dimensions 40.8*25*26mm
Weight 17.0g
2D Dimension Image 2D Dimension Image

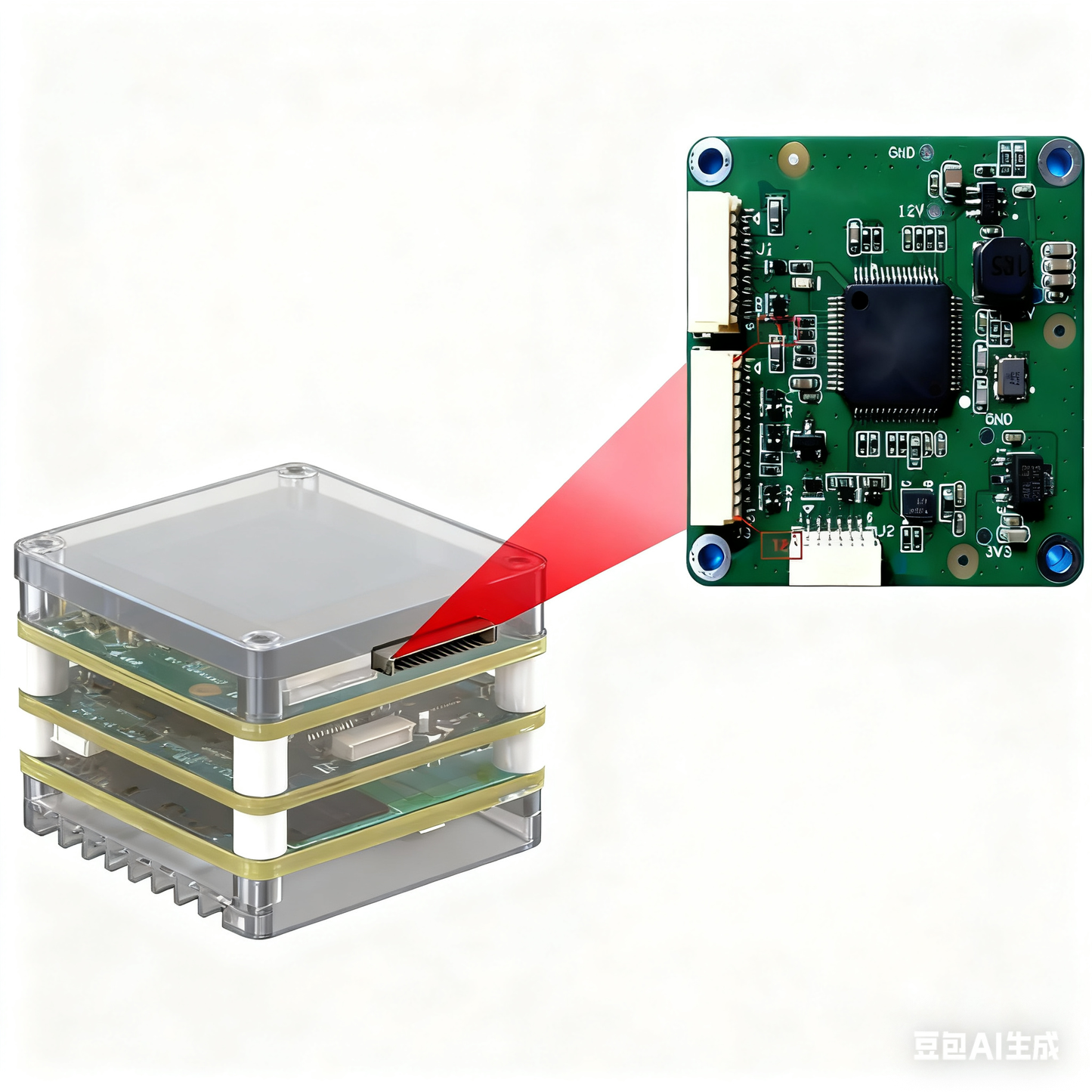

Communication Interface
