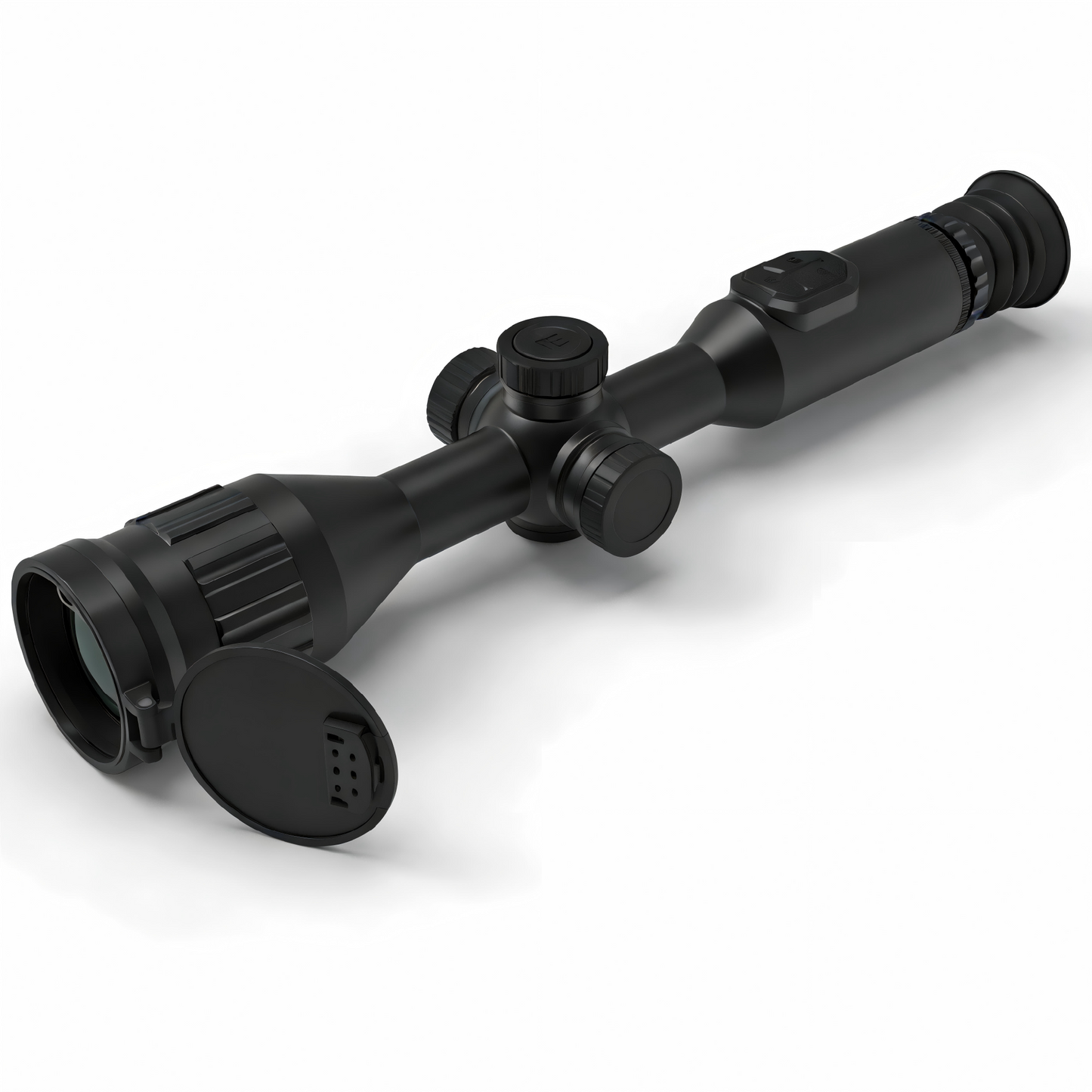

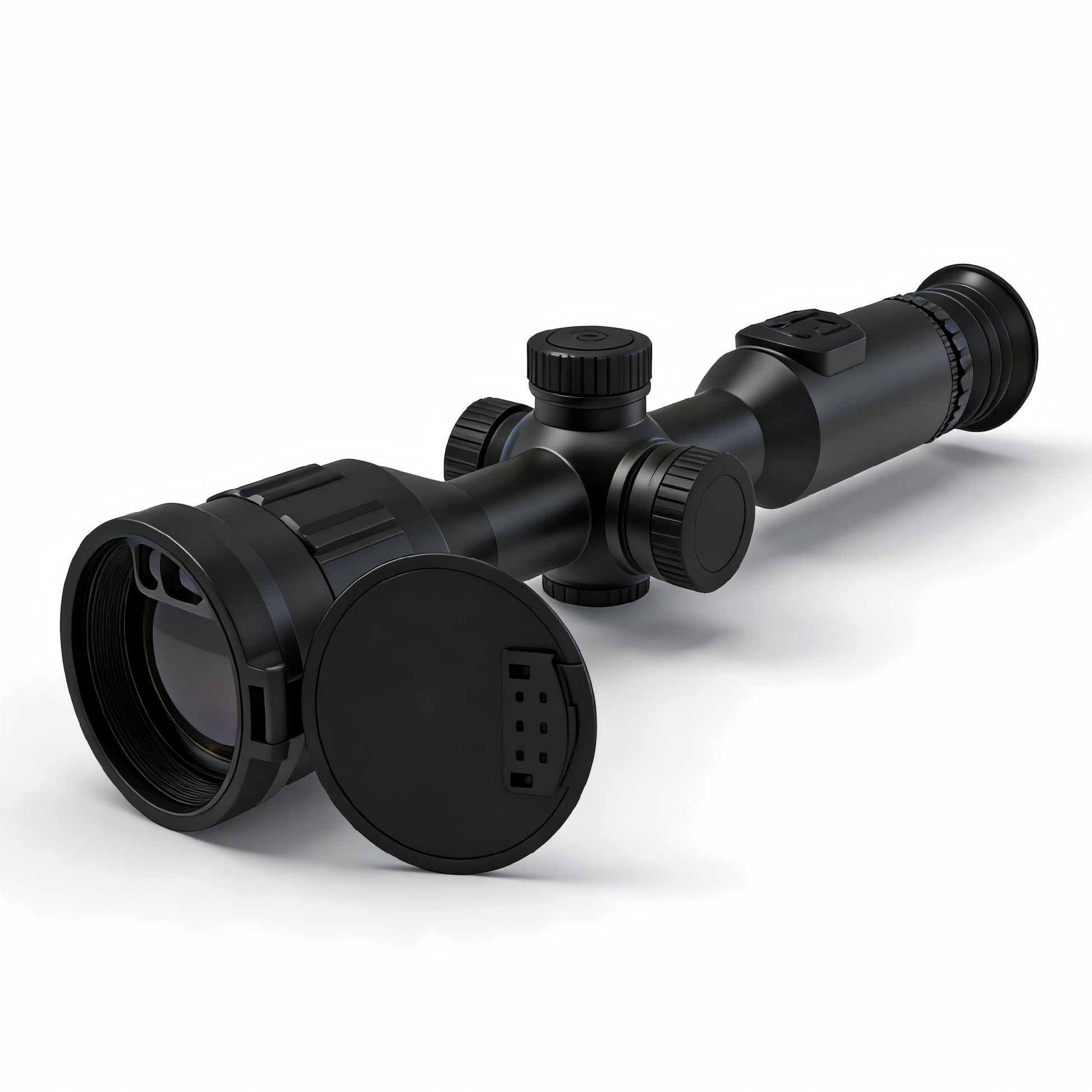

640×512 Thermal Rifle Scope with Laser Rangefinder – 1KM LRF, AI Target Tracking, 50Hz Long Range Hunting Thermal Scope
Experience precision and clarity in any lighting condition with this advanced 640×512 thermal rifle scope designed for professional hunters and outdoor enthusiasts.
Built with a high-sensitivity VOx infrared sensor, this thermal imaging scope delivers crisp thermal images, fast target acquisition, and accurate ranging even in total darkness, fog, smoke, or dense vegetation.
|
Project Category |
Adventurer650-LRF-Pro |
Adventurer650 |
|
Infrared Module |
|
|
|
Detector Type |
UFPA (VOx) |
UFPA (VOx) |
|
Detector Resolution |
640×512 |
640×512 |
|
Pixel Pitch |
12um |
12um |
|
Frame Rate |
50Hz |
50Hz |
|
NETD |
≤20mk |
≤20mk |
|
Optical Parameters |
|
|
|
Focal Length |
50mm |
50mm |
|
Aperture |
F0.9 |
F0.9 |
|
Field of View |
8.7°×7.0° |
8.7°×7.0° |
|
Focusing Mode |
Manually |
Manually |
|
Detection Distance (2 pixels) |
3.5km (People) |
3.5km (People) |
|
Recognition Distance (12 pixels) |
590m (People) |
590m People) |
|
Image Display |
|
|
|
Screen Type |
AMOLED, 0.39 Inch |
AMOLED, 0.39Inch |
|
Screen Resolution |
1024×768 |
1024×768 |
|
Exit Pupil Distance/Aperture |
55mm / 6mm |
55mm / 6mm |
|
Brightness/Contrast Adjustment |
Supported |
Supported |
|
Color Palette |
Black Heat / White Heat / Red Heat / Fusion / Gold Heat / Green Heat |
|
|
Digital Zoom |
×1;×2;×3;×4 |
×1;×2;×3;×4 |
|
Item category |
Adventurer650-LRF-Pro |
Adventurer650 |
|
Power supply |
DC 5V (USB Type-C) |
DC 5V (USB Type-C) |
|
Battery type |
2 built-in lithium batteries + 1 external lithium battery |
|
|
Battery parameters |
21700(5000mah)×2+18650(3400mah)×1 |
|
|
External power supply |
DC 5V (USB Type-C) |
DC 5V (USB Type-C) |
|
Power consumption |
≤2.2W（25℃） |
≤2.2W（25℃） |
|
Continuous operating time |
≥15h（25℃） |
≥15h（25℃） |
|
Peripherals |
|
|
|
Electronic Compass |
Supported |
Supported |
|
Attitude Sensor |
Supported |
Supported |
|
Wi-Fi |
2.4G |
2.4G |
|
Storage |
Built-in 32GB EMMC |
Built-in 32GB EMMC |
|
Laser Rangefinder |
Laser，905nm |
-------- |
|
Laser Measurement Distance & Accuracy |
1Km，±1m |
1Km，±1m |
|
Other |
|
|
|
Interfaces |
Micro HDMI (Type D) |
Micro HDMI (Type D) |
|
Protection Rating |
IP67 |
IP67 |
|
Operating Temperature |
-20°C to +50°C |
-20°C to +50°C |
|
Shock Resistance |
1000g/0.4ms |
1000g/0.4ms |
|
Weight (without battery) |
≤1195g |
≤1150g |
|
Dimensions |
425×88×75（mm） |
425×88×75（mm） |
