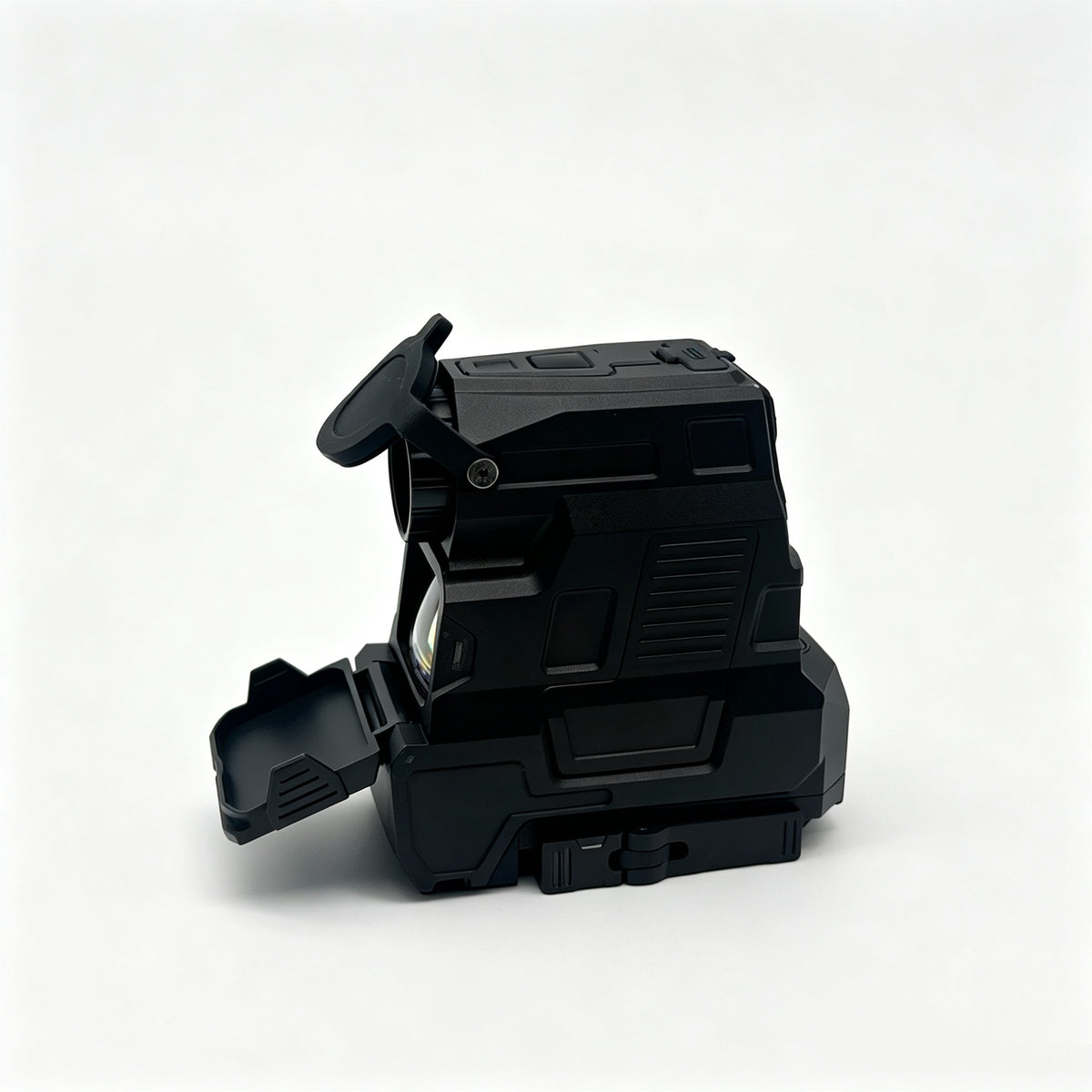

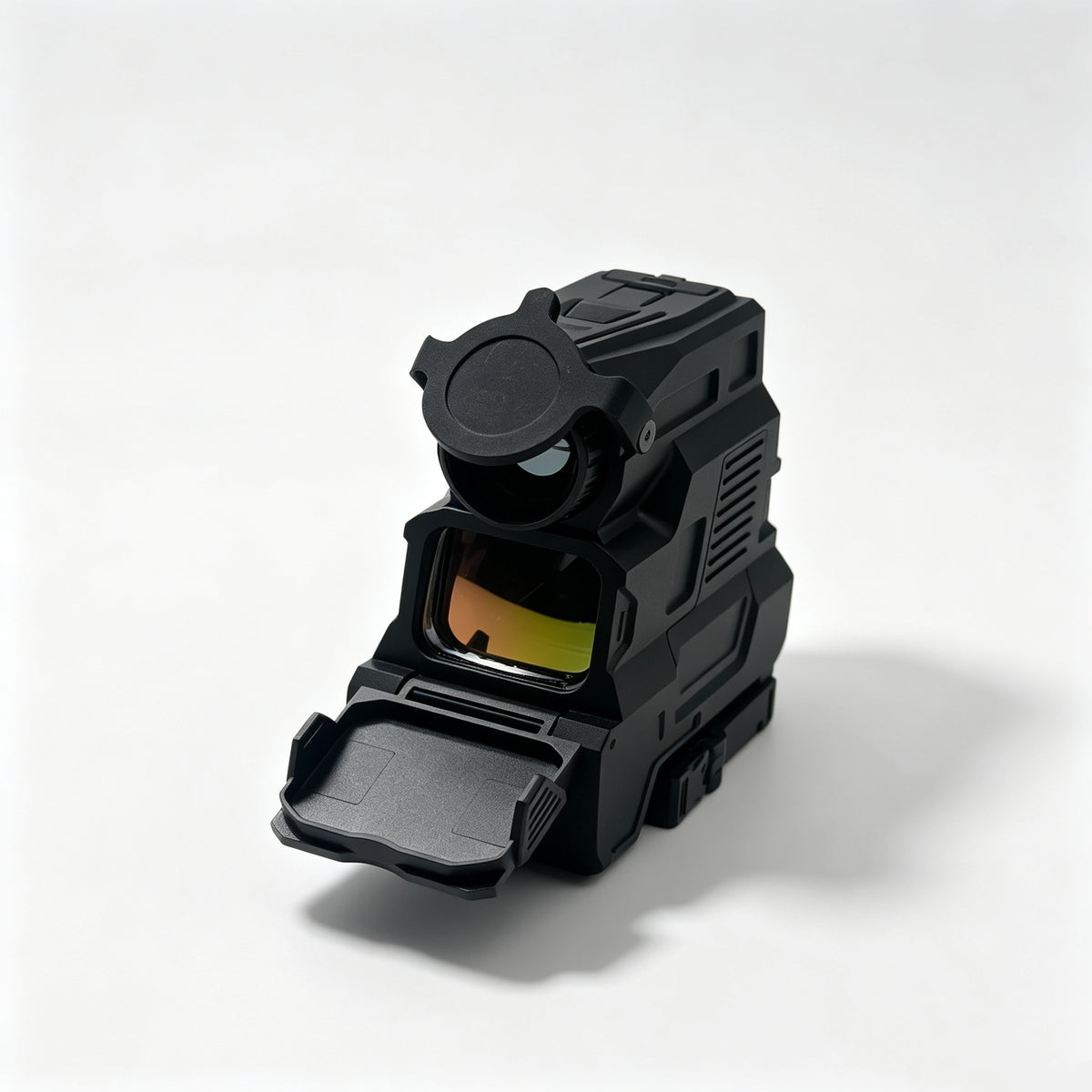

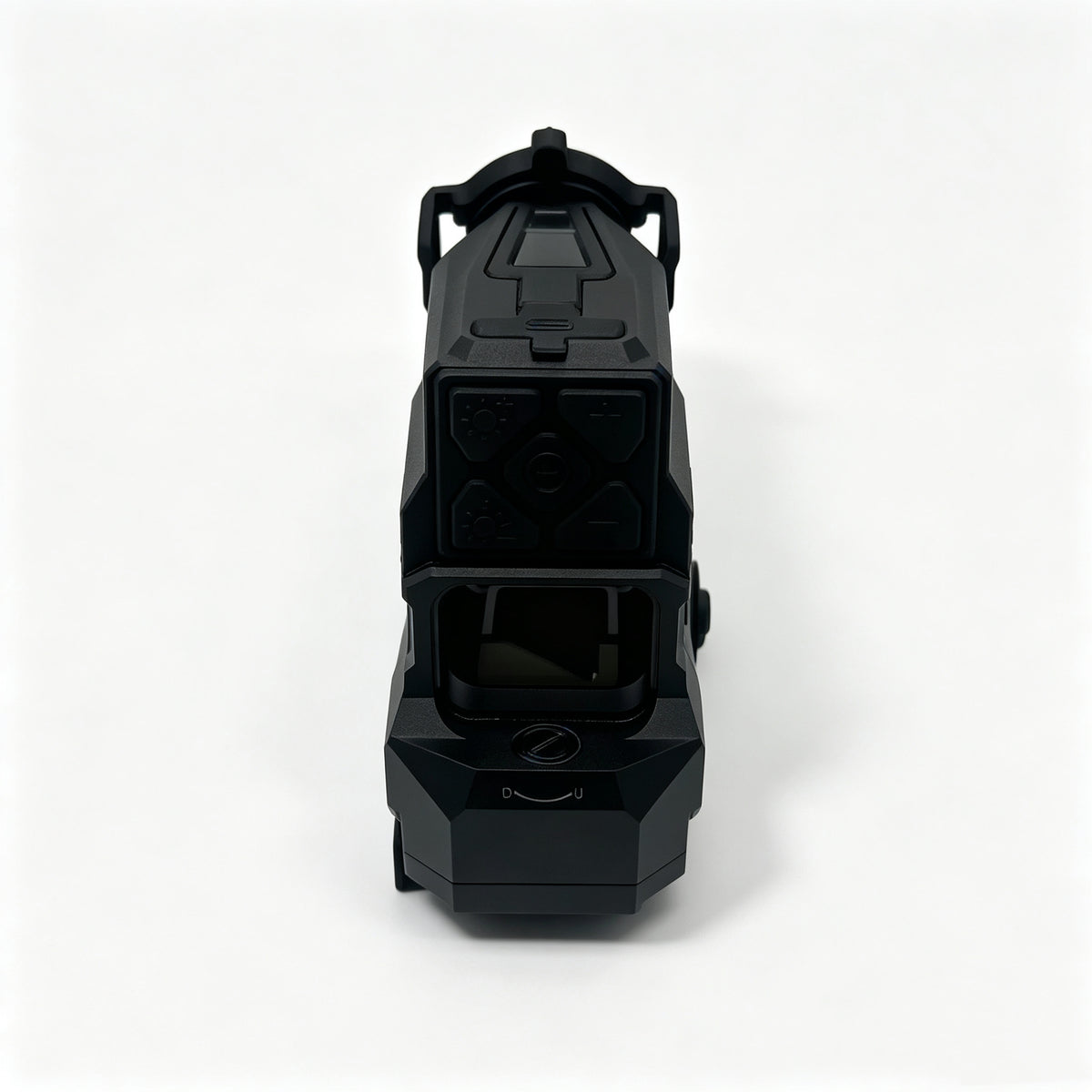

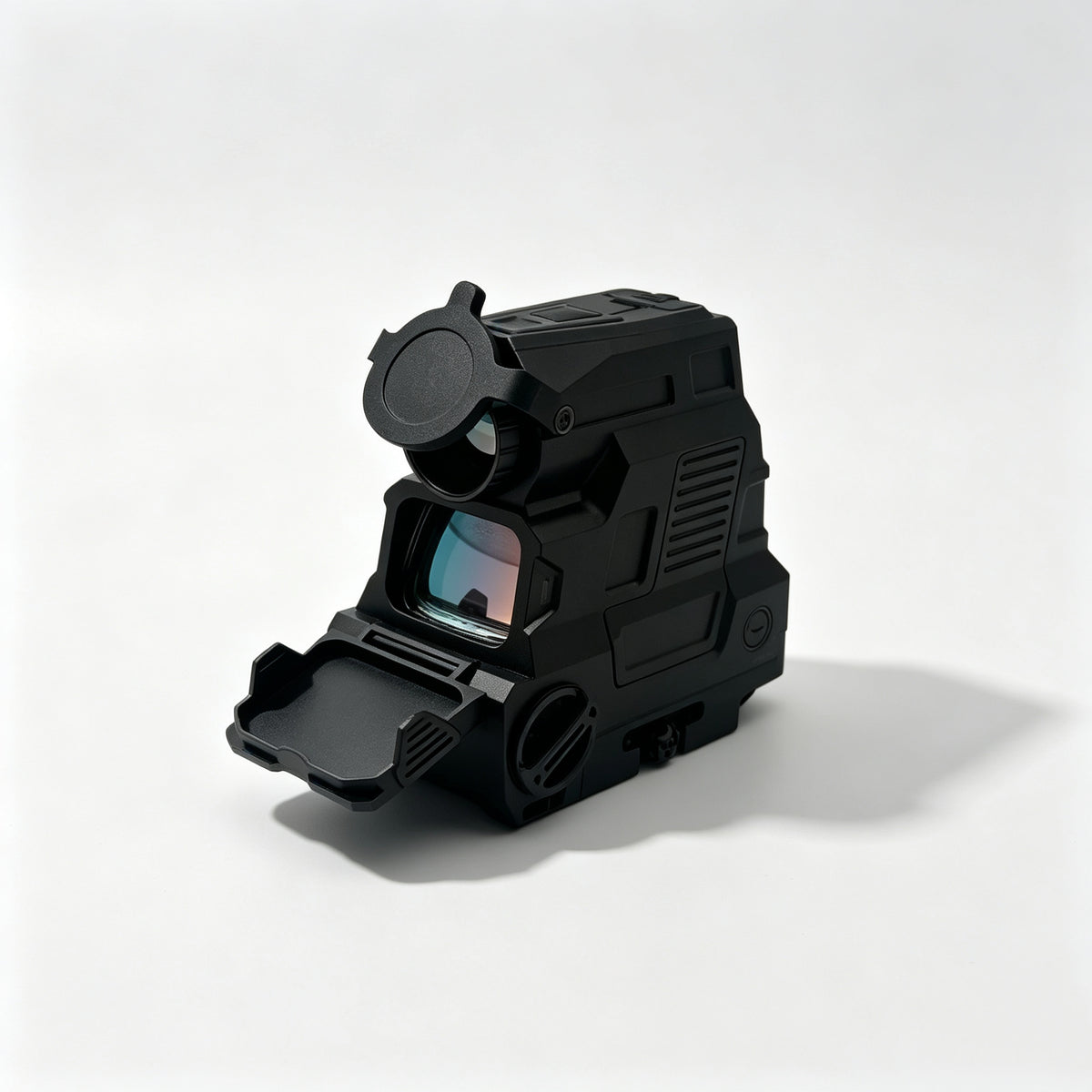

1X Thermal Imaging Fusion Red Dot Sight, Uncooled Vanadium Oxide Thermal Reflex Sight, Multi‑Reticle QD Picatinny Mount IP67 Waterproof for CQB Day & Night Shooting

Built for close‑quarters battle (CQB) and all‑environment tactical missions, this **1X Thermal Imaging Fusion Red Dot Sight** merges classic red‑dot fast aiming with uncooled thermal infrared imaging, delivering true day‑and‑night operational capability亚马逊. Adopting dual‑eye open‑sight aiming design, it detects heat signatures in full darkness, smoke or low‑light scenarios, while keeping rapid target acquisition of reflex red dot optics. CNC‑machined aerospace aluminum alloy housing with black hard‑anodized finish guarantees rugged field reliability, paired with quick‑detach Picatinny rail mount for fast installation and removal on rifles and submachine gun platforms. IP67 ingress protection enables stable performance under harsh weather conditions.

Got a question?

Don't be a stranger.

Key Features

  • Dual‑mode Thermal‑Red‑dot Fusion Technology: Supports day‑time red‑dot aiming and night thermal imaging; 3 thermal display modes: Black‑hot, White‑hot, Outline for better target identification in varied surroundings
  • Multi‑selectable Reticles: 3 reticle styles — Red dot, Red circle, Dot‑and‑circle; ≤3 MOA red‑dot size, low parallax ≤2 MOA for precise aiming
  • High‑performance Uncooled IR Detector: Vanadium Oxide sensor, OLED high‑resolution display; 1×/3×/5× digital infrared zoom, built‑in non‑uniformity correction for clear thermal picture
  • Rugged All‑metal Construction: CNC aerospace‑grade aluminum alloy with hard black anodizing; IP67 waterproof & dustproof; operating temperature: ‑20℃ ~ +65℃
  • Quick‑Detach Picatinny Mount: QD lever mechanism, adjustable locking clearance; 0.5 MOA per click windage & elevation zeroing, total ±40 MOA adjustment range
  • Flexible Power Solution: Compatible with CR123A 3V /3.7V battery; red‑dot‑only runtime ≥10000 hours, fusion mode runtime ≥6 hours; Type‑C external power supply port (power bank compatible, cannot charge internal battery)
  • User‑friendly Control: Adjustable brightness levels for day/night use; real‑time battery indicator & low‑battery warning; auto power‑off for red‑dot function after 30‑min idle to save power

    Model



    Optical Performance

    Magnification

    1X

    Display Window Size

    30mm×23mm

    Reticle Types

    Red dot / Red circle / Dot‑and‑circle

    Reddot Size

    ≤3MOA

    Parallax

    ≤2MOA

    Electrical Performance

    Battery

    CR123A

    Continuous Runtime (Red‑dot Only)

    ≥10000 hours

    Runtime(Fusion Mode)

    ≥6 hours

    Brightness Setting

    15 levels for daytime / 5 levels for night‑vision (red‑dot mode)

    Real‑time Battery Indicator

    Supported

    Infrared Characteristics

    IR Detector Type

    Uncooled Vanadium Oxide

    Detector Resolution

    256×192( 384×288/ 640×512)

    Detector Pixel Pitch

    12μm

    Display Type

    OLED

    Display Resolution

    1024×768

    IR Lens Focal Length

    19mm

    Field of View

    9°x6.7°

    Display Modes

    Blackhot, Whitehot, Outline

    Mechanical Parameters

    Material

    Aerospacegrade Aluminum Alloy

    Manufacturing Process

    CNC Machining

    Surface Finish

    Black Anodization

    Click Adjustment Range

    ±40MOA(Elevation & Windage)

    Click Adjustment Increment

    0.5MOA

    Mount Interface

    Picatinny Rail

    Overall Dimension

    ≤95mm×55mm×90mm

    Sight Line Height

    38mm

    Weight

    450g

    Environmental Specifications

    Operating Temperature

    -20℃~+65℃

    Storage Temperature

    -40℃~+70℃

    Ingress Protection

    IP67
