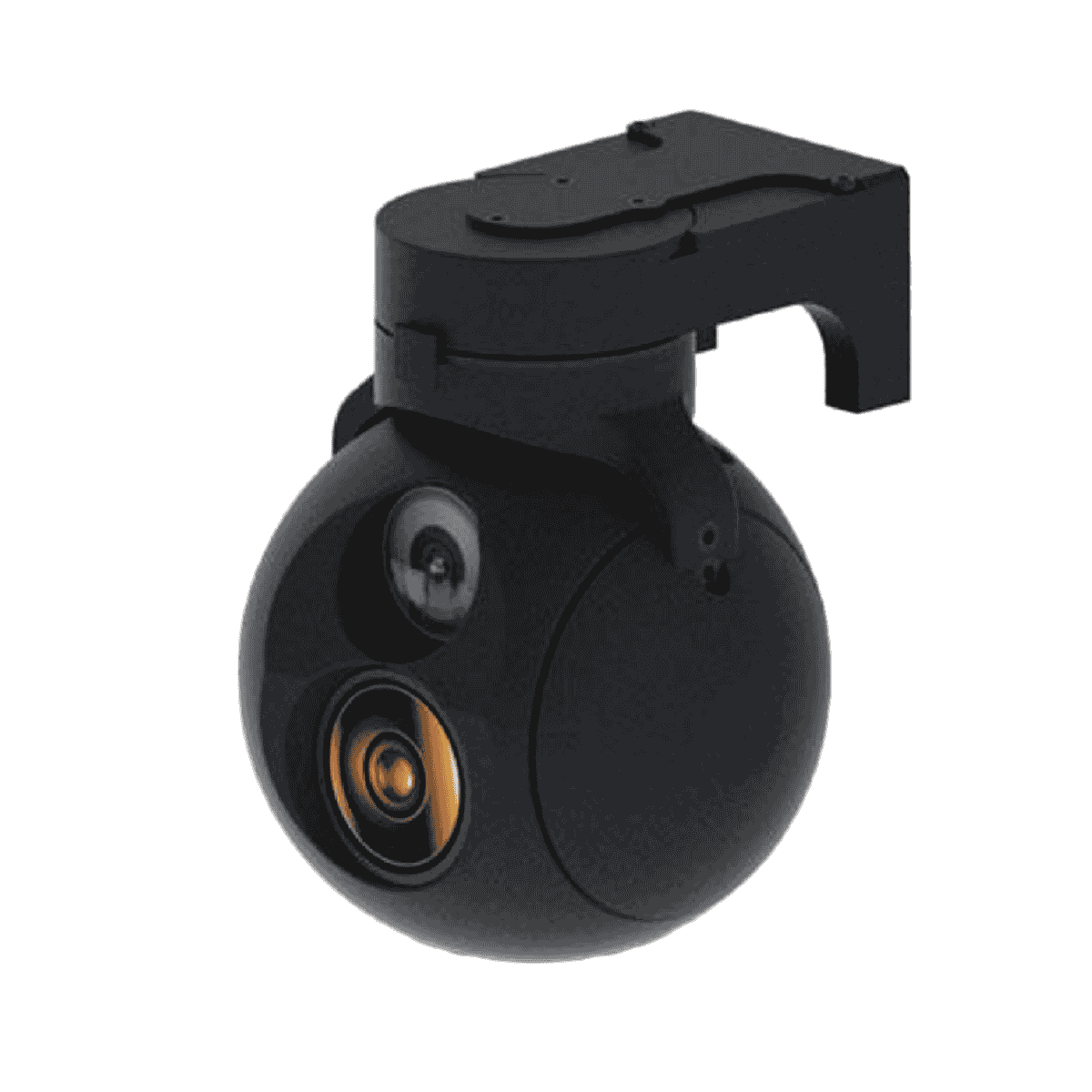

Ultra-Lightweight PODD80-01 Payload Micro-pod | High-Performance Drone Gimbal for Industrial Applications

Ultra-Lightweight PODD80-01 Payload Micro-pod | High-Performance Drone Gimbal for Industrial Applications

Elevate your drone's performance with the ultra-lightweight PODD80-01 Payload Micro-pod. Weighing under 280 grams, this rugged micro gimbal withstands launch impacts and harsh environments. Featuring advanced servo stabilization and integrated tracking technology, it ensures smooth, precise footage and automated missions. Compatible with a wide 12-28V DC input range for industrial drones and UAVs, it's encased in a durable, EMC-compliant metal shell for electromagnetic interference protection. This all-in-one, plug-and-play payload solution is perfect for aerial surveying, mapping, precision agriculture, search & rescue, and professional cinematography. Experience reliable, high-performance stabilization.
System specification
System type Gyro stability
Weight ≤280g
System characteristics
Platform type Two-axis
Pitch -110°~+110°
Roll -100°~+30°
Max angular velocity ≥100°/s
Stability accuracy 0. 1mrad(1°/2Hz)(1σ)
Motor encoder accuracy ≤0.3°
Visible Light Imaging8mm
Resolution and frame rate 1920×1080@60fps
FOV 38.3°×22. 1°
Thermal IR (18mm)
Resolution and frame rate 640×512@60fps
FOV 24°×18. 1°
Target tracking
Tracking speed ≥40°/s
System external interface
Control interface RS232
Video output Network
Power supply
Supply voltage 12V~28V
Power consumption Av.≤10W
Max.≤20W
Environmental condition
Working temp -40℃~+60℃
Storage temp -40℃~+60℃
Launch impact ≥400g

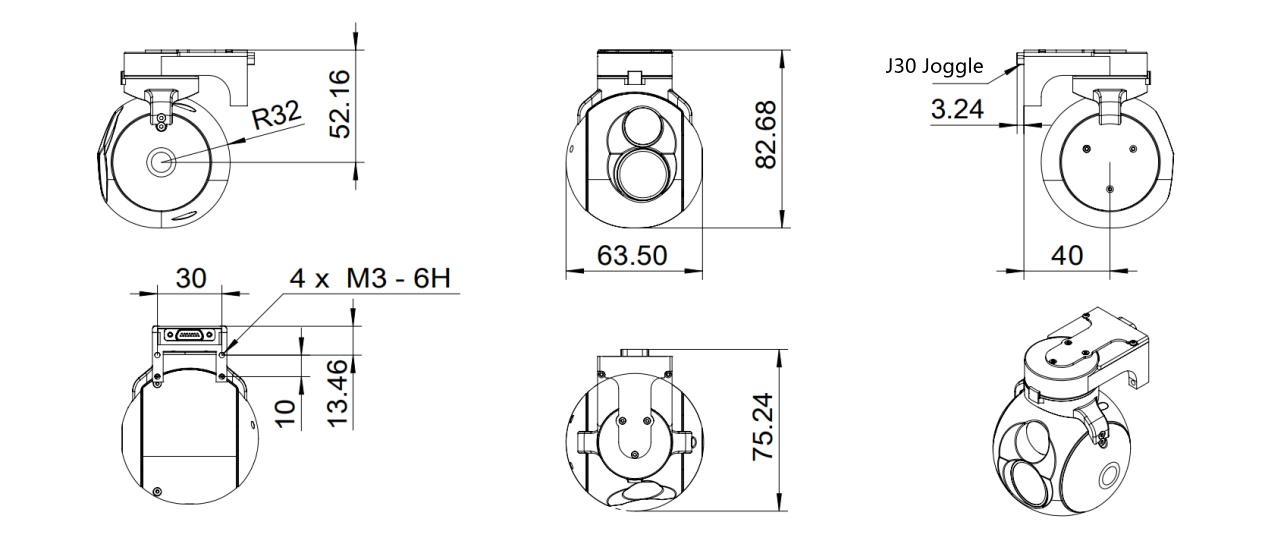

2D Dimension Image
