PODD80ST-01 Strapdown Seeker Micro-pod, UAV Gimbal Camera

PODD80ST-01 Strapdown Seeker Micro-pod, UAV Gimbal Camera

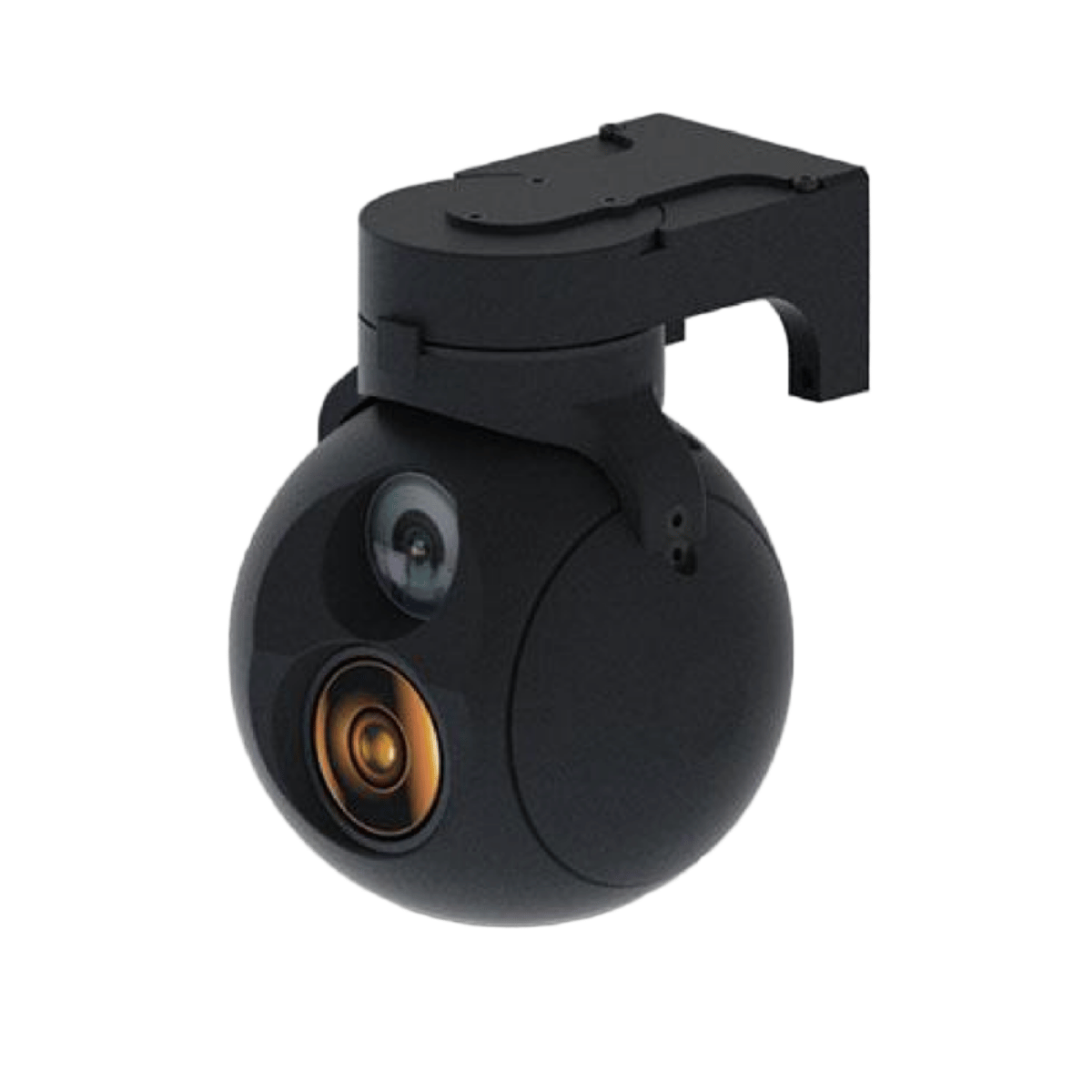

The PODD80ST-01 is an ultra-lightweight strapdown seeker micro-pod for UAVs, weighing under 260g. Its ruggedized metal housing provides launch impact resistance, making it ideal for catapult-launch UAVs. Featuring built-in target tracking, it operates on a wide voltage input (12-28V DC) with dynamic power control for extended flight time. All electronics are integrated into the EMC-compliant enclosure, ensuring compact UAV payload design and high environmental adaptability for demanding missions.
System specification
Weight ≤260g
Visible Light Imaging (8mm)
Resolution and frame rate 1920×1080@60fps
FOV 38.3°×22. 1°
Thermal IR (18mm)
Resolution and frame rate 640×512@60fps
FOV 24°×18. 1°
Target tracking
Tracking speed 48 Pixel / frame
System external interface
Control interface RS232
Video output Network
Power supply
Supply voltage 12V~28V
Power consumption Av.≤10W
Max.≤20W
Environmental condition
Working temp -40℃~+60℃
Storage temp -40℃~+60℃
Launch impact ≥400g

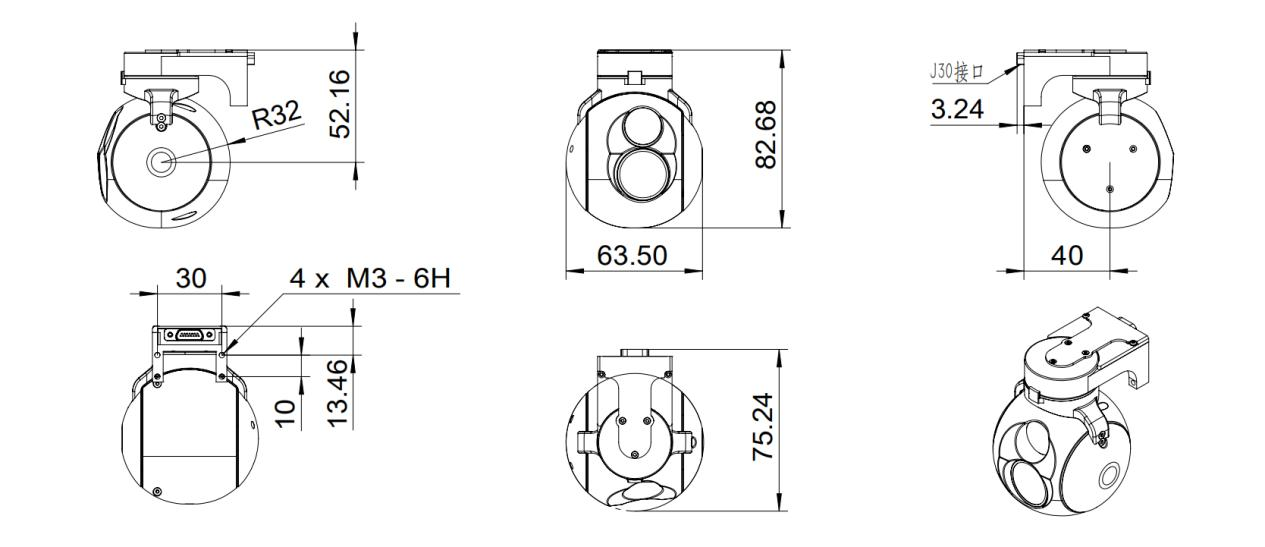

2D Dimension Image
