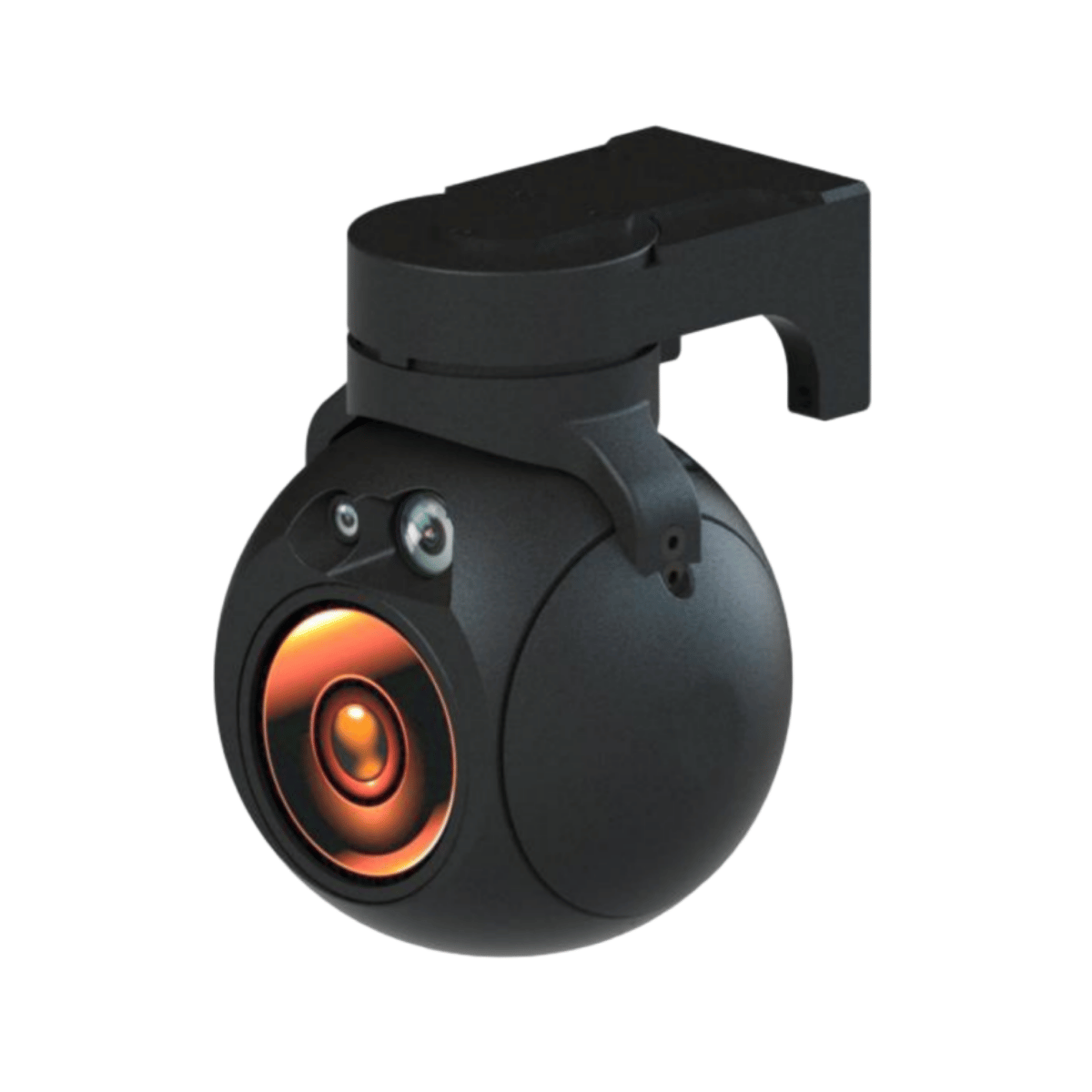

PODD80G-01 Payload Micro-pod Stabilized Gimbal Airborne Electro Optical Pod EO Sensor

PODD80G-01 Payload Micro-pod Stabilized Gimbal Airborne Electro Optical Pod EO Sensor

PODD80G Payload Micro-pod: This ultra-compact, ruggedized drone payload (<250g) withstands catapult launch impacts. It integrates servo-stabilized gimbal technology and built-in target tracking for stable imagery. Featuring wide voltage input (14-28V DC) and dynamic power management, it ensures efficient operation. All electronics are housed in a protective EMC-compliant metal enclosure, providing EMI/RFI shielding. This low-SWaP, power-efficient micro-pod delivers reliable support for demanding drone ISR, aerial reconnaissance, and surveillance operations.
System specification
System type Gyro stability
Weight ≤250g
System characteristics
Platform type Two - axial
Pitch -90°~+90°
Roll -90°~+30°
Max angular velocity ≥60°/s
Stability accuracy 0. 1mrad(1°/2Hz)(1σ)
Motor encoder accuracy ≤0.3°
Visible Light Imaging
Resolution and frame rate 1920×1080 @60fps
FOV (large) 82°×52°(3.2mm)
FOV (small) 20°×11°(16mm)
Infrared thermography
Resolution and frame rate 640×512@60fps
FOV 12.5°×10°(35mm)
Target tracking
Tracking speed ≥10°/s
Control interface RS232/422
Video output Network
Power supply
Supply voltage 14V~28V
Power consumption Av.≤12W
Max.≤20W
Environmental condition
Working temp -40℃~+60℃
Storage temp -40℃~+60℃
Launch impact ≥400g

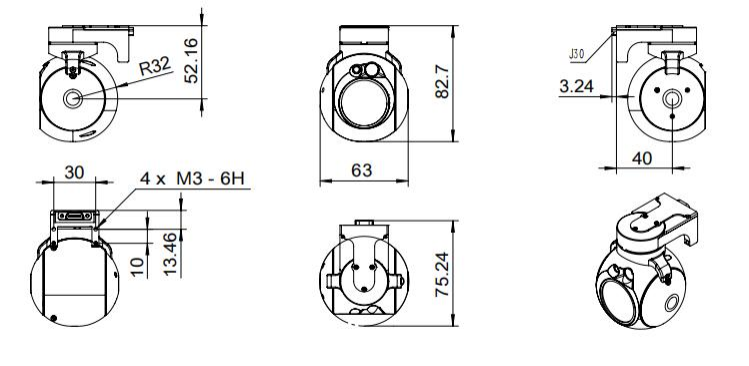

2D Dimension Image
