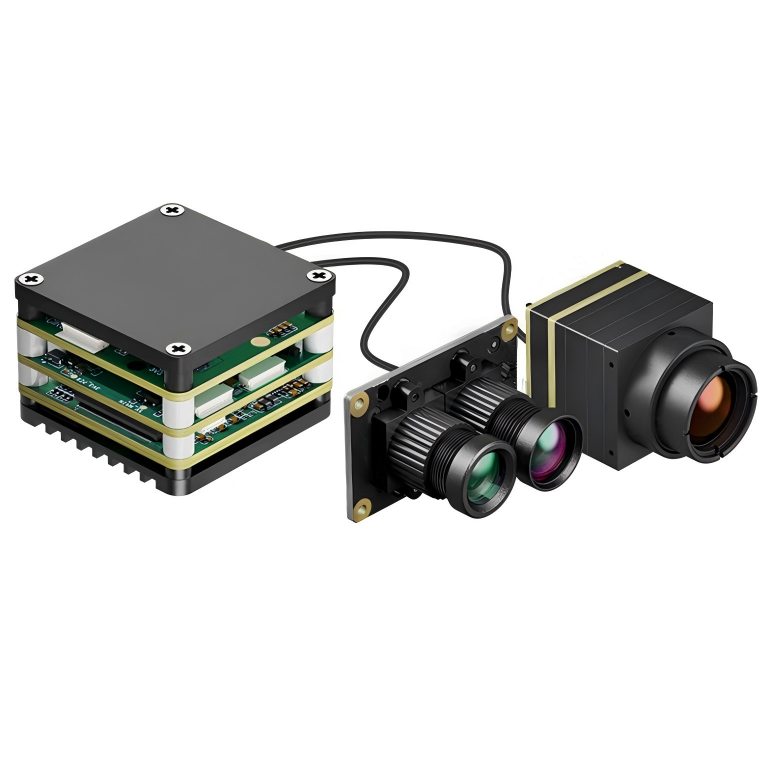

Micro UAV Camera FPV Visual AI Tracking System ST1200

Micro UAV Camera FPV Visual AI Tracking System ST1200

1 .1 .1 km Ultra-Long-Range Recognition Achieve unprecedented situational awareness with a recognition range of up to 1 .1 km. It delivers significantly higher recognition accuracy than conventional AI systems, enabling reliable beyond-visual-range operations even in the most complex and cluttered environments. 1 .1 .2. High-Density Multi-Target Tracking Powered by an optimized YOLOv7 architecture, the system can simultaneously track over 50 dynamic targets within its field of view under optimal conditions. This robust capability is enhanced by support for self-training algorithms, allowing for the deployment of customized classification models designed for particular mission requirements. 1 .1 .3. Picture-in-Picture (PiP) Architecture for Situational Awareness Enhance operational effectiveness with innovative dual-stream PiP technology. This architecture seamlessly combines a wide-angle view for global situational awareness with an 8x digital zoom sub-window for precision tracking of individual targets. This allows operators to conduct real-time environmental analysis while exercising judicious decision-making for precision strikes or interventions, all within a single, consolidated interface.
Category Parameter Specification
Basic Info Module Model ST1200
Target Recognition & Tracking Target Recognition Type Default: Human, Vehicle
Target Detection Range Vehicle: 1200m, Human: 500m
Min Target Tracking Pixel 16x16 pixels
Max Tracking Speed of Dynamic Target 60 km/h
Intelligent Adhesive Tracking Supports cross hair fuzzy locking for close-range adhesive tracking
Trajectory Prediction & Memory Tracking Supports trajectory Prediction and feature Memory tracking
Max Target Recognition No. 50
Picture-in-Picture (PiP) Supported
Power & Temperature Input Voltage DC9~16V
Power Consumption 10W
Operating Temperature -20 ~ 60
AI Image Processing Board Computing Power of Main Controller 6 TOPS
Communication Protocol CRSF
Communication Method UART
Video Output Format CVBS
Supported Firmware Beta Flight
Input Voltage 9 ~ 16V
Mounting Holes 25.5*25.5mm
Dimensions 38*38*29mm
Weight 43.8g
Visible Light Camera Module Low Light Performance of Short-focal Camera 9650mV/lux·s
Short-focal CMOS 1/2.6 Inch
Short-focal FOV 72°(H)*45°(V)
Short-focal Length 3.9mm
Low Light Performance of Long-focal Camera 9650mV/lux·s
Long-focal CMOS 1/2.6 Inch
Long-focal FOV 26°(H)*15°(V)
Long-focal Length 12mm
Video Input Format 1920*1080@30hz
Dimensions 40.8*25*26mm
Weight 17.0g
Thermal Camera Pixel Pitch 12 μm
Response Band 8~14μm(LWIR)
FOV 20.3°(H)×15.2°(V)
Focal Length 9.1 mm
Video Input Format 384*288@25Hz
Dimensions 26*26*32.85mm
Weight 32.4g

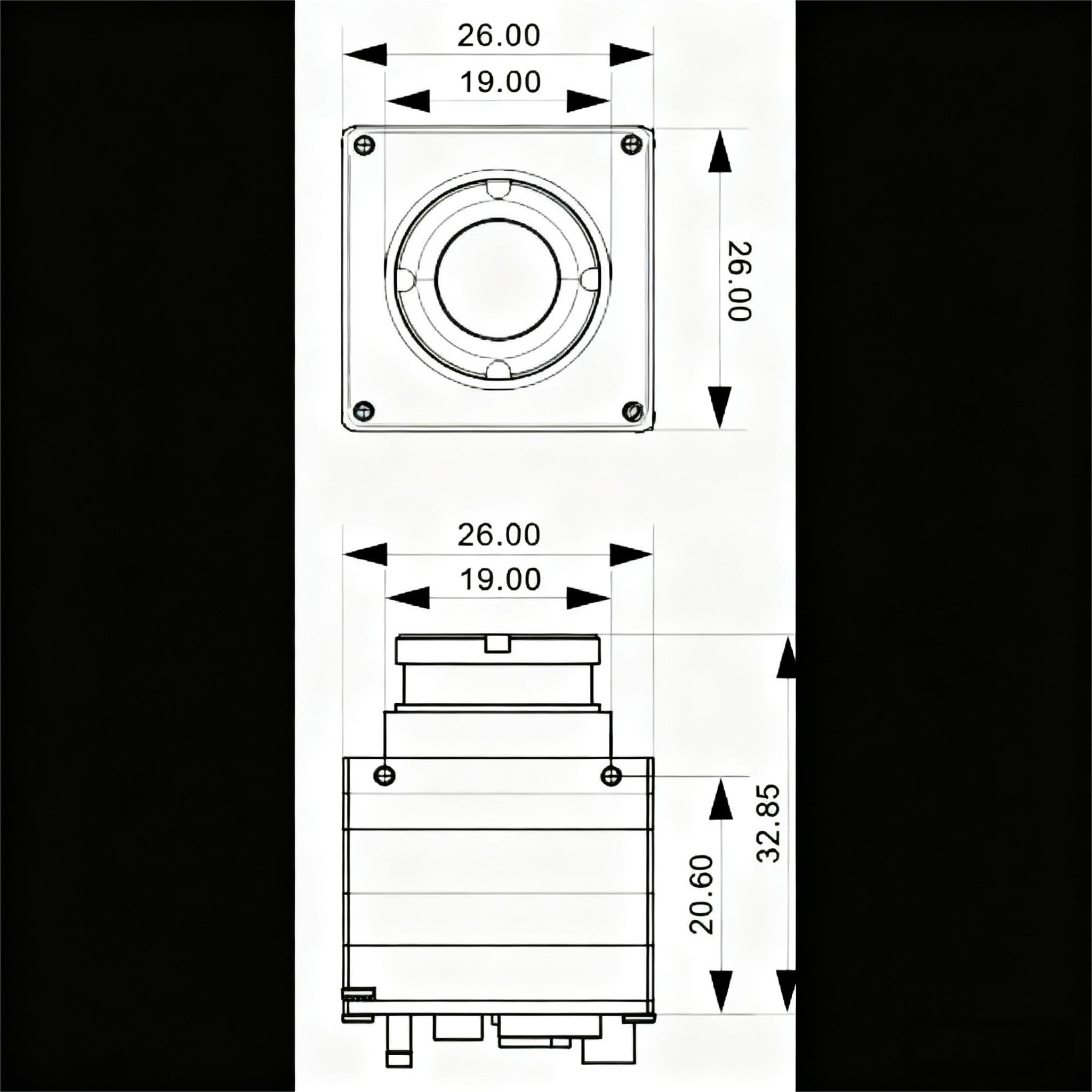

2D Dimension Image 2D Dimension Image 2D Dimension Image
