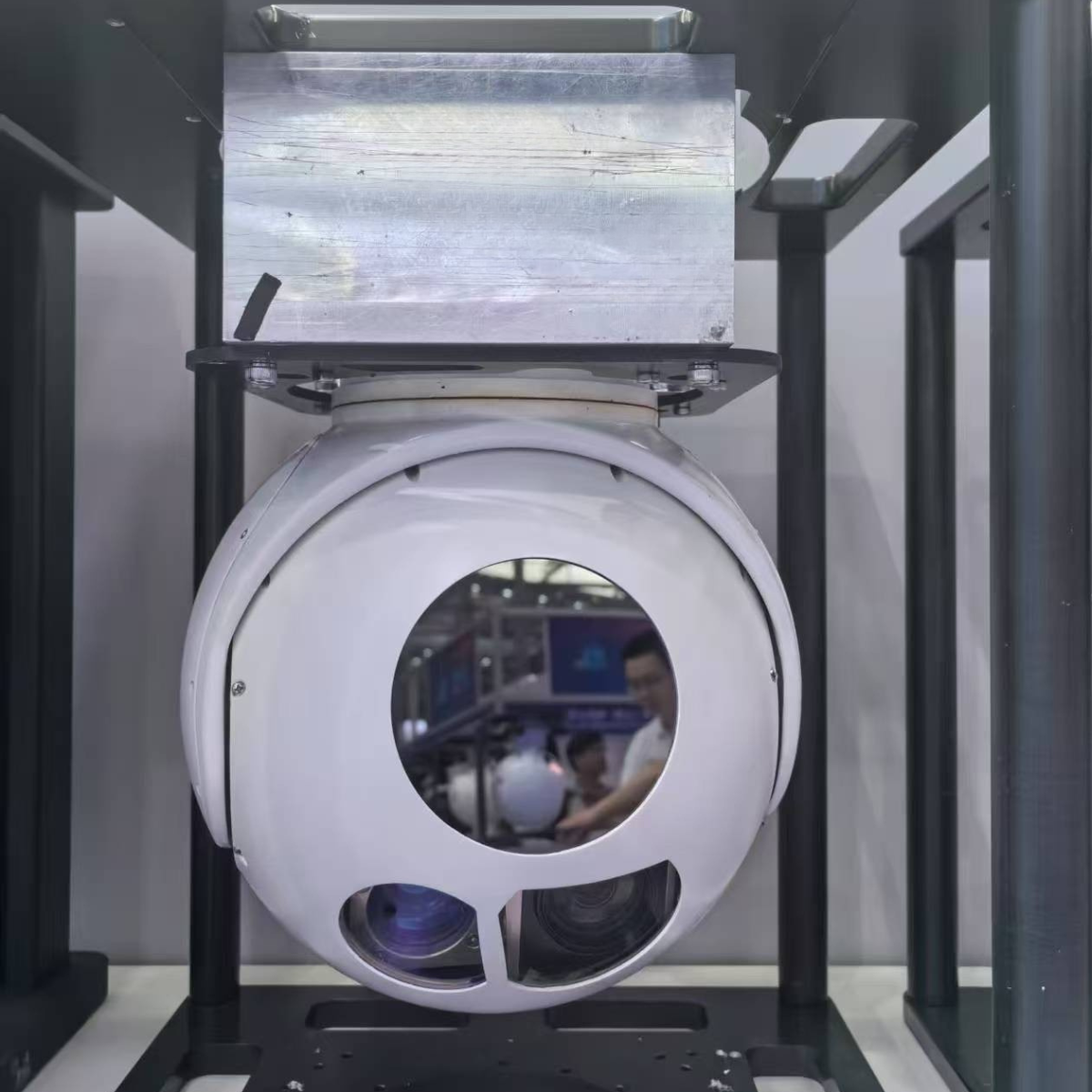

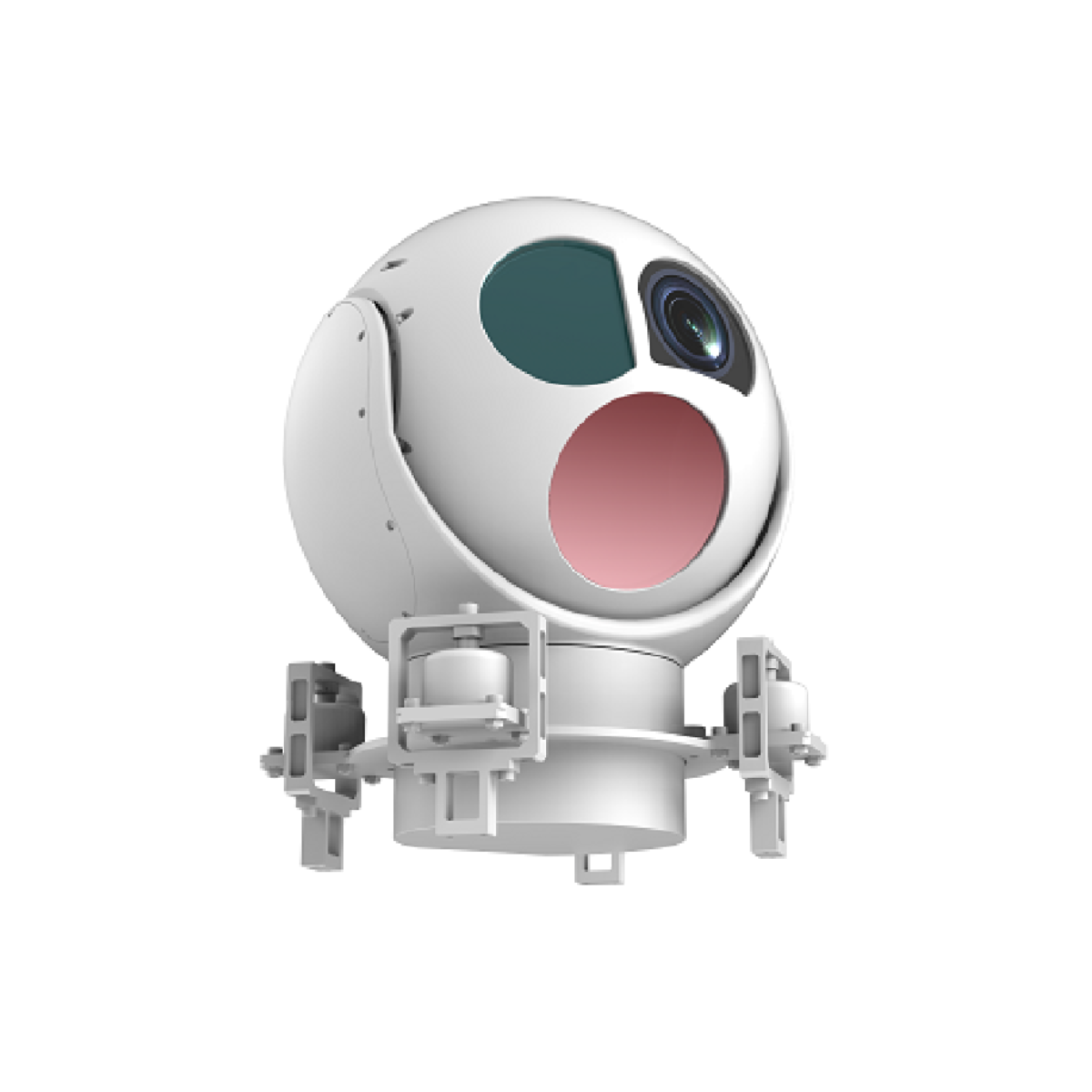

Model
|
S230TG
|
|
Thermal imaging camera
|
|
Detector Type
|
Uncooled Focal Plane Detector
|
|
Operating Band
|
8μm～14μm
|
|
Detector Resolution
|
640×512
|
|
Image size
|
12μm
|
|
Lens focal length
|
25mm to 75mm continuous zoom
|
|
Field of view
|
17.5°×14°～5.9°×4.7°
|
|
Noise Equivalent Temperature Difference
|
NETD≤50mK
|
|
Minimum Resolvable Temperature Difference
|
MRTD≤500mK
|
|
Visible Light Camera
|
|
Resolution
|
1920×1080
|
|
Response Band
|
0.4μm～0.9μm
|
|
Image size
|
2.8μm
|
|
Optical zoom
|
30x
|
|
Hybrid zoom
|
60x
|
|
Focal length
|
4.3mm～129mm
|
|
Field of view
|
63.7°×35.8°～2.3°×1.3°
|
|
Zoom Method
|
Auto Focus, Manual Focus
|
|
Minimum Illumination
|
0.01Lux (B/W)
|
|
Laser Illuminator
|
|
Wavelength
|
1064nm
|
|
Laser energy
|
≥40mJ
|
|
Laser pulse width
|
15ns±5ns
|
|
Laser Beam Scatter Angle
|
≤0.3mrad
|
|
Frequency
|
20Hz
|
|
Laser code
|
8 groups of codes can be pre-stored; accurate frequency code, variable interval code, pseudo-random code
|
|
Irradiation distance
|
≥4Km (under visibility ≥15Km)
|
|
Maximum distance
|
≥6km (under the condition of visibility ≥15Km)
|
|
Minimum distance
|
≤100m
|
|
Ranging accuracy
|
≤5m
|
|
Frequency
|
1～5Hz
|
|
Servo platform
|
|
Azimuth angle
|
360°×n (360°continuous rotation)
|
|
Pitch angle
|
-120°～+90° (positive upward)
|
|
Frame Angle Accuracy
|
≤0.06°（1σ）
|
|
Stabilization accuracy
|
≤0.05mrad（1σ）
|
|
Corner position accuracy
|
≤1mrad（1σ）
|
|
Maximum turning speed
|
Azimuth ≥60°/s, Pitch ≥60°/s
|
|
Maximum rotational acceleration
|
Azimuth ≥100°/s², pitch ≥100°/s²
|
|
Image processing components
|
|
Automatic recognition
|
With human and vehicle target automatic identification number of targets ≥ 32
|
|
Target tracking
|
Target size ≥ 16 × 16
|
|
Tracking frame rate
|
≤50Hz
|
|
Image output
|
RTSP/UDP/RTMP optional, code rate 200kbps ~ 6Mbps can be set
|
|
System index
|
|
Voltage range
|
20V～32VDC
|
|
Wattage
|
Stable power consumption: ≤60W
|
|
Weight
|
≤8.5Kg
|
|

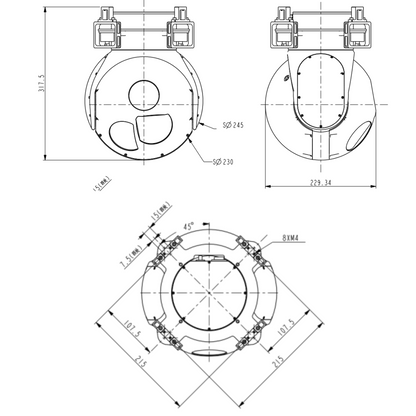

Volume
|
230mm×229.3mm×317.5mm
|
|
Interfaces
|
|
Control Interface
|
RS422/100Mbps
|
|
Video Interface
|
HD-SDI/100Mbps
|
|
Memory Interface
|
≤128G memory card (Micro SD card)
|
|
Picture Format
|
jpg format
|
|
Video Format
|
avi format
|
|
Environmental adaptability
|
|
Operating Temperature
|
-20℃～＋60℃ (-40℃ optional)
|
|
Storage Temperature
|
-40℃～＋65℃
|
|
Vibration conditions
|
Acceleration of 2g; 30min in each of the three directions of vertical, horizontal and longitudinal.
|
|
Shock conditions
|
Peak acceleration 20g, duration 11ms
|
|
Protection class
|
Can fly in light and moderate rain
|
