This Laser Energy: 8 mJ Er:glass eye-safe laser is a diode-pumped, water-free, passive Q-switched laser that combines eye-safe wavelength operation with high peak power, short pulse duration (pulse width), and diffraction limitation Beam quality combines to provide unparalleled size and weight and power. Our eye-safe DPSS lasers operate at 1535nm. In addition to being called 1535nm lasers, these lasers are also called 1540nm lasers, 1534nm lasers, 1.54um lasers or 1.54μm lasers and are widely used as the emitted light source for rangefinders. At this wavelength, eye-safe laser ranging systems can be easily configured without compromising beam power or quality. More secure for laser ranging applications. Repetition frequency: 5 Hz, operates in a wide temperature range from -40°C ~ 60°C, and has a lifespan of more than 60 million times.
Laser Wavelength |
1535 nm |
Eyesafe |
Class 1 |
Pulse energy |
≥8mJ |
Laser Pulse width |
13 ns |
5Hz |
|
Pulse stability |
±5% |
Raw Beam Diameter |
0.8 mm |
Beam divergence angle |
4mrad |
Beam Mode |
TEM00 |
Operating temperature |
-45 ℃~+65 ℃ |
Storage temperature |
-55 ℃~+85 ℃ |
Impact |
1500 G, 0.5 ms |
Vibration |
5-200 Hz/20 G |
Life span |
>50 million shots |

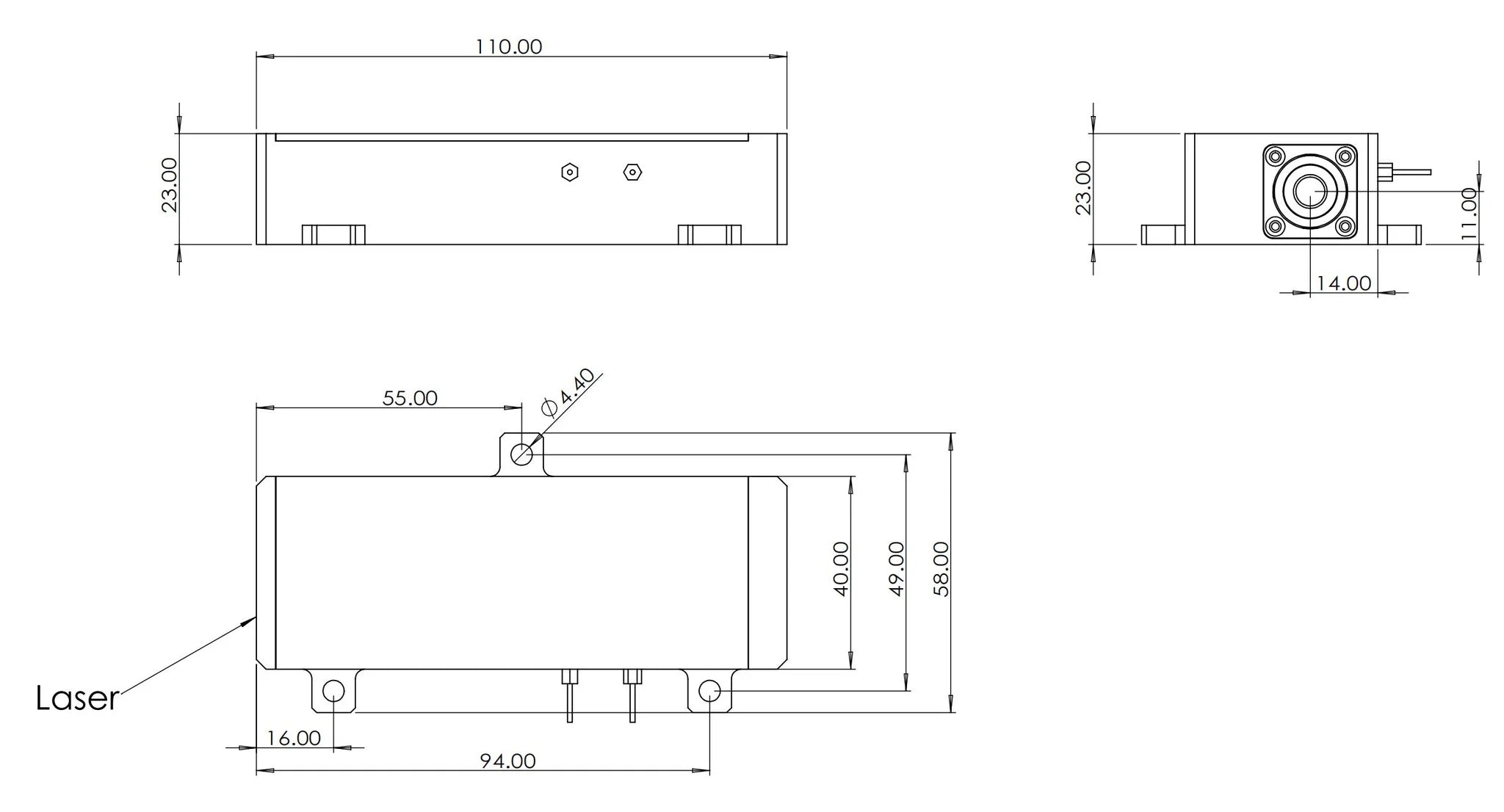

Dimension (mm) |
110 ×40 ×24 |
Weight |
120 g |
Voltage |
5V |
Electric current |
65 A |
Drive pulse width |
≥4ms |
