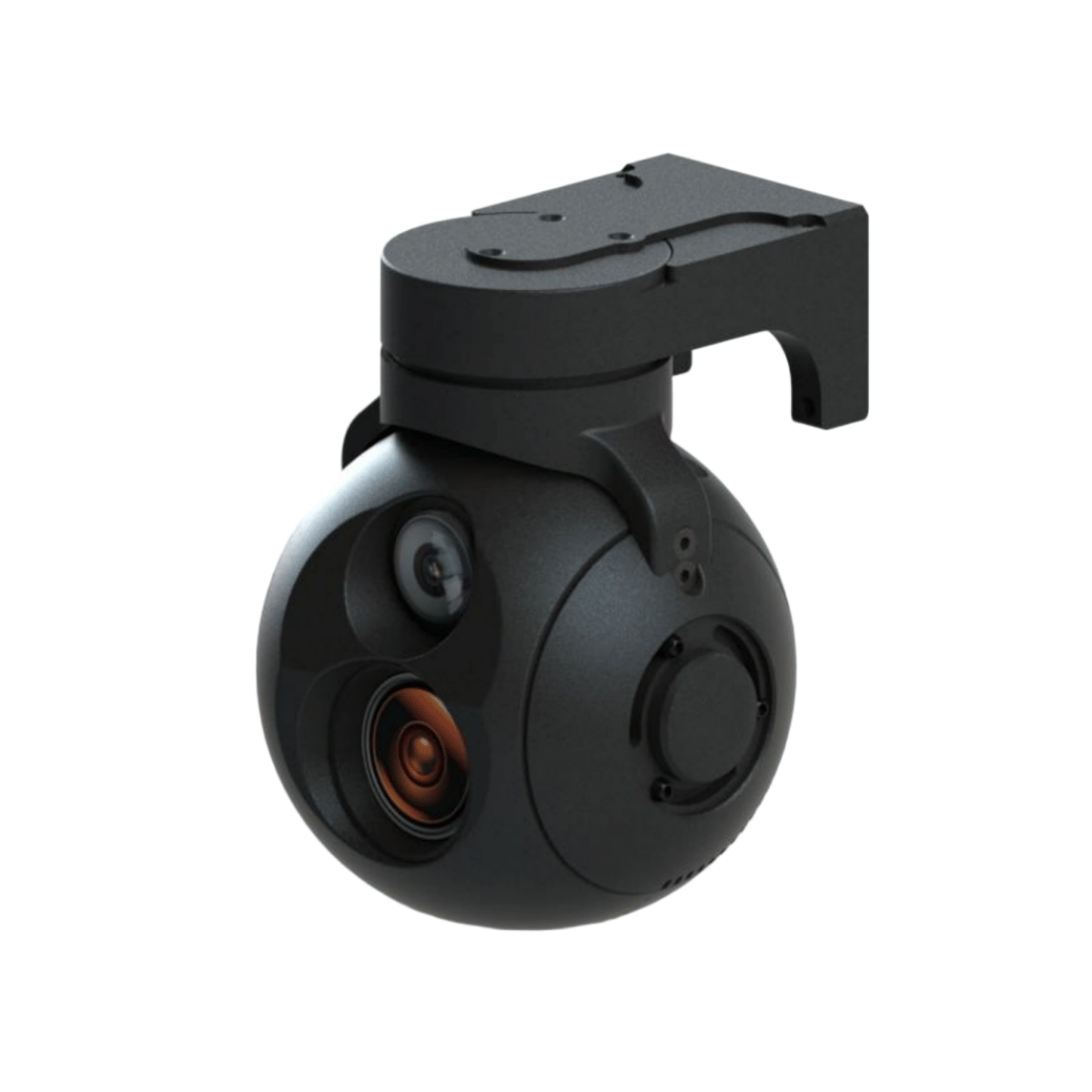

UAV Camera: PODD80ST2-01 Strapdown Seeker Micro-pod

UAV Camera: PODD80ST2-01 Strapdown Seeker Micro-pod

The PODD80ST2-01 is an ultra-lightweight strapdown seeker micro-pod (<250g) designed for catapult-launched UAVs. Its ruggedized metal housing ensures launch impact resistance and EMI shielding (EMC-compliant). Featuring built-in target tracking, this compact UAV payload operates on a wide voltage input (12-28V DC) with dynamic power control for optimized efficiency. Fully integrated electronics deliver high reliability and meet demanding low SWaP-C mission requirements.
System specification
Weight ≤250g
Visible Light Imaging (5.4mm)
Resolution and frame rate 1920×1080@60fps
FOV 54.6°×32.4°
Thermal IR (13.5mm)
Resolution and frame rate 640×512@60fps
FOV 31.8°×25.7°
Target tracking
Tracking speed 48 Pixel / frame
System external interface
Control interface RS232
Video output Network
Power supply
Supply voltage 12V~28V
Power consumption Av.≤10W
Max.≤20W
Environmental condition
Working temp -40℃~+60℃
Storage temp -40℃~+60℃
Launch impact ≥400g
2D Dimension Image
