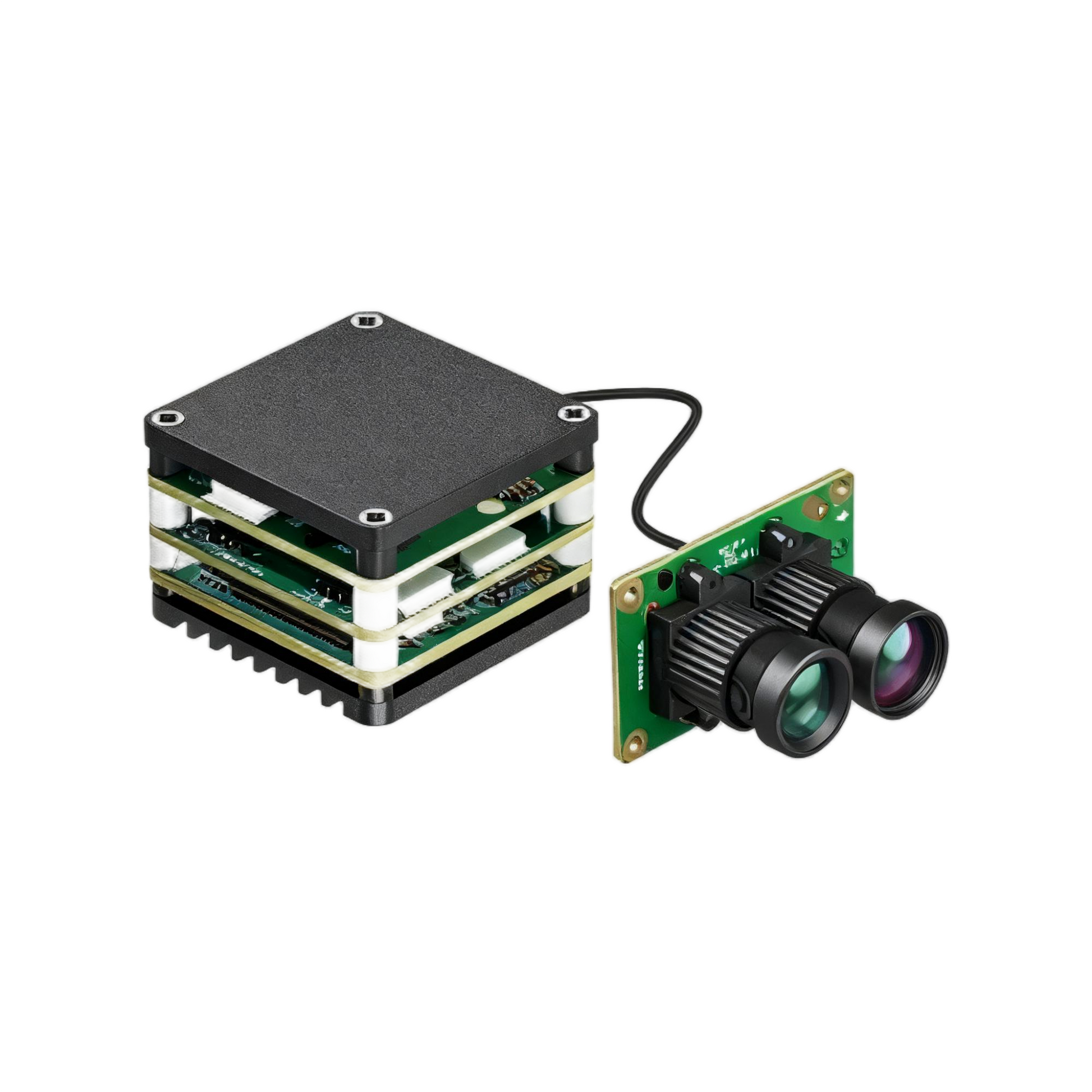

Drone Camera FPV AI Visual Tracking System

Drone Camera FPV AI Visual Tracking System

Our AI visual tracking system is purpose-built for drones, providing advanced autonomous capabilities through precise target recognition and tracking. By seamlessly integrating high-performance target recognition, dynamic tracking, and anti-jamming control, the system enhances its operational effectiveness. The fusion of deep learning algorithms with powerful processing chips enables automatic target acquisition. This combination ensures stable and precise tracking, even in complex electromagnetic environments. As a result, there is a significantly lower operational threshold for pilots and a dramatic improvement in mission efficiency.
Category Parameter Specification
Basic Info Module Model AS1200
Target Recognition & Tracking Target Recognition Type Default: Human, Vehicle
Target Detection Range Vehicle: 1200m, Human: 500m
Min Target Tracking Pixel 16x16 pixels
Max Tracking Speed of Dynamic Target 60 km/h
Intelligent Adhesive Tracking Supports cross hair fuzzy locking for close-range adhesive tracking
Trajectory Prediction & Memory Tracking Supports trajectory Prediction and feature Memory tracking
Max Target Recognition No. 50
Picture-in-Picture (PiP) Supported
Power & Temperature Input Voltage DC9~16V
Power Consumption 10W
Operating Temperature -20 ~ 60
AI Image Processing Board Computing Power of Main Controller 6 TOPS
Communication Protocol CRSF
Communication Method UART
Video Output Format CVBS
Supported Firmware Beta Flight
Input Voltage 9 ~ 16V
Mounting Holes 25.5*25.5mm
Dimensions 38*38*29mm
Weight 43.8g
Visible Light Camera Module Low Light Performance of Short-focal Camera 9650mV/lux·s
Short-focal CMOS 1/2.6 Inch
Short-focal FOV 72°(H)*45°(V)
Short-focal Length 3.9mm
Low Light Performance of Long-focal Camera 9650mV/lux·s
Long-focal CMOS 1/2.6 Inch
Long-focal FOV 26°(H)*15°(V)
Long-focal Length 12mm
Video Input Format 1920*1080@30hz
Dimensions 40.8*25*26mm
Weight 17.0g

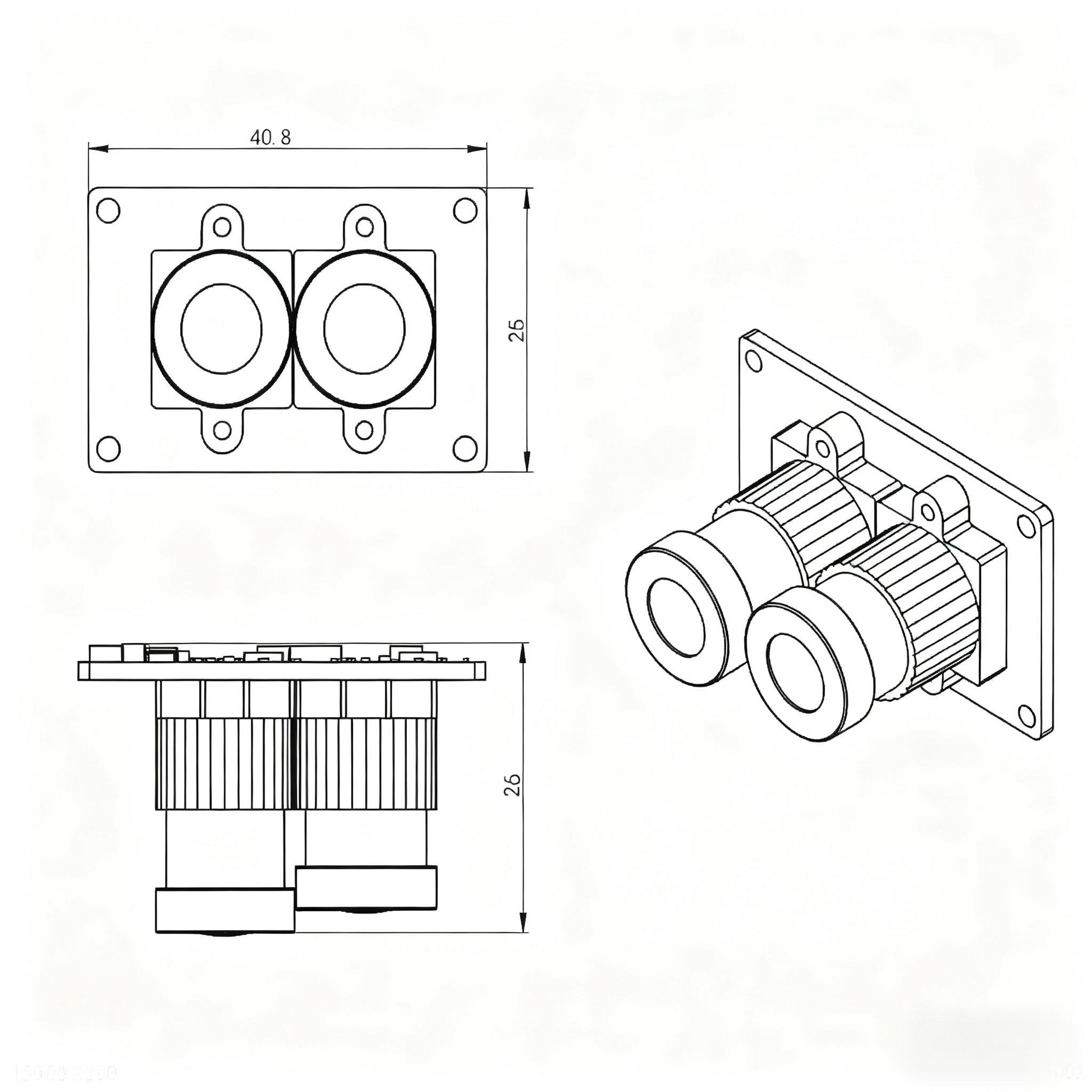

2D Dimension Image 2D Dimension Image
Communication Interface
