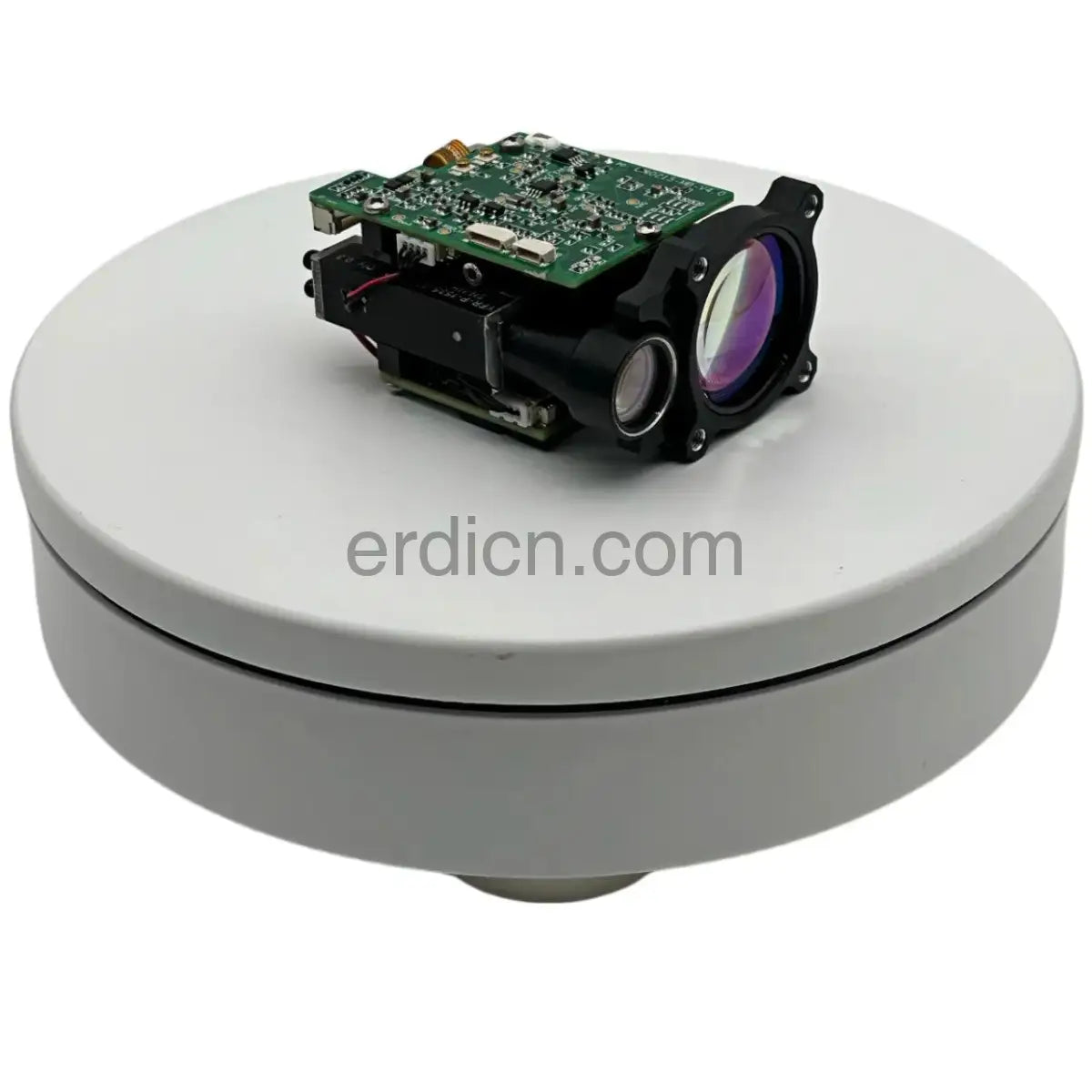

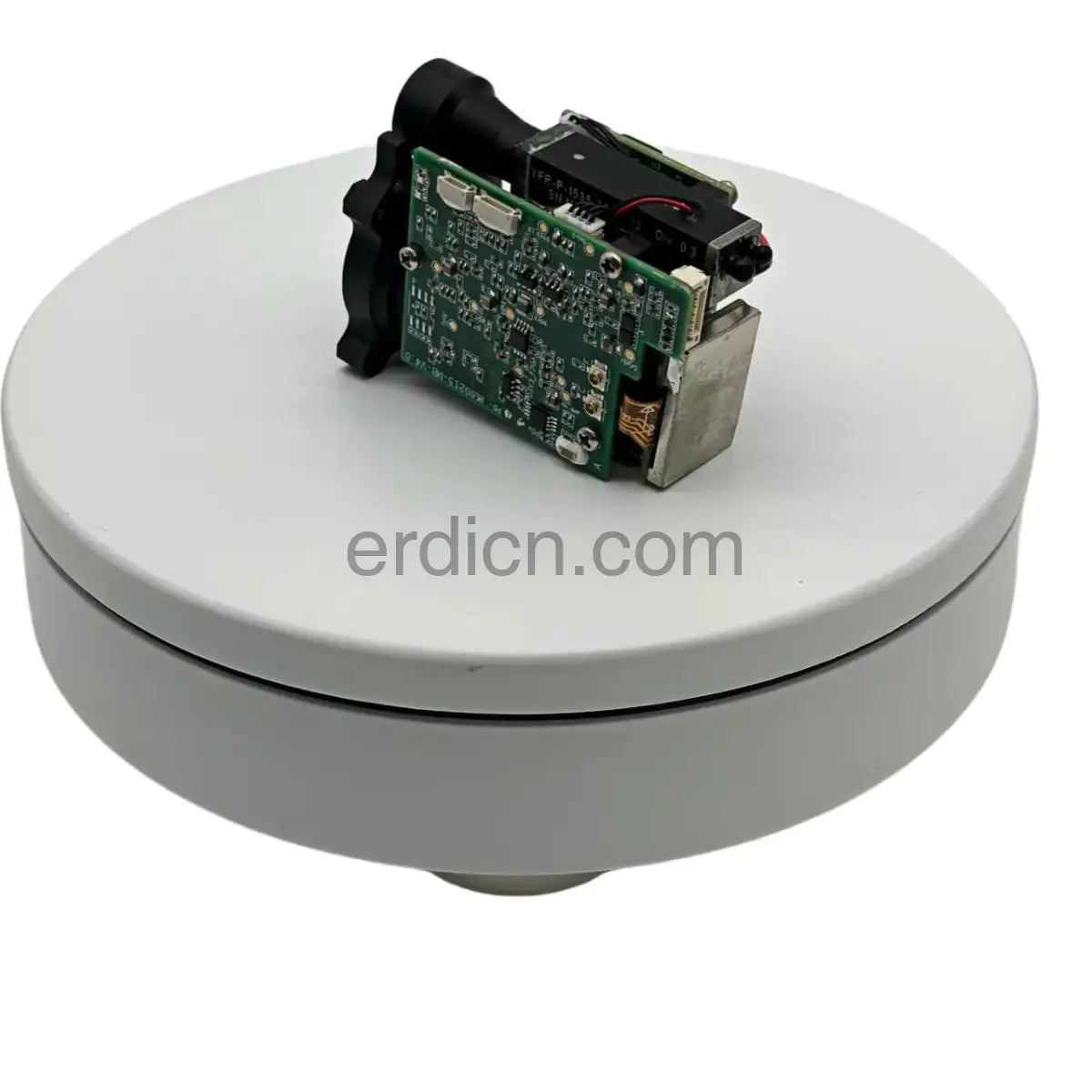

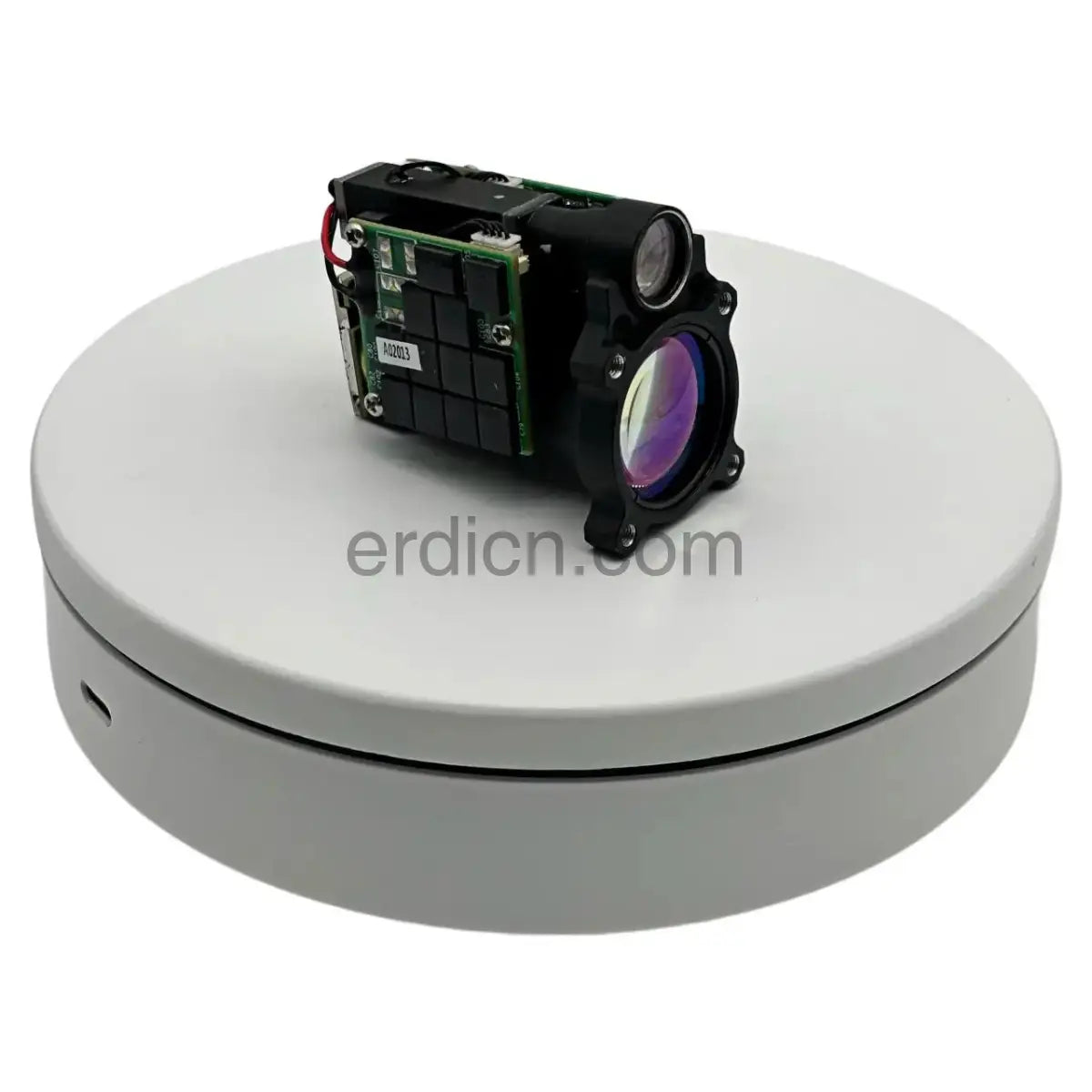

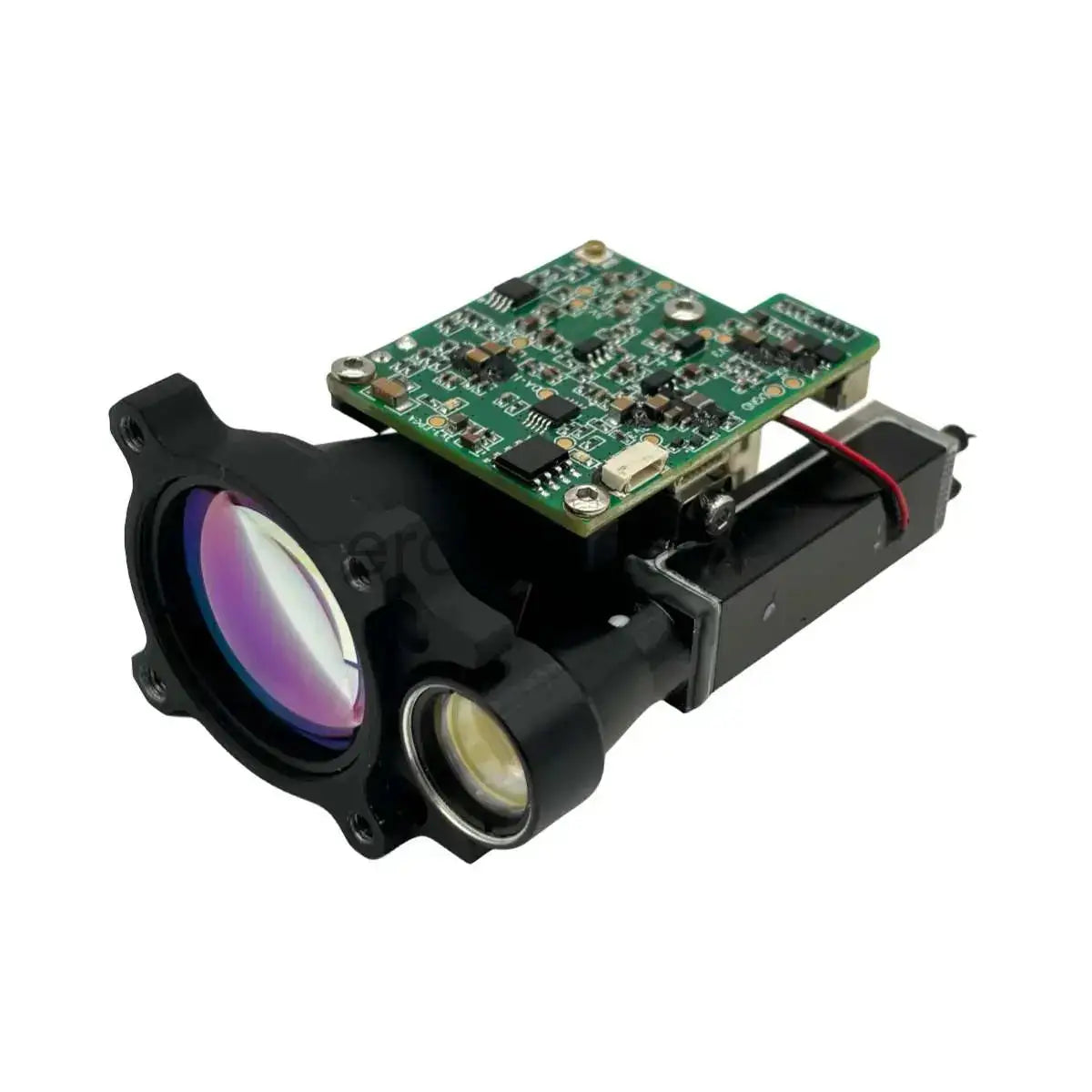

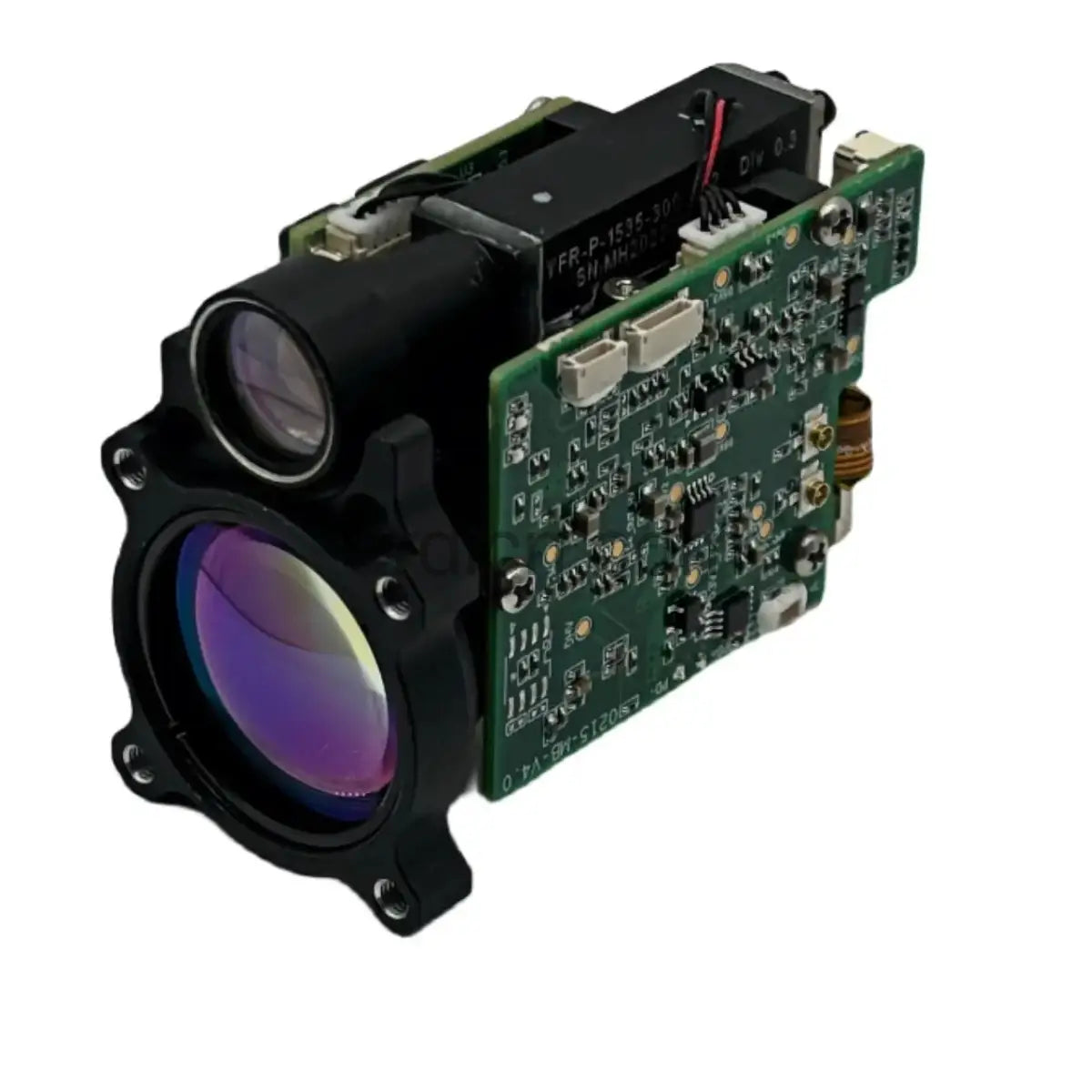

LRF0612C eye-safe laser rangefinder module is developed based on 1535nm erbuim-glass laser independently devoloped by our company. It belongs to calss 1 eyesafe product. The product adpots monopulse ranging, the maximum range is up to 10km. Support UART(TTL_3.3V) and RS422 can choose, provide upper computer software, Specifies the set and communication protocol. The advantages are stable operation functions, small size and light weight,widely used in security monitoring, road monitoring, robotic arms, night vision, drones, gun sights, golf, outdoor hunting, optoelectronic pods, infrared thermal imaging, engineering surveying, intelligent grain silo and other fields.
|
Project |
Technical data |
|
|
Model |
LRF0612C |
|
|
Eye safety |
Class1/1M |
|
|
Wavelength |
1535±5nm |
|
|
Receiving aperture |
Φ25 mm |
|
|
Firng aperture |
Φ12 mm |
|
|
Receiving field of view Angle |
4.21 mrad |
|
|
Beam divergence Angle |
0.3±0.05 mrad |
|
|
Maximum range |
Big goal |
≥ 7100 m 1) |
|
Car |
≥ 6000 m 1) |
|
|
People |
≥ 3800 m 1) |
|
|
Drone |
≥ 2000 m 1) |
|
|
Minimum range |
20 m |
|
|
Measurement frequency |
1~10 Hz |
|
|
Ranging accuracy |
±1 m |
|
|
Range resolution |
≤30 m |
|
|
Detection probability |
≥98% |
|
|
False alarm rate |
≤1% |
|
|
Number of multiple target detections |
3 (maximum number) |
|
|

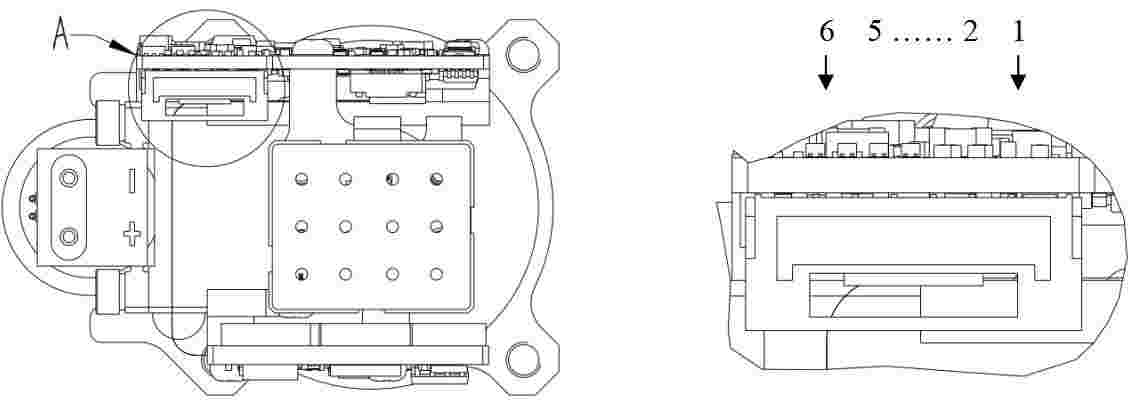

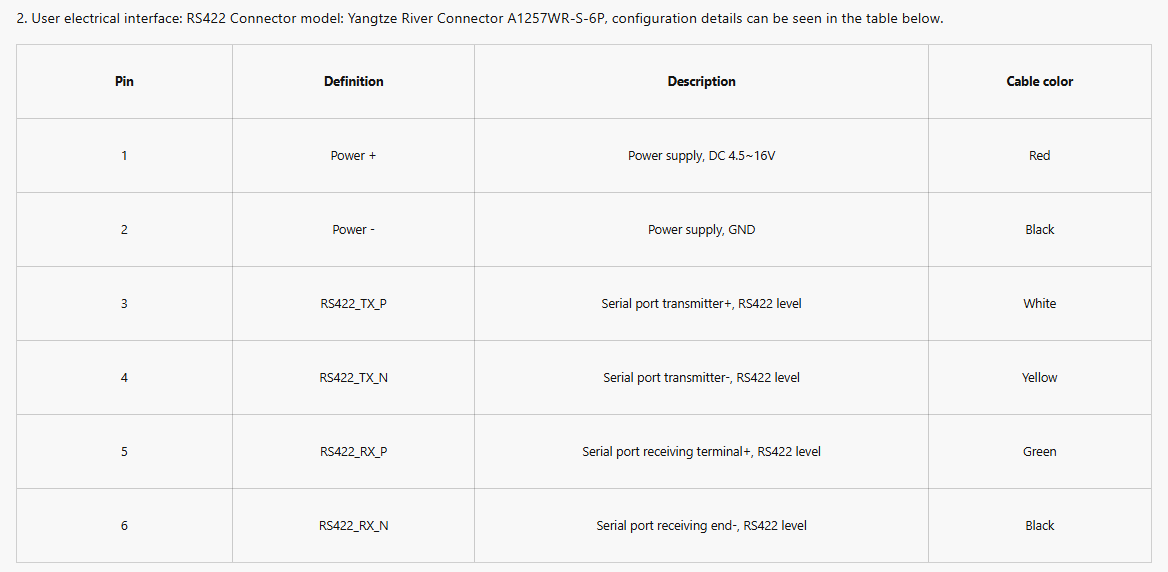

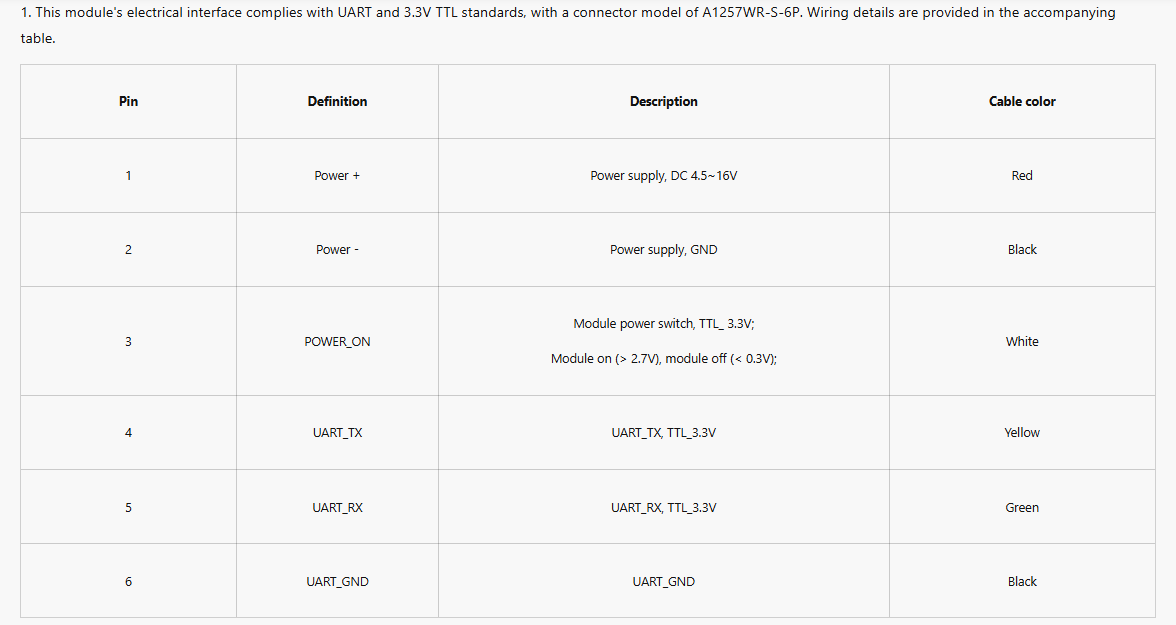

Electrical interface |
A1257WR-S-6P |
|
|
Supply |
DC 4.5～16 V |
|
|
Standby power |
≤ 1mW(Module off, POWER_ON < 0.3V) |
|
|
Average power consumption |
≤ 2 W (Module on, POWER_ON > 2.7V) |
|
|
Start-up power consumption |
≤14 W 2) |
|
|
Peak power consumption |
≤10 W 2) |
|
|
Weight |
≤ 58±1g |
|
|

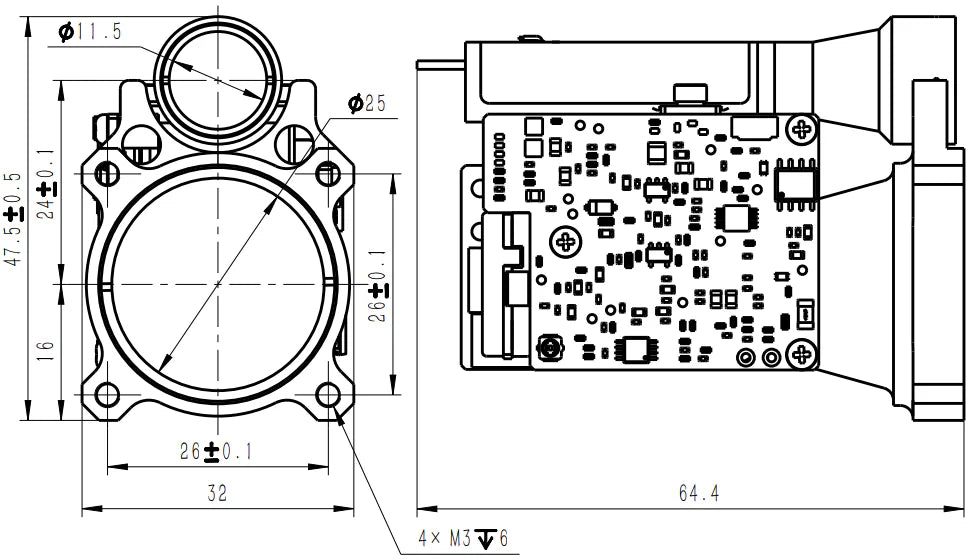

Dimention (L×W×H) |
65×48×32 mm |
|
|
Operation temperature |
-40~＋55℃ |
|
|
Storage temperature |
-55~＋75℃ |
|
|
Vibration |
0.01~0.04 g2/Hz, 20~2000Hz |
|
|
Strike |
75g/6ms |
|
|
Multi-target detection |
Up to 3 targets |
|
|
Communication interface |
UART(TTL_3.3V)、RS422 Can choose |
|
|
Electrical isolation |
Power, communication and structural isolation |
|
|
Reliability |
MTBF ≥ 1500h |
|
|
Optical axis stability |
≤0.05 mrad |
|
|
The optical axis is not perpendicular to the mounting base plane |
≤0.5 mrad |
|
Notes:
1) Car taget size 2.3 m × 4.6 m; Humanoid target size 0.5 m × 1.7 m; UAV target size 0.2 m × 0.3 m ; Reflectivity 30%, Conspicurity≥12km;
2)The duration of start-up power consumption is less than 500ms; The duration of peak power consumption is less than 20ms and the average power consumption is less than 4W;
