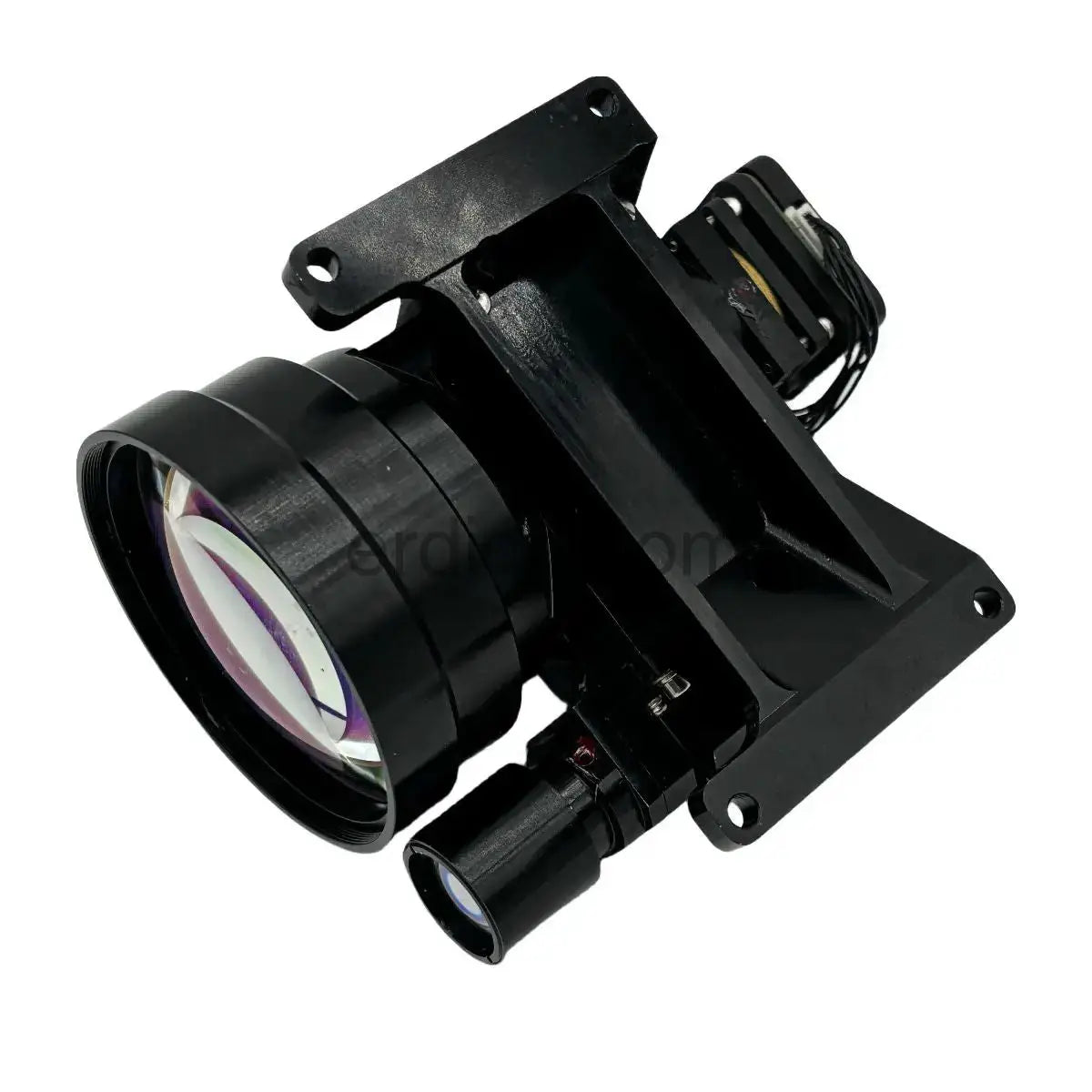

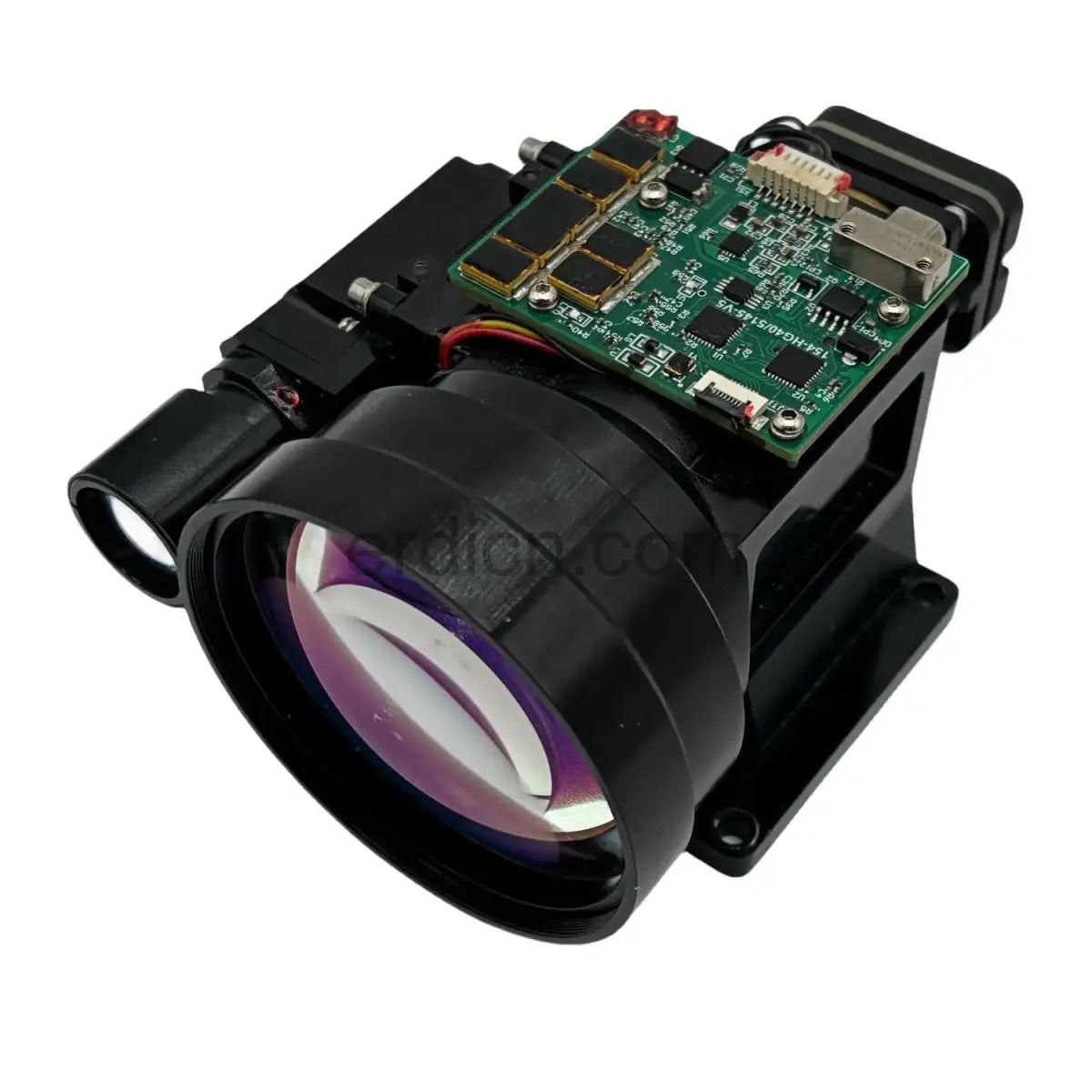

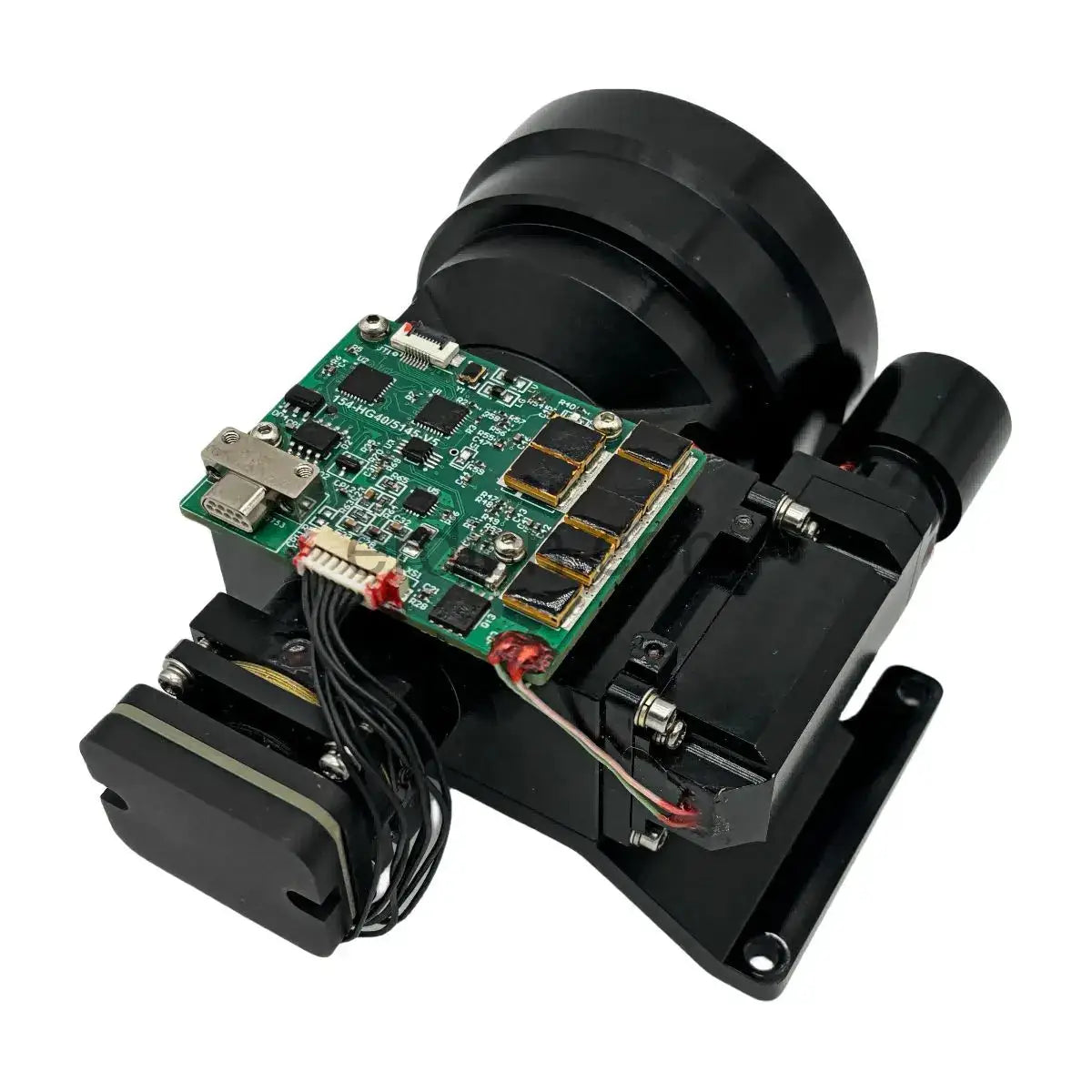

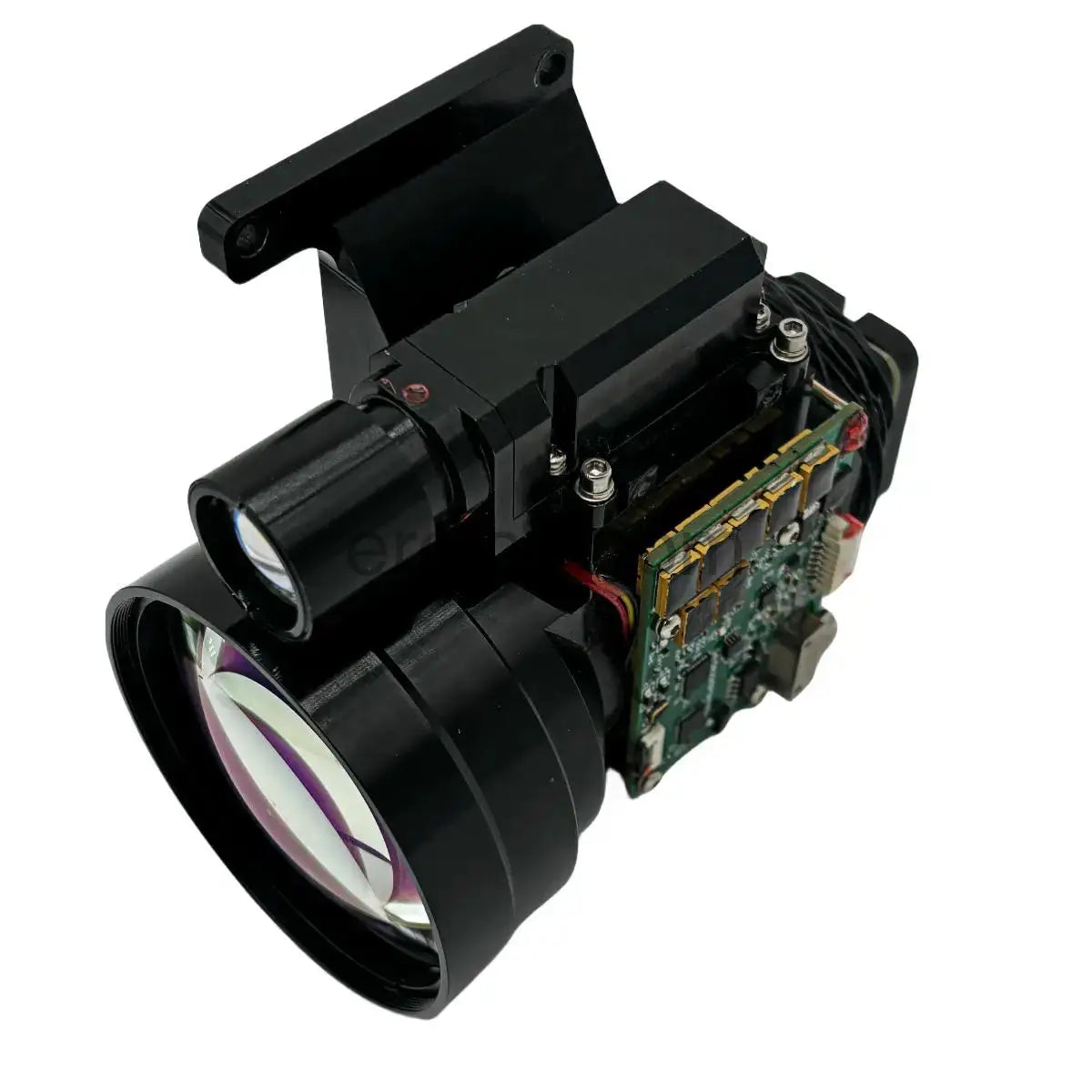

1535nm Long Distance Laser Ranging Sensor Eye safe Laser Rangefinder Module 18KM

1535nm Long Distance Laser Ranging Sensor Eye safe Laser Rangefinder Module 18KM

Model: 1830c-01
The LRF1830C laser rangefinder module is a high-performance laser distance sensor designed for long-range, accurate measurements across various applications. Operating at a 1535nm wavelength with Class I laser safety, this long-range 1535nm LIDAR module offers precise ranging capabilities, supporting distances up to 23,000 meters for large targets, 18,000 meters for vehicle targets, and over 4,500 meters for people. The high-precision 1535nm laser module features excellent ranging accuracy (±1m), high precision (≥98%), and a low false alarm rate (≤1%). This compact 1535nm rangefinder module operates effectively in extreme temperatures ranging from -40°C to +70°C and offers low power consumption. Additionally, it supports multi-target detection (up to 3 targets) and provides reliable performance in industries such as defense, aerospace, and drone systems. This long distance laser ranging module also ideal for Handheld devices, Unmanned aerial vehicle, Electron-optical pod, and Border surveillance.

LRF1830C Long-Range Laser Rangefinder Module

The LRF1830C laser rangefinder module is a high-performance distance measuring device using 1535nm eye-safe glass laser and single-pulse TOF (Time of Flight) technology. It offers a measuring range up to 18km for 4m × 6m targets, making it ideal for surveillance, mapping, and defense applications.

Key features include single and continuous ranging, three-target detection, built-in diagnostics (APD temperature, voltage, blind zone), and a standby wake-up function. The module integrates a laser, transmit/receive optics, and control board in a compact design. With an RS422 interface, it supports easy integration and secondary development.

Reliable, powerful, and precise, the LRF1830C laser rangefinder module is perfect for long-distance measurement needs.

Project

Performance Indicators

Model

LRF1830C

Laser Wavelength

1535±5nm

Eye Safety

Class Ⅰ (IEC 60825-1)

Divergence Angle

≤0.3mrad

Receiving Field of View (FOV)

~1.8 mrad

Launch Lens Diameter

Φ18mm

Receiver Lens Diameter

Φ60mm

Measuring Range

（Reflectance 30%; visibility ≥ 28km.）

Big Target（4m×6m)

≥23000 m



Vehicle target(2.3m×2.3m)

≥ 18000 m



People(0.5m×1.7m)

≥ 4500 m



Drones(0.2m×0.3m)

≥2300 m

Minimum Range

50 m

Ranging Frequency

0.5~10Hz

Ranging Accuracy

±1 m

Range Resolution

≤30 m

Precision Rate

≥98%

False Alarm Rate

≤1%

Number of multi-target detections

Up to 3 targets

Electrical Interface

molex- 532610771

Supply Voltage

DC12 V

Standby power consumption

≤1.2W

Average power consumption

≤2 W



Peak Power Consumption

≤3W

Weight

≤380g

Dimension (L×W×H)

125mm×100mm×70mm

Operating Temperature

-40～+70 ℃

Storage Temperature

-55～+75 ℃

Impact Resistance

1200 g/1 ms（GJB150.16A-2009）

Anti-vibration

5～50～5 Hz，1 Octave range /min，2.5 g

Ranging Logic

First and last target, multi-target ranging, distance selectivity

Activation Time

≤950 ms

Data Interface

TTL

Electrical isolation

Isolation of power ground, communication ground and structure ground

Reliability

MTBF ≥ 1500h

Optical axis stability

≤0.05 mrad

Non-parallelism between optical axis and mounting surface

≤0.5 mrad

Protection Class

IP67

ESD Class

(Lens position)

Contact discharge 6kV

Air discharge 8kV

Electromagnetic Compatibility (EMC)

CE/FCC Certification

Eco-friendly

RoHS2.0

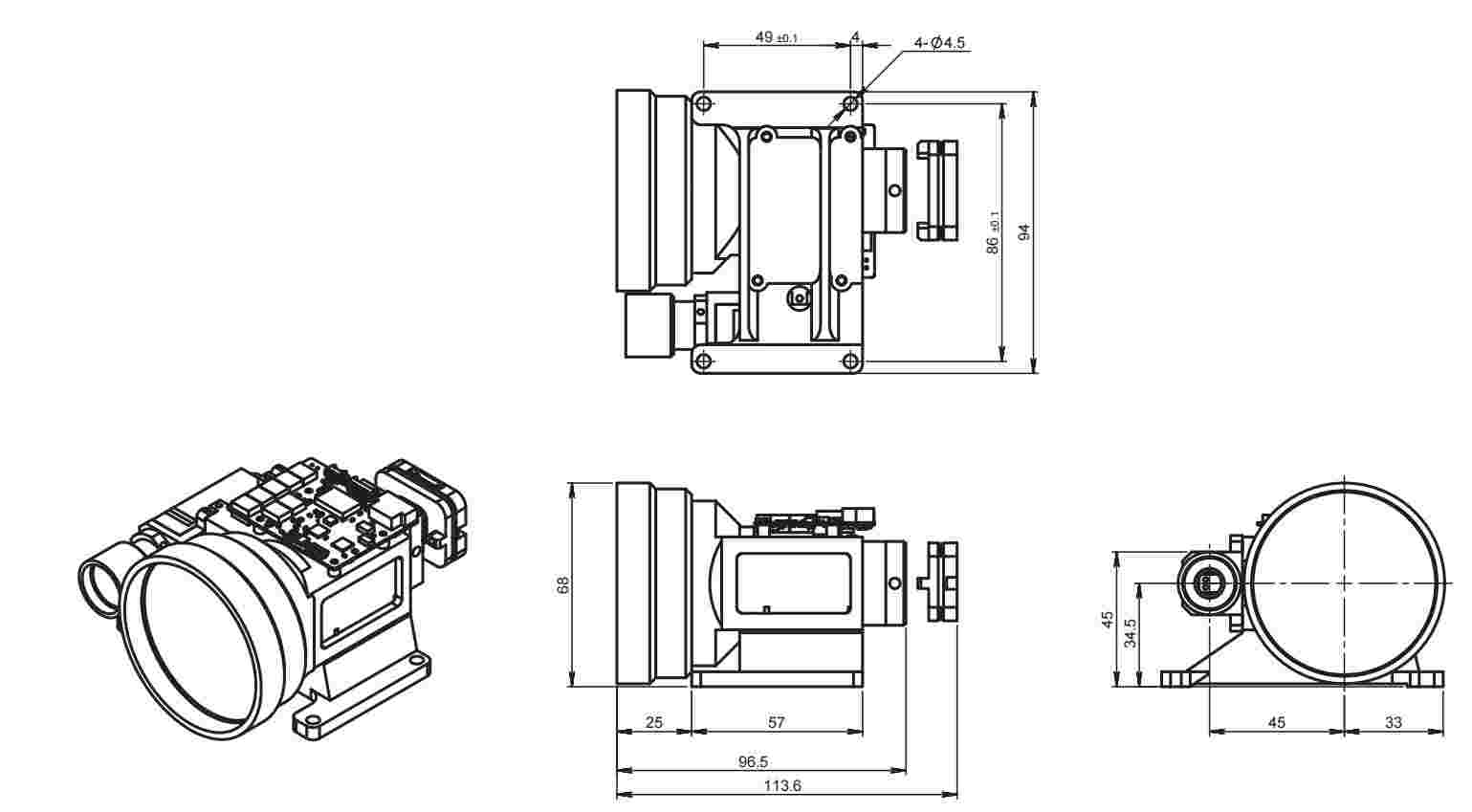

2D Dimension Image

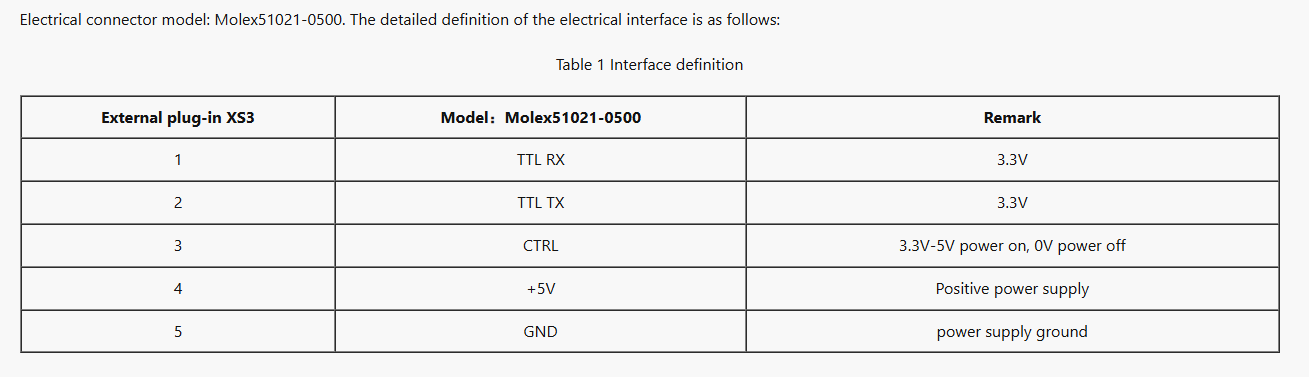

Communication Interface
Download Product Instructions Download PC Upper Computer
Product Image Product Image Product Image
