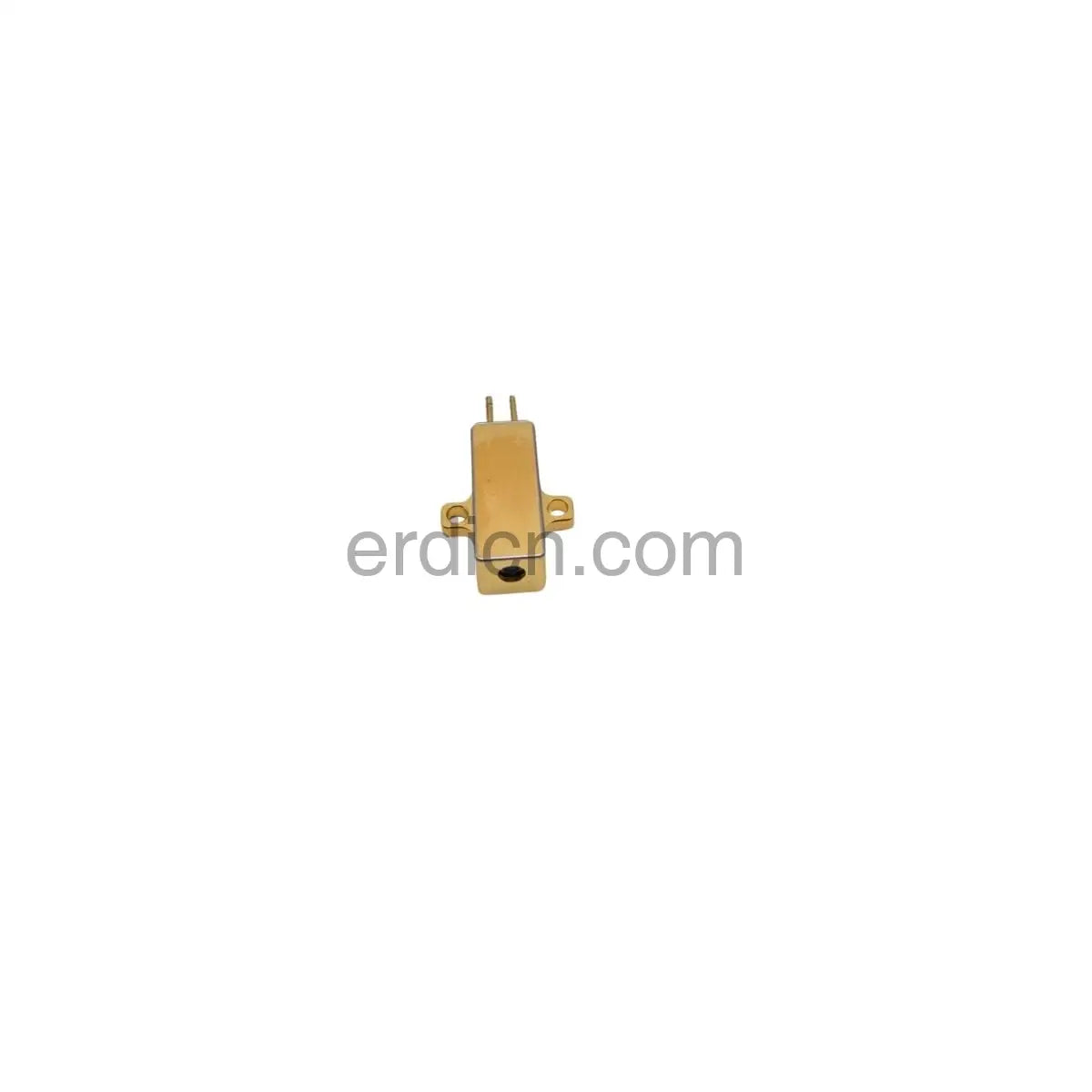

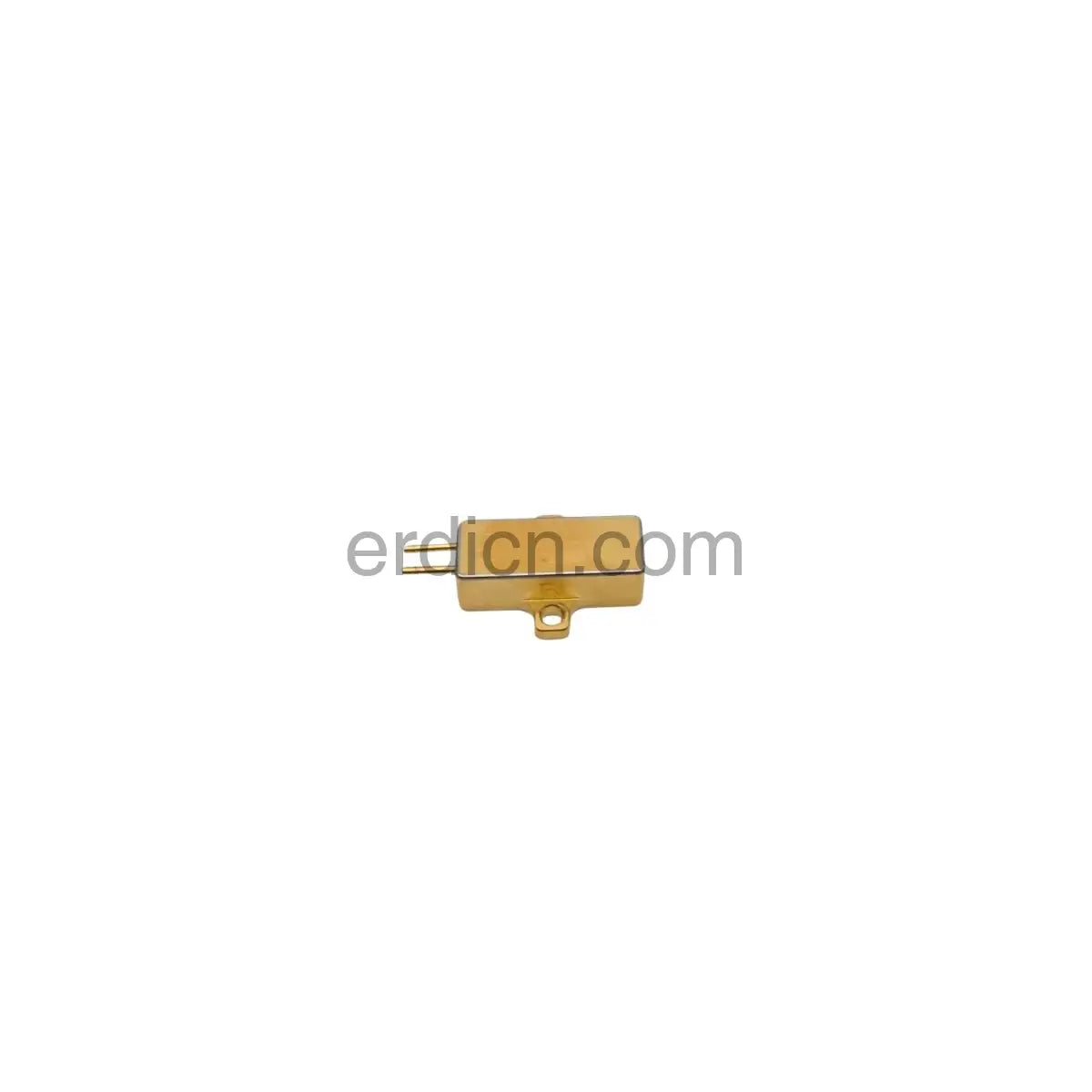

Microchip Laser-1535nm Erbium Glass DPSS Eye Safe Laser 100μJ

Microchip Laser-1535nm Erbium Glass DPSS Eye Safe Laser 100μJ

Model: ER100-01
The ER100 erbium glass laser operates at a wavelength of 1535 nm, ensuring Class 1 eye-safe performance. It delivers high pulse energy of ≥100 μJ with a 4 ns pulse width and a repetition rate adjustable between 1–10 Hz. With 10% pulse stability, a 0.2 mm beam diameter, and a low 10 mrad divergence in TEM₀₀ mode, the ER100 offers precise and reliable output. Built for durability, it operates from -45°C to +65°C, withstands impacts up to 1500 G, and resists vibrations of 20–2000 Hz/20 G. Compact (21×8×7 mm) and weighing just 8 g, it is ideal for demanding environments. Applications include long-range laser range-finding, LIDAR systems, laser communication, target designation, and other advanced eye-safe laser systems.

1.54 μm DPSS Laser is one of the solid-state laser series provided by ERDI, which is based on Er:Glass and Co:Spinel composite crystals. This excellent erbium laser utilizes mature bonding and packaging technologies, hence it can also be referred to as a 1535 nm micro-laser or 1535 nm microchip laser. With a pulse energy of ≥100μJ and a frequency range of 1-10Hz, it finds wide applications in fields such as laser ranging, laser illumination, lidar systems, target identification, laser medical treatments, and fiber optic communications.

Laser Wavelength

1535 nm

Eyesafe

Class 1

Pulse energy

≥100 μJ

Laser Pulse width

4 ns

Pulse repetition rate

1~10 Hz

Pulse stability

10%

Raw Beam Diameter

0 .2 mm

Beam divergence angle

10 mrad

Beam Mode

TEM00

Operating temperature

-45 ℃~+65 ℃

Storage temperature

-55 ℃~+85 ℃

Impact

1500 G, 0 . 5 ms

Vibration

20~2000 Hz/20 G

Life span

＞50 million shots

Dimension (mm)

21x8x7

weight

8 g

Voltage

2 V

electric current

8 A

Drive pulse width

≥2 ms

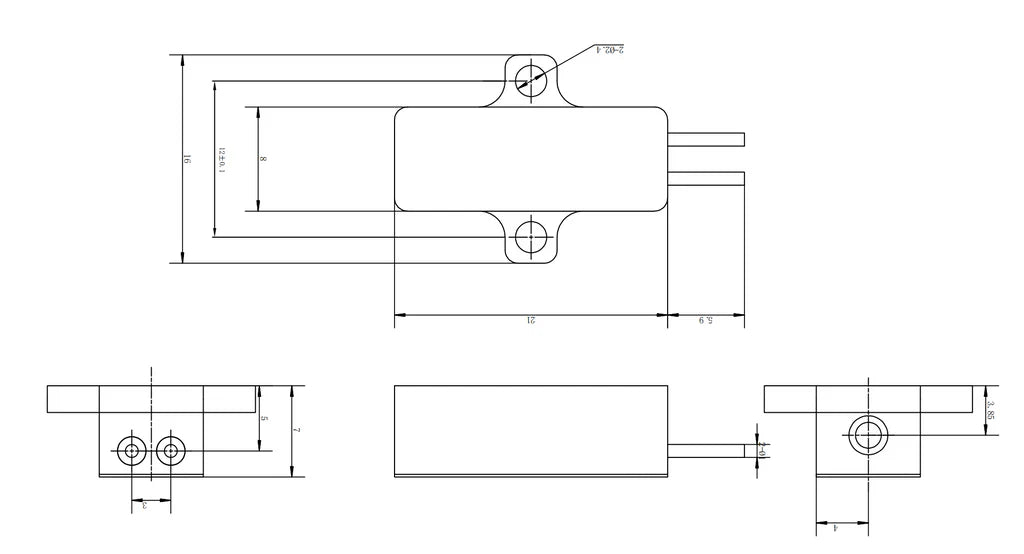

2D Dimension Image
Download Product Instructions
