ISR vs. FPV: When Clear Vision Meets High-Speed Flight in the Sky

Aerial imaging offers powerful tools for a wide range of missions. At first glance, both ISR (Intelligence, Surveillance, Reconnaissance) electro-optical pods and FPV (First-Person View) camera systems provide a "bird's-eye view." However, their design philosophy, core technologies, and ultimate purpose are fundamentally different. Understanding these differences is key to choosing the right tool for the job. Let’s explore further.

Core Difference: Mission-Driven Design

ISR Pods are built for observing, analyzing, and aiding decision-making. Their core philosophy is:
"Even if it takes longer to transmit, prioritize image quality, stability, and detail."

FPV Systems are built for flying, reacting, and immersive control. Their non-negotiable rule is:
"Send the video feed to the pilot instantly, even if the image isn’t perfect."

This difference in priorities affects every aspect of their design and use.

Head-to-Head: Key Differences

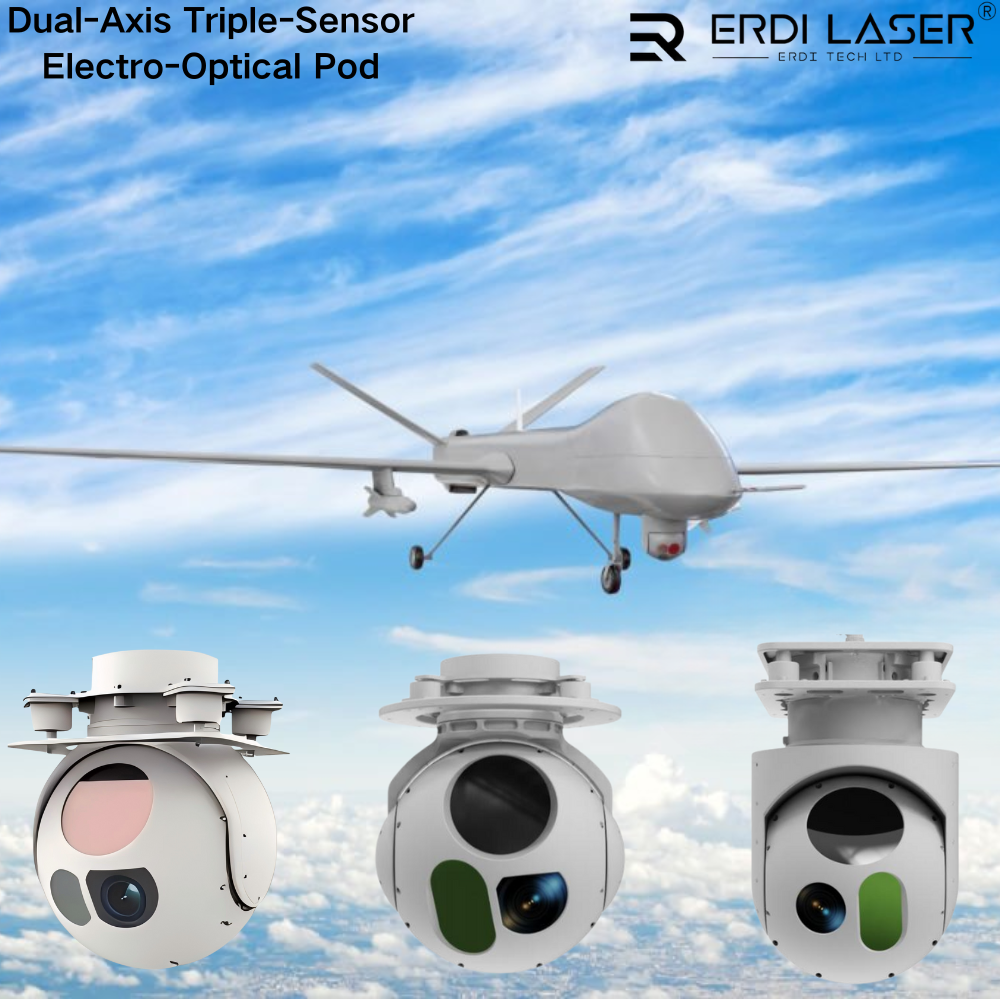

ISR Pods – Precision from Above

Imagine a powerful telescope combined with a thermal camera and laser rangefinder, mounted on a drone or helicopter, stabilized by a precision gimbal. That’s the essence of an ISR pod.

Technical Focus:

• Multi-sensor fusion: ISR pods often combine high-resolution electro-optical (daylight), infrared (thermal/night vision), and laser sensors. High-end systems may also include radar, enabling all-weather, around-the-clock capabilities.

• Precision gimbals: These advanced systems use motors and inertial sensors to counteract aircraft movement and vibrations, keeping the image rock-steady. Operators can smoothly pan, tilt, and zoom remotely.

• High resolution & zoom: Optical and digital zoom enables users to identify fine details from far distances—like vehicle types, facial features, or gear.

• Advanced processing: Features like dehazing, sharpening, electronic stabilization, and object tracking come standard.

• Robust data links: High-quality video and sensor data are securely transmitted via satellite or directional links. Bandwidth and reliability take priority over latency.

Typical Use Cases:

• Military: Battlefield surveillance, target tracking/designation, damage assessment, border patrol, counter-terrorism, special operations support.

• Government/Security: Law enforcement (drug busts, large-scale events), coast guard patrols, search and rescue (SAR), disaster response (floods, fires, earthquakes).

• High-end civilian: Infrastructure inspection (pipelines, power lines), precision agriculture, forest fire detection.

Analogy: Like a professional news cameraman using a high-end zoom lens mounted on a heavy tripod—prioritizing smooth, clear, detail-rich footage for analysis.

FPV Systems – The Pilot’s Immersive View

Now imagine a lightweight wide-angle camera mounted on a small, fast racing drone. The video feed is sent in near real-time to the pilot’s goggles, making them feel like they’re inside the drone. That’s FPV.

Technical Focus:

• Ultra-low latency: The total system delay (from camera to goggles) must be almost unnoticeable—ideally 10–30ms, never more than 50ms. Any lag makes high-speed control dangerous.

• Global shutter cameras: These prevent distortion (“jello effect”) during fast movement or vibration.

• Wide-angle lenses: 150–180+ degrees of view gives maximum situational awareness and cockpit-like immersion.

• Compact, lightweight design: Critical for small, high-performance aircraft.

• Analog vs. digital links: Analog VTXs dominate for their unbeatable low latency and graceful degradation (static/snow instead of freezes). Digital systems (DJI, Walksnail, HDZero) offer HD video but slightly higher latency and different failure behavior (freezing, glitches).

• Basic stabilization: Most FPV cams are fixed; some use lightweight 2- or 3-axis gimbals in cinematic or industrial FPV, but not at ISR precision levels.

Typical Use Cases:

• Drone racing & freestyle: Pilots rely entirely on FPV feeds to navigate tight tracks or perform high-speed tricks.

• Cinematic aerials: Capture immersive, dynamic shots that traditional drones can’t achieve.

• Close-range inspection: Maneuver around bridges, wind turbines, or towers—or fly indoors or in tight spaces.

• Special industrial tasks: Search-and-rescue in tight areas (speed and agility over resolution), and certain types of flexible agriculture monitoring.

Analogy: Like a motorcycle racer’s helmet camera—built to give a real-time, reactive view, not Hollywood-level quality.

Blurring the Lines? (A Note on Convergence)

Technology is evolving. Lightweight digital FPV systems now offer better image quality with low latency. On the flip side, some compact ISR-style drones include stabilized electro-optical/IR sensors with real-time control feedback.

Still, their design priorities remain different:
ISR systems focus on high-fidelity imagery and long-range analysis.
FPV systems focus on instant reaction and immersive control.

Conclusion: Choosing the Right Eye in the Sky

Don’t be fooled by the shared term “aerial camera.” ISR pods and FPV systems serve very different users with opposite needs.

• Need to identify a person from 5 km away at night, track them for hours, and send coordinates to command?
  → Go with an ISR pod for high-res sensors, thermal imaging, laser rangefinding, and rock-solid stability. Latency is not your concern.

• Need to fly through a window at 60 mph, navigate under a tree canopy, or inspect a bridge girder in milliseconds?
  → Choose an FPV system for ultra-low latency, wide-angle vision, and feather-light design. Lower resolution is an acceptable trade-off.

Understanding whether your mission depends more on capturing fine details or reacting fast is the key to choosing the right optical system for your aircraft. Both ISR and FPV are engineering marvels—each optimized for totally different roles in mastering the aerial perspective.
