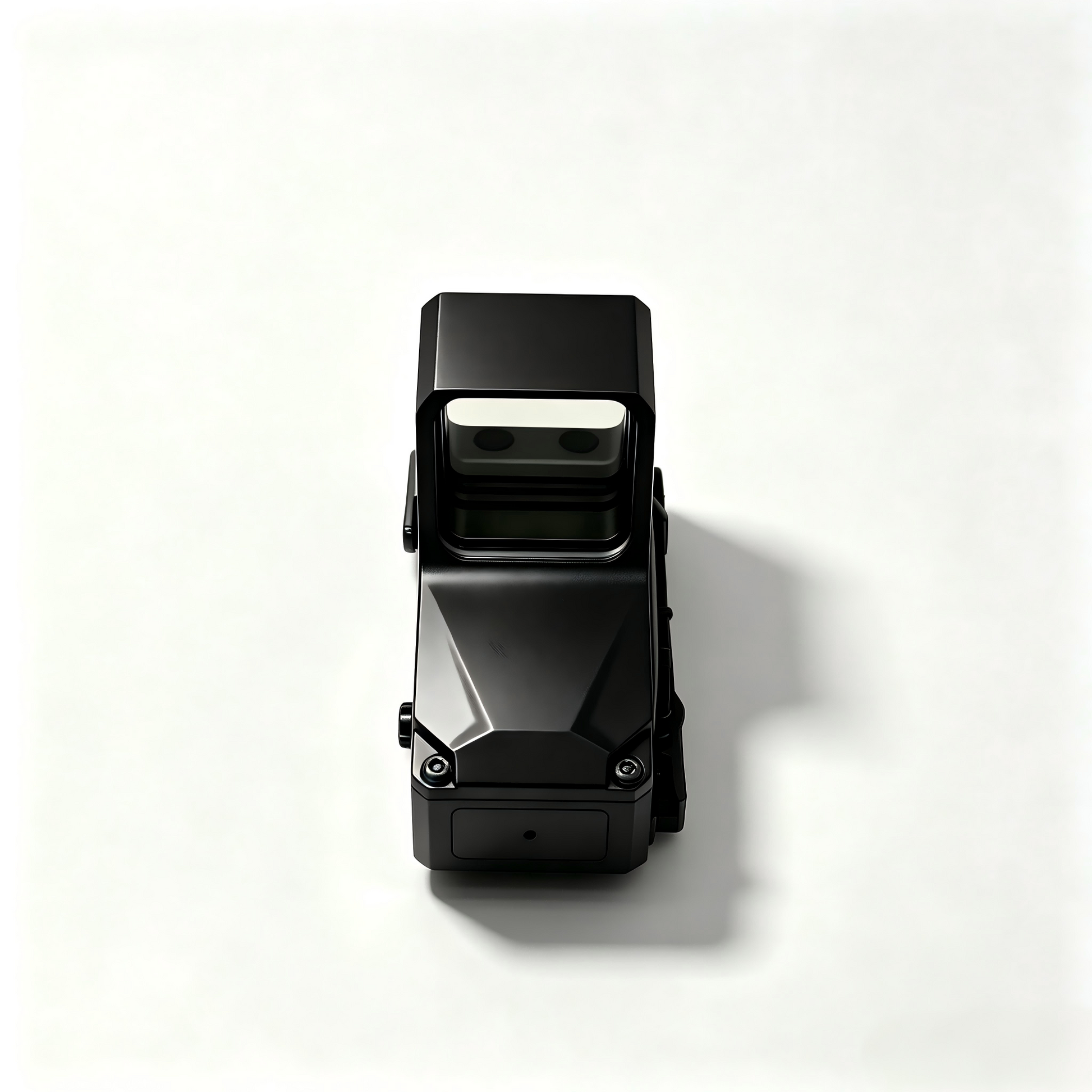

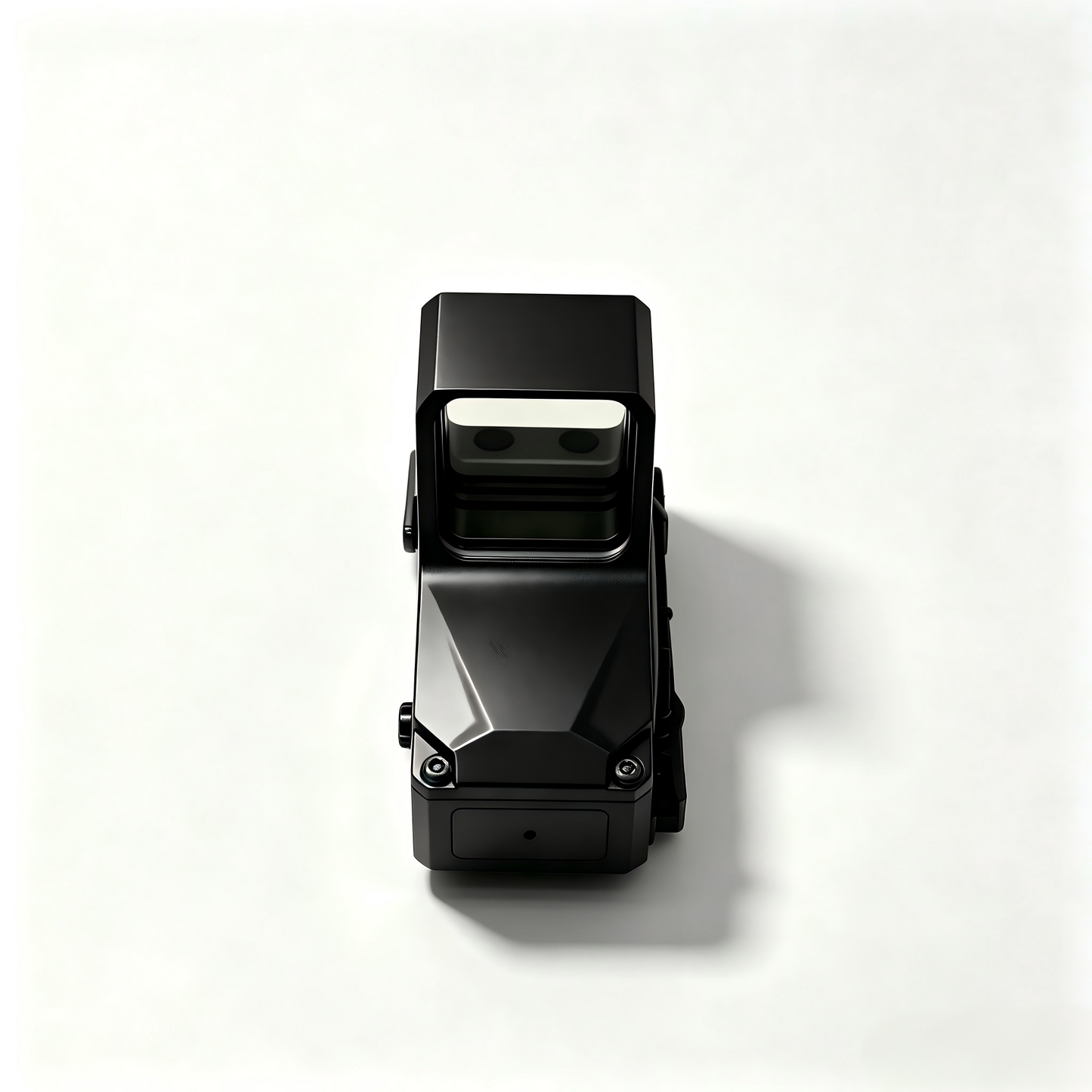

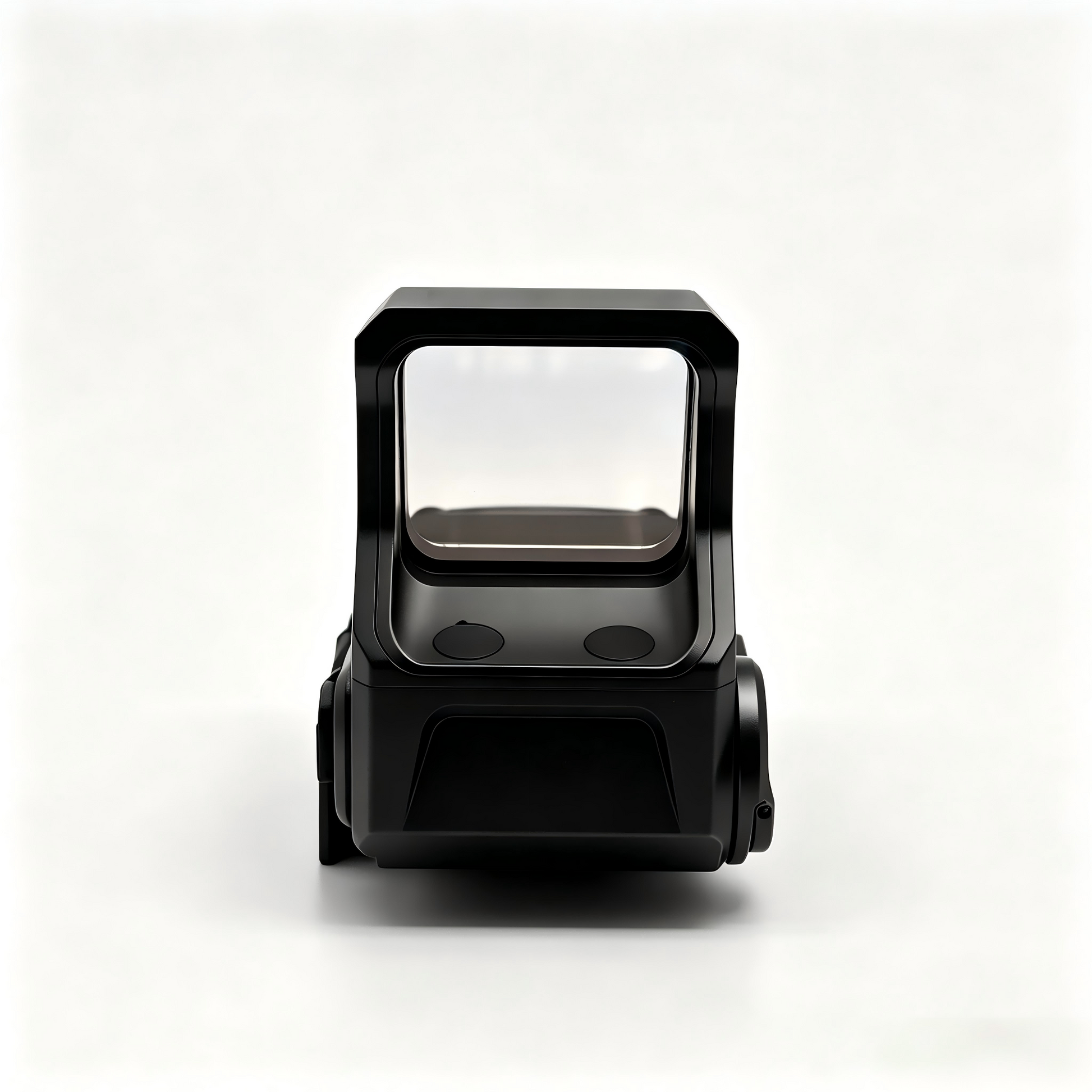

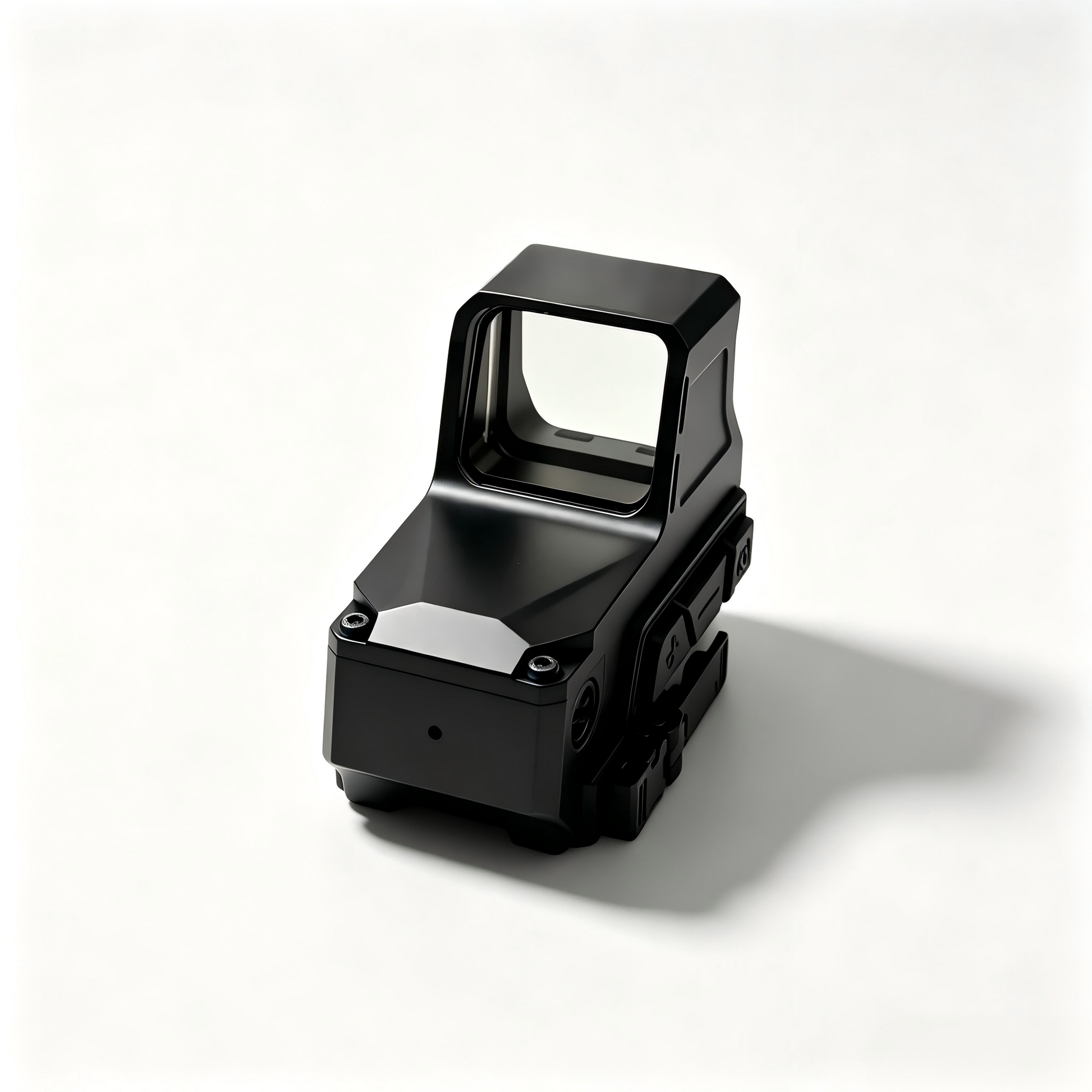

Waveguide Holographic Sight – True 1X Reflex Optic with Auto Brightness & IP68 Waterproof
Product Features of Waveguide Holographic Sight
1. True 1X optical system, no eye strain during long-time use.
2. Deep optical longitudinal depth, less occlusion of targets, easier target detection compared with regular holographic and red dot sights.
3. No color cast, clear identification of targets of all colors (superior to traditional red dot sights).
4. Sharper reticle with higher aiming precision than standard holographic sights.
5. No forward light leakage; the reticle cannot be seen from the target side to avoid exposing the user’s position.
6. Sealed optical path for superior environmental adaptability.
7. Minimal edge distortion; intra-window parallax controlled within 1 MOA.
8. Automatic brightness adjustment: reticle brightness adapts to ambient light levels automatically.
|
Item |
Parameter |
|
Battery Type |
CR123A |
|
Continuous Runtime |
≥5000 hours (medium brightness) |
|
Brightness Levels |
13 daytime levels + 3 night vision levels |
|
Battery Check |
Manual active check |
|
Low Battery Alert |
Flashing reticle |
|
Auto Standby Power Saving |
Supported |
|
Machining Process |
CNC machining |
|
Click Adjustment Range |
±40 MOA (elevation & windage) |
|
Click Adjustment Increment |
0.5 MOA per click |
|
Mount Standard |
Picatinny rail |
|
Overall Dimension |
80mm×58mm×58mm |
|
Sight Height (Bore Axis Offset) |
42mm |
|
Weight |
240g (excluding battery) |
|
Operating Temperature |
-40℃ ~ +65℃ |
|
Storage Temperature |
-45℃ ~ +70℃ |
|
Shock Resistance |
1200G |
|
Waterproof Rating |
IP68 |
