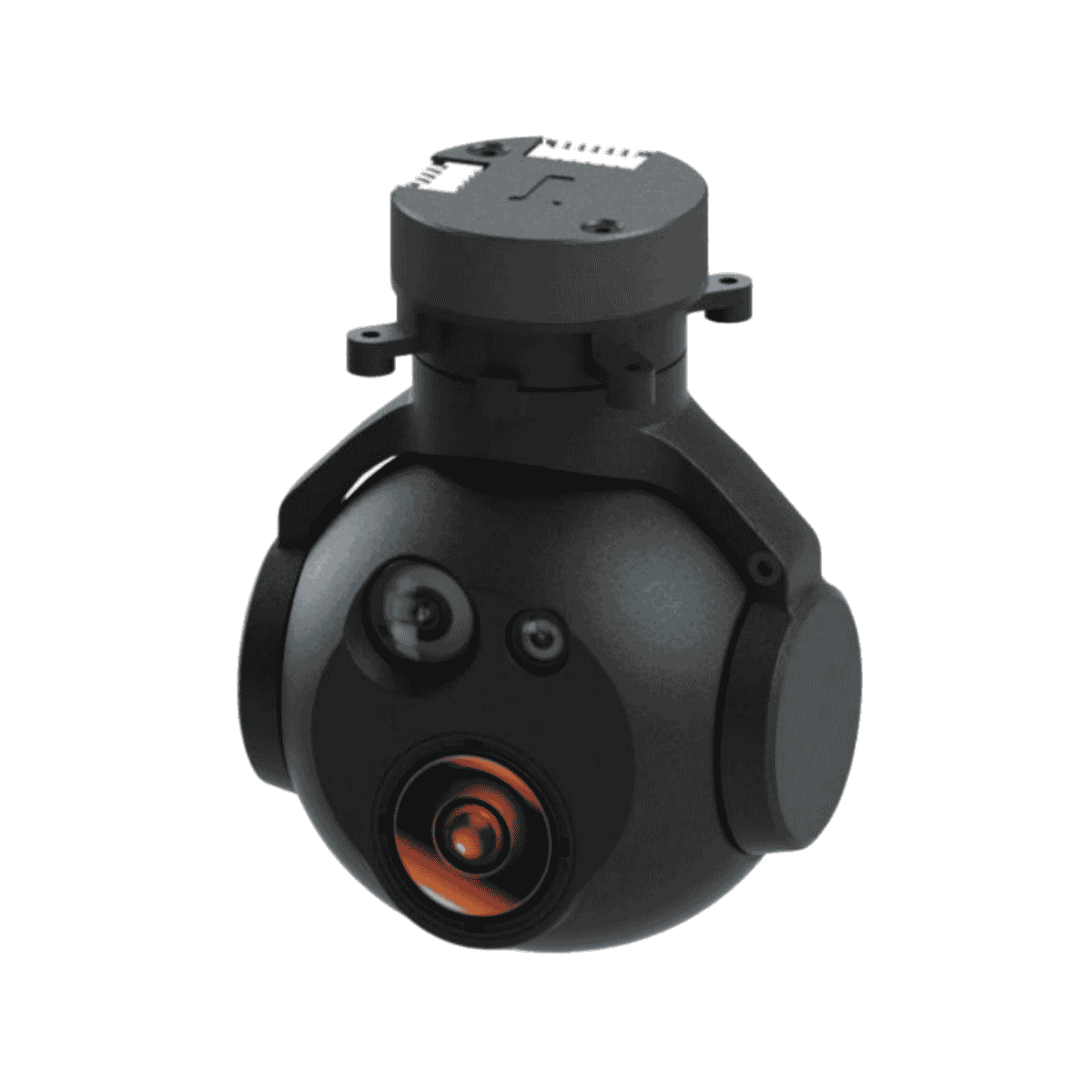

PODD60-01 Triple-mode Micro-Pod: Ultra-Lightweight Electro Optical Pod

PODD60-01 Triple-mode Micro-Pod: Ultra-Lightweight Electro Optical Pod

At just 85g, the ultra-lightweight PODD60 micro-pod withstands catapult-launch impacts for drones. Its integrated servo image stabilization ensures stable footage, while built-in intelligent tracking locks onto targets. Engineered for versatility, it features wide voltage input (12-28V) and dynamic power control to extend flight time. All electronics are EMC-compliant, housed in a rugged metal shell for maximum reliability. This compact drone payload combines high performance, impact resistance, and lightweight design, making it ideal for military reconnaissance, surveillance, and industrial inspection missions requiring reliable intel.
System specification
System type Gyro stability
Weight ≤85g
System characteristics
Platform type Two-axis
Pitch -110°~+110°
Roll -100°~+40°
Max angular velocity ≥100°/s
Stability accuracy 0. 1mrad(1°/2Hz)(1σ)
Motor encoder accuracy ≤0.3°
Visible Light Imaging (Wide Field of View)
Resolution and frame rate 1920×1080@60fps
FOV 82°×52° (3.2mm)
Visible Light Imaging (Narrow Field of View)
Resolution and frame rate 1920×1080@60fps
FOV 19.7°×11° (16mm)
Thermal IR
Resolution and frame rate 640×512@50fps
FOV 32.9°×26.6° (13mm)
Target tracking
Tracking speed ≥40°/s
System external interface
Control interface TTL/232/SBUS
Video output Network (Rtsp)
Power supply
Supply voltage 12V~28V
Power consumption Av.≤6W
Max.≤15W
Environmental condition
Working temp -20℃~+55℃
Storage temp -20℃~+60℃
Launch impact ≥400g

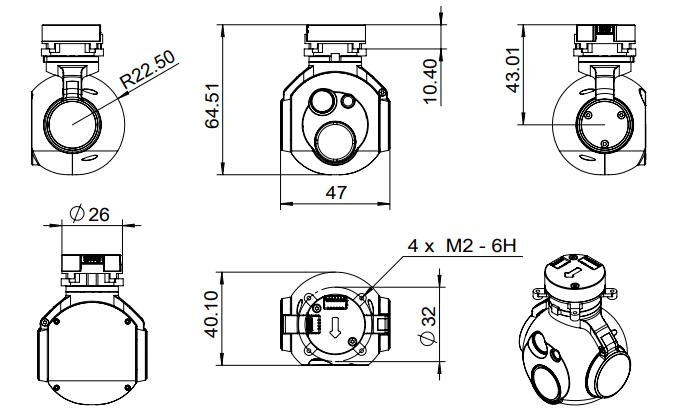

2D Dimension Image
