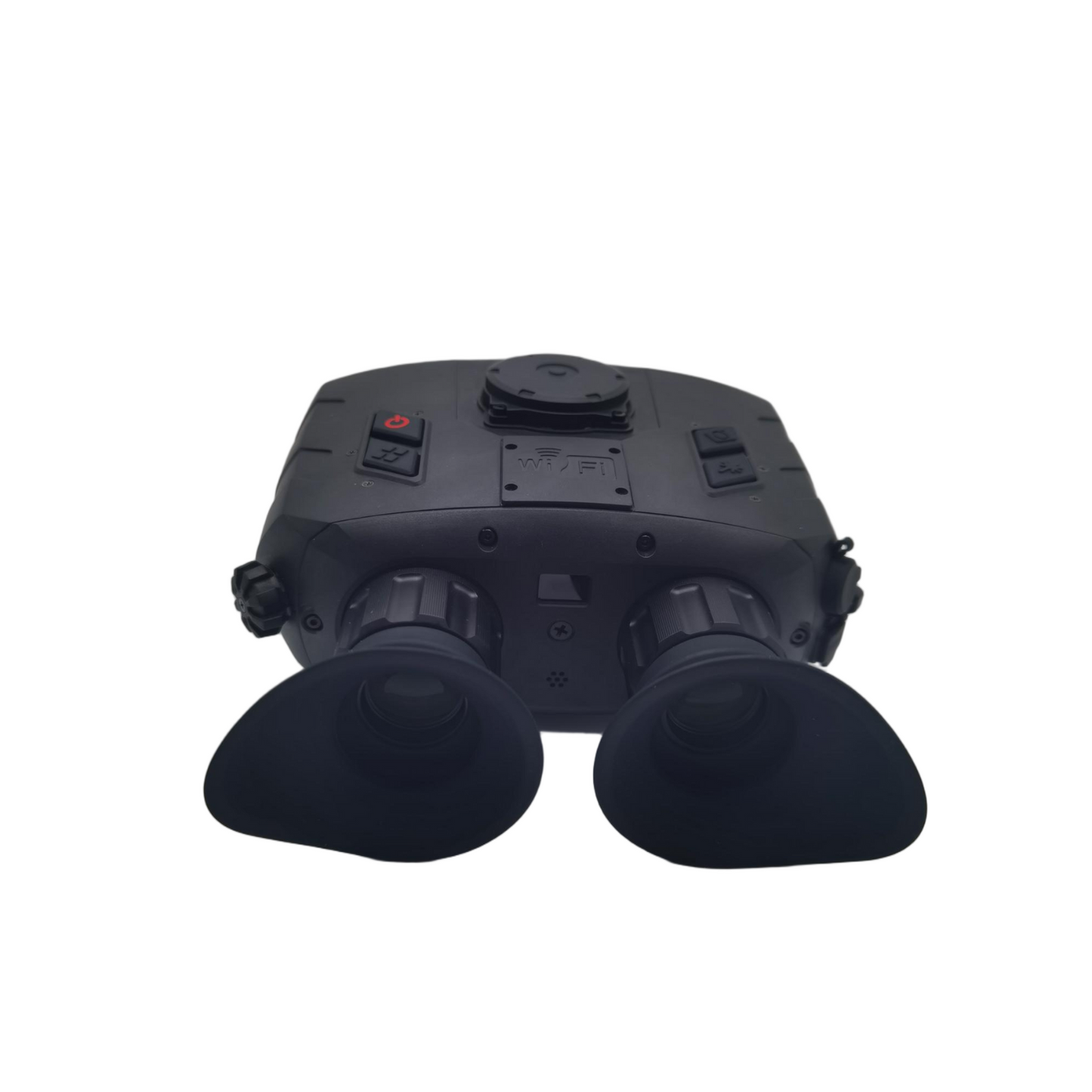

Thermal imaging binoculars designed for professional observation, surveillance, hunting, and search & rescue. The Three-light HD handheld device features dual high-definition observation channels, combining visible light and thermal imaging for superior day and night vision. With a visible light resolution of 6.2 megapixels and an infrared resolution of 800,000 pixels, it delivers clear, detailed images in total darkness, fog, or harsh weather. This advanced thermal binocular integrates a laser rangefinder, positioning module, and electronic compass for fast target detection, accurate distance measurement, and precise navigation. Users can collect, store, and analyze target data efficiently in the field. Compact, lightweight, and low-power, this night vision thermal binocular operates reliably in diverse environmental conditions, making it ideal for outdoor, tactical, and professional applications.
|
Infrared Thermal Imaging |
|
|
Resolution |
1024×768 ,12μm |
|
Operating Bandwidth |
8~14μm |
|
Field of View |
15.5°×11.6° |
|
Visible Light Imaging |
|
|
Resolution |
6.2 megapixels |
|
Field of View |
11.0°×8.2° |
|
Laser Ranging |
|
|
Wavelength |
1535nm |
|
Maximum Range |
≥3.0km |
|
Range Accuracy |
2m |
|
Positioning |
|
|
Positioning Mode |
BD、GPS |
|
Horizontal Positioning Accuracy (CEP) |
5m |
|
Vertical Positioning Accuracy (PE) |
10m |
|
Electronic Compass |
|
|
Magnetic Azimuth Measurement Range |
0~360° |
|
Magnetic Azimuth Measurement Accuracy |
1.0° |
|
Pitch Angle Measurement Range |
-90°~+90° |
|
Pitch Angle Measurement Accuracy |
1.0° |
|
Tilt Angle Measurement Range |
-180°~+180° |
|
Tilt Angle Measurement Accuracy |
1.0° |
|
Display |
|
|
Resolution |
1440×1080 |
|
Observation Mode |
Binocular |
|
External Interface |
|
|
Aviation connector |
DC/USB/RS232 |
|
Video Interface |
HDMI |
|
Wireless transmission |
WIFI |
|
General |
|
|
Storage |
64G |
|
Eyepiece Diopter |
-4~+4 |
|
Weight |
≤1. 1kg |
|
Operating Time |
≥7h(Room temperature) |
|
Operating Temperature |
-40℃~+55℃ |
|
Storage Temperature |
-55℃~+70℃ |
|
Water Resistance Rating |
IP67 |
