ERDI MINI-ER100 Microchip Laser Module: Leading the Way in 1535nm Erbium Laser Technology

Introduction

The MINI-ER100 Microchip Laser Module, developed by our company, represents a significant advancement in 1535 nm solid-state laser technology. Utilizing state-of-the-art Er:Glass and Co:Spinel composite crystals, this compact yet powerful module delivers exceptional performance, making it ideal for a broad spectrum of applications—from laser ranging to fiber-optic communications. With pulse energy of ≥100 μJ, Class 1 eye-safe certification, and a rugged design, the MINI-ER100 sets a new benchmark in erbium laser solutions.

Principle and Core Technology

The MINI-ER100 operates on Erbium-doped glass (Er:Glass) technology, known for its high efficiency and long-term stability at the 1535 nm wavelength—a spectral region considered eye-safe and optimal for outdoor and defense applications. The incorporation of Co:Spinel crystals significantly enhances thermal conductivity and output stability, enabling high pulse repeatability (≤10% pulse-to-pulse variation) and a narrow pulse width of just 3.5ns.

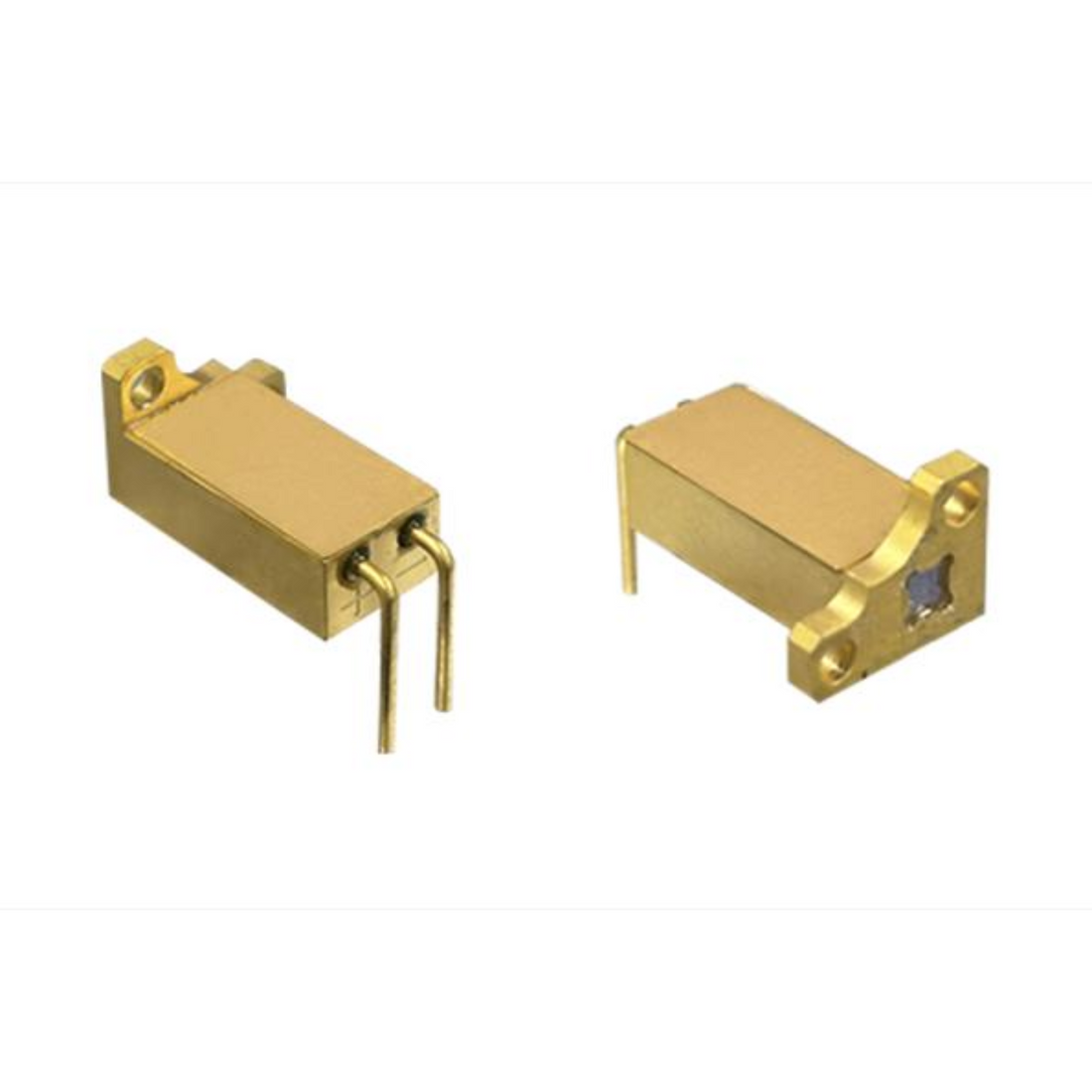

The module's microchip architecture employs advanced bonding and packaging techniques to achieve a highly compact form factor (14.5×6.3×4.37 mm³; 2.5 g) without compromising on performance. Operating in the fundamental TEM₀₀ mode, the laser delivers excellent beam quality with a raw beam diameter of 0.3 mm and a divergence angle of 10 mrad—key characteristics for precision targeting and alignment applications.

Key Features

• High Pulse Energy: Generates ≥100 μJ per pulse, ideal for high-demand applications such as LiDAR and laser medical procedures.

• Adjustable Repetition Rate: Operates at 1–10 Hz, allowing for adaptable performance across various use cases.

• Robust Environmental Tolerance: Functions reliably across a wide temperature range (−45°C to +65°C operating; −55°C to +85°C storage).

• Long Operational Lifespan: Capable of delivering over 50 million pulses, ensuring long-term reliability and reduced maintenance.

• Compact and Lightweight: Suited for integration into portable, handheld, or space-constrained platforms.

Applications

The MINI-ER100’s versatility supports a wide array of industrial, scientific, and defense applications:

• Laser Ranging and LiDAR: High pulse energy and beam precision enable accurate distance measurements and high-resolution 3D mapping.

• Target Identification and Illumination: The eye-safe 1535 nm wavelength is ideal for covert military operations requiring non-visible illumination.

• Medical and Aesthetic Treatments: Suitable for dermatological and therapeutic procedures that require minimal tissue damage.

• Fiber-Optic Communications: Enhances signal quality and stability in long-haul and high-capacity telecommunication networks.

• Industrial and Scientific Research: Provides a stable, high-energy light source for laboratory experiments and materials analysis.

Conclusion

The MINI-ER100 Microchip Laser Module exemplifies the forefront of solid-state laser innovation, combining high energy output, exceptional reliability, and a compact form factor. Its advanced design and versatile application potential make it a top choice for professionals in defense, healthcare, communications, and research, reaffirming its status as a world-class solution in 1535 nm erbium laser technology.
